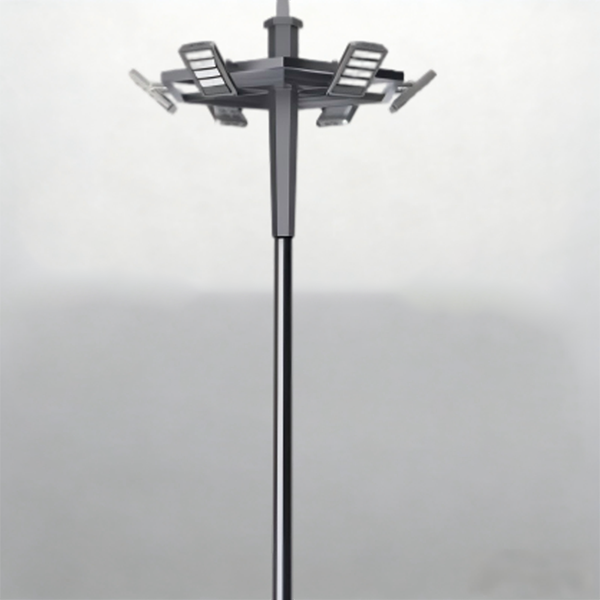

Our LED high mast light is a high-performance outdoor lighting solution designed for large-area illumination scenarios. Adopting advanced LED light source technology and heavy-duty structural design, it combines super brightness, energy saving, long service life and strong environmental adaptability, which is the ideal choice for municipal engineering, transportation hub, industrial park and large-scale sports venue lighting.
High-brightness SMD/COB LED chips, luminous efficacy up to 150LM/W
Uniform light distribution without glare
Instant start without warm-up, no stroboflash
Energy saving up to 70% compared with traditional HPS/MH lamps
Low power consumption and reduced operating cost
No mercury and other harmful substances, green and environmental protection
Aluminum alloy housing with electrostatic spraying, anti-corrosion & anti-UV
IP65/IP66 high protection grade, dustproof and waterproof
Galvanized steel pole (15-40m), wind resistance (level 10-12)
Integrated heat dissipation structure, reduce light decay
LED lifespan up to 50,000+ hours
Modular design for easy maintenance
Support light control, time control, microwave induction
Remote intelligent control (optional)
Customizable color temperature (3000K/4000K/6000K)
| Parameter | Value |
|---|---|
| Power | 100W / 200W / 300W / 400W / 500W / 600W (optional) |
| Voltage | AC 85-265V 50/60Hz (wide voltage, global use) |
| Color Temperature | 3000K (warm) / 4000K (neutral) / 6000K (cool) |
| CRI (Ra) | ≥80 |
| Beam Angle | 60°/90°/120° (customizable) |
| Working Temperature | -40℃ ~ +65℃ |
| Material | Lamp body - die-cast aluminum; Pole - hot-dip galvanized steel |
| Mounting Type | Flange base fixed installation (concrete pouring) |
Widely used in highways, expressways, railway stations, airports, seaports, urban squares, residential quarters, industrial parks, logistics centers, stadiums, parking lots, toll stations and other large-area outdoor lighting projects.
100% factory direct sales, competitive price
Flexible minimum order quantity (MOQ)
Custom pole height, power, color temperature
Tailored control mode as per requirements
Passed CE, ROHS, EMC, LVD certifications
Meet global export standards
3-5 years warranty period
Timely technical support and spare parts supply
