360° full-day charging
Multiple vertical faces remain exposed as solar direction changes, supporting continuous collection throughout the day.
PRODUCT PLATFORMFoldable Polygonal Vertical PV
POWER RANGE100W to 300W
POLYGON SERIES6 / 8 / 10 / 12 sides
CATALOGUE REFERENCEGeoFlex Foldable Vertical PV
PRODUCT OVERVIEW
Solar energy that wraps the pole.
The GeoFlex series uses foldable polygonal solar modules to bring photovoltaic generation to existing vertical structures. The supplied catalogue highlights 360-degree charging, modular installation, a vertical surface that does not readily collect sand, dust or snow, and wind resistance up to 160 km/h.

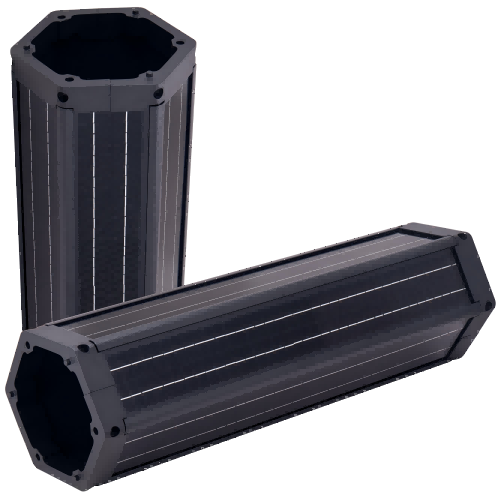

Foldable modular design
Foldable construction is designed to reduce packaging volume while modular units support project-specific output selection.
Architectural pole integration
The vertical cylinder form is intended to complement urban infrastructure without the broad visual profile of a flat panel.

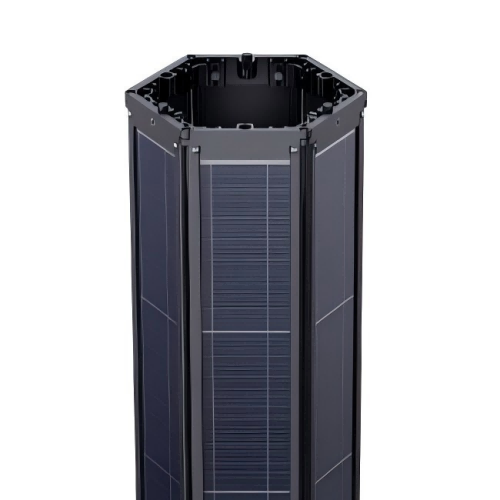

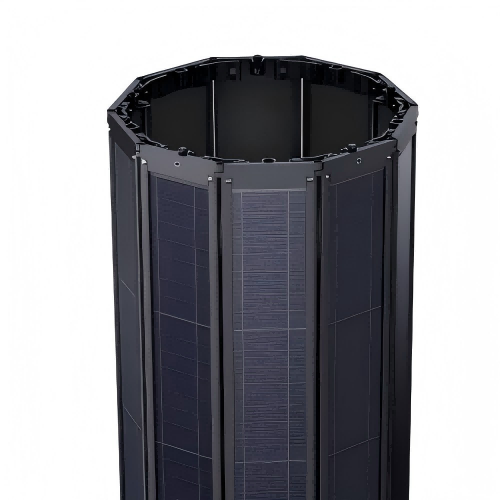

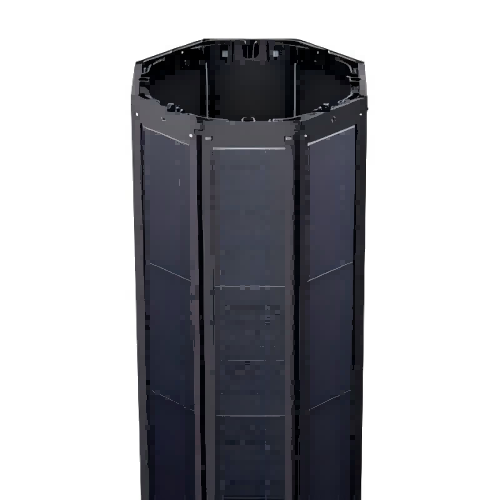

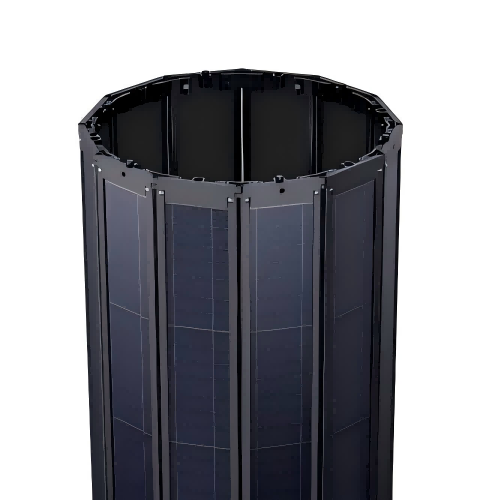

MODEL RANGE
Choose your polygon series.
CELL & EFFICIENCYMONO made in Taiwan
23.20% solar cell efficiency
±3% power tolerance
23.20% solar cell efficiency
±3% power tolerance
CONSTRUCTIONHigh-strength tempered glass
Aluminium frame
Front 5400 Pa / back 2400 Pa
Aluminium frame
Front 5400 Pa / back 2400 Pa
OPERATING REFERENCE2.5 mm Universal MC4
-20°C to +70°C · IP66
>20 years lifetime · 3 years warranty
-20°C to +70°C · IP66
>20 years lifetime · 3 years warranty
APPLICATIONS
One platform, multiple public-space uses.
The supplied catalogue identifies solar street lights, CCTV systems, road signal lights, wireless broadcast and custom lighting as GeoFlex application scenarios.
Street & garden lighting
For public roads, walkways and landscape lighting with a vertical solar profile integrated around the pole.
CCTV & road signals
For monitoring and traffic applications that require a pole-mounted solar generation solution.
Wireless & custom lighting
For wireless broadcast equipment and custom lighting configurations set by project requirements.
PRODUCT IMAGE LIBRARY
Source images from the supplied product folder.
The preview uses the folder-provided foldable polygon product images directly, with each series image retained here for rapid visual comparison.
PROJECT SUPPORT
Start with the pole, the load and the site.
Share the existing pole diameter, operating load, location and required operating hours to select the appropriate GeoFlex series and final system configuration.
