Energy Storage Systems & LiFePO4 Batteries

LiFePO4 Energy Storage Batteries & Systems | E-Able Power

E-Able Power manufactures LiFePO4 energy storage systems in Dongguan, China, from home batteries to megawatt-scale containers, with factory-direct pricing, OEM/ODM and global support. Residential: GWR wall-mounted (5.12–10.24 kWh) and GVR tower (15.36–32.15 kWh) batteries with 6,000+ cycles at 80–90% DoD, cell-level BMS and a 5-year warranty. C&I: GCB-E all-in-one cabinets (GCB-E50 / E100 / E240, 50–241 kWh) for peak shaving, TOU arbitrage and backup. Utility: GCB-C1200 (20 ft, 1.2 MWh) and GCB-C2400 (40 ft, 2.4 MWh) factory-integrated container BESS on a 768 Vdc rack platform. Racks & Modules: GHR-314 rack (241 kWh) and GLR-314 module (16.08 kWh). Inverters: SDPO split-phase hybrid inverters (SDPO-U 7.2 kW; SDPO-IP 10–12 kW) with dual MPPT, 10 ms transfer and UL 1741.

Quality: Grade A 280 Ah / 314 Ah cells; CE, IEC 62619, UL 1973; ISO 9001 / ISO 14001. Service: Partners in 20+ countries receive installation, training and after-sales support in local languages.

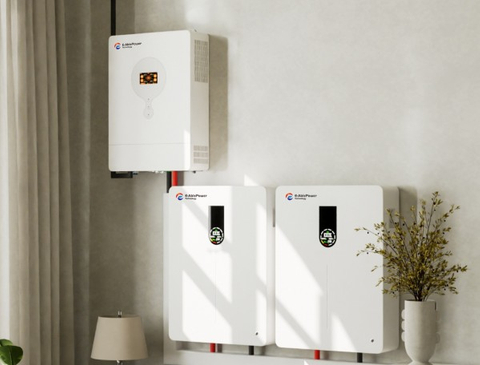

Split Phase Hybrid Inverter 7.2kW 12kW | E-Able Power

[SPLIT PHASE HYBRID INVERTER 7.2-12KW]--E-Able Power SDPO series on/off grid split phase hybrid inverter provides true 120Vac (L1/N, L2/N) and 240Vac (L1/L2) output for North-American-style two-phase grids, homes, small businesses and off-grid cabins. Three models cover every site: SDPO-U-7.2kw Split, SDPO-IP-10kw Split and SDPO-IP-12kw Split. Key features include dual MPPT trackers with up to 6000W plus 6000W PV input, 51.2V LiFePO4 or lead-acid battery compatibility with self-adaptive BMS communication, pure sine wave output, 10ms bypass-to-inverter transfer, and parallel operation up to 6 units for expansion to 72kW. UL 1741 certified, FCC Part 15 Class B, IEEE 1547 grid regulation, with 21 built-in protections and WiFi remote monitoring. Pair with E-Able GWR or GVR batteries for a complete solar plus storage system. Quotation within 2-3 business days.

Brief:
[SPLIT PHASE HYBRID INVERTER 7.2-12KW]--E-Able Power SDPO series on/off grid split phase hybrid inverter provides true 120Vac (L1/N, L2/N) and 240Vac (L1/L2) output for North-American-style two-phase grids, homes, small businesses and off-grid cabins. Three models cover every site: SDPO-U-7.2kw Split, SDPO-IP-10kw Split and SDPO-IP-12kw Split. Key features include dual MPPT trackers with up to 6000W plus 6000W PV input, 51.2V LiFePO4 or lead-acid battery compatibility with self-adaptive BMS communication, pure sine wave output, 10ms bypass-to-inverter transfer, and parallel operation up to 6 units for expansion to 72kW. UL 1741 certified, FCC Part 15 Class B, IEEE 1547 grid regulation, with 21 built-in protections and WiFi remote monitoring. Pair with E-Able GWR or GVR batteries for a complete solar plus storage system. Quotation within 2-3 business days.

More >>

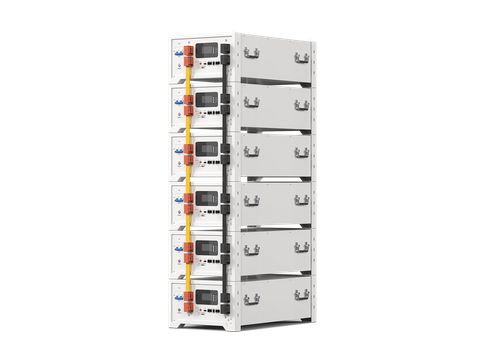

GLR-314 High-Voltage Stackable Battery Module

[GLR-314: HIGH-VOLTAGE STACKABLE LFP BATTERY MODULE -- 16KWH/MODULE]

16.08kWh per module, Grade A 314Ah LFP cells. 2-16 modules in series (32-257kWh/rack), up to 10 racks parallel for 800kW+/2.57MWh. DC voltage: 102.4-819.2Vdc. Module: 838x478x278mm, 125kg, castor wheels. CAN 2.0 / RS485 / RS232 (Modbus RTU). Compatible with Deye, Growatt, Solis, Goodwe, Sol-Ark, SMA, Victron. 6,000+ cycles at 90% DOD. 3-level BMS. CE, IEC 62619. 5-year warranty. Configurable to project.

Brief:
[GLR-314: HIGH-VOLTAGE STACKABLE LFP BATTERY MODULE -- 16KWH/MODULE]

16.08kWh per module, Grade A 314Ah LFP cells. 2-16 modules in series (32-257kWh/rack), up to 10 racks parallel for 800kW+/2.57MWh. DC voltage: 102.4-819.2Vdc. Module: 838x478x278mm, 125kg, castor wheels. CAN 2.0 / RS485 / RS232 (Modbus RTU). Compatible with Deye, Growatt, Solis, Goodwe, Sol-Ark, SMA, Victron. 6,000+ cycles at 90% DOD. 3-level BMS. CE, IEC 62619. 5-year warranty. Configurable to project.

More >>

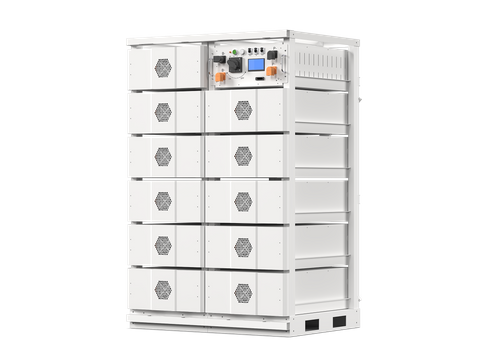

GHR-314 High-Voltage 3-Stack Battery Rack

[GHR-314: HIGH-VOLTAGE 3-STACK BATTERY RACK -- 241KWH]

Patented 3-column stack architecture: up to 45 modules (15/column), 241kWh per rack. Grade A 314Ah LFP cells, 6,000+ cycles at 90% DOD. Configurable DC bus to 768Vdc+. 157A continuous / 314A peak. CAN 2.0 / RS485 / RS232. 3-level BMS. Optional aerosol/perfluorohexanone FSS. Parallel multiple racks for MWh-scale. IP20 indoor. CE, IEC 62619. 5-year warranty scalable to 10 years. Configurable to project.

Brief:
[GHR-314: HIGH-VOLTAGE 3-STACK BATTERY RACK -- 241KWH]

Patented 3-column stack architecture: up to 45 modules (15/column), 241kWh per rack. Grade A 314Ah LFP cells, 6,000+ cycles at 90% DOD. Configurable DC bus to 768Vdc+. 157A continuous / 314A peak. CAN 2.0 / RS485 / RS232. 3-level BMS. Optional aerosol/perfluorohexanone FSS. Parallel multiple racks for MWh-scale. IP20 indoor. CE, IEC 62619. 5-year warranty scalable to 10 years. Configurable to project.

More >>

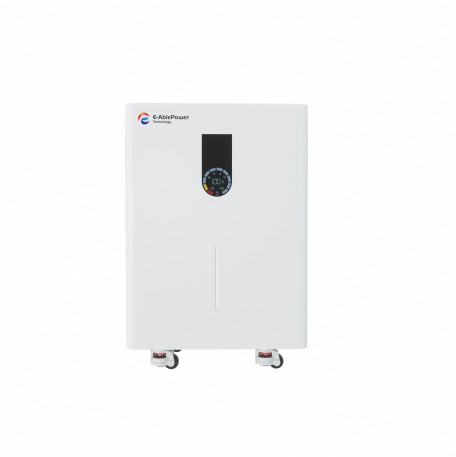

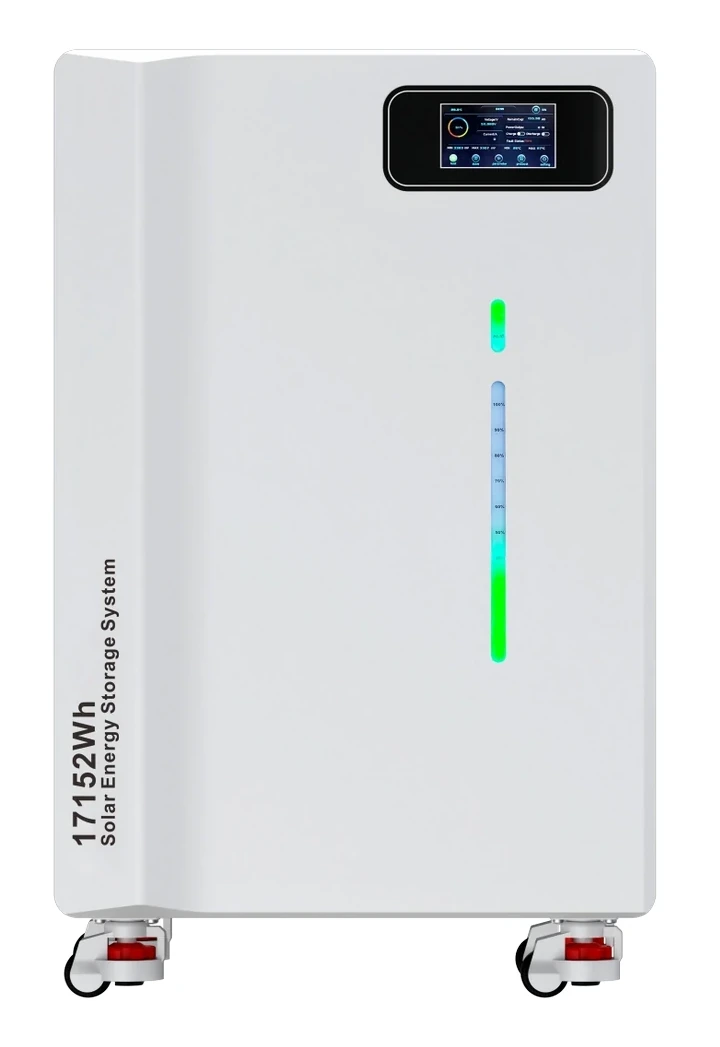

GVR Series Vertical Floor-Standing LFP Battery

floor-standing LFP battery, GVR series battery, 51.2V LiFePO4 battery, residential energy storage, vertical solar battery, home backup battery, Deye compatible battery, Growatt battery storage, Victron compatible battery, Grade A LFP battery, E-Able Power GVR series, residential ESS OEM

Brief:
floor-standing LFP battery, GVR series battery, 51.2V LiFePO4 battery, residential energy storage, vertical solar battery, home backup battery, Deye compatible battery, Growatt battery storage, Victron compatible battery, Grade A LFP battery, E-Able Power GVR series, residential ESS OEM

More >>

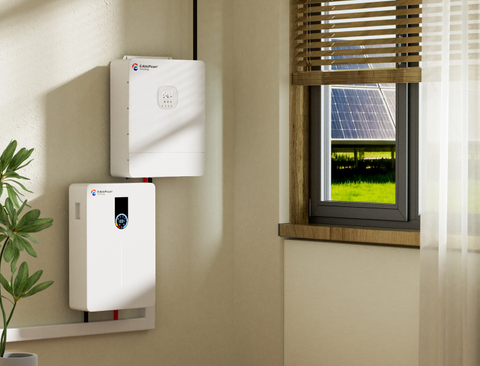

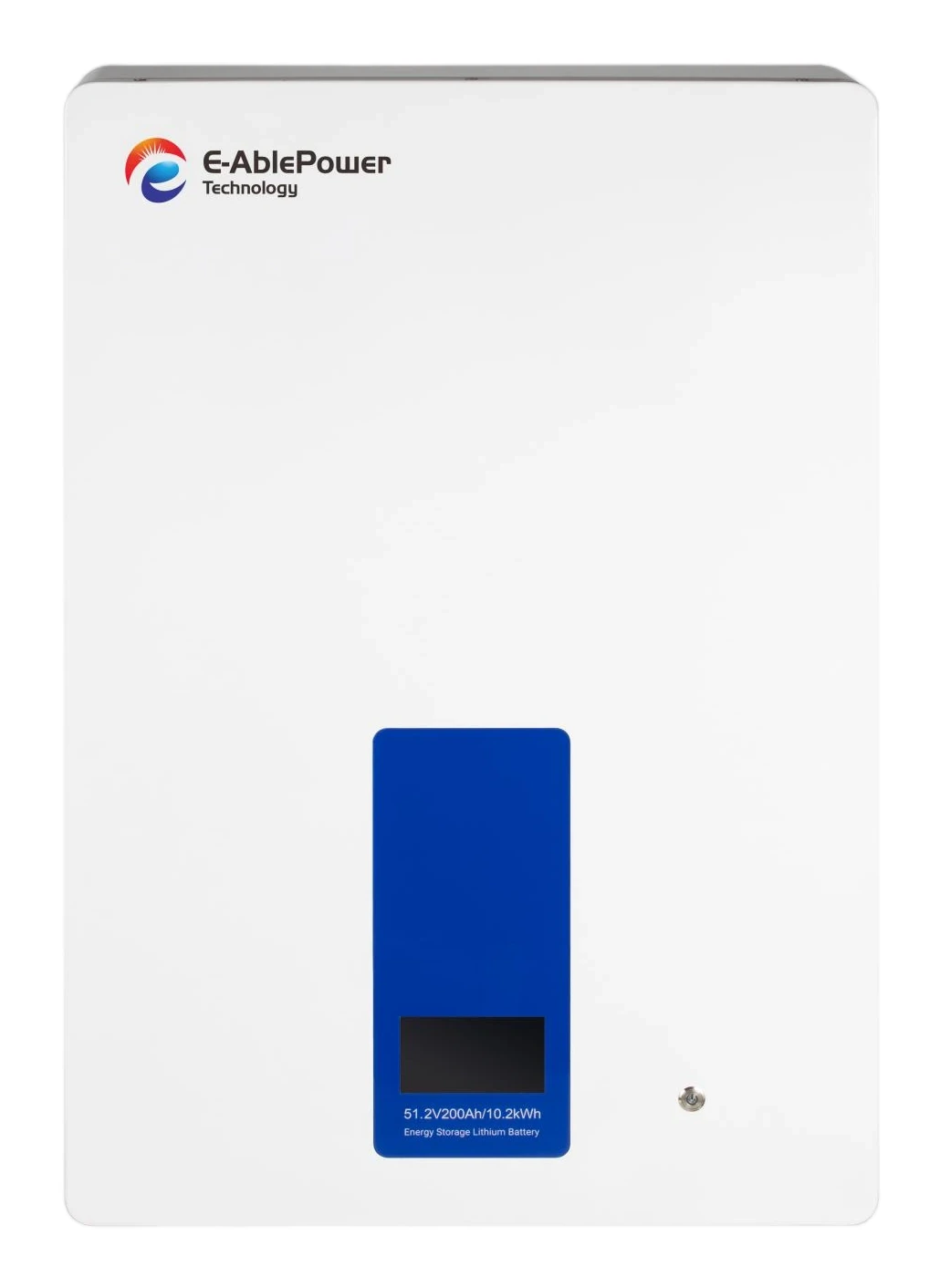

GWR Series Wall-Mounted LFP Battery

[GWR SERIES: ULTRA-THIN WALL-MOUNTED LFP BATTERY -- 5-10KWH RESIDENTIAL]

Two models at 51.2Vdc: GWR 48-100 (5.12kWh/100Ah, 442x133x600mm, 45kg) and GWR 48-200 (10.24kWh/200Ah, 480x180x850mm, 95kg). Both: 100A, 90% DOD, 6,000+ cycles at 80% DOD. Grade A LFP cells, Smart BMS with cell-level monitoring. RS485 / CAN 2.0 / RS232 / WiFi (Modbus RTU). Compatible with Deye, Growatt, Victron, Goodwe, Solis, Luxpower, Sofar. Wall-mount with brackets included. IP20 indoor. CE, ROHS, UN38.3, MSDS. 5-year warranty. Parallel capable.

Brief:
[GWR SERIES: ULTRA-THIN WALL-MOUNTED LFP BATTERY -- 5-10KWH RESIDENTIAL]

Two models at 51.2Vdc: GWR 48-100 (5.12kWh/100Ah, 442x133x600mm, 45kg) and GWR 48-200 (10.24kWh/200Ah, 480x180x850mm, 95kg). Both: 100A, 90% DOD, 6,000+ cycles at 80% DOD. Grade A LFP cells, Smart BMS with cell-level monitoring. RS485 / CAN 2.0 / RS232 / WiFi (Modbus RTU). Compatible with Deye, Growatt, Victron, Goodwe, Solis, Luxpower, Sofar. Wall-mount with brackets included. IP20 indoor. CE, ROHS, UN38.3, MSDS. 5-year warranty. Parallel capable.

More >>

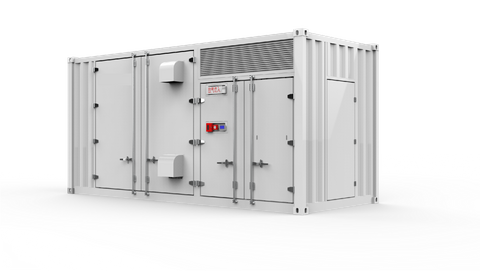

GCB-C1200 Utility-Scale Energy Storage Container

[GCB-C1200: 20FT ALL-IN-ONE UTILITY-SCALE BESS CONTAINER -- 500KW/1.2MWH]

20ft ISO container (6,058x2,438x2,896mm, 16,000kg). 75 Grade A LFP modules (51.2V/314Ah/16.07kWh), 15S5P, 1,205.6kWh (1.2MWh) at 768Vdc, 500kW AC (630kW configurable). DC efficiency >=96%. 6,000+ cycles at 80% DOD. External PCS: Sungrow/Kehua/Sinexcel/Kelong. Four modes: On-Grid / Off-Grid / Hybrid / Black-Start. 400/480/690Vac, 722A. 3-level BMS + EMS + HVAC (-30 to 50 deg C) + perfluorohexanone FSS. 4G/WiFi/Ethernet monitoring. Ships pre-commissioned. Parallel for multi-MWh. CE, IEC 62619, IEC 61000, UN38.3, IEC 62477. 5yr system / 10yr battery warranty.

Brief:
[GCB-C1200: 20FT ALL-IN-ONE UTILITY-SCALE BESS CONTAINER -- 500KW/1.2MWH]

20ft ISO container (6,058x2,438x2,896mm, 16,000kg). 75 Grade A LFP modules (51.2V/314Ah/16.07kWh), 15S5P, 1,205.6kWh (1.2MWh) at 768Vdc, 500kW AC (630kW configurable). DC efficiency >=96%. 6,000+ cycles at 80% DOD. External PCS: Sungrow/Kehua/Sinexcel/Kelong. Four modes: On-Grid / Off-Grid / Hybrid / Black-Start. 400/480/690Vac, 722A. 3-level BMS + EMS + HVAC (-30 to 50 deg C) + perfluorohexanone FSS. 4G/WiFi/Ethernet monitoring. Ships pre-commissioned. Parallel for multi-MWh. CE, IEC 62619, IEC 61000, UN38.3, IEC 62477. 5yr system / 10yr battery warranty.

More >>

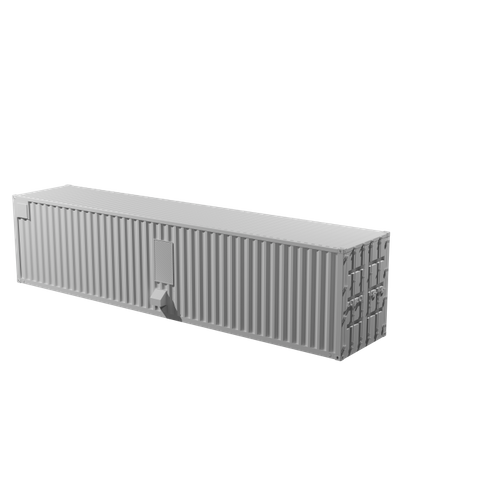

GCB-C2400 Utility-Scale ESS Container | 1MW/2.4MWh | E-ABLE POWER

The GCB-C2400 is our flagship Utility-Scale Containerized Energy Storage System, housed in a robust 40ft High Cube container. Delivering a massive 1,000 kW (1 MW) of power and 2,411 kWh (2.4 MWh) of nominal energy, it seamlessly integrates BESS, BMS, EMS, HVAC, and FSS. Powered by high-capacity Grade A 314Ah LiFePO4 cells engineered for over 6,000 cycles, this system is the ultimate solution for utility-scale microgrids, frequency regulation, renewable integration (PV/Wind), and peak-shaving energy arbitrage.

Brief:
The GCB-C2400 is our flagship Utility-Scale Containerized Energy Storage System, housed in a robust 40ft High Cube container. Delivering a massive 1,000 kW (1 MW) of power and 2,411 kWh (2.4 MWh) of nominal energy, it seamlessly integrates BESS, BMS, EMS, HVAC, and FSS. Powered by high-capacity Grade A 314Ah LiFePO4 cells engineered for over 6,000 cycles, this system is the ultimate solution for utility-scale microgrids, frequency regulation, renewable integration (PV/Wind), and peak-shaving energy arbitrage.

More >>

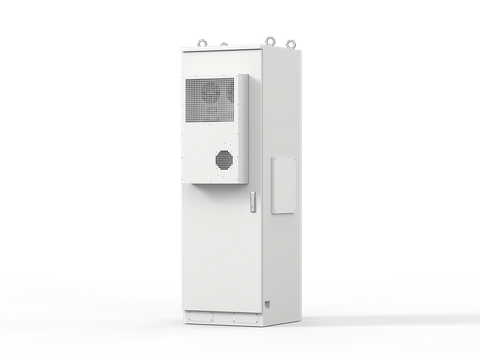

GCB-E50 Commercial & Industrial Energy Storage System

[GCB-E50: ALL-IN-ONE 50KW/50KWH C&I BESS]

50kW hybrid inverter + 50kWh LFP battery + 3-level BMS + EMS + HVAC + FSS in a single IP54 cabinet (780x640x2000mm, ~625kg). Grade A LiFePO4 cells (3.2V/100Ah), 10-module 16S1P, 6,000+ cycles at 90% DOD. Round-trip efficiency >=90%. Three modes: Grid-tied / Off-grid / Hybrid. 380V three-phase, Deye compatible. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

Brief:
[GCB-E50: ALL-IN-ONE 50KW/50KWH C&I BESS]

50kW hybrid inverter + 50kWh LFP battery + 3-level BMS + EMS + HVAC + FSS in a single IP54 cabinet (780x640x2000mm, ~625kg). Grade A LiFePO4 cells (3.2V/100Ah), 10-module 16S1P, 6,000+ cycles at 90% DOD. Round-trip efficiency >=90%. Three modes: Grid-tied / Off-grid / Hybrid. 380V three-phase, Deye compatible. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

More >>

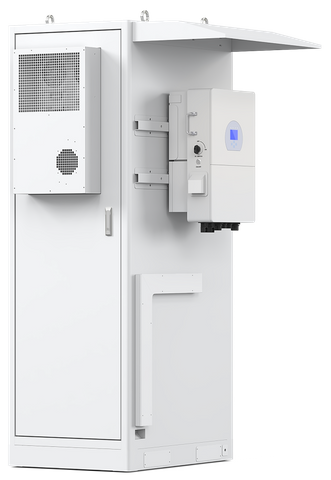

GCB-E100 Commercial & Industrial Energy Storage System

[GCB-E100: ALL-IN-ONE 50KW/100KWH C&I BESS]

50kW AC / 100.35kWh nominal (up to 112.53kWh usable). Battery modules + BMS + EMS + HVAC + FSS in single IP54 cabinet (~1200x803x2375mm, ~1300kg). Grade A 280Ah or 314Ah LFP prismatic cells, 6,000+ cycles at 80% DOD. 50kW three-phase 380V inverter. Three modes: Grid-tied / Off-grid / Hybrid. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

Brief:
[GCB-E100: ALL-IN-ONE 50KW/100KWH C&I BESS]

50kW AC / 100.35kWh nominal (up to 112.53kWh usable). Battery modules + BMS + EMS + HVAC + FSS in single IP54 cabinet (~1200x803x2375mm, ~1300kg). Grade A 280Ah or 314Ah LFP prismatic cells, 6,000+ cycles at 80% DOD. 50kW three-phase 380V inverter. Three modes: Grid-tied / Off-grid / Hybrid. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

More >>

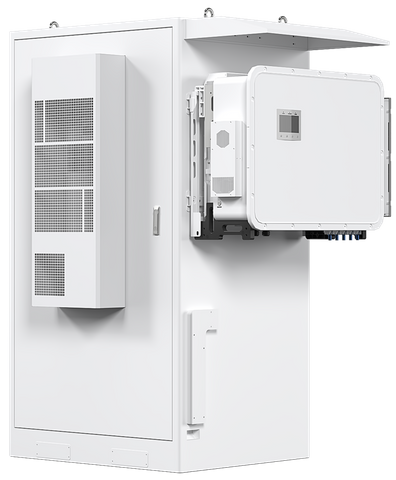

GCB-E240 Commercial & Industrial Energy Storage System

[GCB-E240: ALL-IN-ONE 125KW/241KWH C&I BESS]

125kW PCS + high-voltage LFP battery rack (280Ah/215kWh or 314Ah/241kWh options) + 3-level BMS + EMS + HVAC + FSS in single IP54 enclosure (1300x1260x2375mm, ~3,200kg). Grade A LFP cells: 6,000+ cycles at 90% DOD, >=90% round-trip efficiency. 380V three-phase, 189A output. Three modes: Grid-tied / Off-grid / Hybrid. Up to 6 months maintenance-free storage. CE, IEC 62619, IEC 61000, UN38.3. 5-year warranty. Configurable to site.

Brief:
[GCB-E240: ALL-IN-ONE 125KW/241KWH C&I BESS]

125kW PCS + high-voltage LFP battery rack (280Ah/215kWh or 314Ah/241kWh options) + 3-level BMS + EMS + HVAC + FSS in single IP54 enclosure (1300x1260x2375mm, ~3,200kg). Grade A LFP cells: 6,000+ cycles at 90% DOD, >=90% round-trip efficiency. 380V three-phase, 189A output. Three modes: Grid-tied / Off-grid / Hybrid. Up to 6 months maintenance-free storage. CE, IEC 62619, IEC 61000, UN38.3. 5-year warranty. Configurable to site.

More >>
