240W–1200W range
Five documented models for large-area sports and high-mast applications.
Product overview

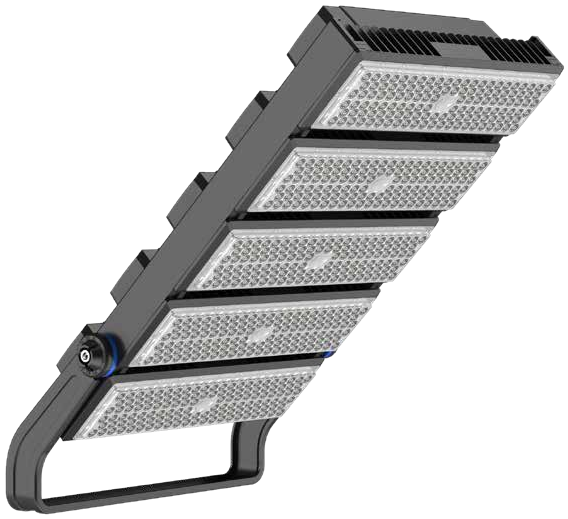

SKYWING SF08
Sports & High Mast Light.
SKYWING SF08 is a sports and high-mast LED light family documented from 240W to 1200W in five models, with 10°, 15°, 25°, 45°, 60°, 90° and asymmetric 60° optical distributions.
The family uses Lumileds / Osram chips with a die-cast ADC12 housing, a UV-resistant polycarbonate lens, AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Seven optics
10°, 15°, 25°, 45°, 60°, 90° and asymmetric 60° distributions.
Optional terminal box
Die-cast aluminium terminal box, spill shield and aiming device options.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
5 models. Every verified value.
SKYWING SF08 · Sports & High Mast Light
ISL-QCD-H300W
Rated 300W · 42,000lm

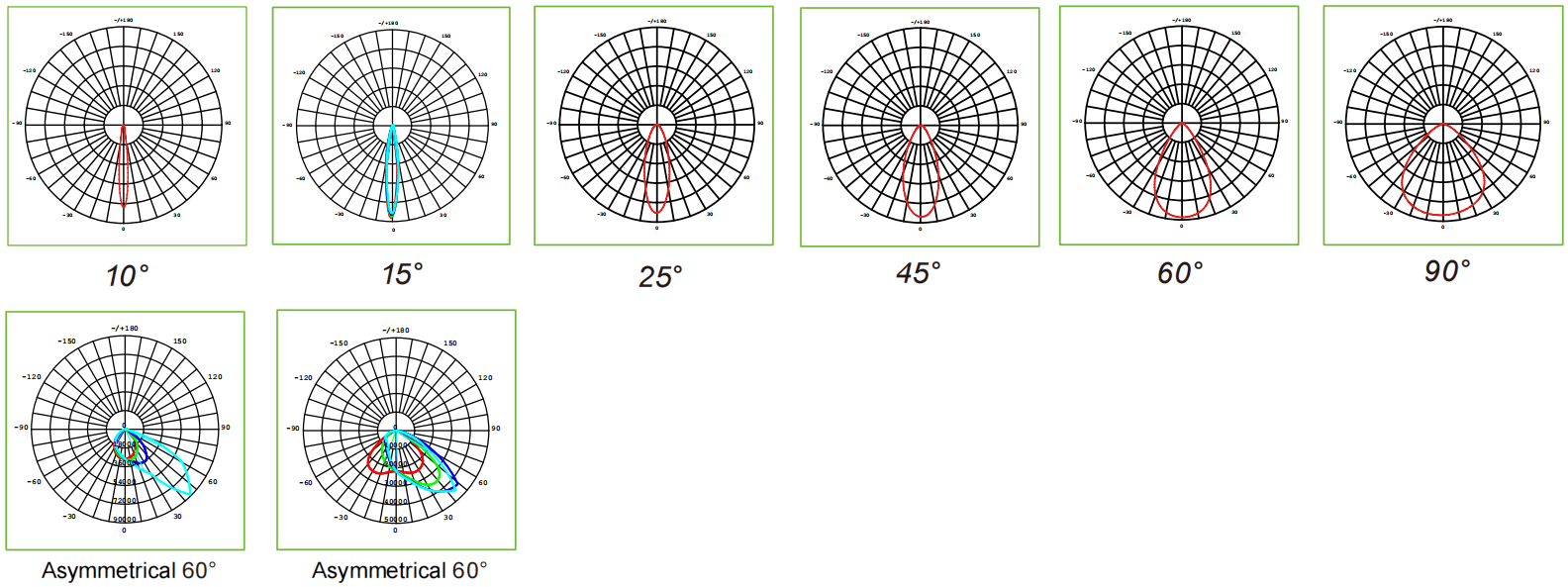

Optical distributions
Beam patterns.
The catalog publishes polar plots for the symmetric and asymmetric optics across the SKYWING SF08 family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF08?
The catalog documents 5 models — ISL-QCD-H300W, 600W, 900W, 1200W, 1500W — with rated power from 240W to 1200W.
Which beam angles or optical distributions are documented?
The distributions are: 10°, 15°, 25°, 45°, 60°, 90° and asymmetric 60°.
Which luminous flux values are documented?
The catalog lists 42,000lm up to 210,000lm.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?

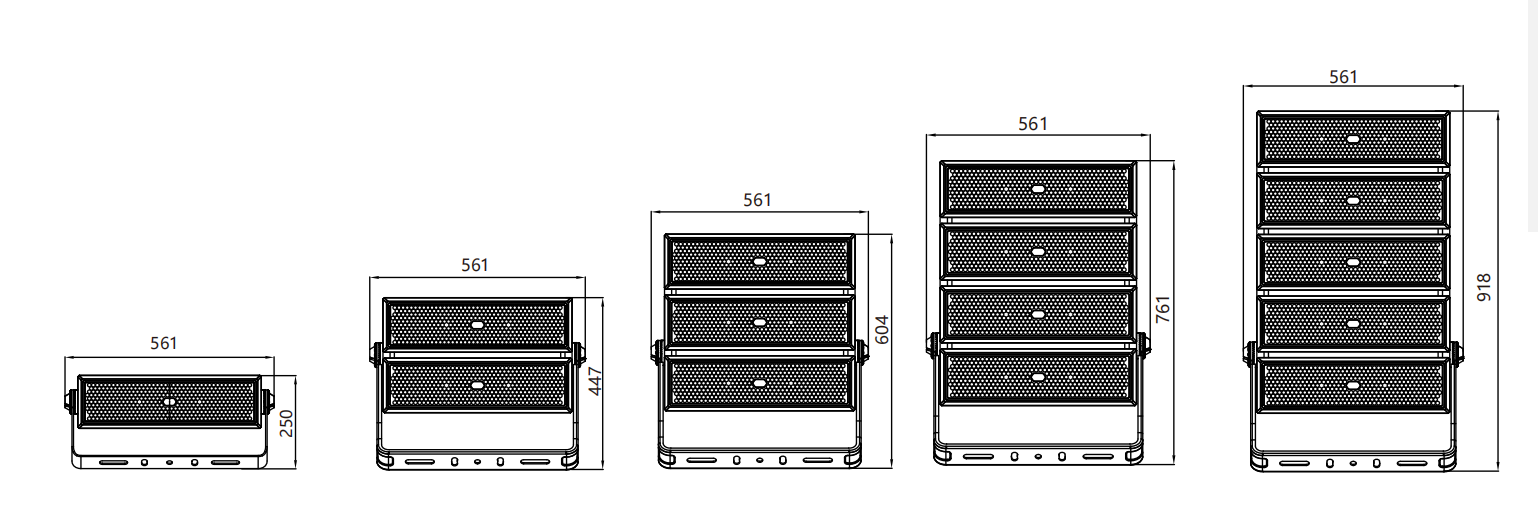

The catalog records optional terminal box, spill shield and aiming device features with housing footprints from 560×250×148mm to 560×918×148mm.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF08 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
