High-Voltage Battery Racks & Modules

For inverter-matched high-voltage battery systems where series configuration, voltage window and CAN communication must be confirmed before order. The category covers 5.12kWh to 241.15kWh class solutions. Confirm the final model, technical parameters and compliance requirements before project release.

REQUEST PROJECT QUOTE

E-Able Power GHR-314 high-voltage three-stack LFP battery rack

Why Choose This Category

Choose module capacity and series count to match the inverter DC window

Project selection is confirmed against the final technical specification and site conditions.

CAN communication and listed inverter compatibility by model

Project selection is confirmed against the final technical specification and site conditions.

Separate modules and rack systems for configurable project energy

Project selection is confirmed against the final technical specification and site conditions.

Selection Guide

Inverter DC window	Required rated and operating voltage range
Energy target	Module count and target kWh
Installation	Indoor protection, floor loading and service plan

Configurable Parameters

Module choices	GHS-100, GHS-200 and GHS-314 platforms
Series range	Confirm the allowable series count by model and inverter
Communication	Confirm CAN protocol and inverter make/model
Protection	Confirm IP rating, temperature and humidity conditions by model

Applications & Project Support

Commercial hybrid inverter systems, solar-plus-storage, configured high-voltage battery racks and project-specific DC battery platforms.

VIEW ENERGY STORAGE APPLICATIONS

Documentation, certifications, operating limits and warranty are model- and destination-market-specific. Confirm final documents before order.

Buyer FAQ

Q: Which product configuration is suitable for my project?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Q: What site information is needed before quotation?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Q: Which parameters must be confirmed before order?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Q: Can E-Able Power support OEM or project configuration?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Configure Your High-Voltage Battery Racks & Modules Solution

Share your load profile, installation location and target capacity. E-Able Power will confirm the suitable configuration and provide a project-specific technical proposal.

✉ SALES@E-ABLEPOWER.COM ☎ WHATSAPP +86 153-5558-9600

GHR-314 241kWh High-Voltage 3-Stack Battery Rack

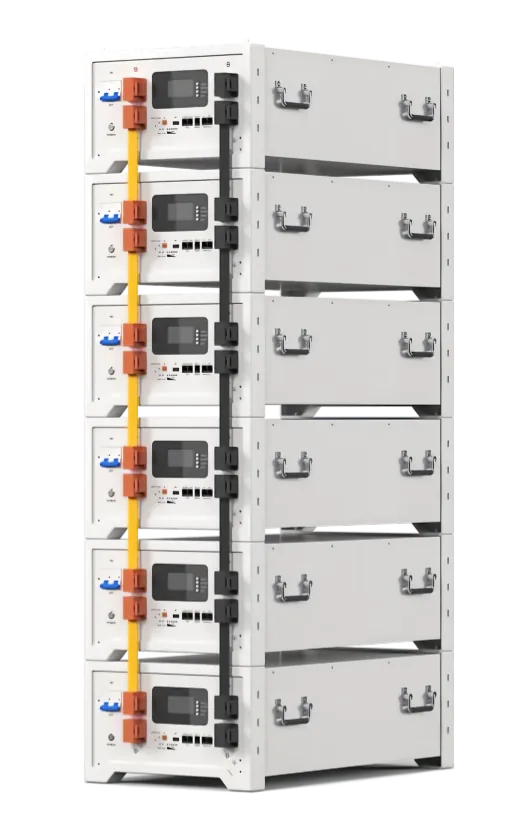

[GLR-314: HIGH-VOLTAGE STACKABLE LFP BATTERY MODULE -- 16KWH/MODULE]

16.08kWh per module, Grade A 314Ah LFP cells. 2-16 modules in series (32-257kWh/rack), up to 10 racks parallel for 800kW+/2.57MWh. DC voltage: 102.4-819.2Vdc. Module: 838x478x278mm, 125kg, castor wheels. CAN 2.0 / RS485 / RS232 (Modbus RTU). Compatible with Deye, Growatt, Solis, Goodwe, Sol-Ark, SMA, Victron. 6,000+ cycles at 90% DOD. 3-level BMS. CE, IEC 62619. 5-year warranty. Configurable to project.

Brief:
[GLR-314: HIGH-VOLTAGE STACKABLE LFP BATTERY MODULE -- 16KWH/MODULE]

16.08kWh per module, Grade A 314Ah LFP cells. 2-16 modules in series (32-257kWh/rack), up to 10 racks parallel for 800kW+/2.57MWh. DC voltage: 102.4-819.2Vdc. Module: 838x478x278mm, 125kg, castor wheels. CAN 2.0 / RS485 / RS232 (Modbus RTU). Compatible with Deye, Growatt, Solis, Goodwe, Sol-Ark, SMA, Victron. 6,000+ cycles at 90% DOD. 3-level BMS. CE, IEC 62619. 5-year warranty. Configurable to project.

More >>
GHR-314 High-Voltage 3-Stack Battery Rack

[GHR-314: HIGH-VOLTAGE 3-STACK BATTERY RACK -- 241KWH]

Patented 3-column stack architecture: up to 45 modules (15/column), 241kWh per rack. Grade A 314Ah LFP cells, 6,000+ cycles at 90% DOD. Configurable DC bus to 768Vdc+. 157A continuous / 314A peak. CAN 2.0 / RS485 / RS232. 3-level BMS. Optional aerosol/perfluorohexanone FSS. Parallel multiple racks for MWh-scale. IP20 indoor. CE, IEC 62619. 5-year warranty scalable to 10 years. Configurable to project.

Brief:
[GHR-314: HIGH-VOLTAGE 3-STACK BATTERY RACK -- 241KWH]

Patented 3-column stack architecture: up to 45 modules (15/column), 241kWh per rack. Grade A 314Ah LFP cells, 6,000+ cycles at 90% DOD. Configurable DC bus to 768Vdc+. 157A continuous / 314A peak. CAN 2.0 / RS485 / RS232. 3-level BMS. Optional aerosol/perfluorohexanone FSS. Parallel multiple racks for MWh-scale. IP20 indoor. CE, IEC 62619. 5-year warranty scalable to 10 years. Configurable to project.

More >>

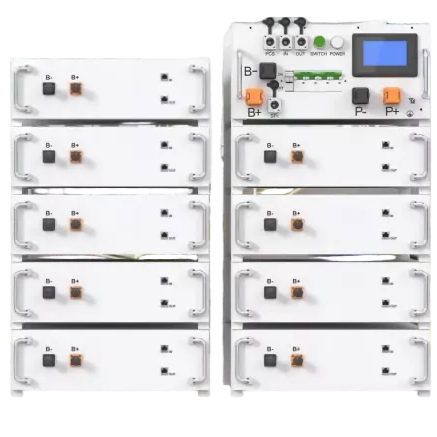

GHS-100 High-Voltage Stackable LFP Battery

GHS-100 is a high-voltage stackable LFP battery module rated at 51.2V, 100Ah and 5.12kWh. A system uses 6-15 modules in series for 30.74-76.8kWh rated energy and 307.4-768V rated voltage. The specified operating-voltage ranges are 268.8-345.6V for 6S and 672-864V for 15S. CAN is the listed communication port, and compatible inverter brands include Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE. GHS-100 is rated IP20 and carries a 10-year warranty.

Brief:
GHS-100 is a high-voltage stackable LFP battery module rated at 51.2V, 100Ah and 5.12kWh. A system uses 6-15 modules in series for 30.74-76.8kWh rated energy and 307.4-768V rated voltage. The specified operating-voltage ranges are 268.8-345.6V for 6S and 672-864V for 15S. CAN is the listed communication port, and compatible inverter brands include Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE. GHS-100 is rated IP20 and carries a 10-year warranty.

More >>
GHS-200 High-Voltage Stackable LFP Battery

GHS-200 is a high-voltage stackable LFP battery module rated at 51.2V, 205Ah and 10.49kWh. A system uses 4-15 modules in series for 42-157.44kWh rated energy and 204.8-768V rated voltage. The specified operating-voltage ranges are 179.2-230.4V for 4S and 672-864V for 15S. CAN is the listed communication port, and compatible inverter brands include Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE. GHS-200 is rated IP20 and carries a 10-year warranty.

Brief:
GHS-200 is a high-voltage stackable LFP battery module rated at 51.2V, 205Ah and 10.49kWh. A system uses 4-15 modules in series for 42-157.44kWh rated energy and 204.8-768V rated voltage. The specified operating-voltage ranges are 179.2-230.4V for 4S and 672-864V for 15S. CAN is the listed communication port, and compatible inverter brands include Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE. GHS-200 is rated IP20 and carries a 10-year warranty.
