400W–1800W range
Eight documented models for large-area sports and high-mast applications.
Product overview

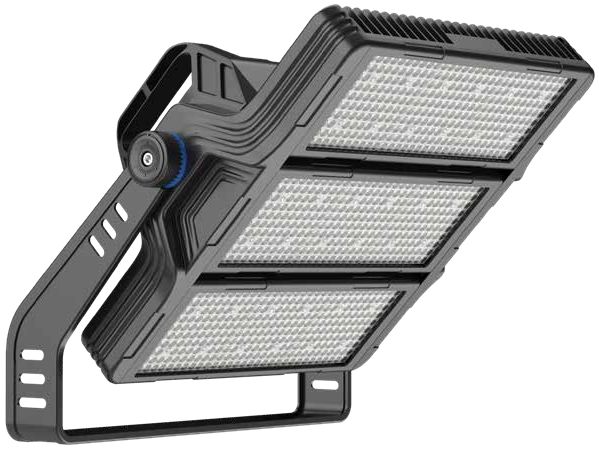

SKYWING SF07
Sports & High Mast Light.
SKYWING SF07 is a sports and high-mast LED light family documented from 400W to 1800W in eight models, with symmetric 10°, 15°, 25°, 45°, 60° and 90° optics plus a professional asymmetric 60° distribution.
The family uses a die-cast ADC12 housing with corrosion-resistant treatment, a polycarbonate lens and 4mm tempered glass for coastal areas, AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Seven optics
10°, 15°, 25°, 45°, 60°, 90° and asymmetric 60° distributions.
Racked angle & glass
Adjustable bracket with degree indicator and 4mm tempered glass option.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
8 models. Every verified value.
SKYWING SF07 · Sports & High Mast Light
ISL-QCD-G400W
Rated 400W · 60,000lm

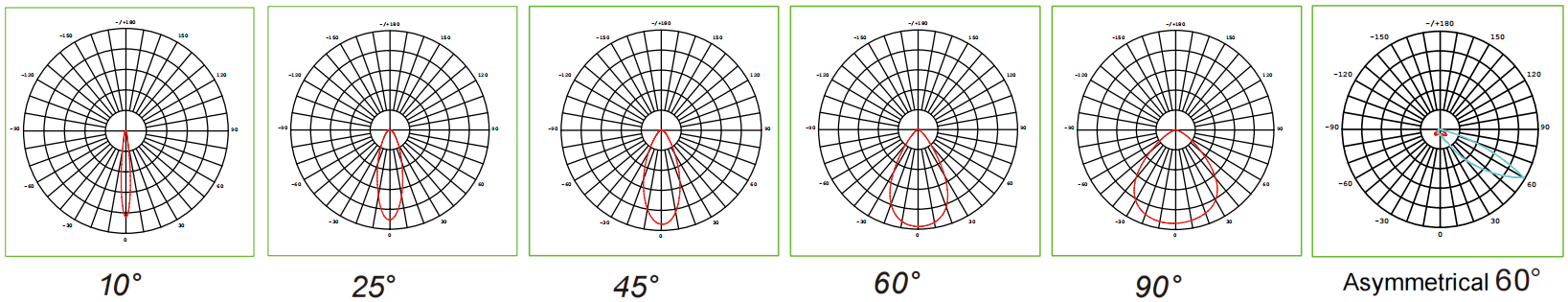

Optical distributions
Beam patterns.
The catalog publishes polar plots for the symmetric and asymmetric optics across the SKYWING SF07 family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF07?
The catalog documents 8 models — ISL-QCD-G400W, 500W, 600W, 800W, 1000W, 1200W, 1500W, 1800W — with rated power from 400W to 1800W.
Which beam angles or optical distributions are documented?
The distributions are: 10°, 15°, 25°, 45°, 60°, 90° and asymmetric 60°.
Which luminous flux values are documented?
The catalog lists 60,000lm up to 270,000lm.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?

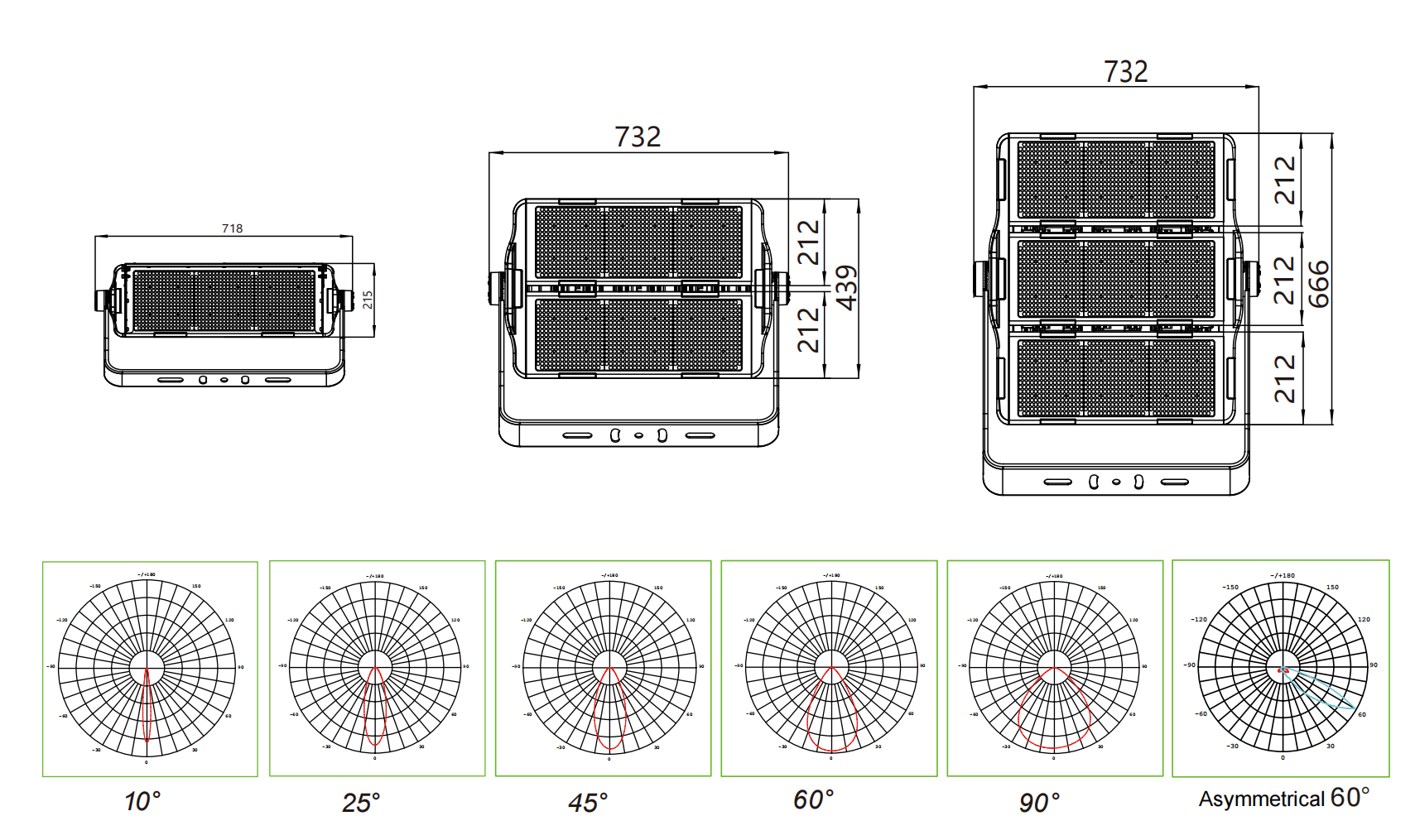

The catalog records racked-angle, 4mm tempered glass and asymmetric 60° features with housing footprints from 718×214×222mm to 732×666×290mm.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF07 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
