What capacity is the wall mounted lithium energy storage battery?

The 51.2V 200Ah model delivers 10.24 kWh (16S1P) of nominal energy.

What battery technology does it use?

It uses high-quality square aluminum shell lithium iron phosphate (LiFePO4) cells rated for more than 6,000 cycles.

What voltage and configuration does it support?

It operates at 51.2 Vdc (working 43.2-57.6 Vdc) and can be paralleled up to 15 units.

Is it protected against dust and water?

It is rated IP20 and is designed for indoor wall mounting.

What is its operating temperature range?

Operating temperature -10~+50 degrees C, working humidity 65+/-20% RH, working altitude up to 2500 m.

What control and communication does it support?

Communication via RS485 / RS232 / CAN / WiFi, with a touch LCD display screen for visualizing operational data.

Which inverters is it compatible with?

It is compatible with the communication of most solar inverter brands including Growatt, Deye, MUST, Pylontech, INVT, LuxPower, SRNE, Victron and Solis.

Can it be configured for a project?

Yes - configuration can be adapted for a project. It carries a 5-year warranty. Contact us with your site and energy requirements for sizing and a quotation.

E-ABLE POWER / ENERGY STORAGE

Wall Mounted Lithium Battery

Name: Wall Mounted Lithium Energy Storage Battery 51.2V 200Ah
Brand: E-Able Power

A wall-mounted 51.2V 200Ah lithium iron phosphate battery delivering 10.24kWh of clean storable energy for household, commercial and agricultural backup, with an intelligent BMS, touch LCD display and broad solar inverter compatibility.

EXPLORE THE RANGE → REQUEST PROJECT SUPPORT

E-ABLE POWER — PRODUCT DATASHEET

RESIDENTIAL & COMMERCIAL ENERGY STORAGE

WALL-MOUNTED LFP51.2V10.24 kWh

51.2V 200Ah | Wall-Mounted LFP Battery

Wall Mounted Lithium Energy Storage Battery

Adopting high-quality square aluminum shell lithium iron phosphate battery cells, equipped with an intelligent BMS battery management system, long cycle life, high safety performance, exquisite appearance, free combination and easy installation. The battery pack is equipped with a touch LCD display screen for visualizing operational data and is compatible with the communication of most brands of solar inverters. Applied in distributed photovoltaic systems and household energy storage systems, providing efficient clean energy for household, industrial, commercial, agricultural and other electrical equipment.

Brand: E-Able Power | Platform: 51.2Vdc Low-Voltage Architecture

Capacity: 10.24 kWh | Parallel: Up to 15 units

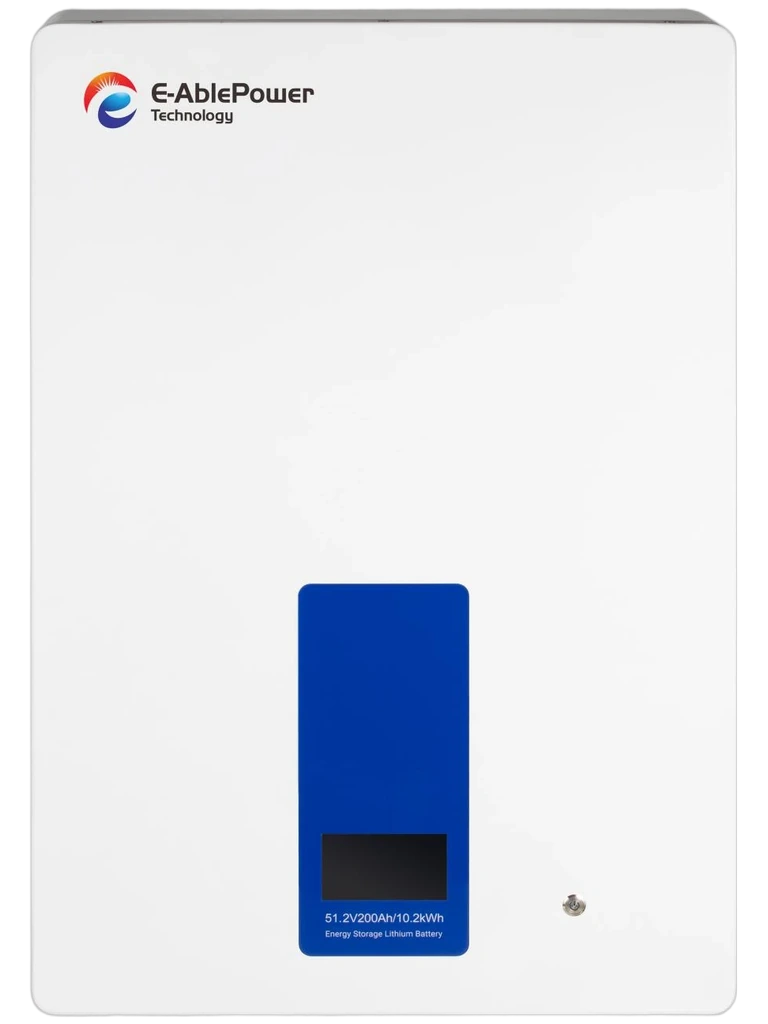

Wall mounted 51.2V 200Ah lithium energy storage battery

BMS Protection

Intelligent battery management with cell-level voltage, current and temperature monitoring plus automatic balancing.

Wall Mounting

Ultra-slim wall-mounted cabinet with included mounting brackets - installs quickly on an indoor wall and saves valuable floor space.

Home Energy Storage

Purpose-built for solar self-consumption, peak shifting and whole-home backup with hybrid inverters.

Intelligent Communication

RS485 / RS232 / CAN / WiFi interfaces with touch LCD display — monitor SOC and system status in real time.

Key Specifications at a Glance

Parameter	51.2V 200Ah (10.24kWh)
Battery Type	Lithium Iron Phosphate (LiFePO4)
Cell Combination	16S1P
Battery Pack Capacity	10.24 kWh
Nominal Voltage	51.2 Vdc
Working Voltage Range	43.2 – 57.6 Vdc
Standard Discharge Current	50 A
Max. Discharge Current	105 A
Max. Charging Current	105 A
Max. Charging Voltage	57.6 V
Discharge Depth & Life	>6,000 times (0.5C@25°C), energy retention rate ≥80%
Working Humidity	65±20% RH
Operating Temperature	-10 ~ +50 °C
Working Altitude	≤2500 m
Firefighting	Aerosol PACK 12 g
Cooling Method	Natural Cooling
Installation Method	Wall Mounting
International Protection	IP20
Max. of Parallel	15 PCS
Communication Method	RS485 / RS232 / CAN / WiFi
Display	Touch LCD Screen
Compatible Inverters	Growatt / Deye / MUST / Pylontech / INVT / LuxPower / SRNE / Victron / Solis and more
Certified Product	CE / RoHS / FCC / UN38.3 / MSDS / ISO9001
Warranty	5 Years

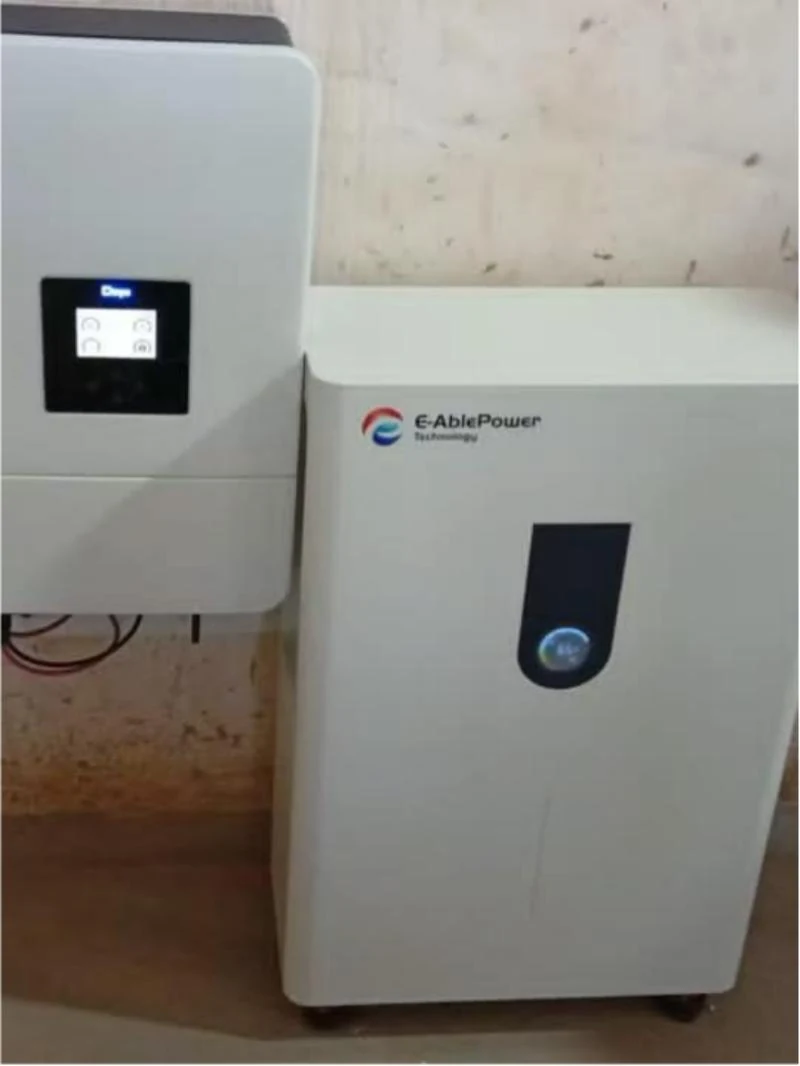

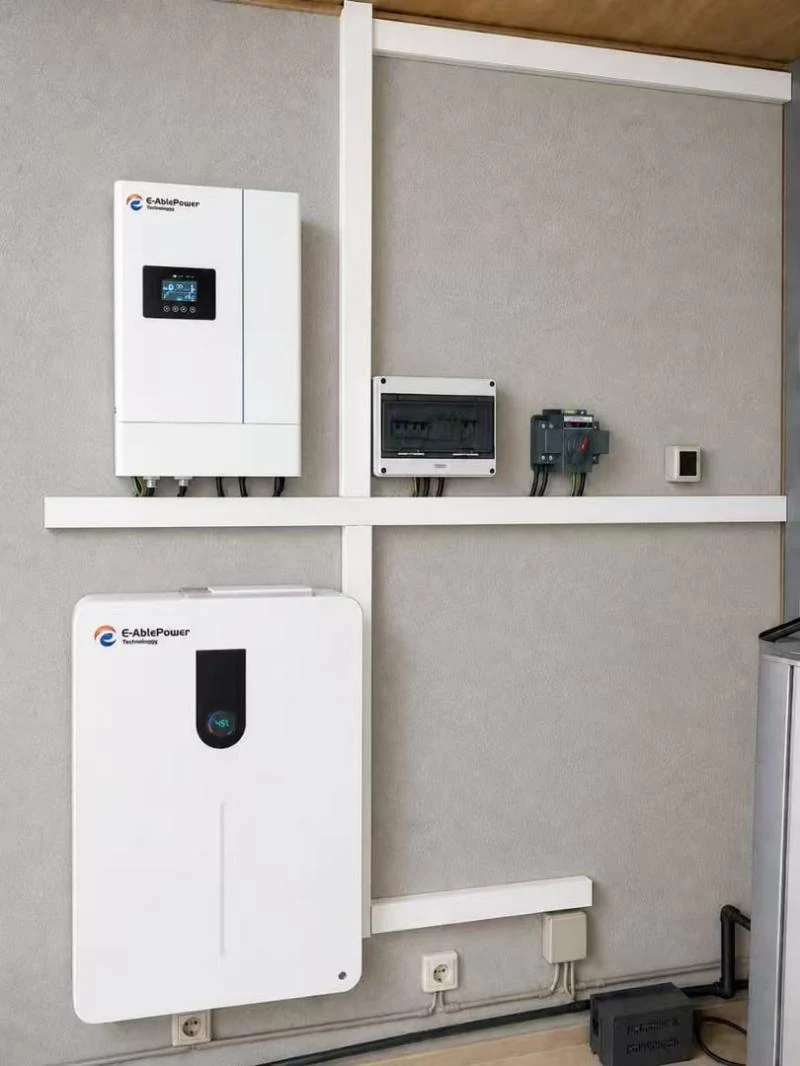

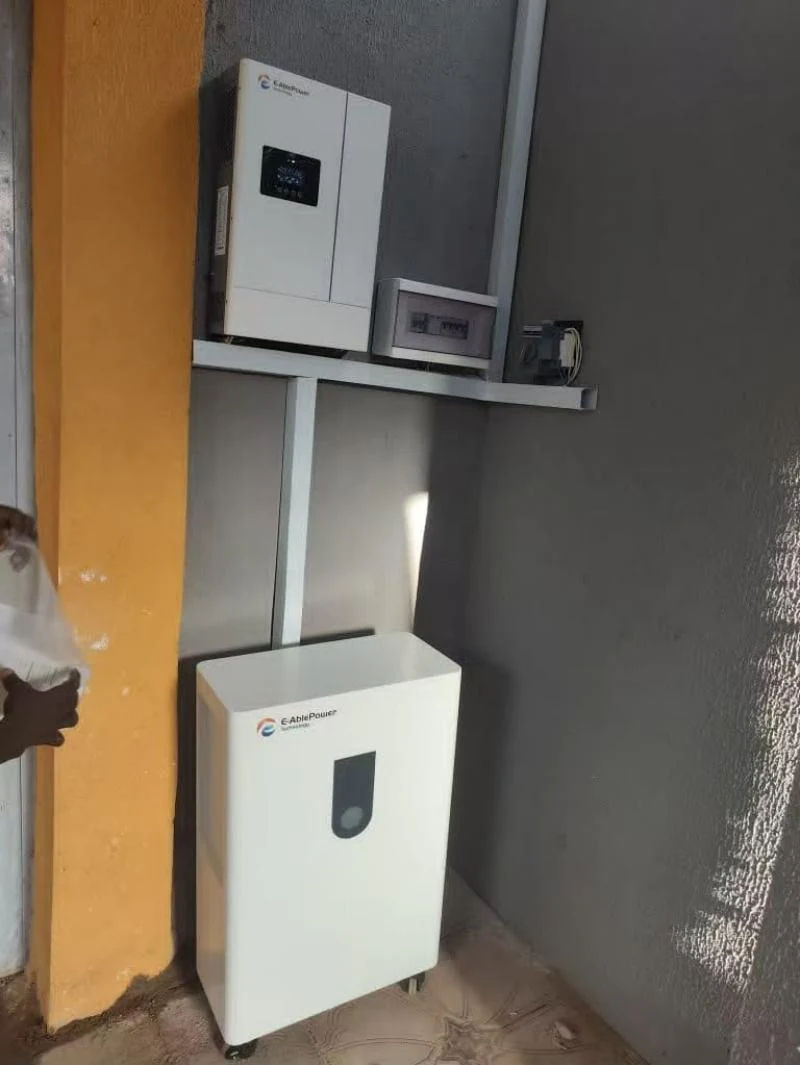

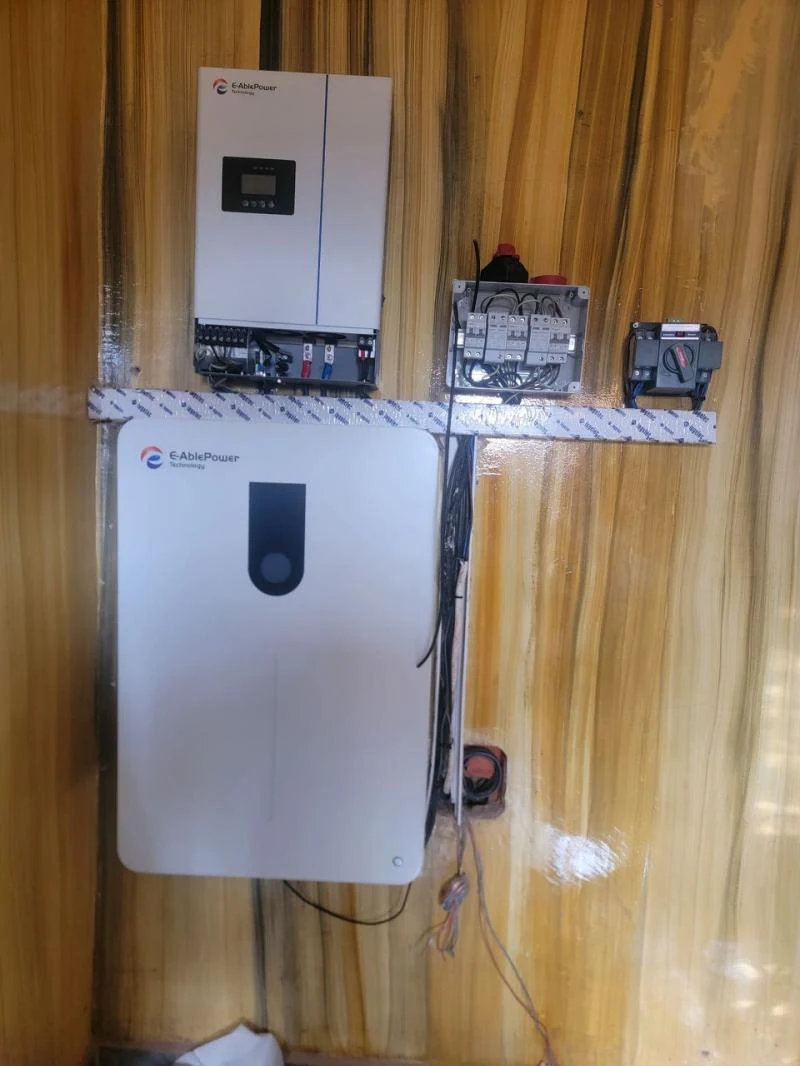

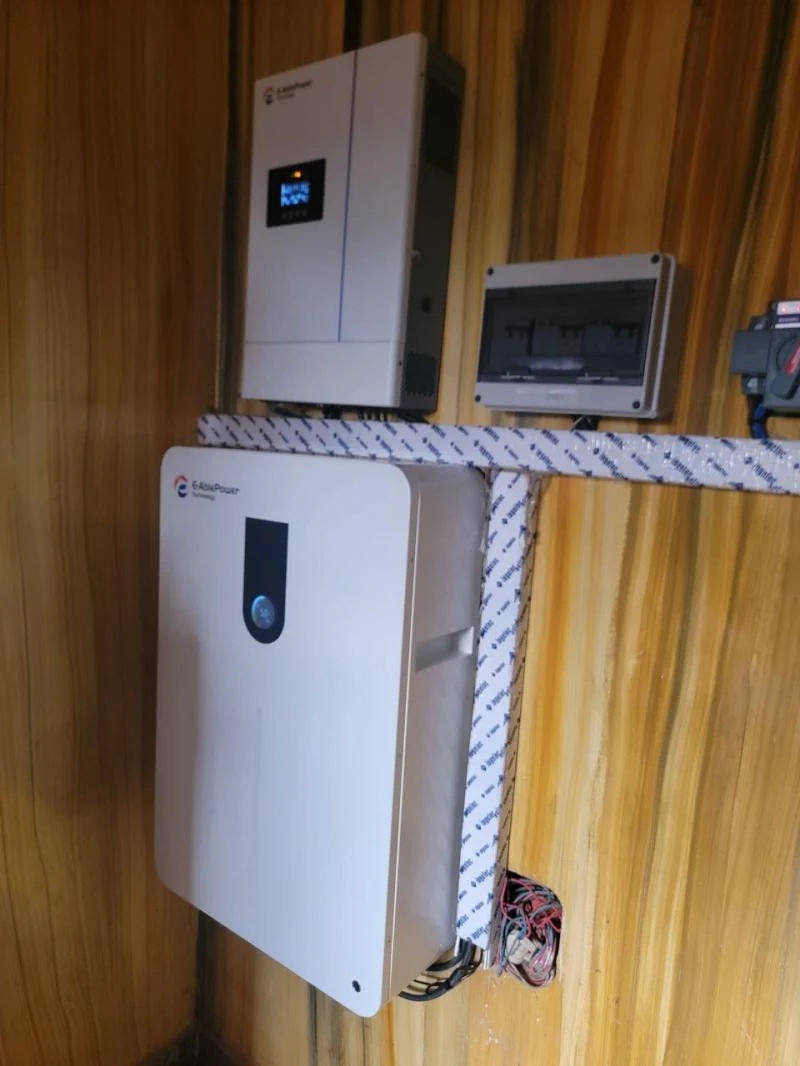

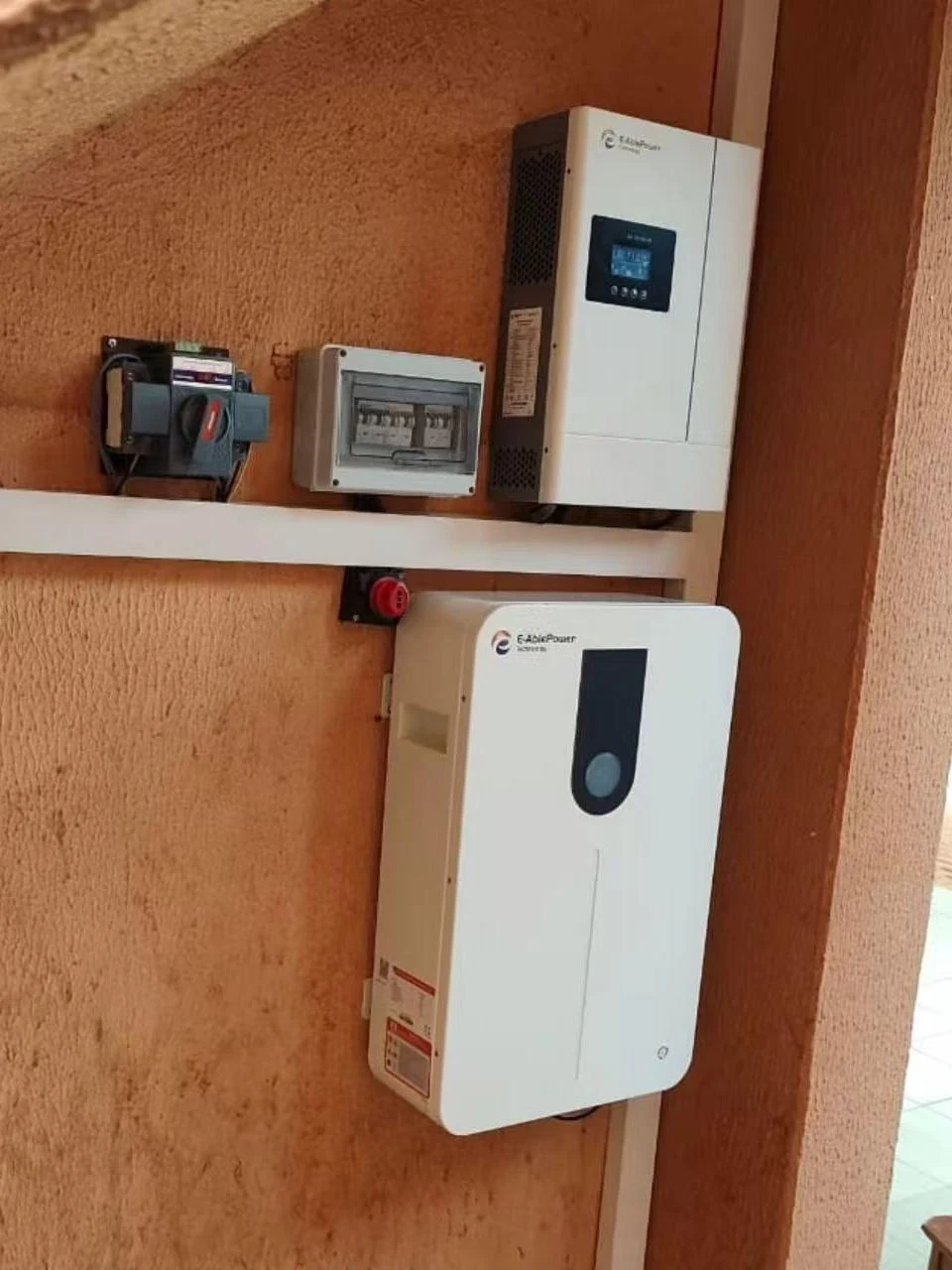

Installation Cases

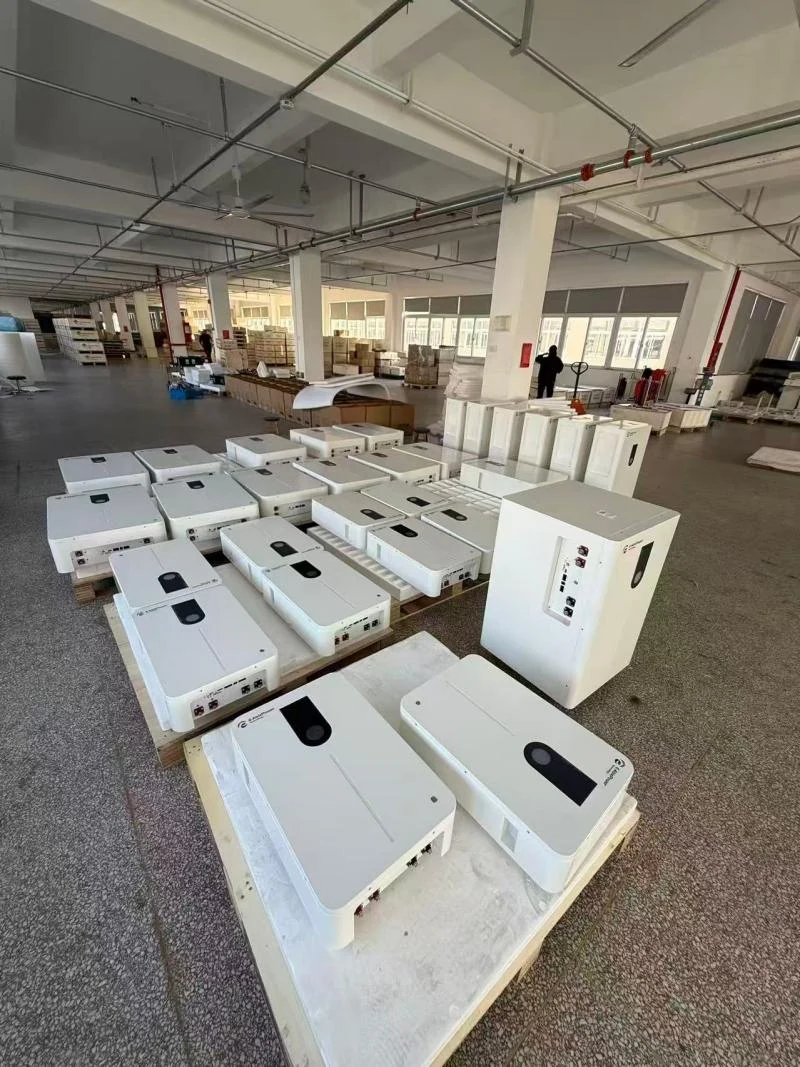

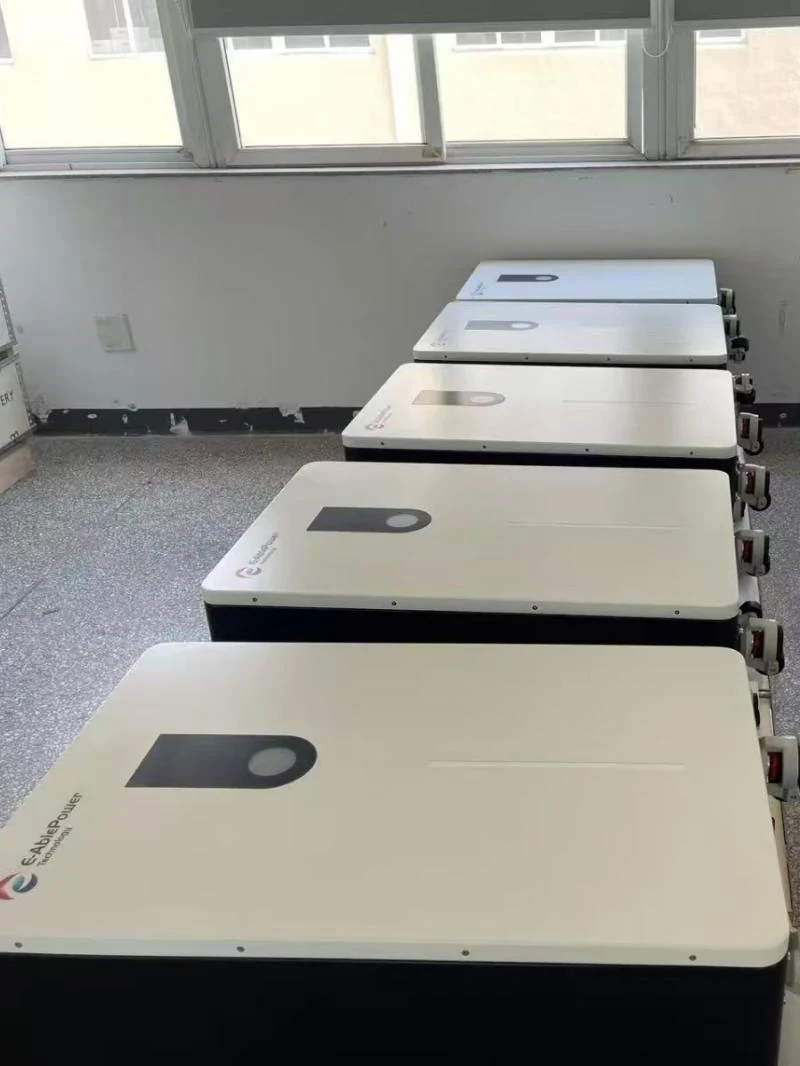

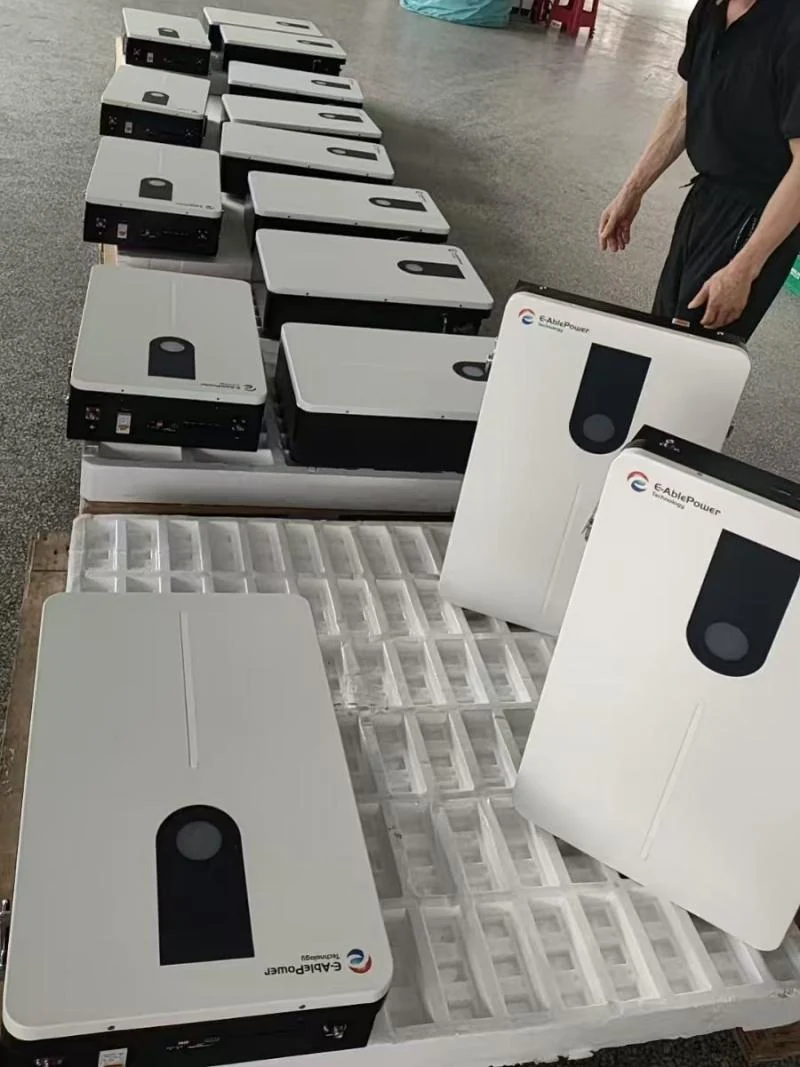

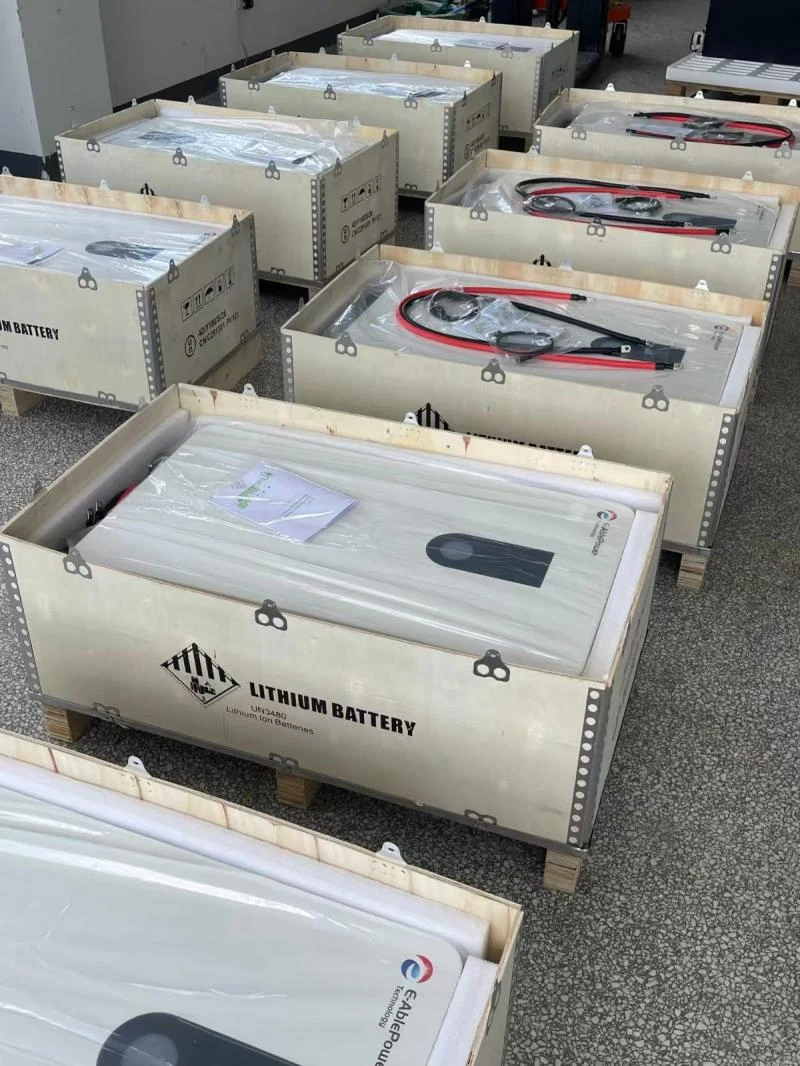

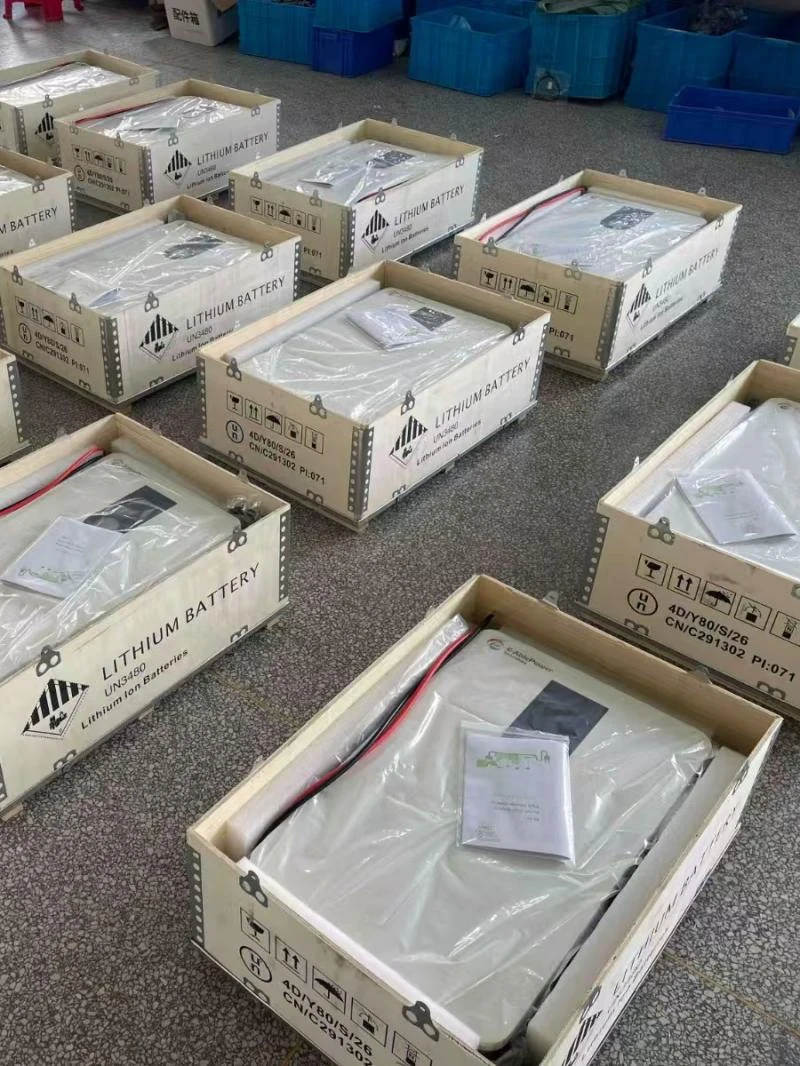

Production

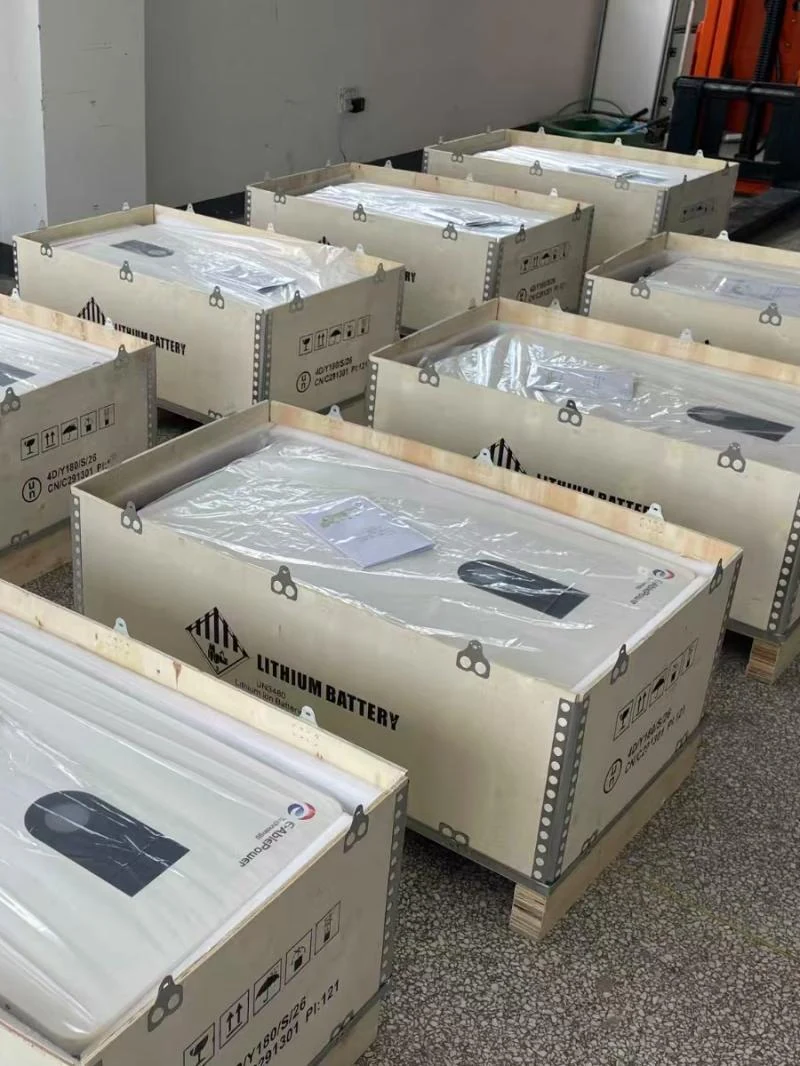

Shipping

Explore Related Products

GWR Series Wall-Mounted LFP Battery

GWR wall-mounted LFP battery for whole-home backup, delivering clean, quiet off-grid power in a slim vertical cabinet.

View Product →

GCB-E50 Commercial Energy Storage System

GCB-E50 50kW/50kWh all-in-one C&I BESS cabinet with LFP battery packs, air cooling and IP54 protection.

View Product →

GCB-E241 Commercial Energy Storage System

GCB-E241 125kW/241.15kWh commercial and industrial LFP energy-storage cabinet with integrated fire protection.

View Product →

Frequently Asked Questions

What capacity is the wall mounted battery available in?

A single 10.24 kWh model (51.2V / 200Ah, 16S1P).

What battery technology does the wall mounted battery use?

Square aluminum shell Grade A LiFePO4 cells, rated for > 6,000 cycles.

What voltage and configuration does the wall mounted battery support?

Operates at 51.2 Vdc (working 43.2–57.6V), parallel up to 15 units.

Is the wall mounted battery protected against dust and water?

Rated IP20; the standard unit is for indoor wall-mounted installation.

How is the wall mounted battery operated in different conditions?

Operating temperature -10~+50°C, working humidity 65±20% RH.

What control and communication does the wall mounted battery support?

RS485 / RS232 / CAN / WiFi, with a touch LCD display screen.

Can the wall mounted battery be configured for a project?

Yes – configuration can be adapted, with a 5-year warranty. Contact us with your site and energy requirements for sizing and a quotation.
