View Product →| E-ABLE POWER — PRODUCT DATASHEET RESIDENTIAL & COMMERCIAL ENERGY STORAGE | VERTICAL LFP51.2V16.08 kWh |

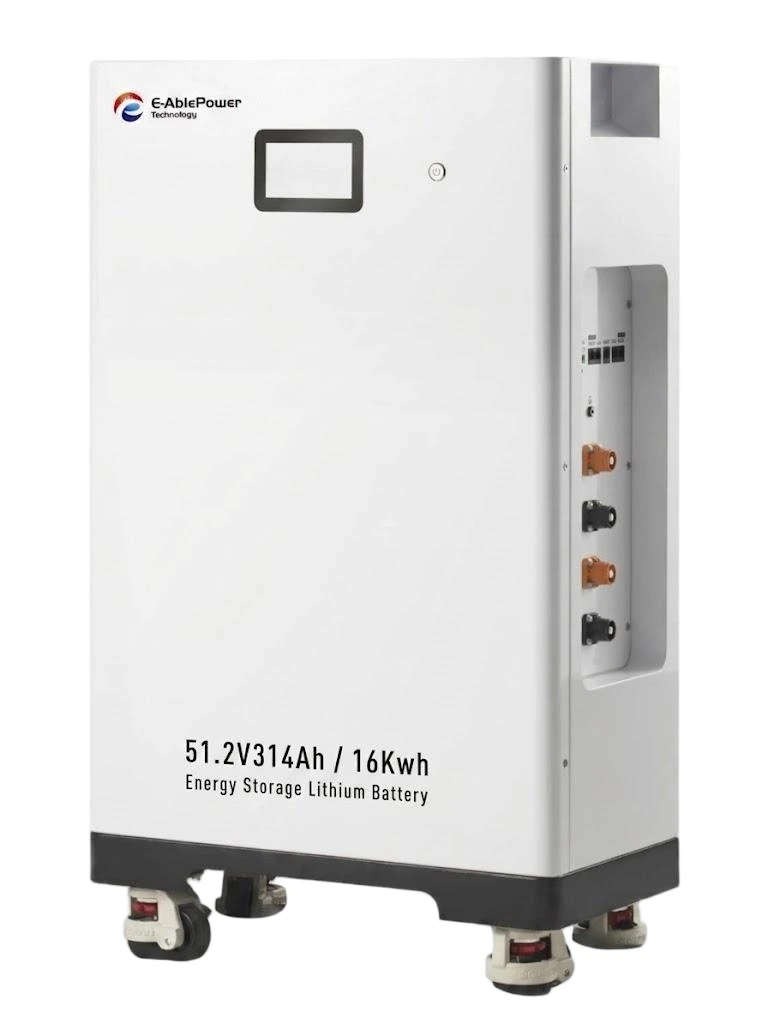

51.2V 314Ah | Vertical Floor-Standing LFP Battery Vertical LFP Energy Storage BatteryA floor-standing vertical battery series on a 51.2V low-voltage platforms in three capacities — 16.08 kWh (314Ah). Built with Grade A LiFePO4 cells, intelligent BMS protection, pulley-wheel design and smart communication for home energy storage and small commercial backup. Model: 51.2V/314Ah (16.08kWh) Brand: E-Able Power | Platform: 51.2Vdc Low-Voltage Architecture Capacity: 16.08 kWh | Parallel: Up to 15 units |  |
| BMS Protection Intelligent battery management with cell-level voltage, current and temperature monitoring plus automatic balancing. | Pulley Design Built-in caster wheels and pulley design — move and position heavy battery cabinets easily on site. | Home Energy Storage Purpose-built for solar self-consumption, peak shifting and whole-home backup with hybrid inverters. | Intelligent Communication RS232 / CAN / RS485 / WiFi / BT interfaces with LCD display — monitor SOC and system status in real time. |
Key Specifications at a Glance
| Parameter | 51.2V / 314 Ah (16kWh) |
|---|---|
| Model | DK 16kWh 51.2V 314Ah |
| Grade A LiFePO4 | |
| Nominal Voltage | 51.2 V |
| Cell Combination | 16S1P |
| Capacity (Ah) | 314 Ah |
| Nominal Energy (kWh) | 16.08 kWh (≈16kWh) |
| Grade A+ LiFePO4 32700 cells — 2000+ cycles @ 80% DoD | |
| Charge / Discharge Current | 200 A standard (140 A max discharge / 105 A max charge) |
| Suggested DOD | 80% |
| Working Voltage Range | 43.2 – 57.6 V |
| Working Humidity | 65±20% RH |
| Operating Temperature | Discharge −20~50°C / Charge 0~45°C |
| Working Altitude | ≤2500 m |
| Maximum Parallel | 15 units |
| Cooling Method | Natural cooling |
| Installation Method | Floor-standing / wall mounting |
| IP Rating | IP21 (IP65 optional) |
| Display | LCD color screen (optional) |
| Firefighting | Aerosol PACK 12 g |
| Communication | RS485 / RS232 / CAN / WiFi / BT |
| Enclosure | Floor-standing cabinet with caster wheels |
| Net Weight (kg) | 126.2 kg |
| Certifications | CE / RoHS / FCC / UN38.3 / MSDS / ISO9001 |
| Warranty | 5 Years |
Related Products

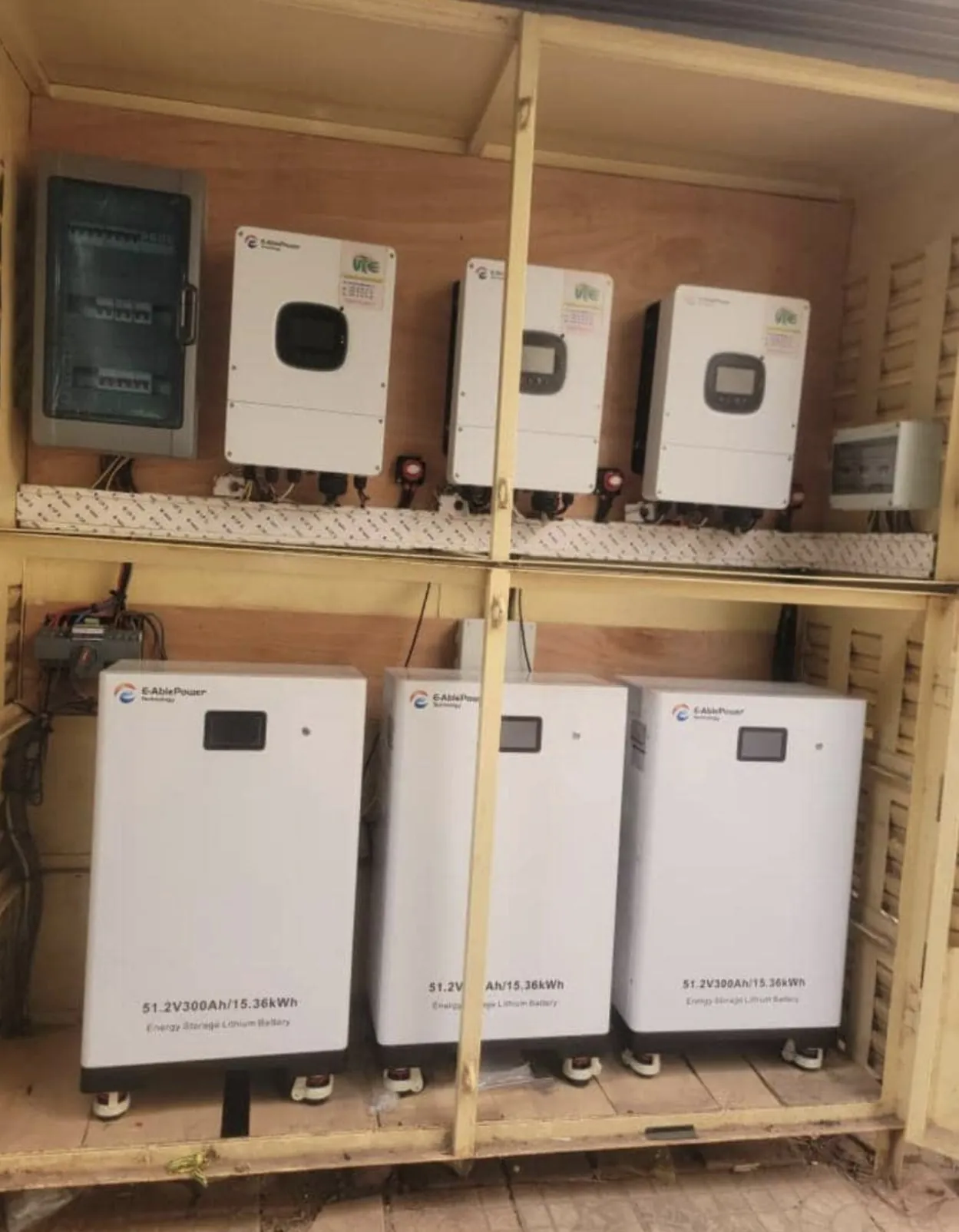

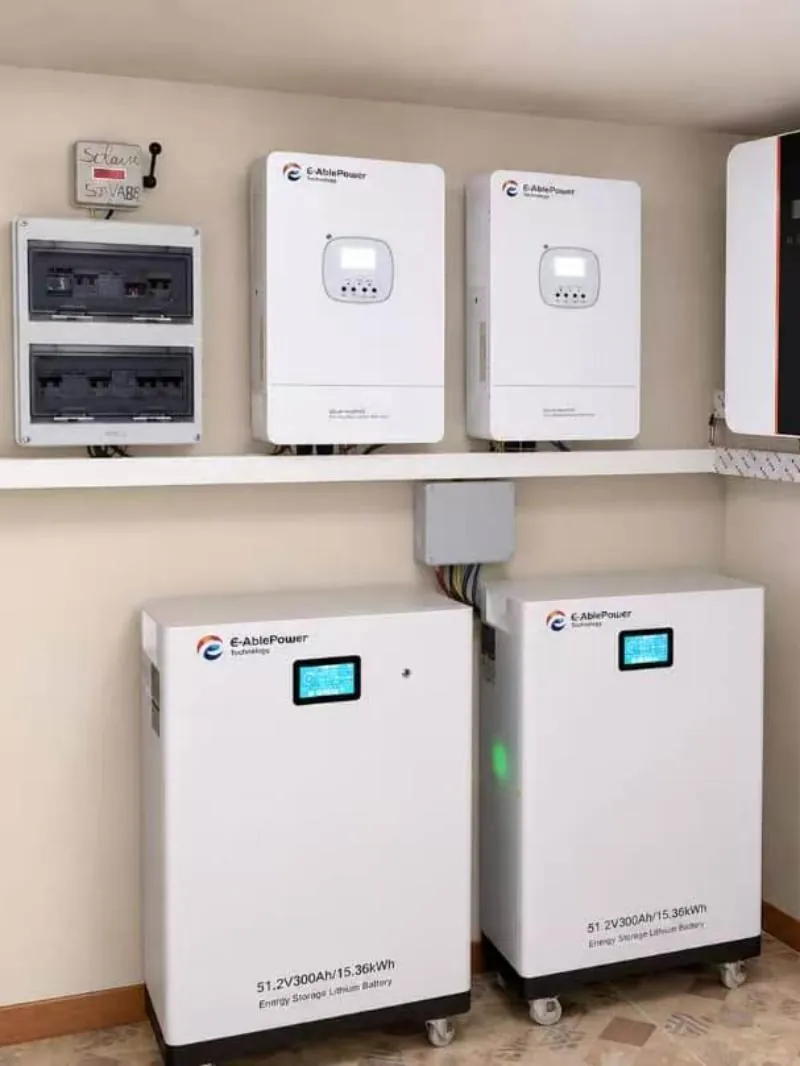

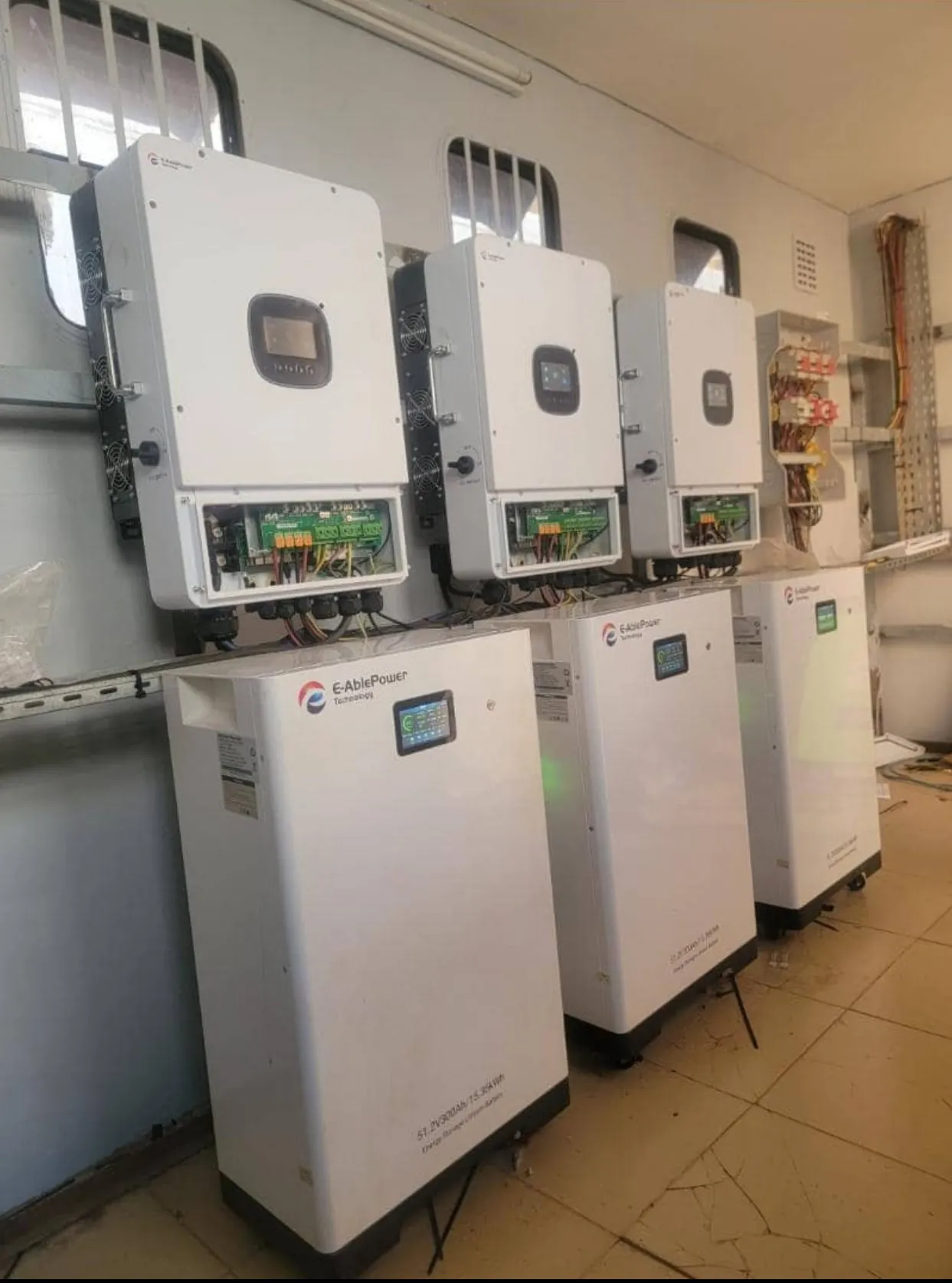

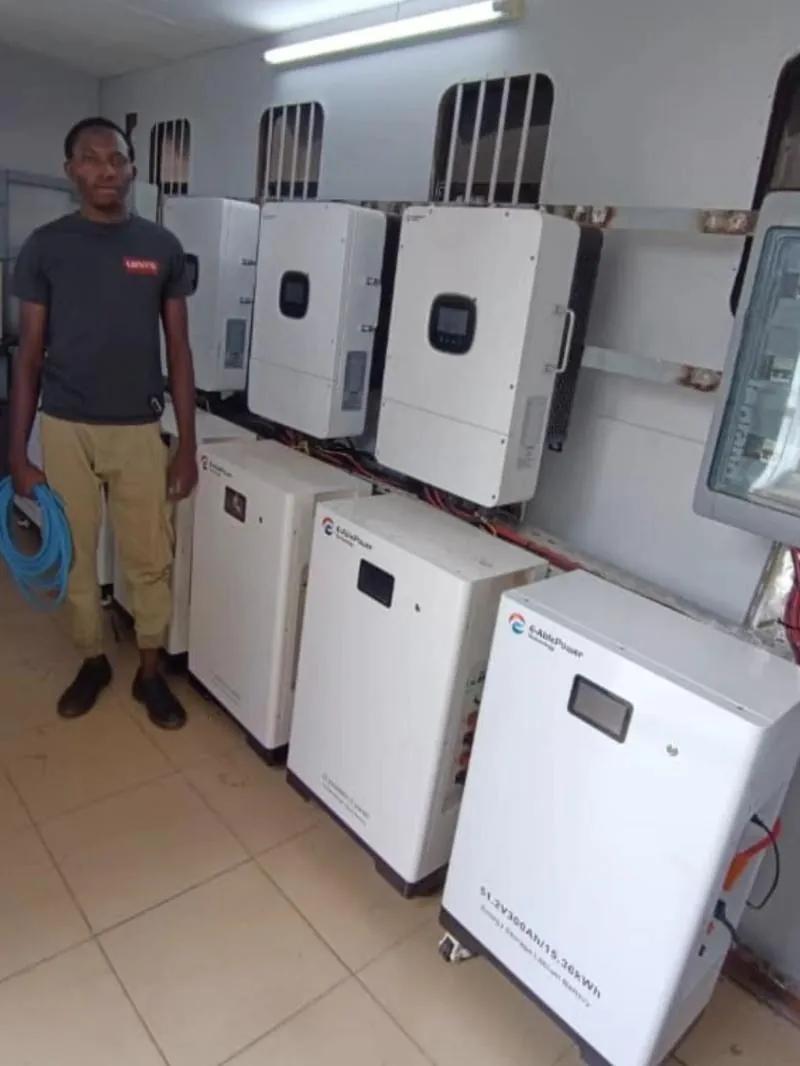

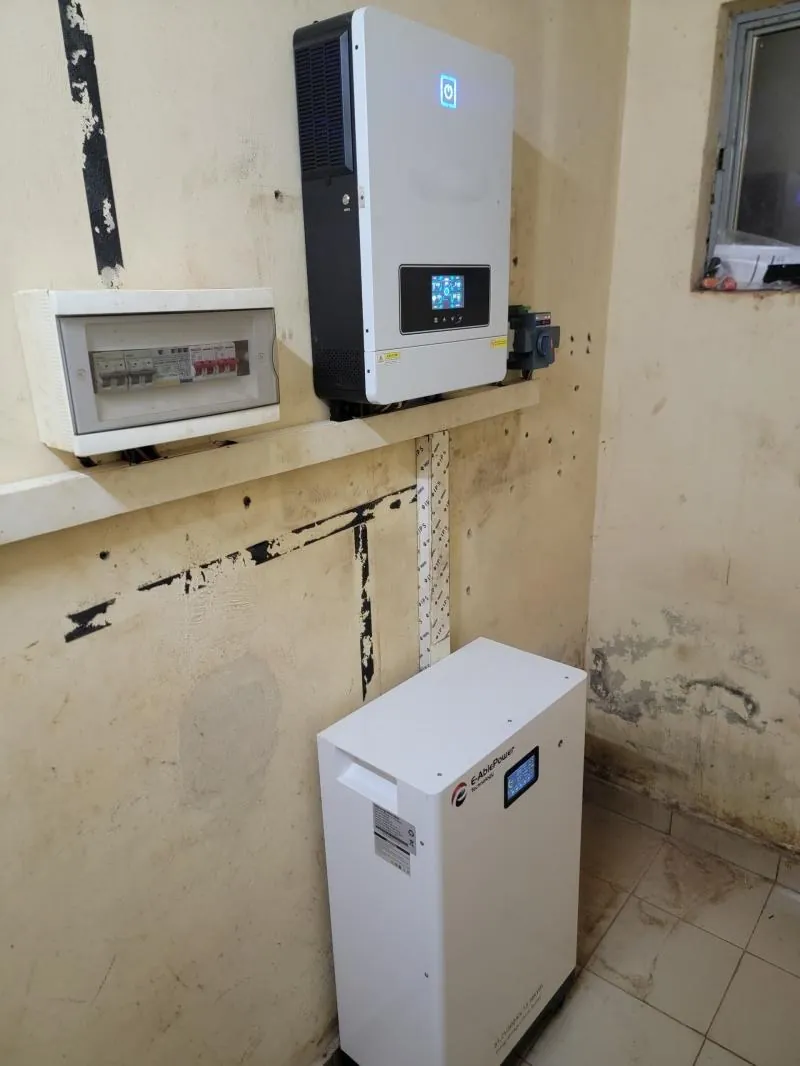

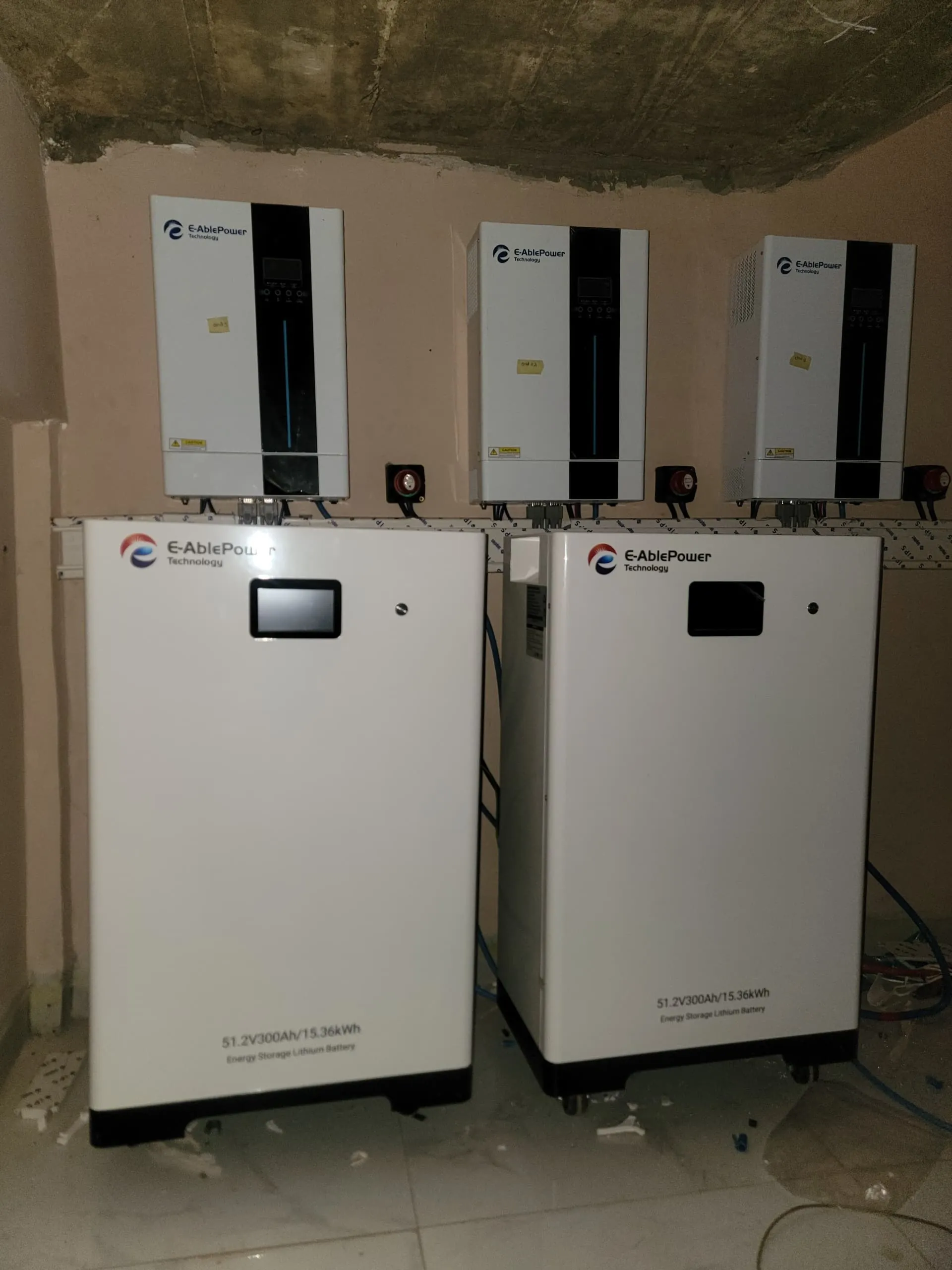

Installation Cases

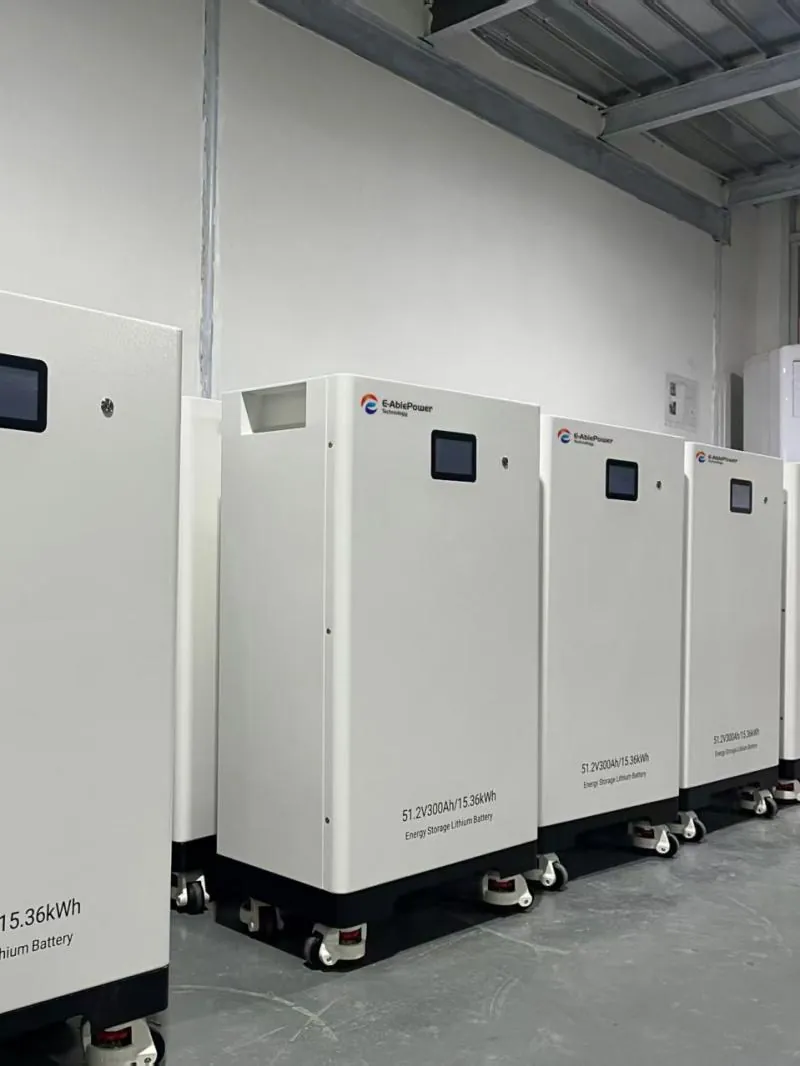

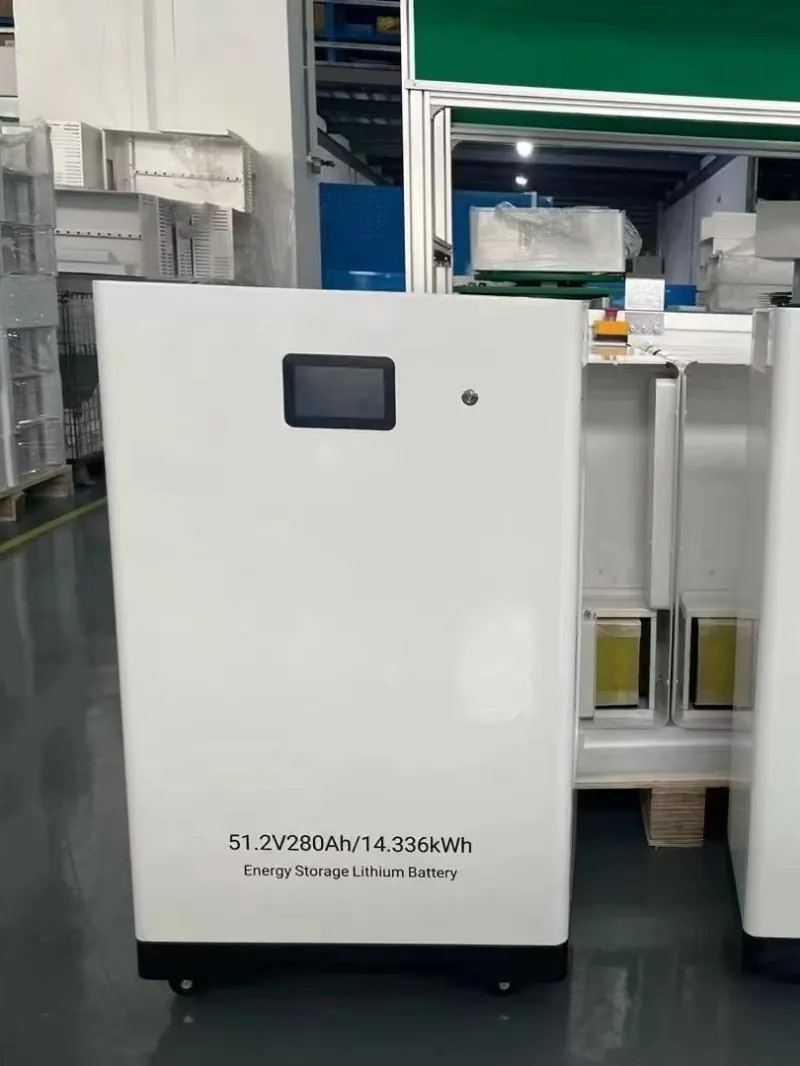

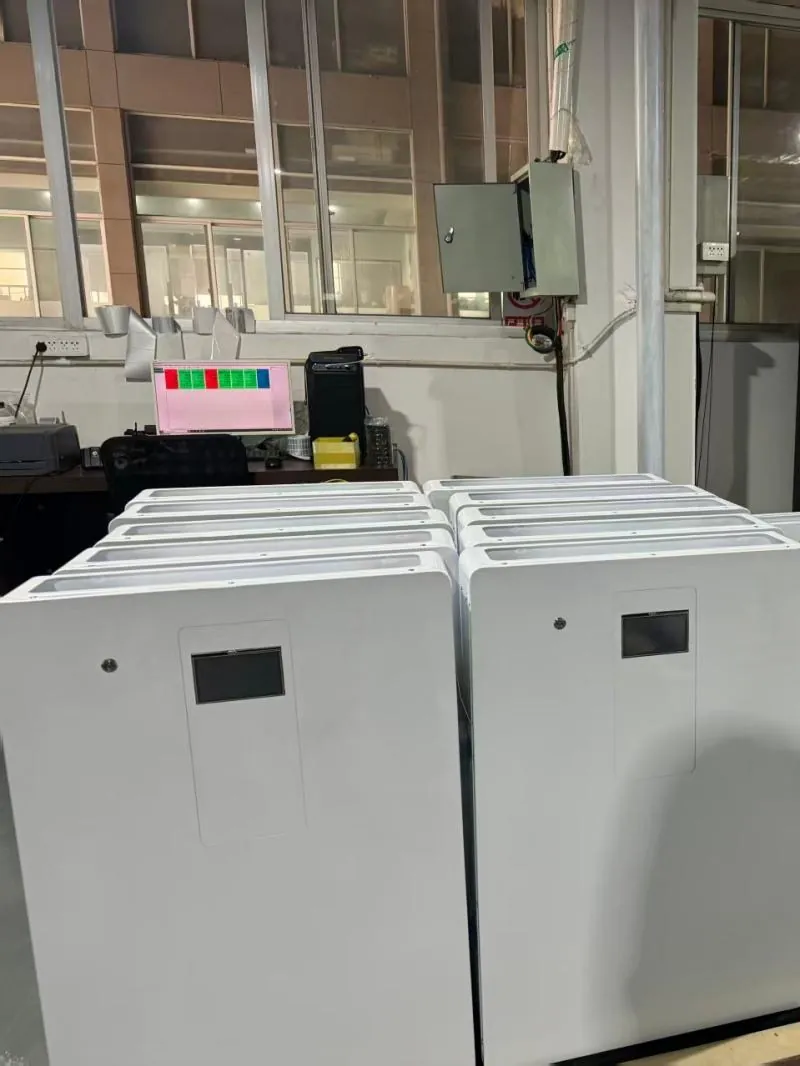

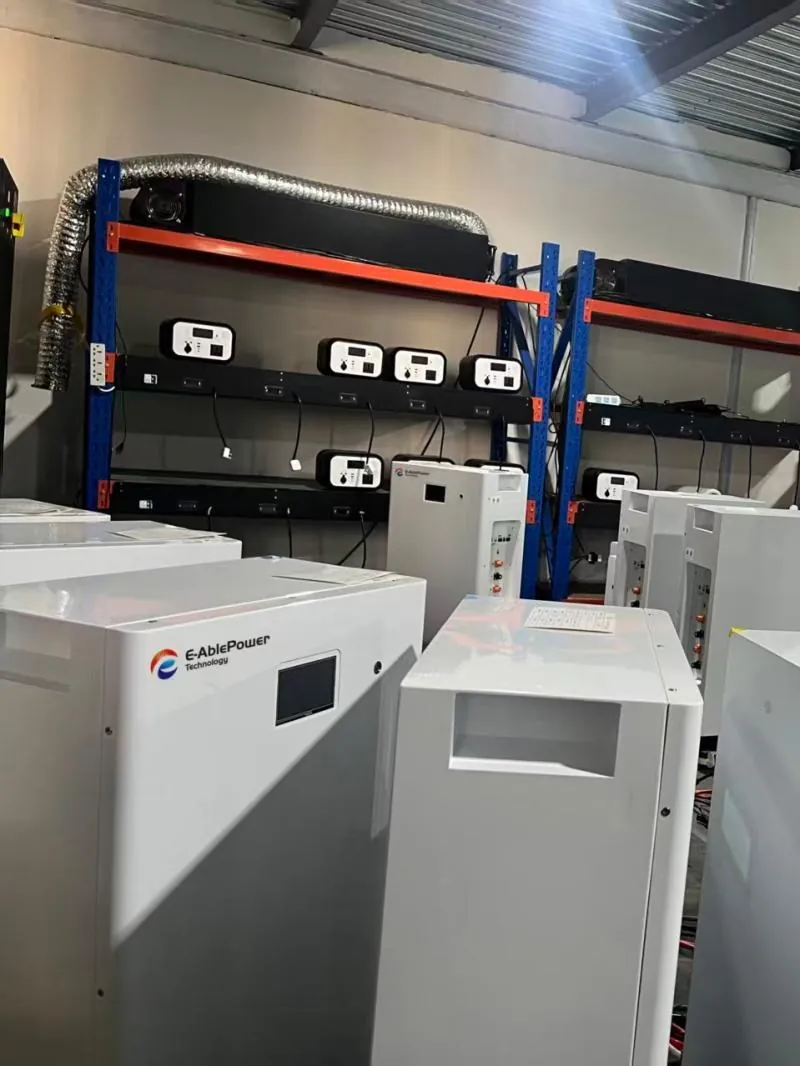

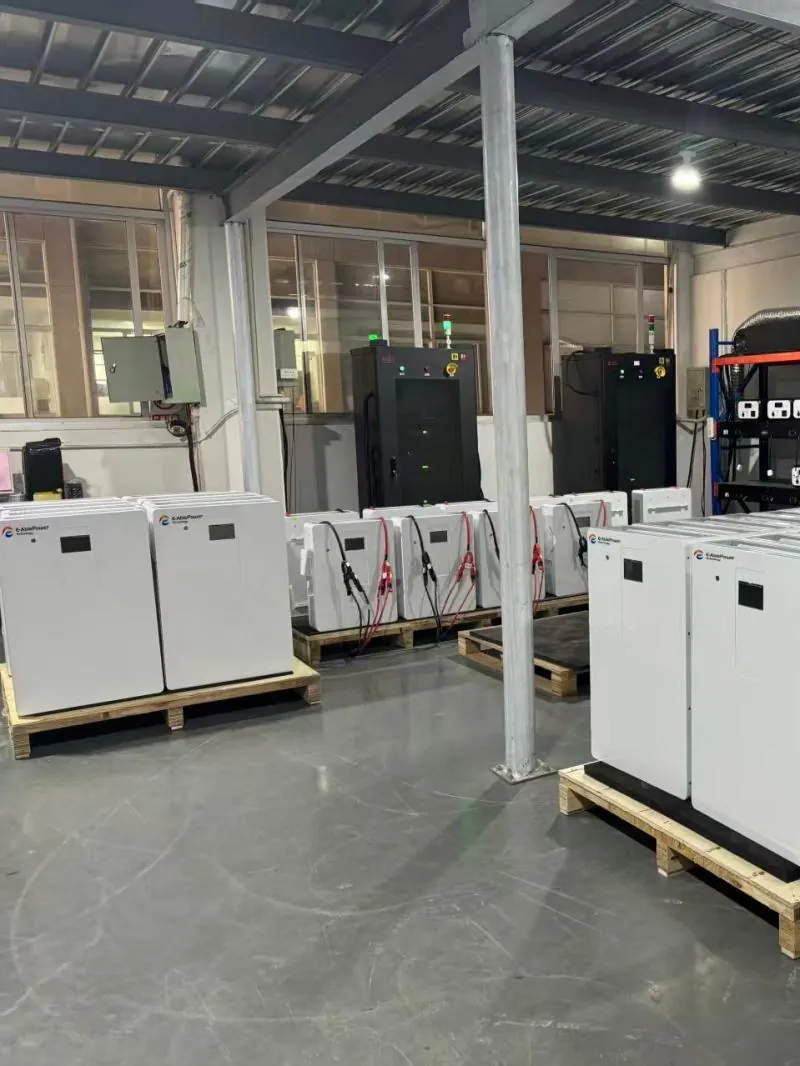

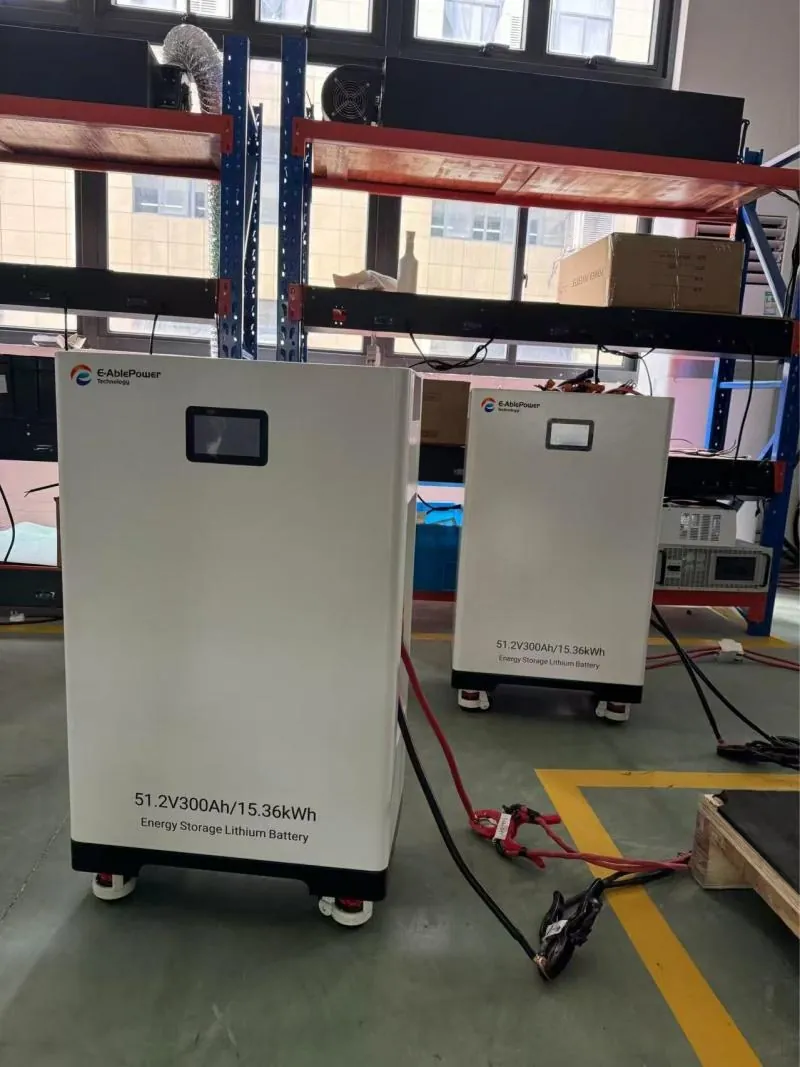

Production

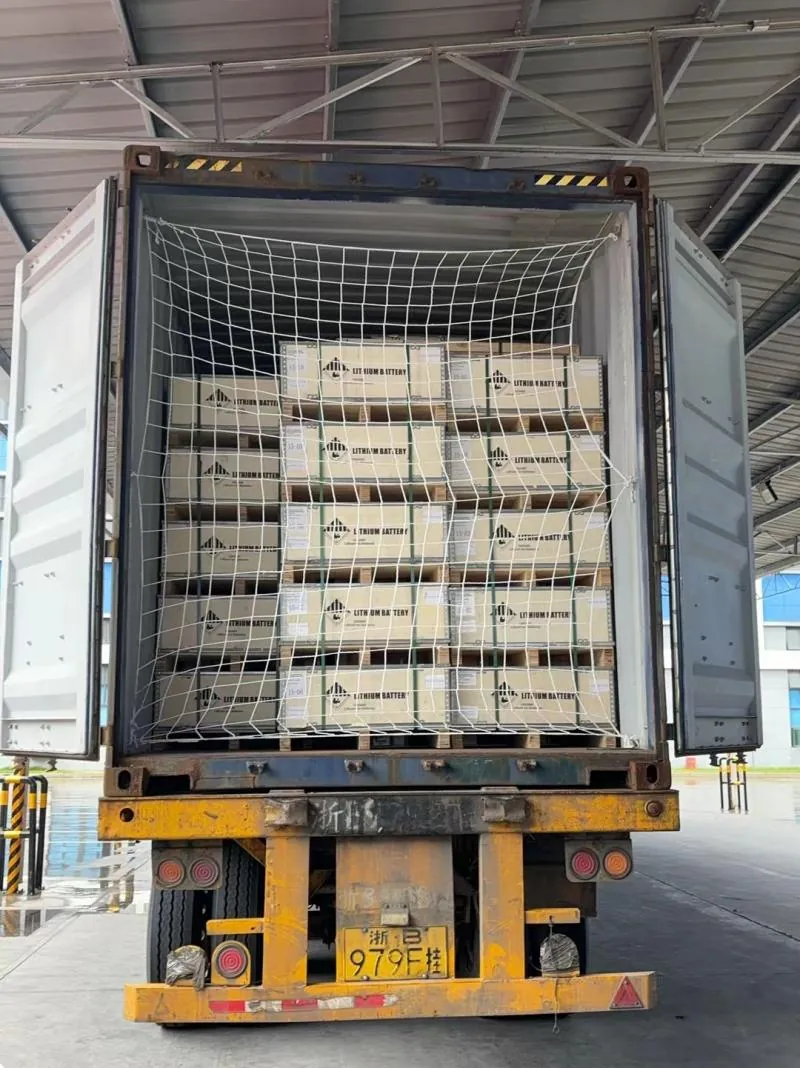

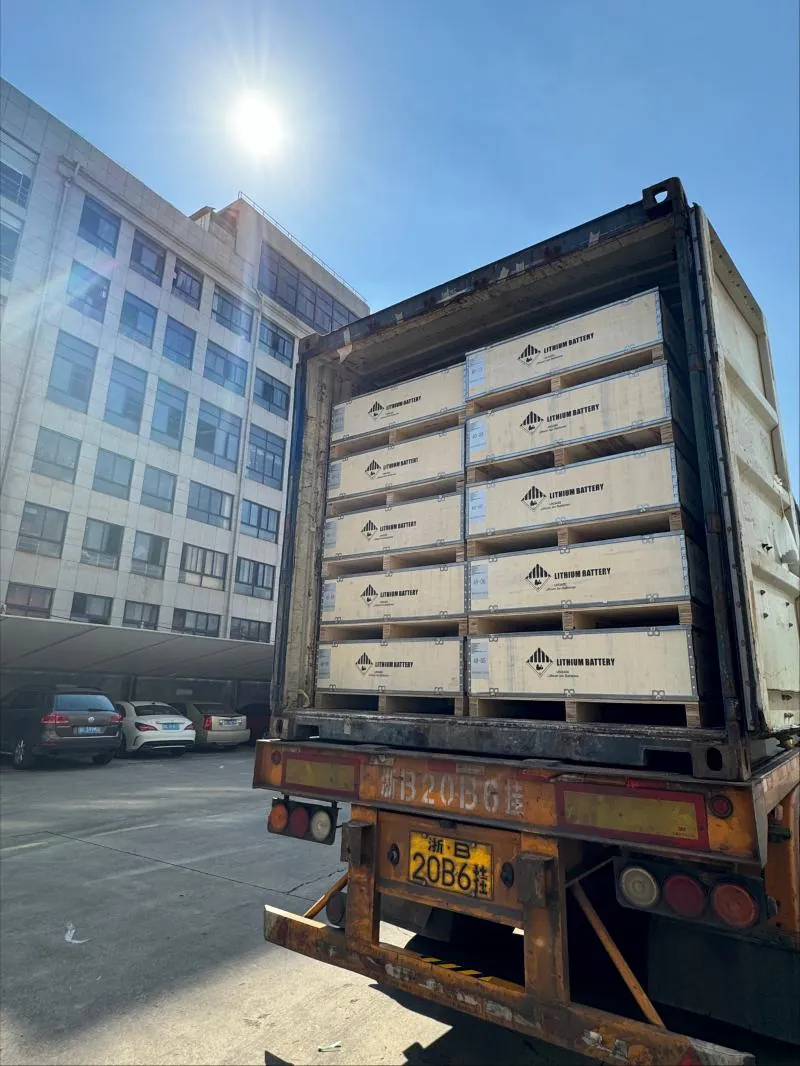

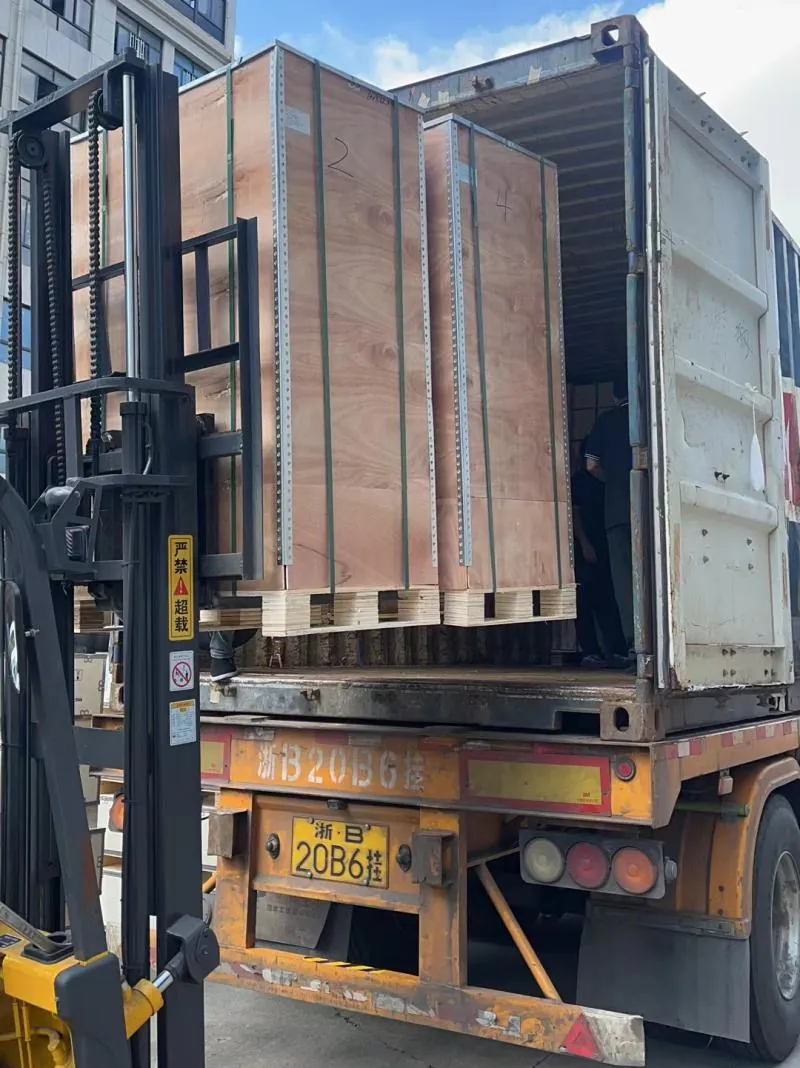

Shipping
RELATED PRODUCTS
Explore Related Products
GCB-E50 Commercial Energy Storage System
GCB-E50 50kW/50kWh all-in-one C&I BESS cabinet with LFP battery packs, air cooling and IP54 protection.
View Product →
GCB-E241 Commercial Energy Storage System
GCB-E241 125kW/241.15kWh commercial and industrial LFP energy-storage cabinet with integrated fire protection.
View Product →Frequently Asked Questions
What capacity models is the 51.2V 314Ah available in?
Capacities of 16.08 kWh (51.2V/314Ah).
What battery technology does the 51.2V 314Ah use?
Grade A LiFePO4 cells, rated for > 6,000 cycles.
What voltage and configuration does the 51.2V 314Ah support?
Operates at 51.2 Vdc (working 43.2–57.6V), parallel up to 15 units.
Is the 51.2V 314Ah protected against dust, water and impact?
Rated IP21 (IP65 optional); the standard unit is for indoor floor-standing installation.
How is the 51.2V 314Ah operated in different conditions?
Discharge -20~50°C / Charge 0~45°C.
What control and communication does the 51.2V 314Ah support?
RS232 / CAN / RS485 / WiFi / BT.
Can the 51.2V 314Ah be configured for a project?
Yes — configuration can be adapted, with a 5-year warranty. Contact us with your site and energy requirements for sizing and a quotation.
