ZC-TYD2505 Architectural Solar Post Top Light
ZC-TYD2505 Architectural Solar Post Top Light offered by China manufacturer E-Able…
View Product E-ABLE POWER — PRODUCT DATASHEET
INDUSTRIAL SOLAR LIGHTING SOLUTIONS
INDUSTRIAL GRADE UP TO 60,000MAH / 38W
Key Specifications at a Glance
| Models | ZC-TYD5108 / ZC-TYD2808 | Solar Panel | 5V 25W (TYD5108) / 5V 38W (TYD2808) Monocrystalline |
| Battery | 3.2V 36,000mAh / 60,000mAh Grade A LiFePO4 | LED Array | 100 PCS (TYD5108) / 150 PCS (TYD2808) |
| Charging Time | 3-5 Hours Direct Sunlight | Rainy-Day Autonomy | 3-5 Days (60Ah Model) |
| Housing | Die-Casting Aluminum — Anti-Corrosion Coating | Lens | Reinforced Glass — IK-Rated Impact Resistance |

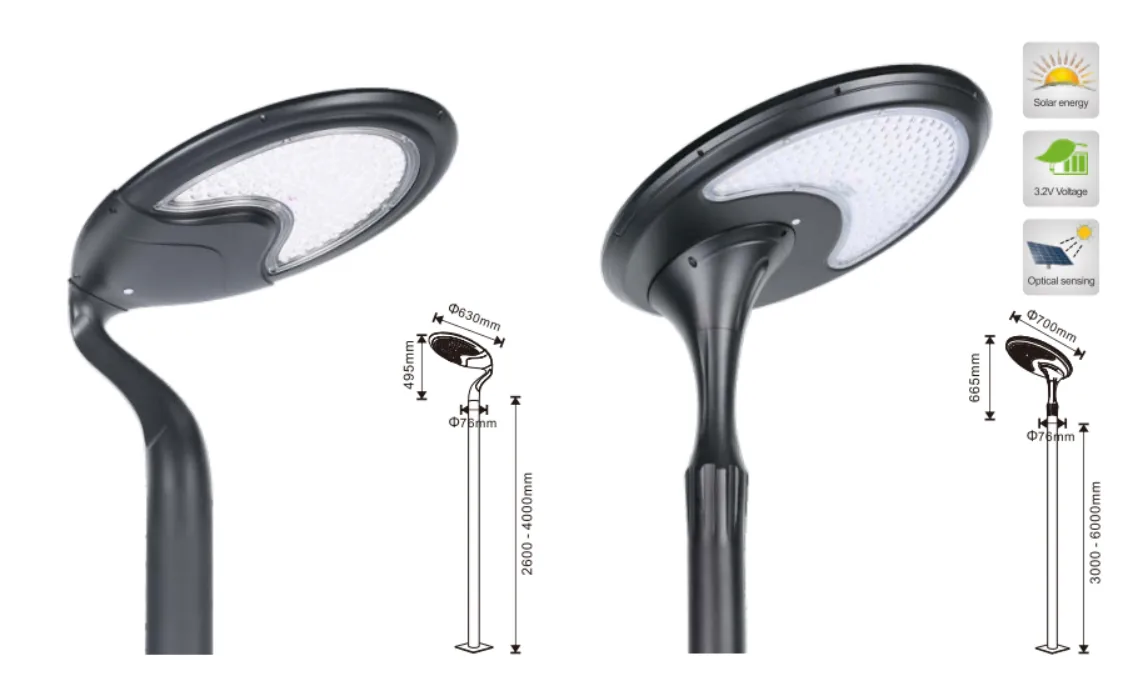

| TYD5108 Dims | Φ630×Φ435×H495mm | TYD2808 Dims | Φ700×Φ520×H665mm |
| Certifications | CE / RoHS | Warranty | 5 Years Standard |
Engineering Superiority
Massive 60,000mAh Battery
High-density Grade A LiFePO4 pack (60,000mAh/192Wh on TYD2808) — the largest in the industrial post-top class. Ensures 3-5 days of autonomy during extreme heavy rain or prolonged cloud cover.
Rugged Anti-Corrosion Build
Premium die-casting aluminum with specialized anti-corrosion coating + reinforced glass lens with IK-rated impact resistance. Tested for coastal high-salinity, high-humidity, and extreme-weather environments.
38W High-Output Solar Panel
Powerful 38W monocrystalline panel on ZC-TYD2808 enables rapid charging even in short winter days — delivering consistent high-brightness output throughout the night in any season.
Model Specification Matrix
| Parameter | ZC-TYD5108 | ZC-TYD2808 |
|---|---|---|
| Solar Panel (Mono) | 5V / 25W | 5V / 38W |
| Battery (LiFePO4) | 3.2V / 36,000mAh (115Wh) | 3.2V / 60,000mAh (192Wh) |
| LED Quantity | 100 PCS | 150 PCS |
| Charging Time | 3-5 Hours — Standard Direct Sunlight | |
| Dimensions | Φ630 × Φ435 × H495mm | Φ700 × Φ520 × H665mm |
| Housing Material | Die-Casting Aluminum — Anti-Corrosion Coating | |
| Lens / Protection | Reinforced Glass — IK-Rated Impact Resistance | |
| Rainy-Day Autonomy | 2-3 Days | 3-5 Days |
| Certifications | CE / RoHS | |
Table 1.0 — RED-CROWED Series model comparison. ZC-TYD2808 recommended for high-demand municipal projects with extended autonomy requirements. ZC-TYD5108 for standard pedestrian zones. Both models: Grade A LiFePO4 chemistry, anti-corrosion coating, reinforced glass lens. 5-year warranty.
Frequently Asked Questions
Q: How does the 60,000mAh model perform during extended bad weather?
The ZC-TYD2808 with 60,000mAh (192Wh) LiFePO4 battery delivers 3-5 days of continuous autonomy from a single full charge — the highest in the industrial post-top class. Even after 4-5 consecutive overcast days with minimal solar input, the fixture maintains reliable pedestrian safety illumination. The 38W high-output monocrystalline panel ensures rapid recovery charging once sunlight returns. Being 100% off-grid, it is completely immune to local grid failures — pedestrians are never left in darkness regardless of power status. For extreme-weather regions, the ZC-TYD2808 is the recommended model.
Q: Is RED-CROWED suitable for coastal and high-salinity environments?
Yes — this is a core design requirement. RED-CROWED features heavy-duty die-casting aluminum with specialized anti-corrosion coating tested for coastal high-salinity and high-humidity environments. The reinforced glass lens with IK-rated impact resistance protects against wind-borne debris, hail, and vandalism. The housing is sealed against salt spray and moisture ingress — far exceeding the durability of standard powder-coated steel post-top fixtures commonly deployed in coastal zones. Ideal for boardwalks, coastal pathways, port areas, and island infrastructure.
Q: How do I choose between ZC-TYD5108 and ZC-TYD2808?
Select by project criticality and autonomy requirements. ZC-TYD5108 (25W panel, 36,000mAh, 100 LED, 2-3 day autonomy): cost-effective option for standard pedestrian pathways in moderate climates with reliable solar resource. ZC-TYD2808 (38W panel, 60,000mAh, 150 LED, 3-5 day autonomy): the flagship model for high-demand municipal projects, extreme-weather regions, coastal zones, and infrastructure where lighting reliability is non-negotiable — more light output, faster charging, deeper battery reserve. Mix both models in a single project: TYD2808 for critical intersections and main paths, TYD5108 for secondary walkways.
Q: What installation and maintenance does RED-CROWED require?
Installation: mount on standard post top at appropriate height. Zero trenching, zero cabling, zero grid connection, zero electrical permit — the fixture is fully self-contained. The reinforced glass top panel serves as both the solar collector and protective cover. Annual maintenance: clean the solar panel surface (glass cleaner + soft cloth), check the anti-corrosion coating integrity (touch-up if scratched), and verify BMS state-of-health. The LiFePO4 battery requires no water, no electrolyte, no equalization. 5-year standard warranty. For municipal tenders, E-Able Power provides complimentary DIALux lighting simulation and complete technical documentation.
Factory: Dongguan, Guangdong, China. CE / RoHS certified. IK-rated reinforced glass lens. Anti-corrosion coating tested for coastal environments. 5-year standard warranty.
