Monocrystalline panel
5V / 20W solar input for the solar-powered version.
Product overview
Light the space.
Keep it efficient.
GGD-006 is a solar garden light from E-Able Power, combining a 5V solar panel, 3.2V / 20000mAh battery and 3030 SMD LED chip output in a weather-protected IP65 housing.
The source-pack specification documents φ480 mm × φ78 mm × H405 mm. It is designed for pole-top mounting in parks, residential streets and municipal applications.
Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
LiFePO4 battery
3.2V / 20000mAh battery configuration from the supplied specification.
Weather-protected housing
IP65 rated construction for outdoor use.
Even light distribution
3030 SMD LED chip source with 3000K – 6500K colour temperature range.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel5V / 20W
- Battery3.2V / 20000mAh
- Rated power5VW
- Input voltageDC 3.2V
- Working time12 hours (3 – 5 rainy days)
Optical performance
- Light source3030 SMD LED chip
- LED quantity3030 SMD LED chip
- Colour temperature3000K – 6500K
- Luminous flux1289.30 lm (3000K) / 1354.12 lm (6500K)
- Colour rendering>80
- Beam angle180°
Construction & dimensions
- MaterialDie cast aluminum + PC transparent lampshade
- Lamp colourBlack; other colours can be customized
- Net weight4.73 kg
- Sizeφ480 mm × φ78 mm × H405 mm
- InstallationPole-top
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications

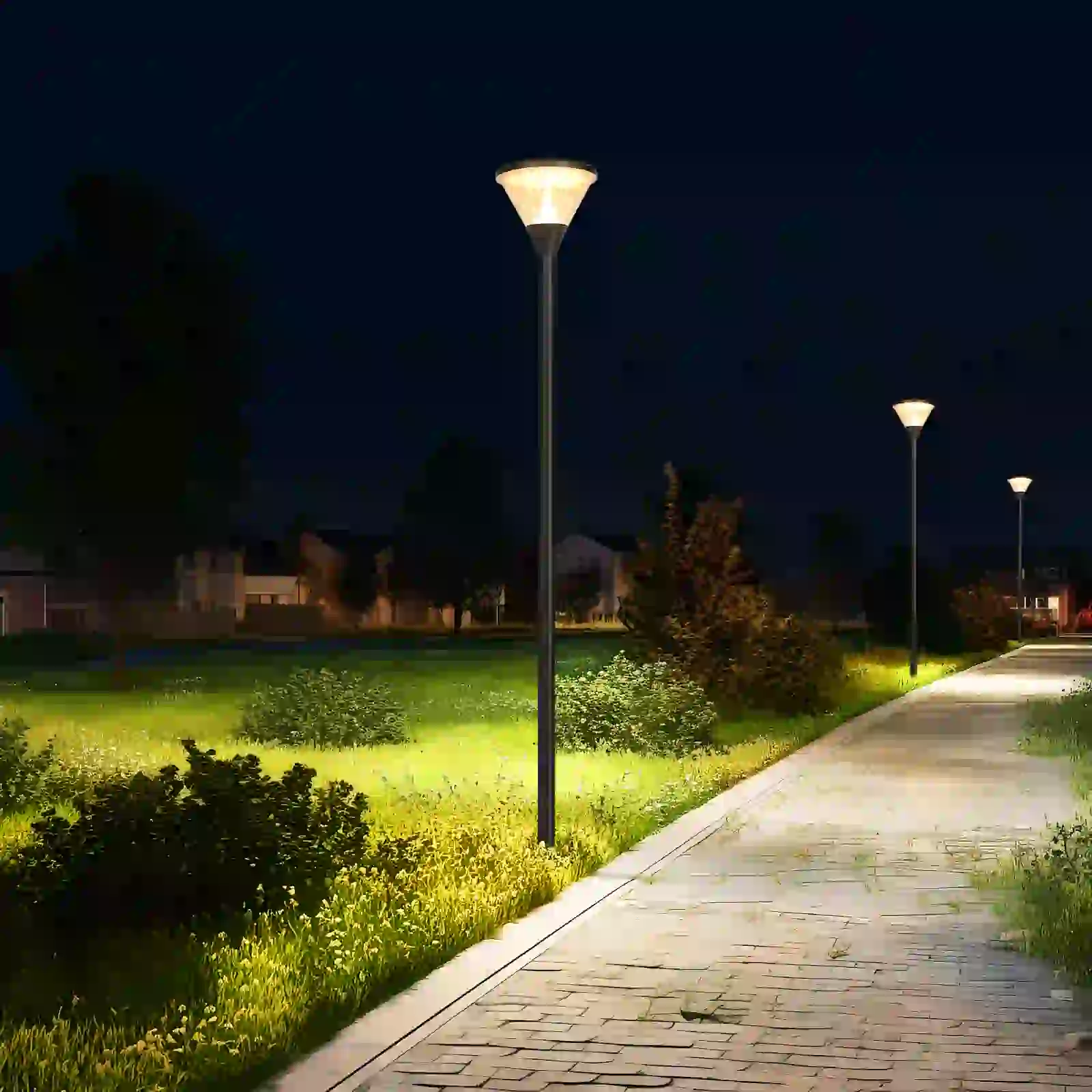

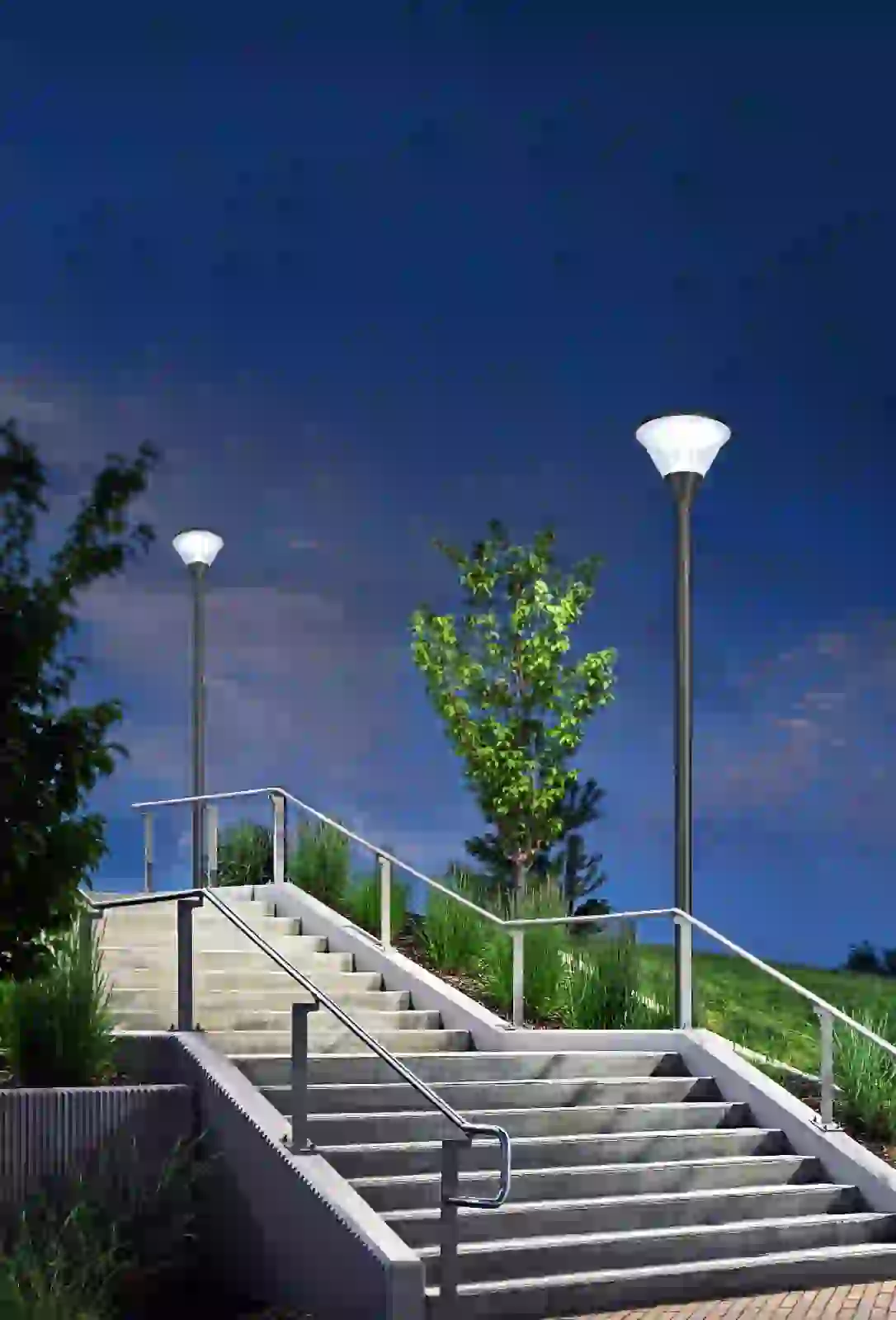

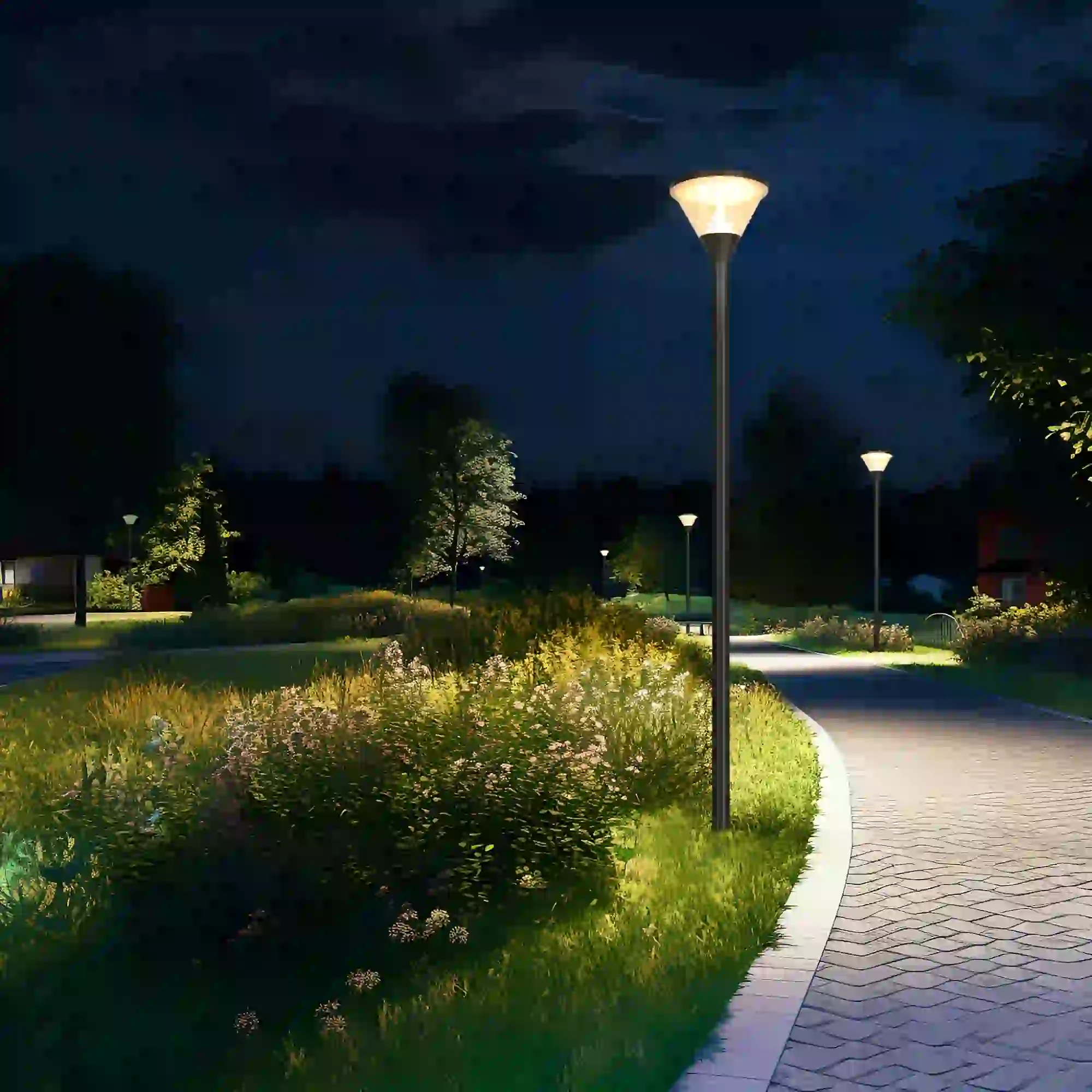

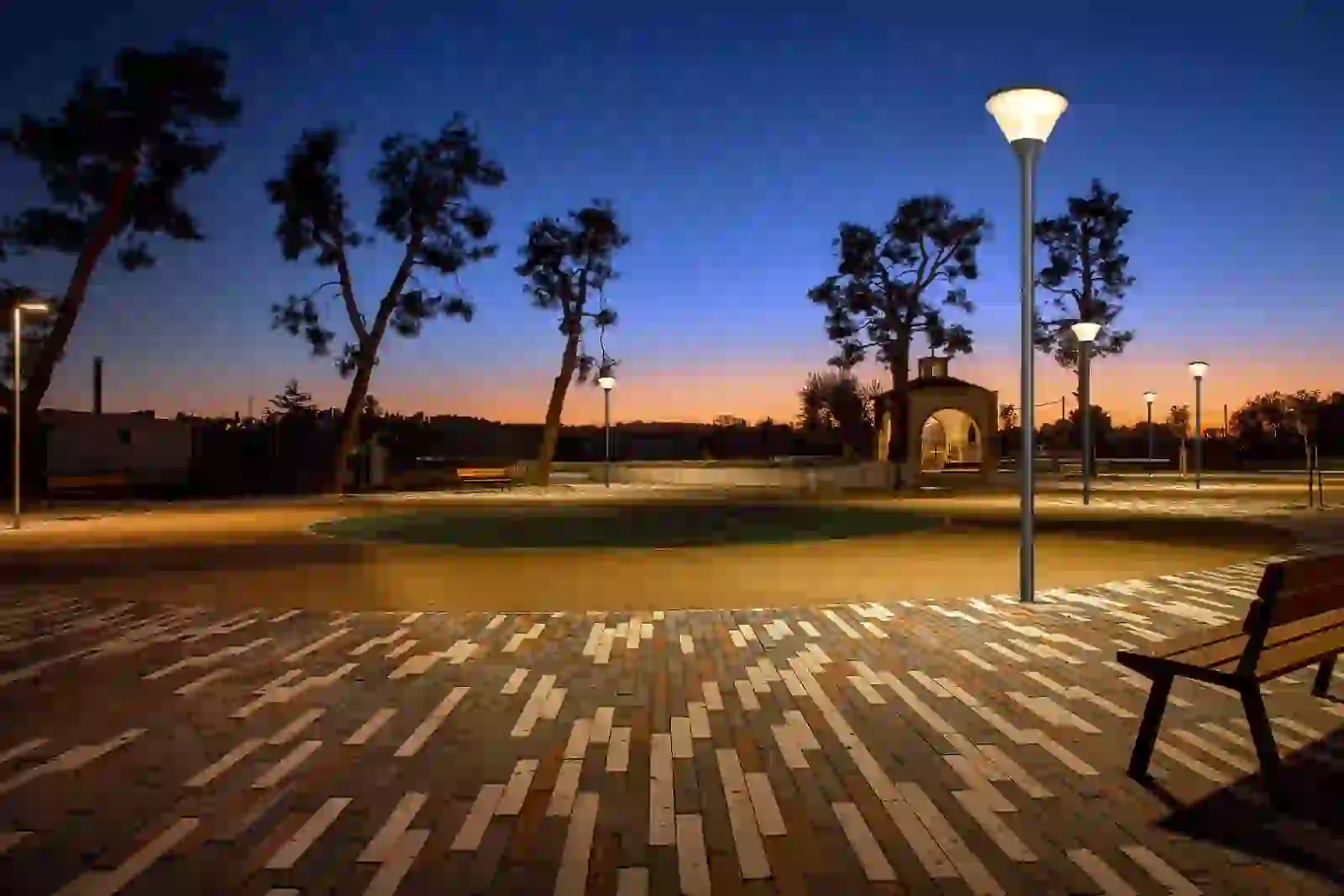

Lighting for pathways, entries and planted edges.
FAQ
Common questions.
1What sizes is the GGD-006 available in?
+
The GGD-006 comes in φ480 mm × φ78 mm × H405 mm.
2How long does the GGD-006 run on a full charge?
+
It runs on a 3.2V / 20000mAh battery and provides 12 hours (3 – 5 rainy days) of working time.
3Is the GGD-006 weatherproof?
+
Yes. It is built from Die cast aluminum + PC transparent lampshade and rated IP65 for outdoor exposure.
4What colour temperature and brightness does the GGD-006 offer?
+
It offers 3000K – 6500K with roughly 1289.30 lm (3000K) / 1354.12 lm (6500K) luminous flux.
5How and where should the GGD-006 be installed?
+
It is designed for pole-top mounting and weighs 4.73 kg.
6What powers the GGD-006?
+
A 5V / 20W monocrystalline solar panel charges the on-board battery.
7Can the GGD-006 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a GGD-006 configuration.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable GGD-006 configuration.
