7M Double-ArmSplit Street Light

A 7-meter double-arm split solar street light that lights two directions from one pole for wider coverage and fewer foundations. Independent panels and batteries feed both arms.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT
E-ABLE POWER — PRODUCT DATASHEET
COMMERCIAL SOLAR LIGHTING SOLUTIONS
INDUSTRIAL HIGH-POWER             SPLIT DUAL-ARM 7M SYSTEM

Split Solar Street Light | 7-Meter Double-Arm

High-Power Double Arm Split Solar Street Light — 7M 50W Dual-Lamp Infrastructure

The peak of high-power outdoor lighting for two-way municipal roads, highways and industrial parks. The Split Design architecture decouples the solar panel, LED lamp and battery so each component operates at maximum efficiency — delivering heavy-duty lighting performance with LiFePO4 or Gel battery flexibility. Dual 50W Lumileds 3030 luminaires at 170 lm/W illuminate both carriageways from a single 7-meter pole.

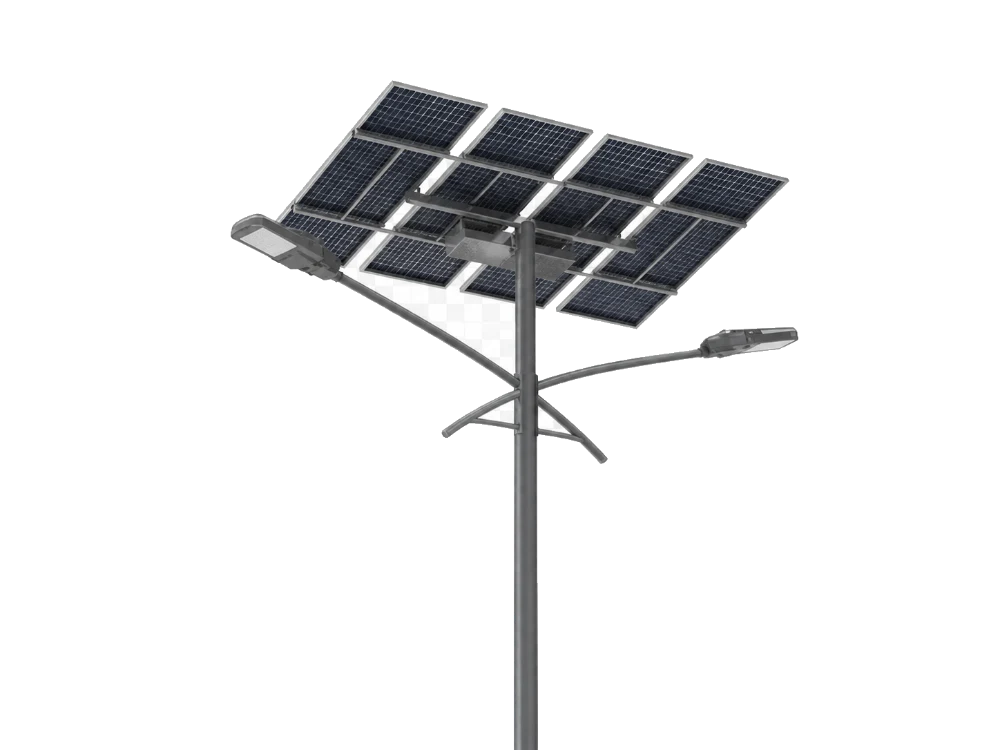

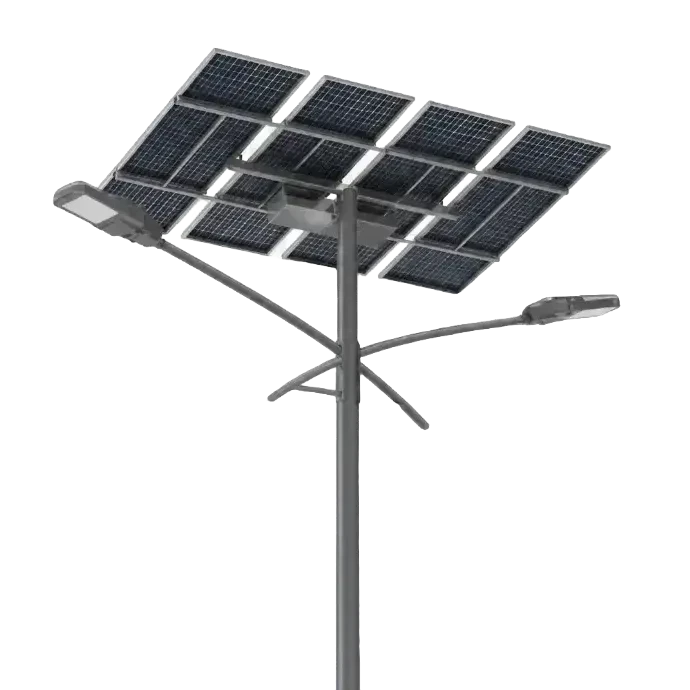

A white double-arm solar street light with two solar panels mounted on top and two lamp fixtures extending from the sides.

Key Specifications at a Glance

LED Luminaire12V 50W × 2 (Lumileds 3030)• Luminous Efficacy170 LM/W
• Solar Module100W/18V × 2 Monocrystalline• Battery PackLiFePO4 12.8V/50Ah × 2
• Charge Controller10A Smart MPPT × 2• Pole Spec7M Conical Q235 Steel (75-152mm Dia, 3mm)
• Surface FinishHot-Dip Galvanized + Powder Coated• Color Temp (CCT)3000K – 6000K Adjustable
• Battery Life2,000+ Cycles @ 80% DOD• Design LifePole >20 Yrs / LED >50,000h
• Quality CertificationsCE / RoHS / ISO 9001
“Split solar street lights represent the absolute peak of high-power outdoor lighting. By decoupling the solar panel, LED lamp and battery, this split architecture maximizes the efficiency of each component — heavy-duty lighting performance with LiFePO4 or Gel battery flexibility, a superior long-term investment for municipal infrastructure.”

Engineering & Performance Advantages

⚙️ Split Architecture

By housing panels, batteries and LEDs separately, each component runs at maximum efficiency — with LiFePO4 or Gel battery flexibility to match the project budget, climate and operating profile.

️ Dual-Arm Coverage

Two independent 50W luminaires on a single 7-meter pole illuminate both carriageways of a two-way road from one foundation — halving pole count and civil works versus single-arm alternatives.

Heavy-Duty Energy Core

Dual LiFePO4 12.8V/50Ah deep-cycle packs rated for 2,000+ cycles at 80% DOD, charged by 100W monocrystalline panels through 10A MPPT controllers — dependable all-night power for infrastructure duty.

Engineering Guide: Double-Arm Installation

Watch the double-arm system installation guide below. If your network blocks embedded YouTube content, use the backup viewing button.

Video unavailable in this editor or network?

WATCH THE INSTALLATION GUIDE ON YOUTUBE

System Specification Sheet (7M/50W Configuration)

Component Technical Specifications Qty Design Life
Main Pole 7M Conical Q235 Steel, 75-152mm Dia, 3mm Thickness, Hot Dip Galvanized & Powder Coated 1 pc > 20 Years
LED Luminaire 12V 50W Lumileds 3030 Chips, 170LM/W, IP66 Waterproof, 3000K-6000K Customizable 2 pcs > 50,000 Hrs
Solar Module 100W / 18V Monocrystalline Silicon (>18% High Efficiency) 2 pcs > 20 Years
Battery Pack LiFePO4 12.8V 50Ah, Deep Cycle, Free Maintenance, 2,000+ Cycles @ 80% DOD 2 pcs 5 - 10 Years
MPPT Controller 10A Smart MPPT, Intelligent Dusk-to-Dawn Automated Dimming 2 pcs 5 - 10 Years
Certifications CE / RoHS / ISO 9001 / ISO 14001

Table 1.0 — System specification sheet for the 7M/50W double-arm configuration. LiFePO4 or Gel battery options available per project. Final values to be confirmed with the approved quotation and destination-market requirements. 3-year standard warranty.

E-Able Industrial Manufacturing Hub

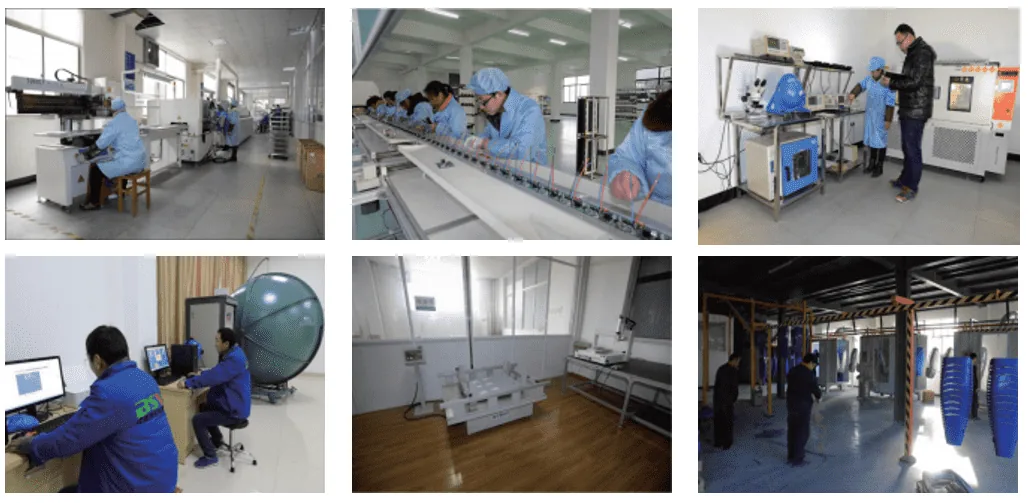

A collage of photographs depicting a cleanroom manufacturing facility, assembly lines, testing equipment, and the storage of solar panels in

LED SMT WORKSHOP

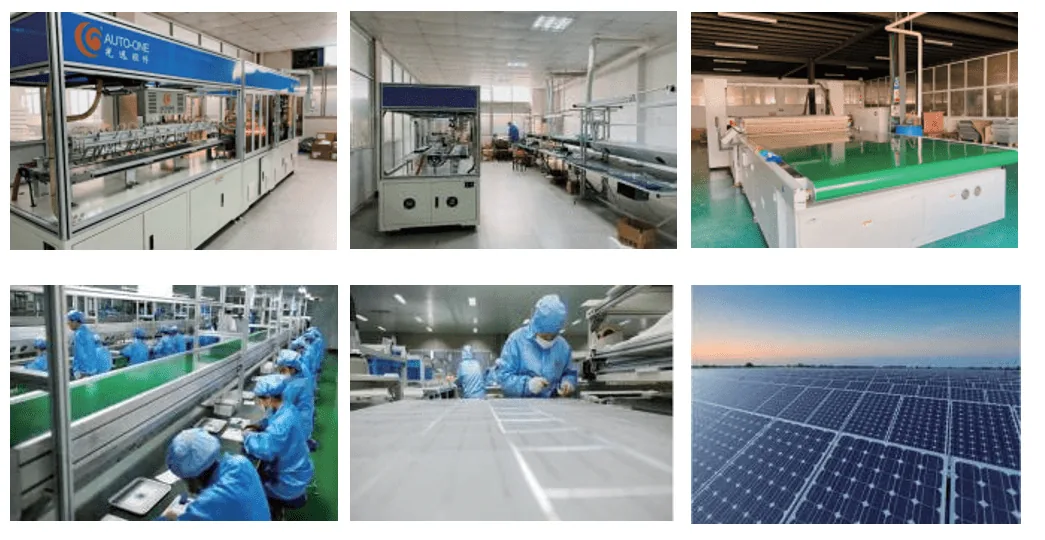

A collage depicting the manufacturing process of solar panels, including automated production lines, workers in cleanroom suits, and a large

PV PANEL WORKSHOP

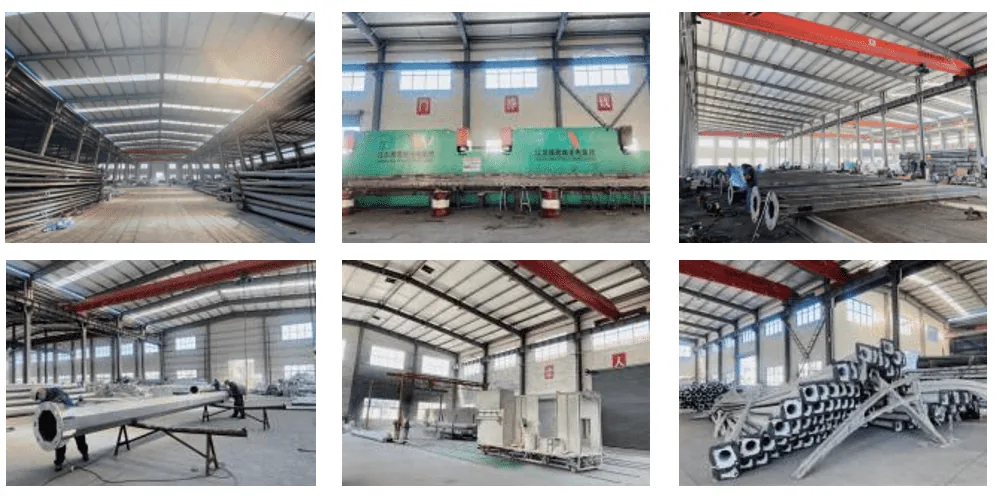

A collage of six photos showing the interior of a large manufacturing facility with steel pipes, machinery, and a green truck.

GALVANIZED POLE WORKSHOP

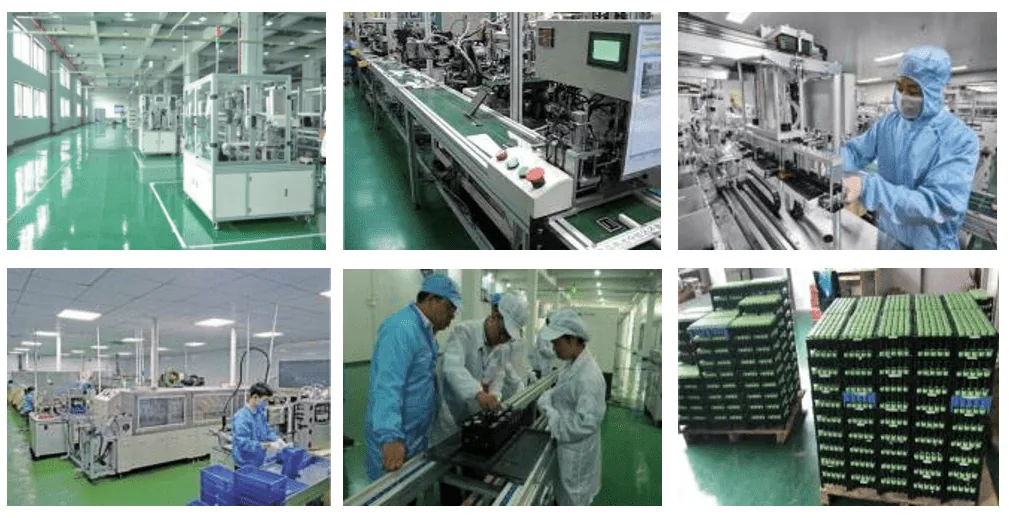

A collage of six images showing a cleanroom battery manufacturing facility, including automated production lines, workers in protective suit

LiFePO4 BATTERY WORKSHOP

Project Design, DIALux & Wind-Load Support

Project Design

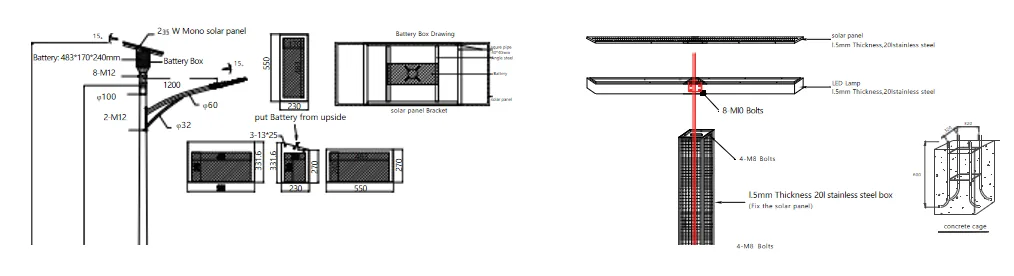

Technical drawings of a single-arm solar street light showing a pole, solar panel, battery box, lamp, and concrete foundation with dimension

DIALux Analysis

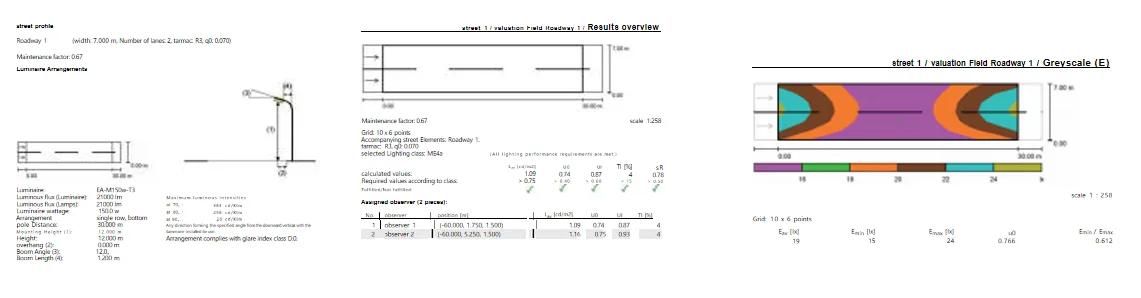

A lighting design report showing a 6-meter double-arm street light illuminating a roadway, with a cross-section diagram, a plan view, and a

Wind Load Resistance

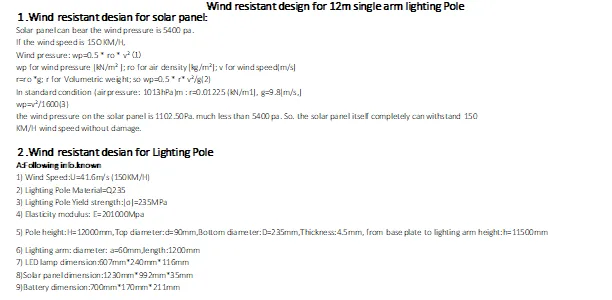

Technical document detailing wind resistance calculations for a 12m single-arm solar street light pole.

Ideal Application Scenarios

Municipal Roads             Highways & Expressways             Industrial Parks             Public Plazas & Stadiums

Buyer FAQ

Why choose a 7m double-arm configuration for municipal roads?
A double-arm pole mounts two independent 50W luminaires on a single 7-meter structure, illuminating both carriageways of a two-way road from one foundation — halving pole count and civil works versus single-arm alternatives. The 7m height is well suited to secondary arterial roads, industrial parks and highway access roads where compact infrastructure with two-sided coverage is required.
How are the dual solar panels and batteries configured?
The reference configuration pairs two 100W/18V monocrystalline panels with two LiFePO4 12.8V/50Ah deep-cycle packs (2,000+ cycles at 80% DOD), managed by two 10A MPPT controllers. The split architecture also supports LiFePO4 or Gel battery flexibility — and sizing is adjusted around local sunshine hours, rainy-season autonomy, dimming schedule and operating hours without redesigning the pole.
Is wind-load and lighting validation provided for tenders?
Yes. For municipal tenders our engineering team provides DIALux lighting simulations and wind-load calculations based on your road width, pole spacing, mounting height and target lux levels. Provide the destination market and project inputs so the applicable drawings and documentation can be reviewed for the selected configuration and local standards.
What is the expected design life and maintenance requirement?
Design life is component-matched: pole >20 years (hot-dip galvanized + powder coated Q235 steel), LED luminaires >50,000 hours, solar modules >20 years, and battery/controller 5-10 years depending on cycling depth. Maintenance is limited to periodic panel cleaning and annual connection inspection — batteries are maintenance-free, and a 3-year standard warranty applies.

E-Able Power is an ISO 9001 & ISO 14001 certified manufacturer. All split solar street lights are CE and RoHS compliant with 3-year standard warranty.
