400W–1200W range
Six documented models for large-area sports and high-mast applications.
Product overview

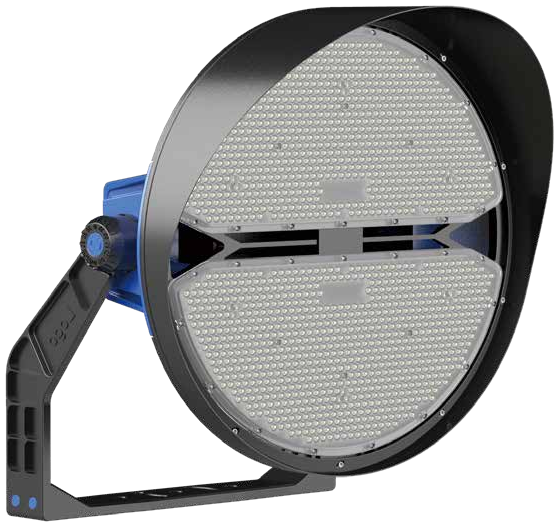

SKYWING SF04
Sports & High Mast Light.
SKYWING SF04 is a sports and high-mast LED light family documented from 400W to 1200W in six models, with 10°, 25°, 45°, 60° and 90° optical distributions and a visor for spill-light control.
The family uses a die-cast ADC12 housing with corrosion-resistant treatment, a polycarbonate lens, AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Five optics
10°, 25°, 45°, 60° and 90° distributions.
Racked angle & visor
Widely adjustable mounting bracket with degree indicator and a light-spill visor.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
6 models. Every verified value.
SKYWING SF04 · Sports & High Mast Light
ISL-QCD-D400W
Rated 400W · 56,000lm

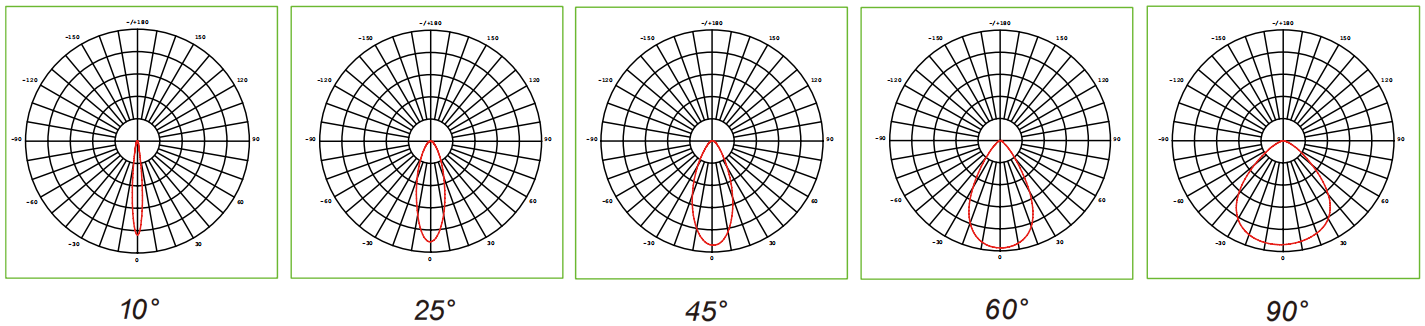

Optical distributions
Beam patterns.
The catalog publishes polar plots for five optical distributions across the SKYWING SF04 family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF04?
The catalog documents 6 models — ISL-QCD-D400W, 500W, 600W, 800W, 1000W, 1200W — with rated power from 400W to 1200W.
Which beam angles or optical distributions are documented?
The distributions are: 10°, 25°, 45°, 60° and 90°.
Which luminous flux values are documented?
The catalog lists 56,000lm up to 168,000lm.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.

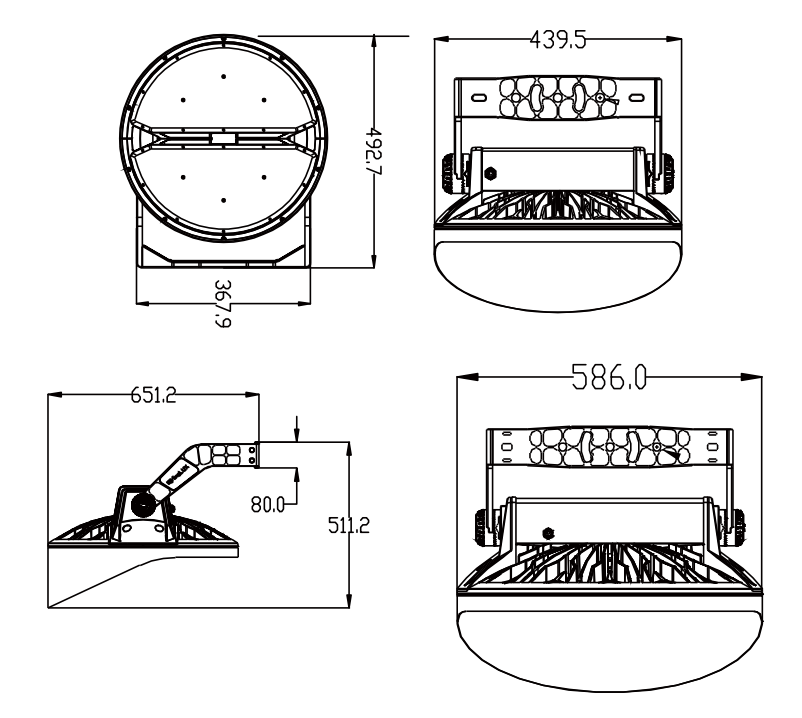

Which installation or dimensional details are documented?
The catalog records racked-angle and visor features with 493×439×421mm and 651×586×511mm housing footprints.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF04 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
