E-ABLE POWER / SOLAR GARDEN LIGHTING

Solar Post TopLights

Post-top solar lights for parks, plazas and street-scale lighting, delivering even distribution and long autonomy without cabling. LiFePO4 batteries and dusk-to-dawn controllers keep them reliable.

Downloads

Print-ready PDF — specifications and installation in one place, no login required.

Solar post top light range

Post top and garden lights engineered in-house with Grade A LiFePO4 batteries, IP65-rated waterproof housings and intelligent controllers — zero trenching, zero grid connection, dusk-to-dawn autonomy in any climate.

ZC-GGD4505 Classic European Multi-Head Solar Post Light

Solar post top light

ZC-GGD4505 Classic European Multi-Head Solar Post Light

Heritage-styled double & triple-head post lights (2.6m): 5V/9-13.5W panel, 3.2V/16,000-24,000mAh LiFePO4, 60-90 LED. Die-cast aluminum + PC, IP65. For old towns, cafe plazas and promenades.

READ PRODUCT BRIEF +

Solar Panel: 5V 9W (Double) / 5V 13.5W (Triple) Monocrystalline

Battery: 3.2V 16,000mAh (51Wh) / 24,000mAh (77Wh) Grade A LiFePO4

Charging Time: 3-5 Hours — Standard Direct Sunlight

LED: 60 PCS (Double) / 90 PCS (Triple) — Independent Light Engines

IP Rating: IP65 — Waterproof / Weatherproof

ZC-GGD4505-2 (Double) / ZC-GGD4505-3 (Triple): Style

Housing Material: Die-Casting Aluminum + Impact-Resistant PC Diffusers

Fixture Height: 2,600 mm — Integrated Post Fixture (Self-Standing)

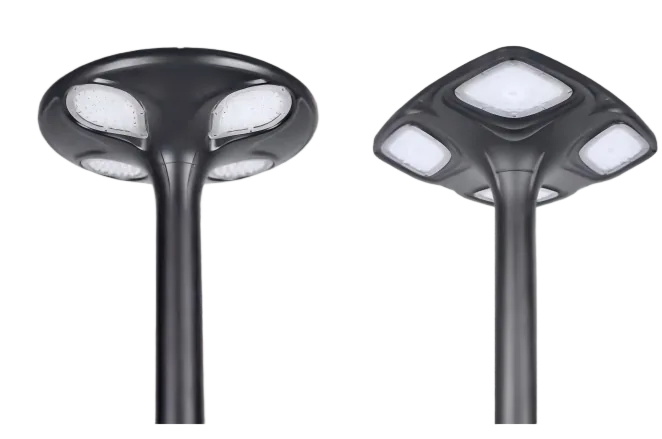

ZC-GGD Series Elite Architectural Solar Post Light

Solar post top light

ZC-GGD Series Elite Architectural Solar Post Light

Three architectural profiles (GGD001 Round, GGD002-1 Square L, GGD002-2 Square S) from 12-20W with 3,000-6,500K CCT, dusk-to-dawn sensing, zero trenching. For plazas, pathways and courtyards.

READ PRODUCT BRIEF +

Solar Panel: 5V 20W (GGD001/G002-1) / 5V 12W (G002-2) Monocrystalline

Battery: 3.2V 20,000mAh (64Wh) / 12,000mAh (38Wh) Grade A LiFePO4

Charging Time: 3-5 Hours — Standard Direct Sunlight

LED: 80 PCS (L models) / 64 PCS (S model) — 3000-6500K Selectable CCT

Color Temp (CCT): 3000K - 6500K — Selectable / Adjustable

Housing Material: Die-Casting Aluminum + Premium UV-Stabilized PC

Fixture Dimensions: Φ480 × H440 mm

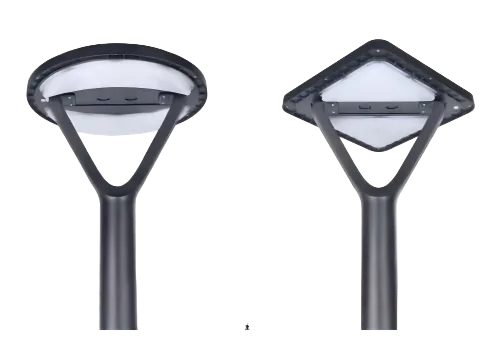

ZC-TYD Series Urban V-Arm Solar Post Top Light

Solar post top light

ZC-TYD Series Urban V-Arm Solar Post Top Light

Distinctive V-shaped canopy forms (TYD2705 Round / TYD2403 Square): 5V/20W panel, 20,000mAh LiFePO4, 80 SMD LED, 3,000-6,500K CCT. For city plazas, pedestrian zones and transit hubs.

READ PRODUCT BRIEF +

Solar Panel: 5V / 20W Monocrystalline

Battery: 3.2V / 20,000mAh (64Wh) Grade A LiFePO4

Charging Time: 3-5 Hours Direct Sunlight

LED Array: 80 SMD Chips — 3000-6500K Selectable CCT

IP Rating: IP65 — Waterproof / Dustproof

Housing Material: Die-Casting Aluminum Frame + High-Impact PC Diffuser

Fixture Dimensions: Φ480 × H410 mm

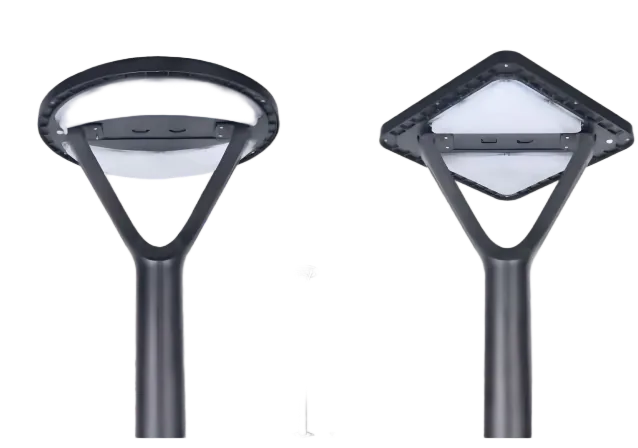

ZC-TYD2403 25W Commercial Solar Garden Light

Solar garden light

ZC-TYD2403 25W Commercial Solar Garden Light

25W commercial garden light: 5V/25W panel, 20,000mAh LiFePO4, 80 SMD LED, dusk-to-dawn optical sensor, zero trenching/cabling. For walkways, parks, plazas and garden paths.

READ PRODUCT BRIEF +

Solar Panel: 5V / 25W High-Efficiency Monocrystalline

Battery: 3.2V / 20,000mAh (64Wh) Grade A LiFePO4

Charging Time: 3-5 Hours Direct Sunlight

LED Array: 80 PCS High-Lumen SMD — 25W Equivalent

Housing Material: Die-Casting Aluminum Frame + PC Anti-UV Diffuser

Dimensions: 400 × 400 × H420 mm

RED-CROWED Series Ultra-High Capacity Solar Post Light

Solar post top light

RED-CROWED Series Ultra-High Capacity Solar Post Light

Industrial-grade post lights up to 60,000mAh / 38W (TYD5108 / TYD2808) with reinforced glass lens and IK-rated impact resistance — for municipal, coastal and extreme-weather sites.

READ PRODUCT BRIEF +

Solar Panel: 5V 25W (TYD5108) / 5V 38W (TYD2808) Monocrystalline

Battery: 3.2V 36,000mAh / 60,000mAh Grade A LiFePO4

Charging Time: 3-5 Hours Direct Sunlight

LED Array: 100 PCS (TYD5108) / 150 PCS (TYD2808)

Lens / Protection: Reinforced Glass — IK-Rated Impact Resistance

Housing Material: Die-Casting Aluminum — Anti-Corrosion Coating

Dimensions: Φ630 × Φ435 × H495mm

THEMIS Dark Sky Friendly Solar Post Top Light

Solar post top light

THEMIS Dark Sky Friendly Solar Post Top Light

Dark-sky compliant post top light: 2,800lm at 190lm/W, UGR <1% glare-free optics, 154Wh LiFePO4, MPPT controller, up to 5-day autonomy. DIALux simulation included.

READ PRODUCT BRIEF +

Solar PV Power: 38W Monocrystalline Silicon — >22.5% Conversion Efficiency

Battery: 154Wh Grade A LiFePO4 — 6,000+ Cycles

Charging Time: 4 Hours Direct Sunlight

Charge Controller: MPPT — 97% Conversion Efficiency — Programmable Profiles

CCT Options / LED Lifetime: Dual CCT Configurable / >100,000 Hours (L70)

Luminous Efficacy: 190 lm/W — Industrial Class

ZC-TYD2505 Architectural Solar Post Top Light

Solar post top light

ZC-TYD2505 Architectural Solar Post Top Light

Architectural post top light: 5V/45W panel, 60,000mAh (192Wh) LiFePO4, 200-LED 360° array, 3,000K, mounts on 76mm posts at 4-6m. CE, 5-year warranty.

READ PRODUCT BRIEF +

Solar PV Power: 5V / 45W Monocrystalline Silicon — High-Efficiency Panel

Battery: 3.2V / 60,000mAh (192Wh) Grade A LiFePO4

Charging Time: 3-5 Hours Direct Sunlight

LED Array: 200 PCS High-Efficacy LED Chips

IP Rating: IP65 — Waterproof & Weather-Resistant

CCT: 3000K Warm White (4000K Optional)

Color Temperature: 3000K Warm White (Standard) / 4000K Neutral White (Optional)

Housing Material: Heavy-Duty Die-Casting Aluminum — Powder-Coated Finish

ARTEMIS Vertical Solar Garden Light (30W-60W)

Solar garden light

ARTEMIS Vertical Solar Garden Light (30W-60W)

Vertical solar garden light with SolarWrap technology: up to 8,800lm, 3.5-5m height, easy-maintenance battery-in-pole design for modern landscape projects.

READ PRODUCT BRIEF +

Solar PV Power (Max): 140W (Vertical Module)

Battery (LiFePO4 32700): 307.2 WH (12.8V 24AH)

CCT Range / Working Temp: 3000K | 4000K | 6000K / -25°C to +65°C

ZEUS Vertical Solar Pole Light 200W Solawrap

Solar garden light

ZEUS Vertical Solar Pole Light 200W Solawrap

Vertical Solawrap cylindrical module replaces bulky flat panels — streamlined, wind and dust resistant, ideal for modern gardens, plazas and architecture.

READ PRODUCT BRIEF +

Max LED Power / Flux: 30W (SMD3030 140pcs) / > 4,500 LM

Battery Life Cycle: > 4,000 Cycles @ 50% D.O.D

CCT Range: 3000K / 4000K / 6000K (Adjustable)

Controller System: Programmable IP68 MPPT Efficiency > 97%

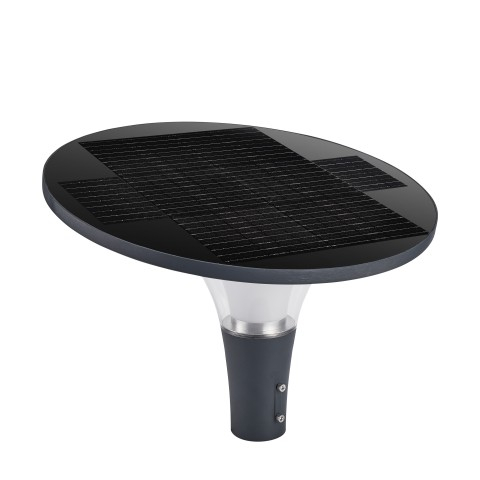

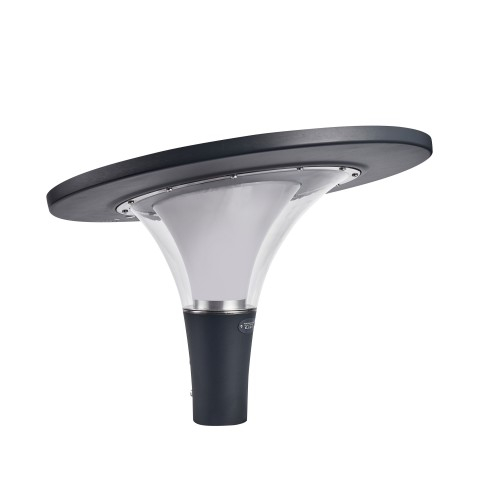

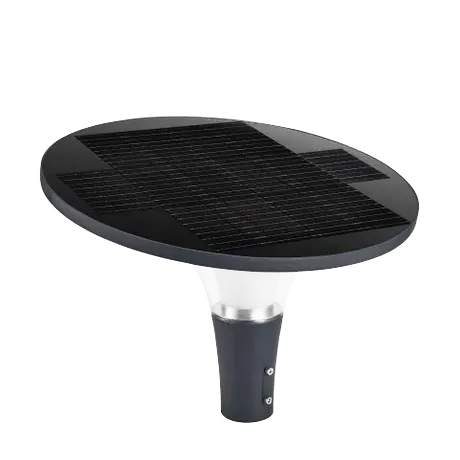

Athena AI-GL600R Solar Garden Light

Solar garden light

Athena AI-GL600R Solar Garden Light

2,800lm of glare-free 360° illumination, 2.4G smart grouping, 10-year LiFePO4 battery, IP65/IK10 durability. For luxury resorts and municipal pathways.

READ PRODUCT BRIEF +

LED Power / Type: 18W (164pcs Ultra-Bright SMD2835)

Battery (LiFePO4): 154WH 12.8V (6,000 Cycles @ 80% DOD)

Luminous Flux: 2,800lm (Max High-Brightness Output)

CCT Range: Dual: 3000K+4000K or 3000K+6000K Customizable

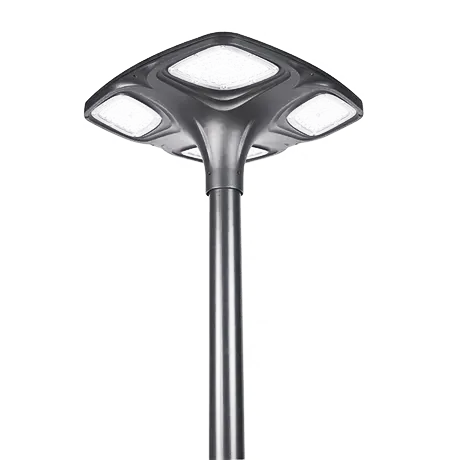

Four Leaf Solar Pedestrian Light

Pedestrian light

Four Leaf Solar Pedestrian Light

Symbolic four-leaf design with commercial-grade power: 32W panel and 45Ah battery — premium commercial landscape lighting for architects and municipal projects.

READ PRODUCT BRIEF +

Battery Capacity: 3.2V / 45,000mAh Extreme LiFePO4

LED Configuration: 160 PCS High-Performance LED Chips

Color Temp (CCT): 3000K - 6500K Customizable

Main Material: Premium Die-casting Aluminum + High-Transparency PC

Dimensions (Size): φ560 * H230 mm (Four-Leaf Profile)

GGD-001

Solar post top light

Solar Post Top Light GGD-001

: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 2835 LED · 80 pcs, 480 mm × H440 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 20W

Battery: 3.2V / 20Ah (64Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light GGD-001

Solar post top light

Solar Post Top Light GGD-001

Solar Post Top Light GGD-001: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 480 mm × H440 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 20W

Battery: 3.2V / 20Ah (64Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light GGD-002

Solar post top light

Solar Post Top Light GGD-002

Solar Post Top Light GGD-002: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 400 mm × H410 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 20W

Battery: 3.2V / 20Ah (64Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

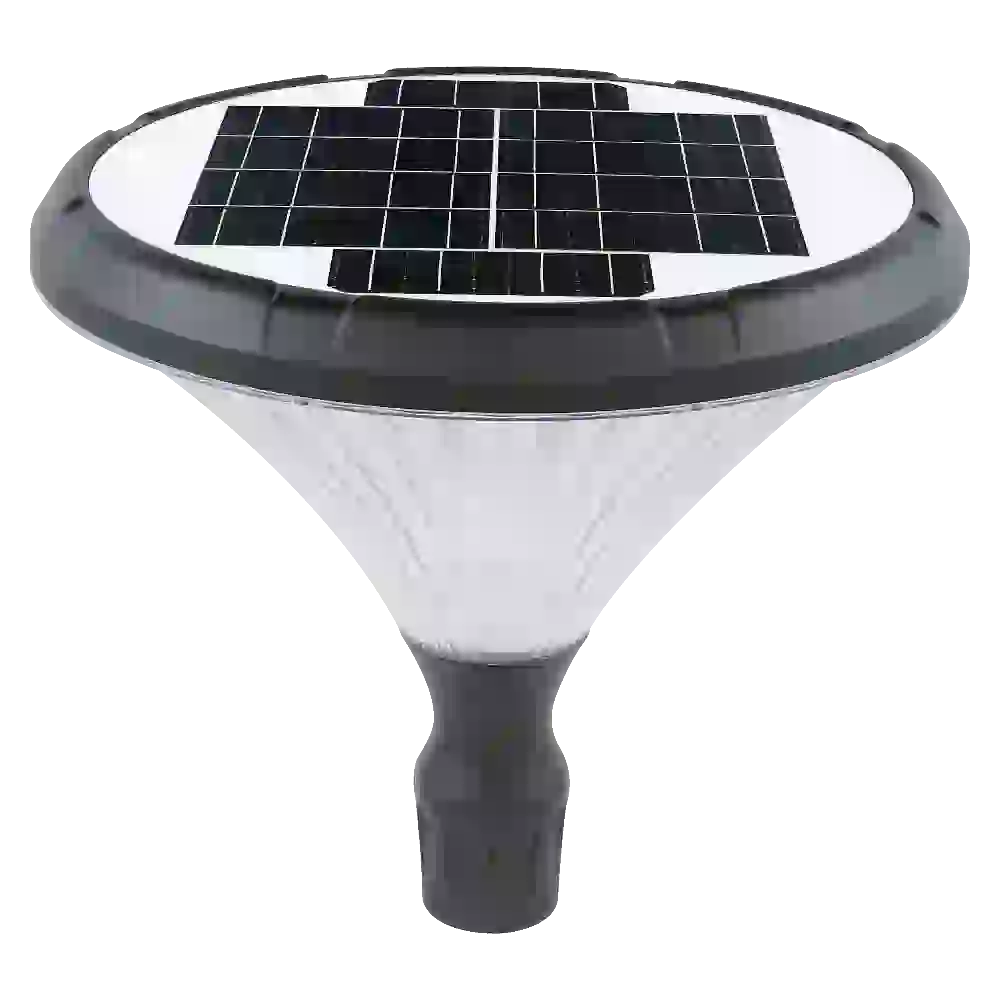

Solar Post Top Light GGD-003

Solar post top light

Solar Post Top Light GGD-003

Solar Post Top Light GGD-003: 5V / 25W monocrystalline panel, 3.2V / 30Ah (96Wh) LiFePO4, 160 pcs, 530 mm × H490 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 25W

Battery: 3.2V / 30Ah (96Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light GGD-2005

Solar post top light

Solar Post Top Light GGD-2005

Solar Post Top Light GGD-2005: 5V / 28W monocrystalline panel, 3.2V / 30Ah (96Wh) LiFePO4, 120 pcs, 1070 mm × H300 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 28W

Battery: 3.2V / 30Ah (96Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light TYD-1104

Solar post top light

Solar Post Top Light TYD-1104

Solar Post Top Light TYD-1104: 5V / 25W monocrystalline panel, 3.2V / 30Ah (96Wh) LiFePO4, 160 pcs, 530 mm × H440 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 25W

Battery: 3.2V / 30Ah (96Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light TYD-2403

Solar post top light

Solar Post Top Light TYD-2403

Solar Post Top Light TYD-2403: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 400 mm × H420 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 20W

Battery: 3.2V / 20Ah (64Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light TYD-2505

Solar post top light

Solar Post Top Light TYD-2505

Solar Post Top Light TYD-2505: 48W / 5V monocrystalline panel, 3.2V / 60Ah (60000mAh) LiFePO4, 208 pcs, 580 mm × 580 mm × H255 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 48W

Solar panel: 48W / 5V

Battery: 3.2V / 60Ah (60000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light TYD-2508

Solar post top light

Solar Post Top Light TYD-2508

Solar Post Top Light TYD-2508: 20W / 5V monocrystalline panel, 3.2V / 20Ah (20000mAh) LiFePO4, 80 pcs, 415 mm × H385 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 20W

Solar panel: 20W / 5V

Battery: 3.2V / 20Ah (20000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 2835 chip

Lamp colour: Black; other colours can be customized

LED quantity: 2835 chip

Solar Post Top Light TYD-2609

Solar post top light

Solar Post Top Light TYD-2609

Solar Post Top Light TYD-2609: 36W / 5V monocrystalline panel, 3.2V / 45Ah (45000mAh) LiFePO4, 150 pcs, φ585 mm × H550 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 36W

Solar panel: 36W / 5V

Battery: 3.2V / 45Ah (45000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 3030 chip

Lamp colour: Black; other colours can be customized

LED quantity: 3030 chip

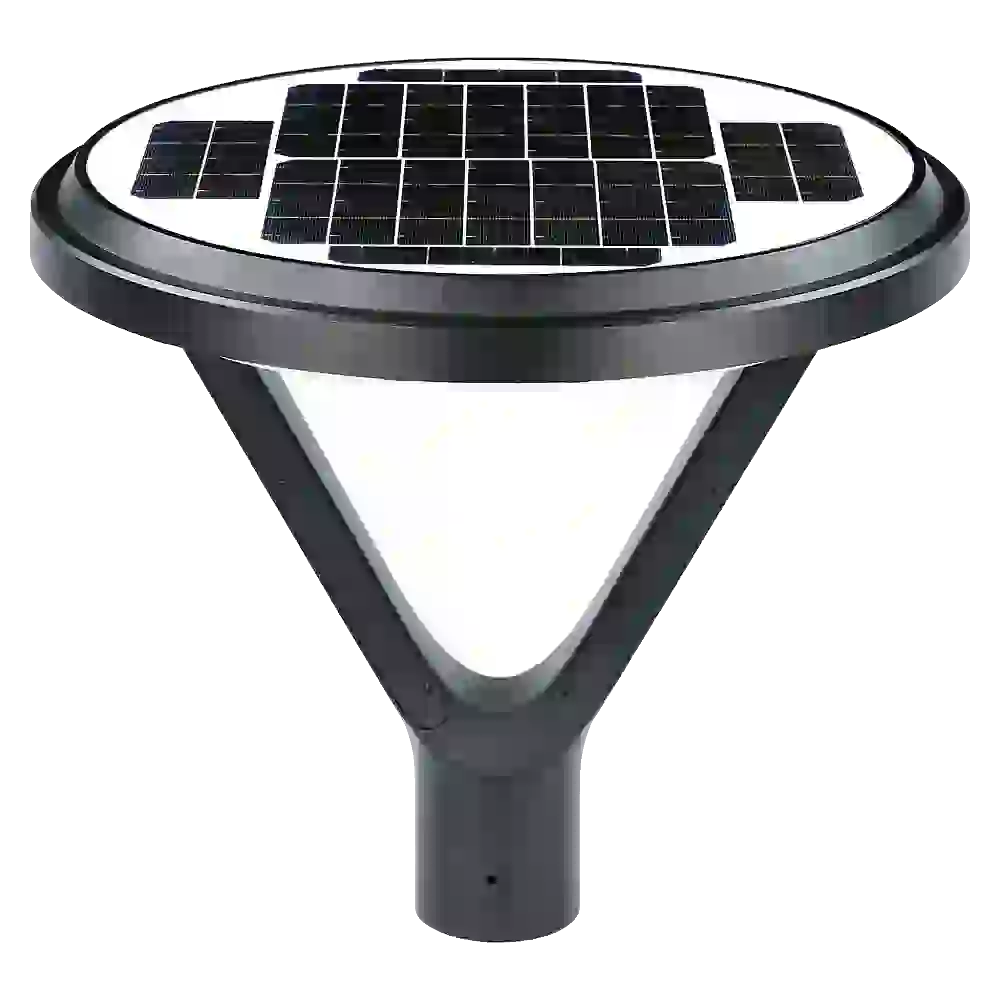

Solar Post Top Light TYD-2705

Solar post top light

Solar Post Top Light TYD-2705

Solar Post Top Light TYD-2705: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 480 mm × H410 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 20W

Battery: 3.2V / 20Ah (64Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 2835 LED

Lamp colour: Black; other colours can be customized

LED quantity: 2835 LED

Solar Post Top Light TYD-2806

Solar post top light

Solar Post Top Light TYD-2806

Solar Post Top Light TYD-2806: 36W / 5V monocrystalline panel, 3.2V / 45Ah (45000mAh) LiFePO4, 160 pcs, φ585 mm × φ78 mm × H215 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 36W

Solar panel: 36W / 5V

Battery: 3.2V / 45Ah (45000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 3030 LED

Lamp colour: Black; other colours can be customized

LED quantity: 3030 LED

Solar Post Top Light TYD-4206

Solar post top light

Solar Post Top Light TYD-4206

Solar Post Top Light TYD-4206: 36W / 5V monocrystalline panel, 3.2V / 48Ah (48000mAh) LiFePO4, 60 pcs, 550 mm × H510 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 36W

Solar panel: 36W / 5V

Battery: 3.2V / 48Ah (48000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 5054 chip

Lamp colour: Black; other colours can be customized

LED quantity: 5054 chip

Solar Post Top Light TYD-4208

Solar post top light

Solar Post Top Light TYD-4208

Solar Post Top Light TYD-4208: 62W / 5V monocrystalline panel, 3.2V / 100Ah (100000mAh) LiFePO4, 100 pcs, 590 mm × 590 mm × H505 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 62W

Solar panel: 62W / 5V

Battery: 3.2V / 100Ah (100000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 5054 chip

Lamp colour: Black; other colours can be customized

LED quantity: 5054 chip

Solar Post Top Light TYD-5105

Solar post top light

Solar Post Top Light TYD-5105

Solar Post Top Light TYD-5105: 52.5W / 18V monocrystalline panel, 3.2V / 60Ah (60000mAh) LiFePO4, 240 pcs (3 heads), 1660 mm × H435 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 52.5W

Solar panel: 52.5W / 18V

Battery: 3.2V / 60Ah (60000mAh)

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 3030 LED

Lamp colour: Black; other colours can be customized

LED quantity: 3030 LED

Solar Post Top Light TYD-5106

Solar post top light

Solar Post Top Light TYD-5106

Solar Post Top Light TYD-5106: 33W / 5V monocrystalline panel, 3.2V / 45Ah × 3 LiFePO4, 180 pcs (3 mould), 1260 mm × H390 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 33W

Solar panel: 33W / 5V

Battery: 3.2V / 45Ah × 3

Input voltage: DC 3.2V

Working time: 12 hrs (3 – 5 rainy days)

Light source: 3030 LED

Lamp colour: Black; other colours can be customized

LED quantity: 3030 LED

Solar Post Top Light TYD-5108

Solar post top light

Solar Post Top Light TYD-5108

Solar Post Top Light TYD-5108: 5V / 25W monocrystalline panel, 3.2V / 36Ah (115.2Wh) LiFePO4, 100 pcs, 630 mm × H495 mm, IP65. For pathway and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 25W

Battery: 3.2V / 36Ah (115.2Wh)

Input voltage: DC 3.2V

Working time: 3 rainy days

Light source: 5054 LED

Lamp colour: Black; other colours can be customized

LED quantity: 5054 LED

Solar Post Top Light GGD-006

Solar post top light

Solar Post Top Light GGD-006

Solar Post Top Light GGD-006: 5V / 20W monocrystalline panel, 3.2V / 20Ah (20000mAh) LiFePO4, 80 pcs, ø480 mm × H405 mm, IP65. For pathway, courtyard and landscape lighting.

READ PRODUCT BRIEF +

Rated power: 5VW

Solar panel: 5V / 20W

Battery: 3.2V / 20000mAh

Input voltage: DC 3.2V

Working time: 12 hours (3 – 5 rainy days)

Light source: 3030 SMD LED chip

Lamp colour: Black; other colours can be customized

LED quantity: 3030 SMD LED chip

Project-ready solar lighting

Factory-direct manufacturing

Engineered and produced in-house with Grade A LiFePO4 cells, IP-rated housings and intelligent controllers.

Configured to your site

Wind resistance, lux levels, autonomy and mounting height optimized for your project conditions and climate.

OEM / ODM customization

Custom branding, housing, materials and configurations developed to match your product line and market.

Compare the range at a glance.

Every value below is taken from the individual product page; nothing is estimated. Open a model for its full datasheet.

ModelLumen outputSolar panelBatterySize (mm)IP rating
GGD-001 Solar Post Top Light822 lm5V / 20W3.2V / 20Ah (64Wh)480 mm × H440 mmIP65
GGD-002 Solar Post Top Light778 lm5V / 20W3.2V / 20Ah (64Wh)400 mm × H410 mmIP65
GGD-003 Solar Post Top Light1735 lm5V / 25W3.2V / 30Ah (96Wh)530 mm × H490 mmIP65
GGD-2005 Solar Post Top Light1377.9 lm5V / 28W3.2V / 30Ah (96Wh)1070 mm × H300 mmIP65
TYD-1104 Solar Post Top Light1344 lm5V / 25W3.2V / 30Ah (96Wh)530 mm × H440 mmIP65
TYD-2403 Solar Post Top Light1163 lm5V / 20W3.2V / 20Ah (64Wh)400 mm × H420 mmIP65
TYD-2505 Solar Post Top Light3539 lm (3000K) / 3636 lm (6500K)48W / 5V3.2V / 60Ah (60000mAh)580 mm × 580 mm × H255 mmIP65
TYD-2508 Solar Post Top Light803.54 lm (3000K) / 890.47 lm (6500K)20W / 5V3.2V / 20Ah (20000mAh)415 mm × H385 mmIP65
TYD-2609 Solar Post Top Light2650 lm (3000K) / 2758 lm (6500K)36W / 5V3.2V / 45Ah (45000mAh)φ585 mm × H550 mmIP65
TYD-2705 Solar Post Top Light1270 lm5V / 20W3.2V / 20Ah (64Wh)480 mm × H410 mmIP65
TYD-2806 Solar Post Top Light2658 lm (3000K) / 2777 lm (6500K)36W / 5V3.2V / 45Ah (45000mAh)φ585 mm × φ78 mm × H215 mmIP65
TYD-4206 Solar Post Top Light2574.23 lm (3000K) / 2836.6 lm (6500K)36W / 5V3.2V / 48Ah (48000mAh)550 mm × H510 mmIP65
TYD-4208 Solar Post Top LightPWM 5105 lm / MPPT 5740 lm (6500K)62W / 5V3.2V / 100Ah (100000mAh)590 mm × 590 mm × H505 mmIP65

Applications: where a post-top light belongs

A post-top is a pedestrian fixture — it is judged on how the ground looks, not how far it throws.

Post-top lights are specified along walkways, plaza edges, garden paths, courtyard entrances and low-speed internal roads. The mounting height keeps the light low and close, so the fixture lights the surface a person walks on rather than a carriageway.

What makes them work is spacing, not output. A 3–4 m post-top at 6–10 m spacing gives even ground illumination with modest lumens; the same fixtures at 20 m spacing produce pools of light with dark gaps, and no increase in wattage fixes that.

They are a poor choice for road lighting, and a poor choice where the pole is also carrying signage or a camera at the same height — the fixture is designed to be seen and to light downward, not to co-exist with a busy head-load.

Installation: three details that decide the result

Post-top installation is simple, which is exactly why the details get skipped.

The base must be set on a foundation, not on finished paving: a post-top is a lever, and a 3 m pole amplifies any settlement at the base into a visible lean within a season.

The panel plane has to face the equator with enough tilt to shed dust and rain. On decorative posts the panel is often hidden inside the head or wrapped around the post, which changes the yield — that trade should be stated before the model is chosen, not discovered after the first winter.

Finally, the light distribution should be checked against the layout: a symmetric optic on a path edge throws half its light into the planting. An asymmetric version does the same job with less wattage.

Solar panel and battery in a small fixture

Small fixtures still need a real energy budget — the numbers are just smaller.

A post-top carries a panel in the 20–60 W range and a battery in the 20–60 Ah range, which is enough for a 4–8 hour nightly profile at low output. That budget assumes the panel sees sun for most of the day; a decorative post in a shaded courtyard does not, and the model has to be chosen for the shade rather than for the catalogue.

The battery chemistry matters more here than in a street light, because the pack sits in a small, sealed head that gets hot in summer and cold in winter. LiFePO4 tolerates that better than older chemistries, but the enclosure still needs to be rated for the ambient range on site.

Frequently asked questions

Answers to common questions about solar post top lights for parks, plazas and street-scale lighting — luminaire output, pole mounting, battery autonomy, weatherproofing and project customisation.

1

What is a solar post top light?

+

A solar post top light is a self-contained off-grid luminaire mounted on the top of a pole, post or pillar. It pairs an integrated monocrystalline solar panel with a Grade A LiFePO4 battery, a dusk-to-dawn controller and an LED light engine, so the fixture delivers reliable illumination in parks, plazas, campus walkways and streetscapes without any mains wiring or trenching.

2

How tall should a solar post top light pole be?

+

Post top lights are typically mounted at 3-5 m for pedestrian and landscape lighting, and up to 6-8 m for street-scale or area applications. The right height depends on the space between fixtures, the target lux level and the road or path width. E-Able Power recommends a lighting layout so brightness stays even and energy use stays low.

3

How many nights of battery autonomy do post top lights provide?

+

Most E-Able Power post top lights are configured for 3-5 rainy or overcast days of autonomy at the target operating schedule. Larger units with higher-capacity LiFePO4 banks (up to 60,000mAh / 192Wh) can be sized for longer backup in regions with extended cloudy periods.

4

Are solar post top lights weatherproof?

+

Yes. The die-cast aluminium housing and anti-UV polycarbonate diffuser are IP65 rated for rain, dust and coastal salt, and the LED array is protected against moisture and impact. This makes them suitable for year-round outdoor use in municipal, commercial and residential settings.

5

What is the difference between post top and pillar lights?

+

A post top light is mounted on top of a pole to cast light outward over a wide area, while a pillar (post cap) light sits directly on a gatepost, boundary wall or pier and is more decorative. Post top lights deliver higher output and reach for real illumination, whereas pillar lights are chosen for architectural accent lighting at close range.

6

Can E-Able Power customise a solar post top light for my project?

+

Yes. E-Able Power engineers each unit factory-direct — configuring LED wattage and lumen output, CCT (3000K/4000K), battery capacity, mounting height, housing finish, dark-sky optics and OEM/ODM branding, with DIALux simulation and sizing support for your site.

Plan your Solar Post Top Lights project.

Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.

Choosing between configurations? Read the solar street light buyer's guide for the four decisions in order.
