Monocrystalline panel
62W / 5V solar input for the solar-powered version.
Product overview
Light the space.
Keep it efficient.
TYD-4208 is a solar garden light from E-Able Power, combining a 62W solar panel, 3.2V / 100Ah (100000mAh) battery and 5054 chip output in a weather-protected IP65 housing.
The source-pack specification documents 590 mm × 590 mm × H505 mm. It is designed for pole-top mounting in parks, residential streets and municipal applications.
Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
LiFePO4 battery
3.2V / 100Ah (100000mAh) battery configuration from the supplied specification.
Weather-protected housing
IP65 rated construction for outdoor use.
Even light distribution
5054 chip source with 3000K – 6500K colour temperature range.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel62W / 5V
- Battery3.2V / 100Ah (100000mAh)
- Rated power62W
- Input voltageDC 3.2V
- Working time12 hrs (3 – 5 rainy days)
Optical performance
- Light source5054 chip
- LED quantity5054 chip
- Colour temperature3000K – 6500K
- Luminous fluxPWM 5105 lm / MPPT 5740 lm (6500K)
- Colour rendering>80
- Beam angle90°
Construction & dimensions
- MaterialDie-cast aluminum + tempered glass
- Lamp colourBlack; other colours can be customized
- Net weight13.8 kg
- Size590 mm × 590 mm × H505 mm
- InstallationPole-top
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications

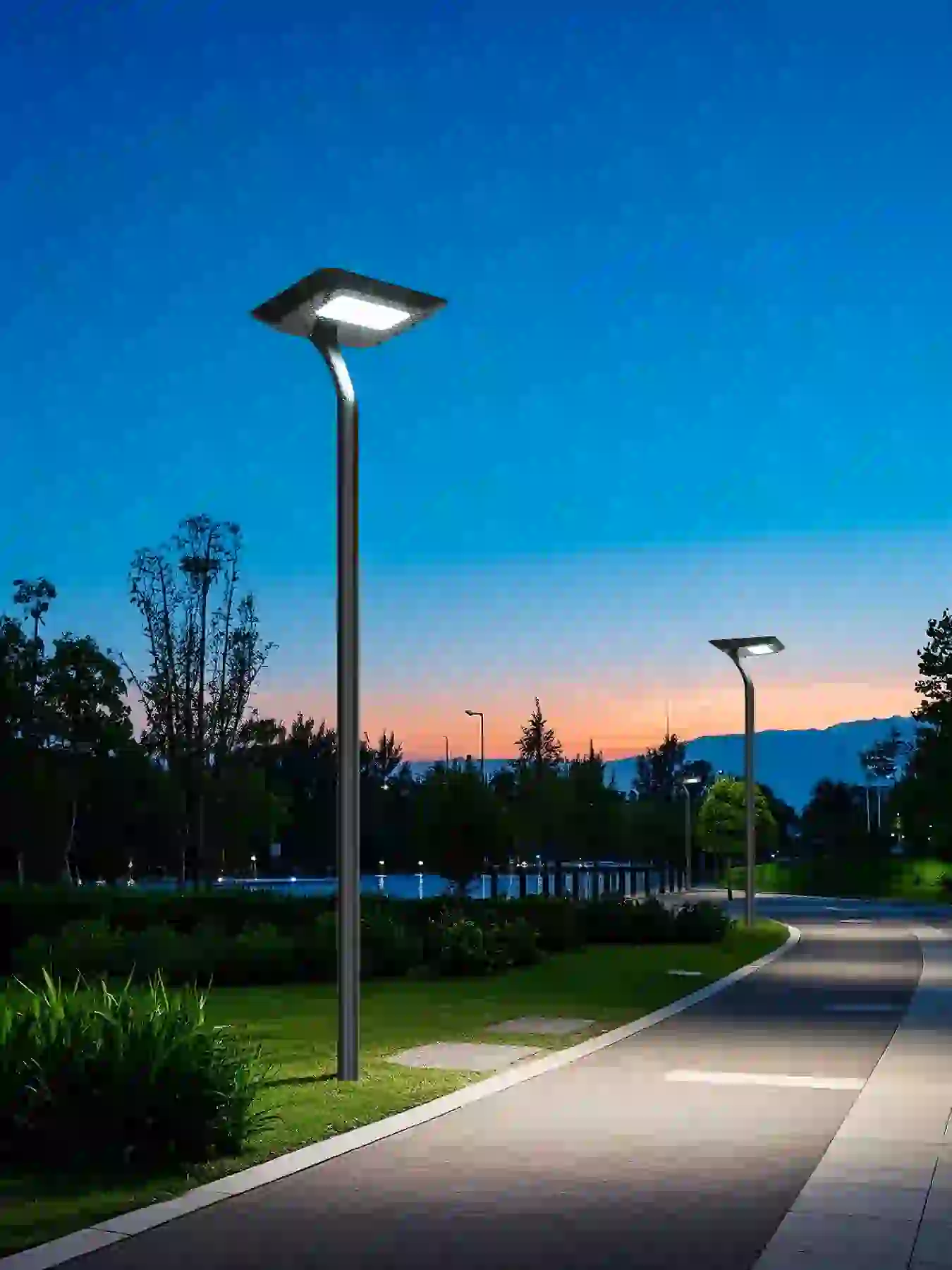

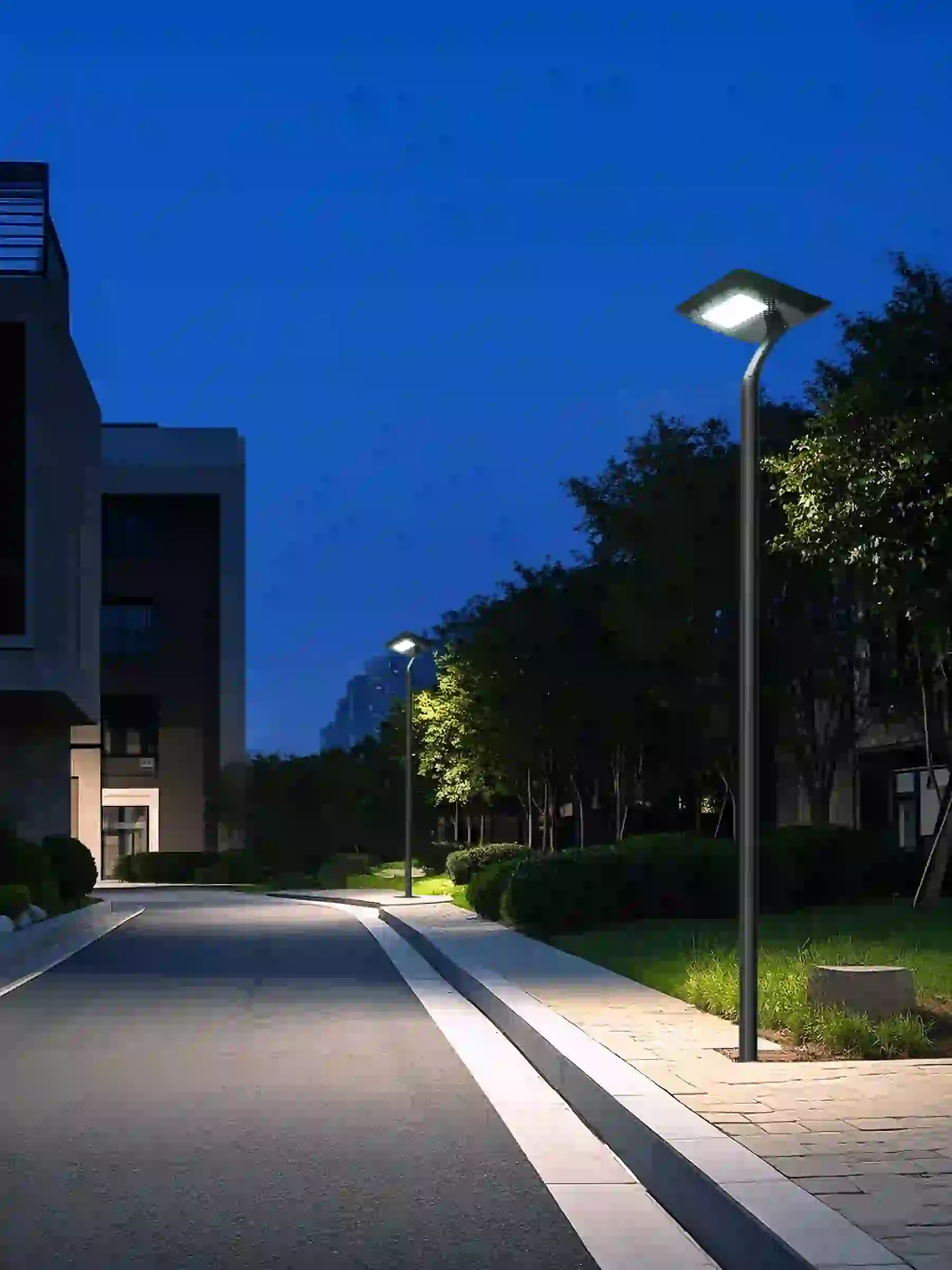

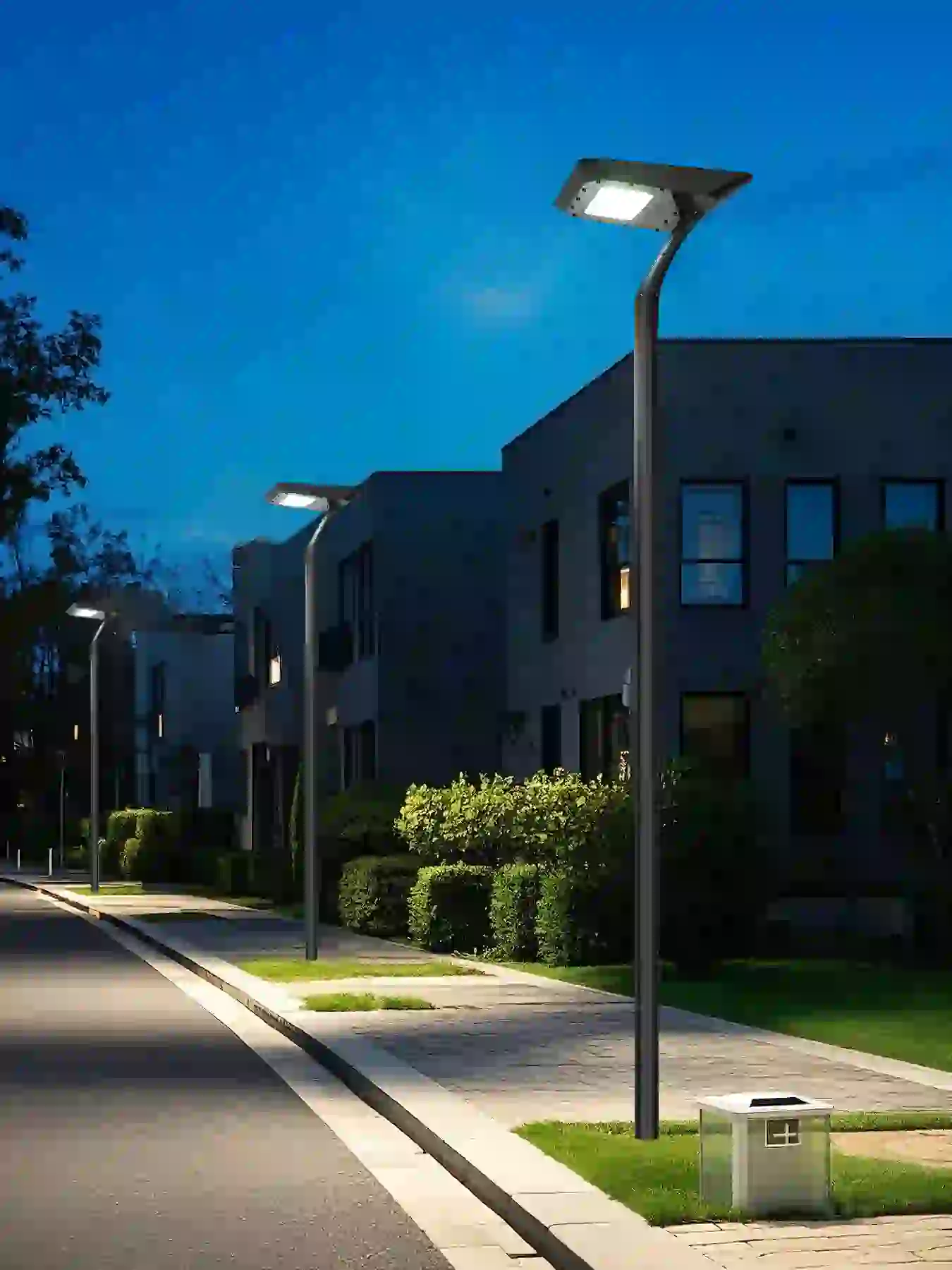

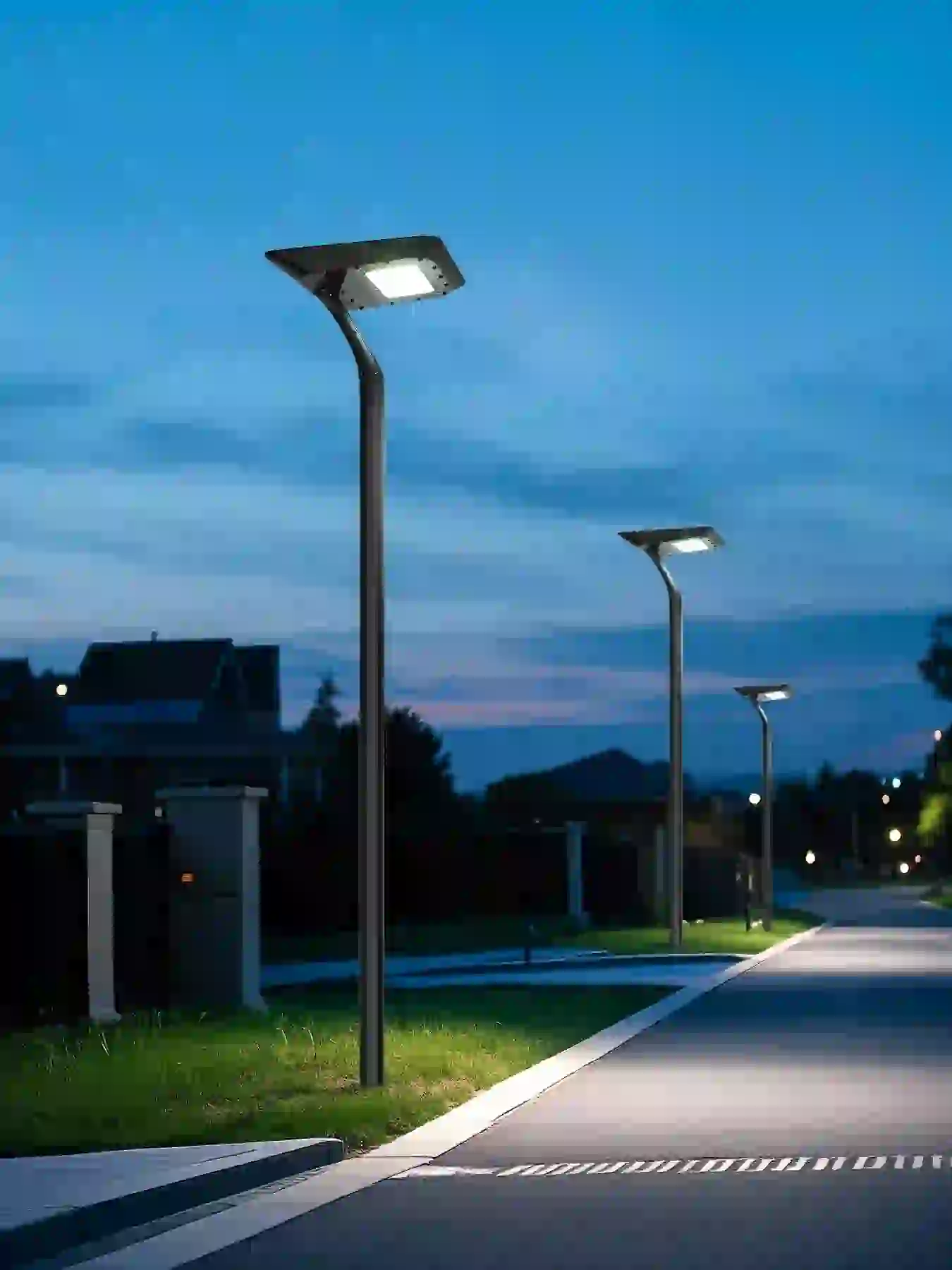

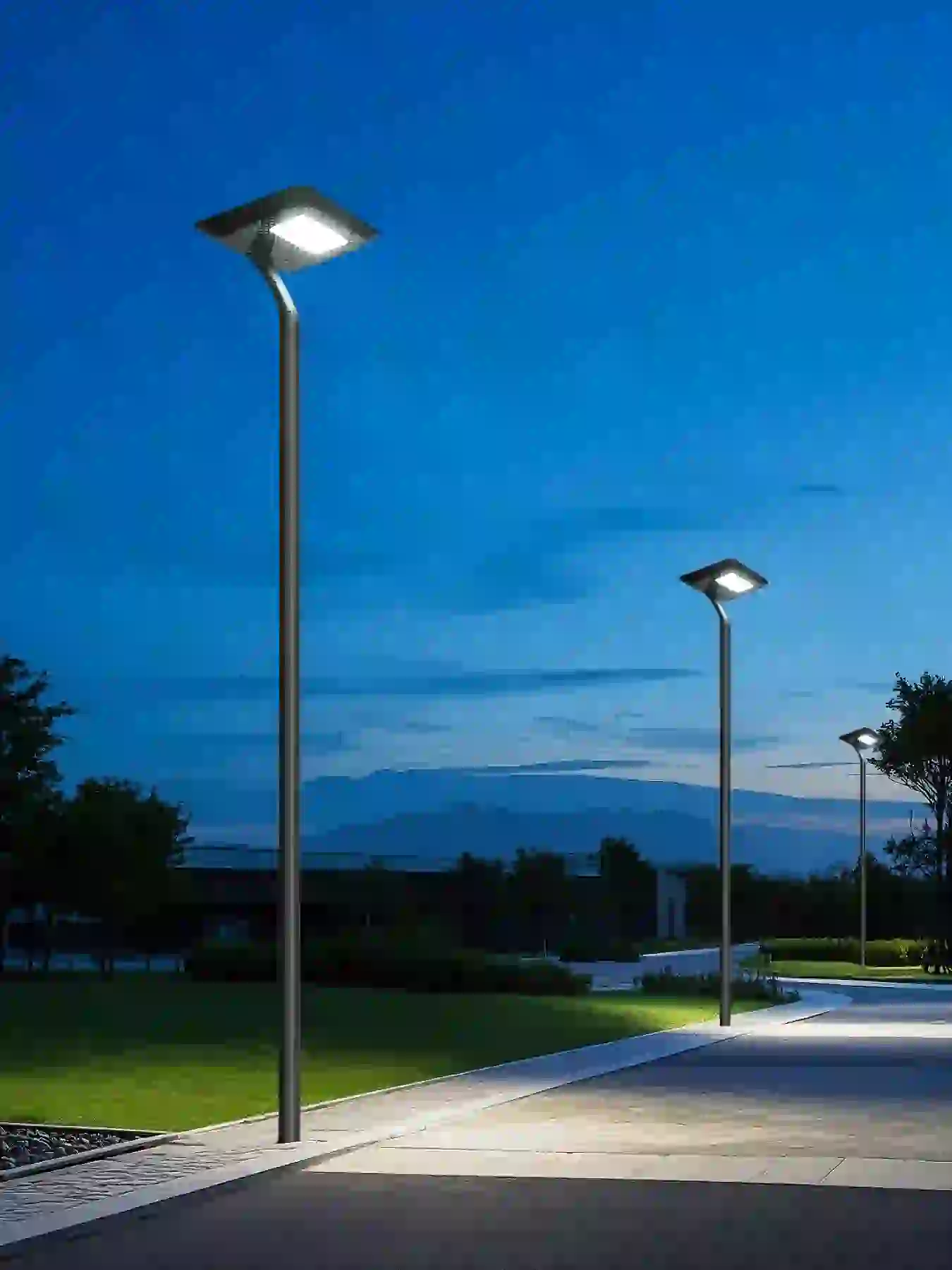

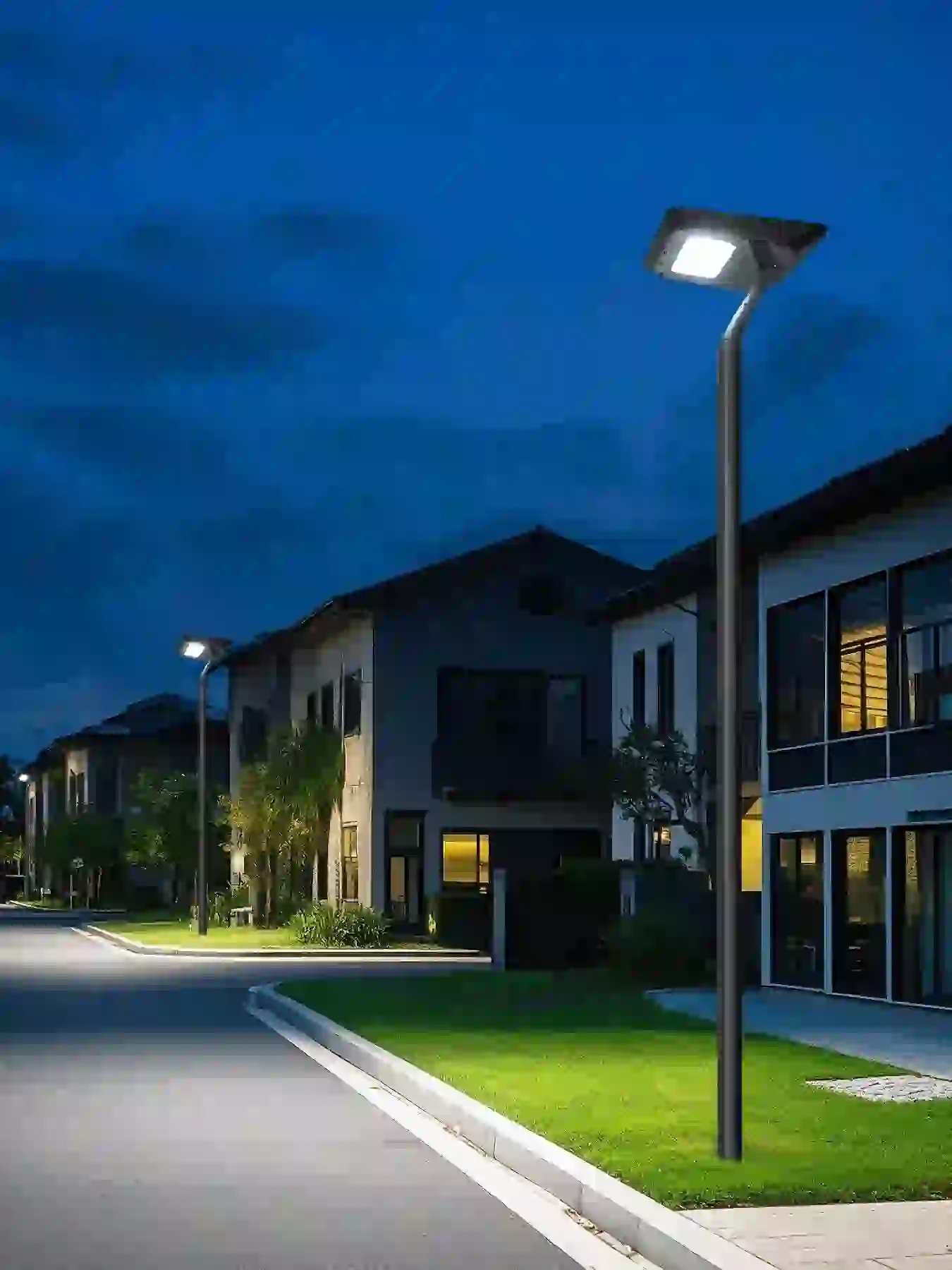

Lighting for pathways, entries and planted edges.
FAQ
Common questions.
1What sizes is the TYD-4208 available in?
+
The TYD-4208 comes in 590 mm × 590 mm × H505 mm.
2How long does the TYD-4208 run on a full charge?
+
It runs on a 3.2V / 100Ah (100000mAh) battery and provides 12 hrs (3 – 5 rainy days) of working time.
3Is the TYD-4208 weatherproof?
+
Yes. It is built from Die-cast aluminum + tempered glass and rated IP65 for outdoor exposure.
4What colour temperature and brightness does the TYD-4208 offer?
+
It offers 3000K – 6500K with roughly PWM 5105 lm / MPPT 5740 lm (6500K) luminous flux.
5How and where should the TYD-4208 be installed?
+
It is designed for pole-top mounting and weighs 13.8 kg.
6What powers the TYD-4208?
+
A 62W / 5V monocrystalline solar panel charges the on-board battery.
7Can the TYD-4208 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a TYD-4208 configuration.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable TYD-4208 configuration.
