C&I Air-Cooled Energy Storage Cabinets

LiFePO4 Energy Storage Batteries & Systems | E-Able Power

E-Able Power manufactures LiFePO4 energy storage systems in Dongguan, China, from home batteries to megawatt-scale containers, with factory-direct pricing, OEM/ODM and global support. Residential: GWR wall-mounted (5.12–10.24 kWh) and GVR tower (15.36–32.15 kWh) batteries with 6,000+ cycles at 80–90% DoD, cell-level BMS and a 5-year warranty. C&I: GCB-E all-in-one cabinets (GCB-E50 / E100 / E240, 50–241 kWh) for peak shaving, TOU arbitrage and backup. Utility: GCB-C1200 (20 ft, 1.2 MWh) and GCB-C2400 (40 ft, 2.4 MWh) factory-integrated container BESS on a 768 Vdc rack platform. Racks & Modules: GHR-314 rack (241 kWh) and GLR-314 module (16.08 kWh). Inverters: SDPO split-phase hybrid inverters (SDPO-U 7.2 kW; SDPO-IP 10–12 kW) with dual MPPT, 10 ms transfer and UL 1741.

Quality: Grade A 280 Ah / 314 Ah cells; CE, IEC 62619, UL 1973; ISO 9001 / ISO 14001. Service: Partners in 20+ countries receive installation, training and after-sales support in local languages.

E-ABLE POWER - ENERGY STORAGE

PRODUCT CATEGORY GUIDE

C&I AIR-COOLED CABINETS

Commercial & Industrial Air-Cooled ESS

For commercial sites that need an integrated outdoor cabinet with project-matched power, capacity and grid interface. The category covers 50kWh to 257kWh class solutions. Confirm the final model, technical parameters and compliance requirements before project release.

REQUEST PROJECT QUOTE

E-Able Power GCB-E261 125kW 261kWh liquid-cooled energy storage cabinet

Why Choose This Category

Integrated cabinet format for commercial deployment

Project selection is confirmed against the final technical specification and site conditions.

Intelligent air cooling for specified cabinet models

Project selection is confirmed against the final technical specification and site conditions.

Selectable AC, optional PV and project-specific operating modes

Project selection is confirmed against the final technical specification and site conditions.

Selection Guide

Load profile	Peak demand, operating hours and target backup loads
Site environment	Ambient temperature, installation space and service access
Electrical interface	Grid voltage, PV coupling and export requirements

Configurable Parameters

Power and energy	50kW/50kWh through 125kW/257kWh class
Cooling	Intelligent air cooling on applicable models
Protection	Confirm IP rating, fire protection and site design by model
Integration	Confirm AC, optional PV and communication requirements

Applications & Project Support

Peak shaving, time-of-use optimization, commercial backup, solar self-consumption and site-specific microgrid projects.

VIEW ENERGY STORAGE APPLICATIONS

Documentation, certifications, operating limits and warranty are model- and destination-market-specific. Confirm final documents before order.

Buyer FAQ

Q: Which product configuration is suitable for my project?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Q: What site information is needed before quotation?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Q: Which parameters must be confirmed before order?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Q: Can E-Able Power support OEM or project configuration?

Send the load profile, installation location, target market and required capacity. The final configuration should be confirmed against the applicable product datasheet and project design.

Configure Your Commercial & Industrial Air-Cooled ESS Solution

Share your load profile, installation location and target capacity. E-Able Power will confirm the suitable configuration and provide a project-specific technical proposal.

✉ SALES@E-ABLEPOWER.COM ☎ WHATSAPP +86 153-5558-9600

GCB-E112 50kW/112.53kWh Commercial Energy Storage Cabinet

[GCB-E112: ALL-IN-ONE 50KW/112KWH C&I BESS]

50kW AC / 112kWh nominal . Battery modules + BMS + EMS + HVAC + FSS in single IP54 cabinet (~1200x803x2375mm, ~1300kg). Grade A 280Ah or 314Ah LFP prismatic cells, 6,000+ cycles at 80% DOD. 50kW three-phase 380V inverter. Three modes: Grid-tied / Off-grid / Hybrid. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

Brief:
[GCB-E112: ALL-IN-ONE 50KW/112KWH C&I BESS]

50kW AC / 112kWh nominal . Battery modules + BMS + EMS + HVAC + FSS in single IP54 cabinet (~1200x803x2375mm, ~1300kg). Grade A 280Ah or 314Ah LFP prismatic cells, 6,000+ cycles at 80% DOD. 50kW three-phase 380V inverter. Three modes: Grid-tied / Off-grid / Hybrid. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

More >>

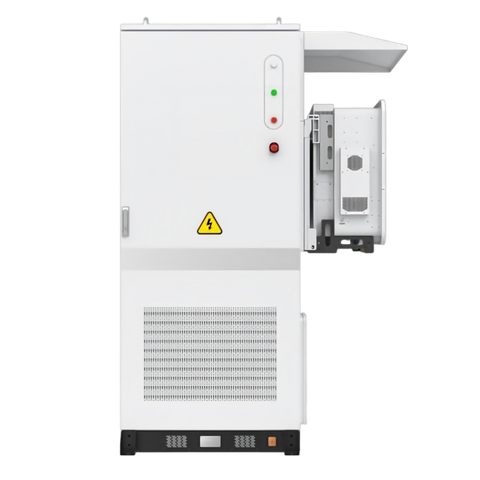

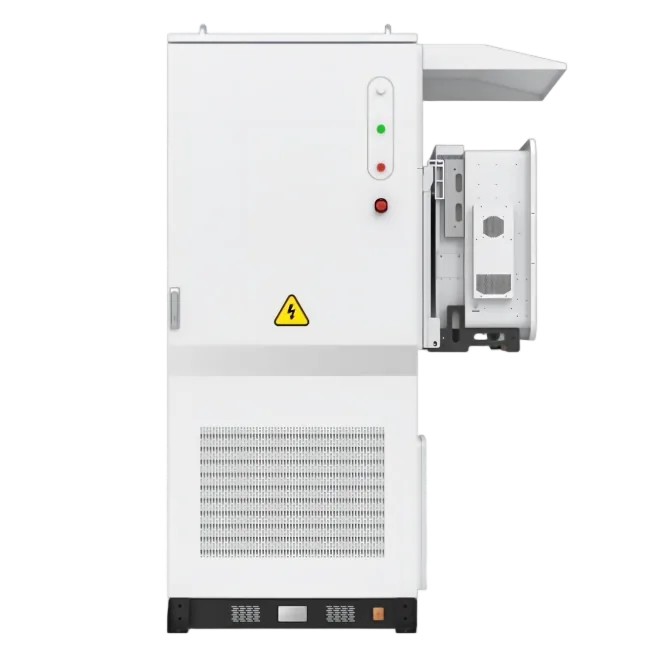

GCB-E261 125kW / 261kWh Liquid-Cooled Energy Storage Cabinet

GCB-E261 is a 125kW / 261kWh liquid-cooled energy storage cabinet using LFP 314Ah cells. The battery pack is 166.4V / 314Ah, with five battery packs in series and a rated voltage of 832V. The voltage range is 728-936V. The cabinet uses liquid cooling with a 50%:50% ethylene glycol aqueous solution, is rated IP54, and includes aerosol fire protection. The specified warranty is 10 years.

Brief:
GCB-E261 is a 125kW / 261kWh liquid-cooled energy storage cabinet using LFP 314Ah cells. The battery pack is 166.4V / 314Ah, with five battery packs in series and a rated voltage of 832V. The voltage range is 728-936V. The cabinet uses liquid cooling with a 50%:50% ethylene glycol aqueous solution, is rated IP54, and includes aerosol fire protection. The specified warranty is 10 years.

More >>

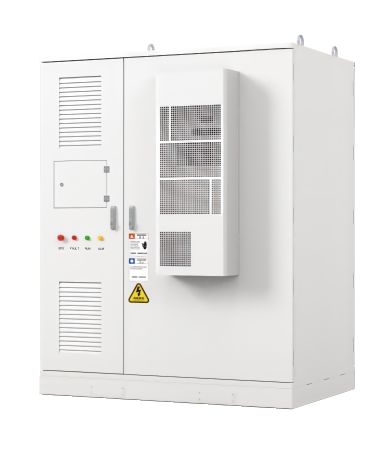

GCB-E257 125kW / 257kWh Energy Storage Cabinet

GCB-E257 is a 125kW / 257kWh industrial and commercial energy storage cabinet. The battery uses LFP 314Ah cells in a 1P256S configuration, rated at 819.2V with a 716.8-921.6V operating-voltage range. The cabinet is specified with intelligent air cooling, IP54 protection, aerosol fire protection and TCP/IP communication. Optional PV DC input supports up to 120kW accessible PV power.

Brief:
GCB-E257 is a 125kW / 257kWh industrial and commercial energy storage cabinet. The battery uses LFP 314Ah cells in a 1P256S configuration, rated at 819.2V with a 716.8-921.6V operating-voltage range. The cabinet is specified with intelligent air cooling, IP54 protection, aerosol fire protection and TCP/IP communication. Optional PV DC input supports up to 120kW accessible PV power.

More >>

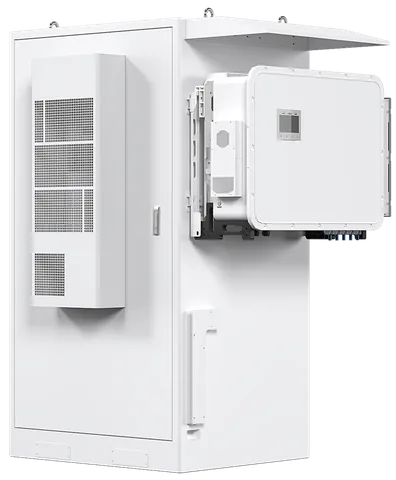

GCB-E241 125kW/241.15kWh Commercial Energy Storage Cabinet

[GCB-E240: ALL-IN-ONE 125KW/241KWH C&I BESS]

125kW PCS + high-voltage LFP battery rack (280Ah/215kWh or 314Ah/241kWh options) + 3-level BMS + EMS + HVAC + FSS in single IP54 enclosure (1300x1260x2375mm, ~3,200kg). Grade A LFP cells: 6,000+ cycles at 90% DOD, >=90% round-trip efficiency. 380V three-phase, 189A output. Three modes: Grid-tied / Off-grid / Hybrid. Up to 6 months maintenance-free storage. CE, IEC 62619, IEC 61000, UN38.3. 5-year warranty. Configurable to site.

Brief:
[GCB-E240: ALL-IN-ONE 125KW/241KWH C&I BESS]

125kW PCS + high-voltage LFP battery rack (280Ah/215kWh or 314Ah/241kWh options) + 3-level BMS + EMS + HVAC + FSS in single IP54 enclosure (1300x1260x2375mm, ~3,200kg). Grade A LFP cells: 6,000+ cycles at 90% DOD, >=90% round-trip efficiency. 380V three-phase, 189A output. Three modes: Grid-tied / Off-grid / Hybrid. Up to 6 months maintenance-free storage. CE, IEC 62619, IEC 61000, UN38.3. 5-year warranty. Configurable to site.

More >>

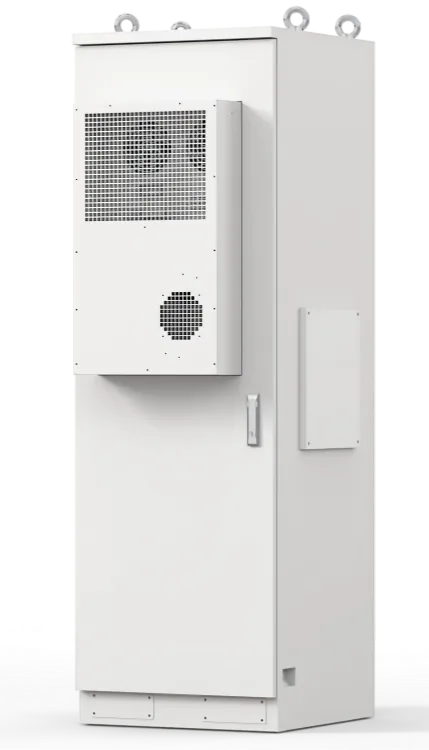

GCB-E50 50kW/50kWh Commercial Energy Storage Cabinet

[GCB-E50: ALL-IN-ONE 50KW/50KWH C&I BESS]

50kW hybrid inverter + 50kWh LFP battery + 3-level BMS + EMS + HVAC + FSS in a single IP54 cabinet (780x640x2000mm, ~625kg). Grade A LiFePO4 cells (3.2V/100Ah), 10-module 16S1P, 6,000+ cycles at 90% DOD. Round-trip efficiency >=90%. Three modes: Grid-tied / Off-grid / Hybrid. 380V three-phase, Deye compatible. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

Brief:
[GCB-E50: ALL-IN-ONE 50KW/50KWH C&I BESS]

50kW hybrid inverter + 50kWh LFP battery + 3-level BMS + EMS + HVAC + FSS in a single IP54 cabinet (780x640x2000mm, ~625kg). Grade A LiFePO4 cells (3.2V/100Ah), 10-module 16S1P, 6,000+ cycles at 90% DOD. Round-trip efficiency >=90%. Three modes: Grid-tied / Off-grid / Hybrid. 380V three-phase, Deye compatible. Factory pre-commissioned. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-year warranty. Configurable to site.

More >>
