View Product E-ABLE POWER — PRODUCT DATASHEET
COMMERCIAL SOLAR LIGHTING SOLUTIONS
MUNICIPAL INFRASTRUCTURE GRADE HIGH-EFFICACY 170LM/W
Key Specifications at a Glance
| LED Luminaire | 12V 80W × 2 (Lumileds 3030) | Efficacy | 170 LM/W |
| Solar Module | 150W/18V × 2 Monocrystalline | Battery | LiFePO4 12.8V/80Ah × 2 |
| Controller | 10A Smart MPPT × 2 | Pole | 9M Conical Q235 Steel |
| Finish | Hot-Dip Galvanized + Powder Coated | CCT | 3000K – 6000K Adjustable |
| Battery Cycles | 2,000+ Deep Cycles | Pole Design Life | >20 Years |
| Certifications | CE / RoHS | Warranty | 3 Years Standard |
“The definitive choice for large-scale municipal road networks. Our Split Design architecture enables the use of high-power monocrystalline panels and massive energy storage, delivering unmatched brightness and 20+ years of hardware reliability.”
Engineering & Performance Advantages
Split Architecture
By housing panels, batteries, and LEDs separately, we optimize heat management and energy harvesting — allowing massive 150W panels for full-night brightness on both carriageways.
Modular Scalability
Components are modularly engineered for rapid deployment and easy upgrades, ensuring the lowest Total Cost of Ownership (TCO) in municipal lighting.
LiFePO4 Energy Core
Equipped with dual 80Ah Lithium Iron Phosphate battery packs, rated for 2,000+ deep cycles and 10+ years of maintenance-free service.

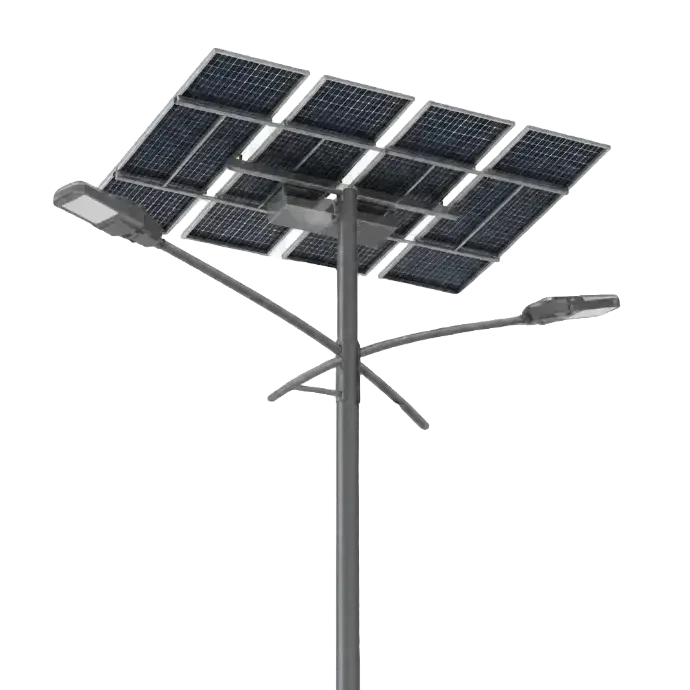

Engineering Guide: Double-Arm Installation
System Specification Sheet (9M/80W Configuration)
| Component | Technical Specifications | Qty | Design Life |
|---|---|---|---|
| Main Pole | 9M Conical Q235 Steel, Conical Diameter 75-152mm, Hot Dip Galvanized & Powder Coated | 1 pc | > 20 Years |
| LED Luminaire | 12V 80W Lumileds 3030 Chips, 170LM/W, IP66 Waterproof, 3000K-6000K Adjustable | 2 pcs | > 50,000 Hrs |
| Solar Module | 150W / 18V Monocrystalline Silicon (>18% High Efficiency) | 2 pcs | > 25 Years |
| Battery Pack | LiFePO4 12.8V 80Ah, Deep Cycle, Free Maintenance, 2,000+ Cycles | 2 pcs | 5 - 10 Years |
| MPPT Controller | 10A Smart MPPT, Automatic Dusk-to-Dawn Intelligence | 2 pcs | 5 - 10 Years |
| Certifications | CE / RoHS / ISO 9001 / ISO 14001 | ||
Table 1.0 — System specification sheet for the 9M/80W double-arm configuration. Final values to be confirmed with the approved quotation and destination-market requirements. 3-year standard warranty.
E-Able Industrial Manufacturing Hub

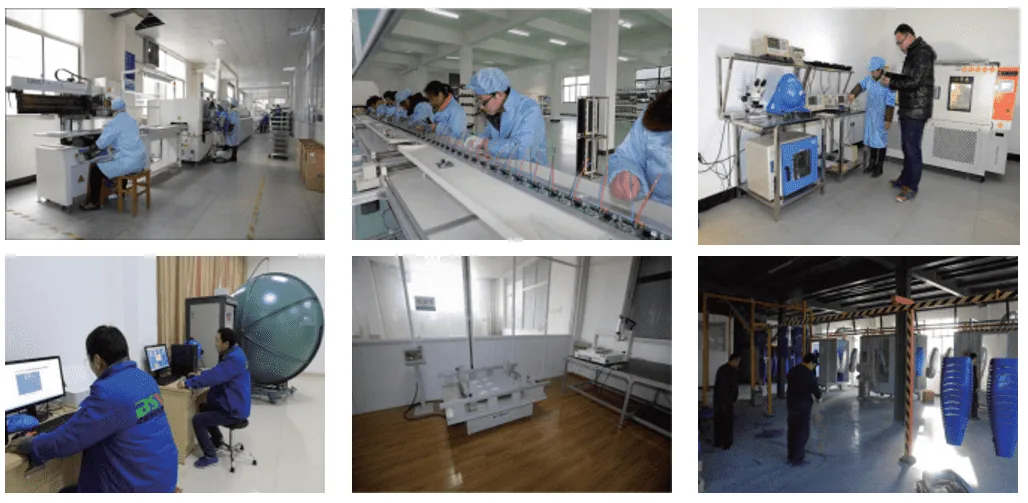

LED SMT WORKSHOP

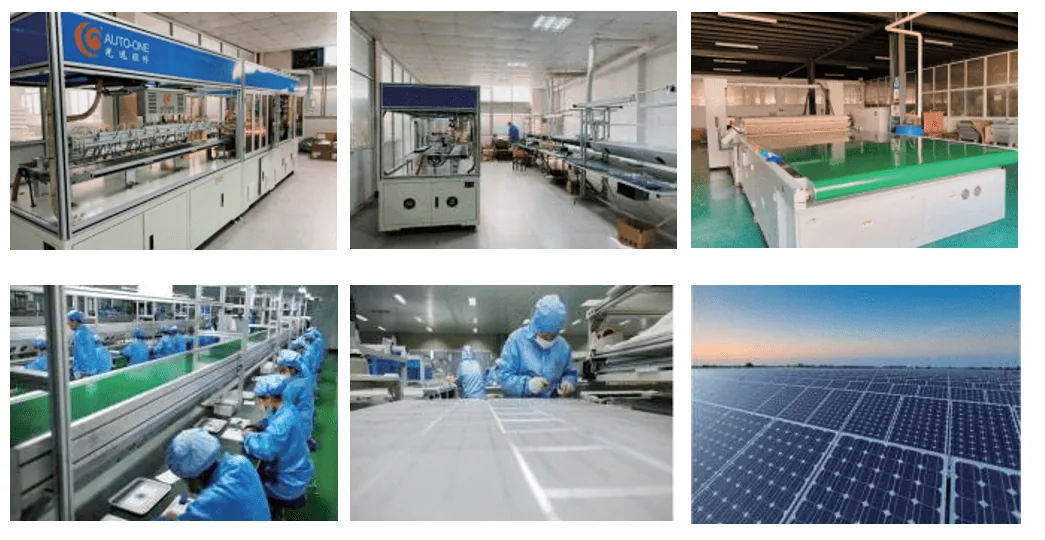

PV PANEL WORKSHOP

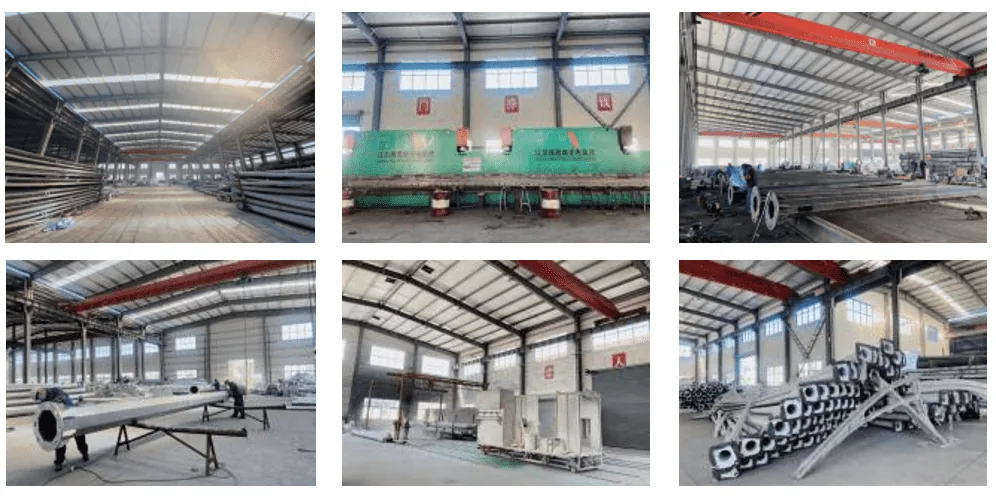

GALVANIZED POLE WORKSHOP

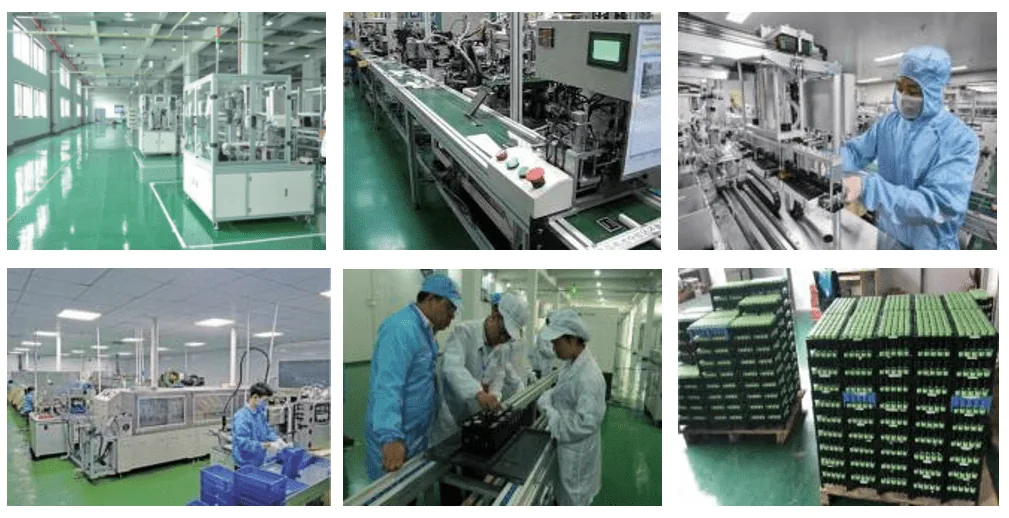

LiFePO4 BATTERY WORKSHOP
Project Design, DIALux & Wind-Load Support
Project Design
DIALux Analysis
Wind Load Resistance
Buyer FAQ
Why choose a double-arm configuration for municipal roads?
A double-arm pole mounts two independent 80W luminaires on a single 9-meter structure, illuminating both carriageways of a two-way road from one foundation — halving pole count and civil works versus single-arm alternatives. It is the preferred layout for arterial roads, ring roads and median-lighting schemes where uniform two-sided coverage is required.
How are the dual solar panels and batteries configured?
The reference configuration pairs two 150W/18V monocrystalline panels with two LiFePO4 12.8V/80Ah packs (2,000+ deep cycles), managed by two 10A MPPT controllers. Sizing is adjusted around local sunshine hours, rainy-season autonomy, dimming schedule and operating hours — the split architecture allows the panel and battery capacity to be up-sized independently without redesigning the pole.
Is wind-load and lighting validation provided for tenders?
Yes. For municipal tenders our engineering team provides free DIALux lighting simulations and wind-load certifications based on your road width, pole spacing, mounting height and target lux levels. Provide the destination market and project inputs so the applicable drawings and documentation can be reviewed for the selected configuration and local standards.
What is the expected design life and maintenance requirement?
Design life is component-matched: pole >20 years (hot-dip galvanized + powder coated Q235 steel), LED luminaires >50,000 hours, solar modules >25 years, and battery/controller 5-10 years depending on cycling depth. Maintenance is limited to periodic panel cleaning and annual connection inspection — batteries are maintenance-free, and a 3-year standard warranty applies.
E-Able Power is an ISO 9001 & ISO 14001 certified manufacturer. All split solar street lights are CE and RoHS compliant with 3-year standard warranty.
