250W–1250W range
Five documented replaceable-module fixtures with adjustable power per module.
Product overview

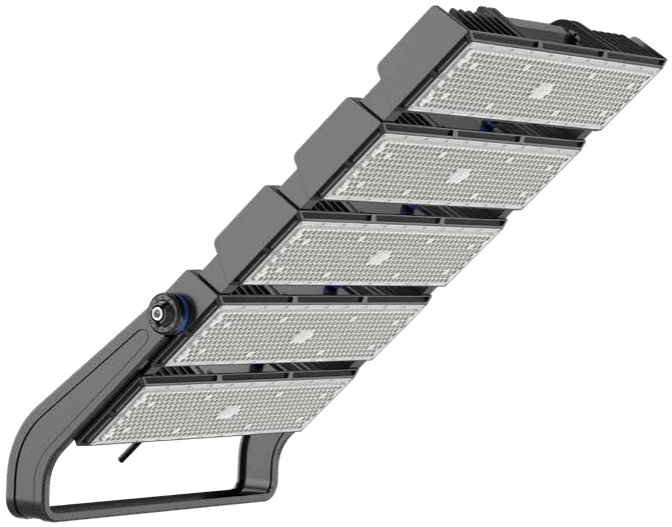

SKYWING SF13
Sports & High Mast Light.
SKYWING SF13 is a replaceable, power-adjustable sports and high-mast LED light family documented from 250W to 1250W in five models, with 10°, 15°, 25°, 45°, 60°, 90° and 65×25° optical distributions.
The family uses Lumileds / Osram chips with a die-cast ADC12 housing, a UV-resistant polycarbonate lens, AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Power adjustable
Each module adjustable to 100%, 75% or 50% power for site tuning.

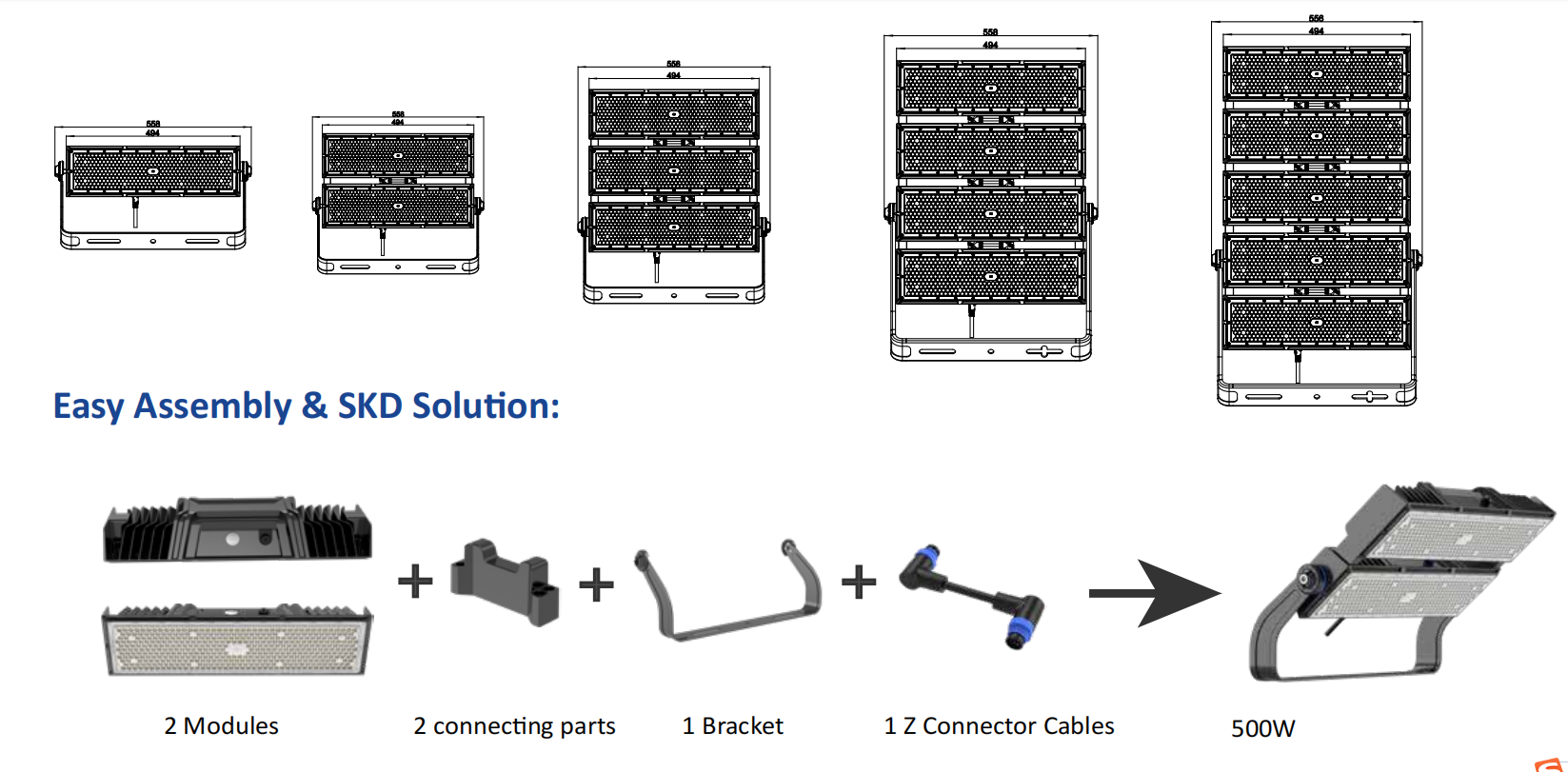

SKD easy assembly
Two modules, connection parts, bracket and Z-connect cables for quick on-site assembly.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
5 models. Every verified value.
SKYWING SF13 · Sports & High Mast Light
ISL-SF13-250W
Rated 250W · 33,600lm

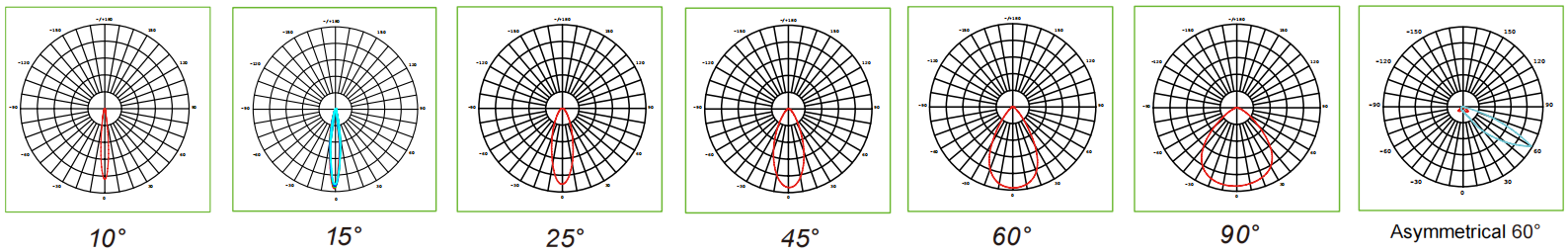

Optical distributions
Beam patterns.
The catalog publishes polar plots for the optical distributions across the SKYWING SF13 replaceable-module family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF13?
The catalog documents 5 models — ISL-SF13-250W, 500W, 750W, 1000W, 1250W — with rated power from 250W to 1250W.
Which beam angles or optical distributions are documented?
The distributions are: 10°, 15°, 25°, 45°, 60°, 90° and 65×25°.
Which luminous flux values are documented?
The catalog lists 33,600lm up to 175,000lm.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?
The catalog records power-adjustable replaceable modules (100%/75%/50%) and an SKD assembly solution with housing footprints from 558×293×93mm to 558×948×93mm.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF13 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
