400W–1200W range
Six documented models for large-area sports and high-mast applications.
Product overview

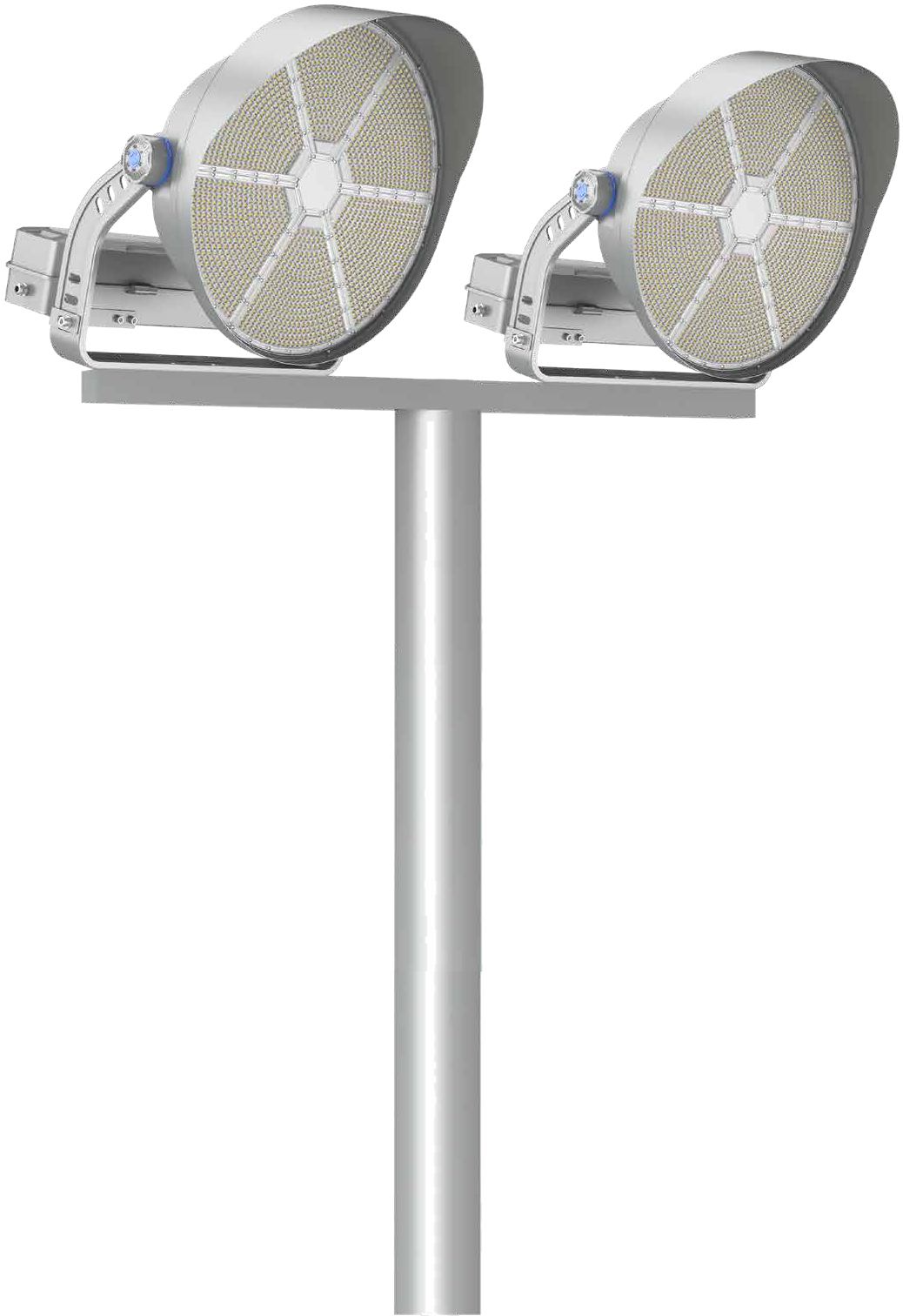

SKYWING SF10
Sports & High Mast Light.
SKYWING SF10 is a sports and high-mast LED light family documented from 400W to 1200W in six models, with 10°, 15°, 25°, 45°, 60° and 90° optical distributions.
The family uses a die-cast ADC12 housing with a removable and remotely mountable driver box, UV-resistant polycarbonate lens, AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Six optics
10°, 15°, 25°, 45°, 60° and 90° distributions.
Removable driver box
Tool-free access for quick and easy wiring with individual or multi-driver options.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
6 models. Every verified value.
SKYWING SF10 · Sports & High Mast Light
ISL-SF10-A-400W
Rated 400W · 60,000lm

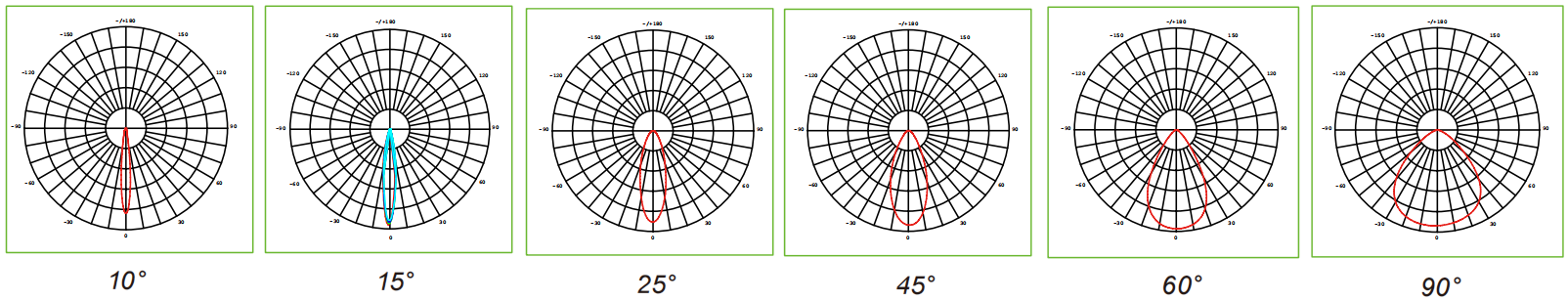

Optical distributions
Beam patterns.
The catalog publishes polar plots for six optical distributions across the SKYWING SF10 family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF10?
The catalog documents six models — ISL-SF10-A-400W, 500W, 600W, 800W, 1000W and 1200W — with rated power from 400W to 1200W.
Which beam angles or optical distributions are documented?
Six distributions are listed: 10°, 15°, 25°, 45°, 60° and 90°, with polar plots published for each.
Which luminous flux values are documented?
The catalog lists 60,000lm up to 180,000lm across the six models.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.

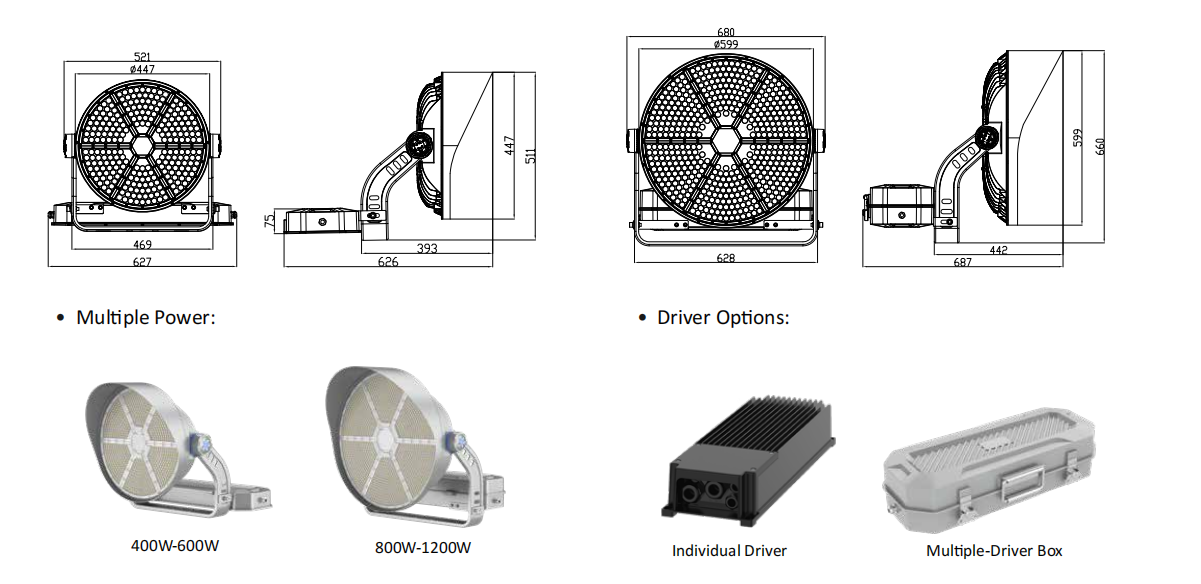

Which installation or dimensional details are documented?
The catalog records 521×511×394mm and 680×660×439mm housing footprints across the model range.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF10 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
