| Quantity: | |
|---|---|
EA-N100W
E-ABLE POWER
8541400000

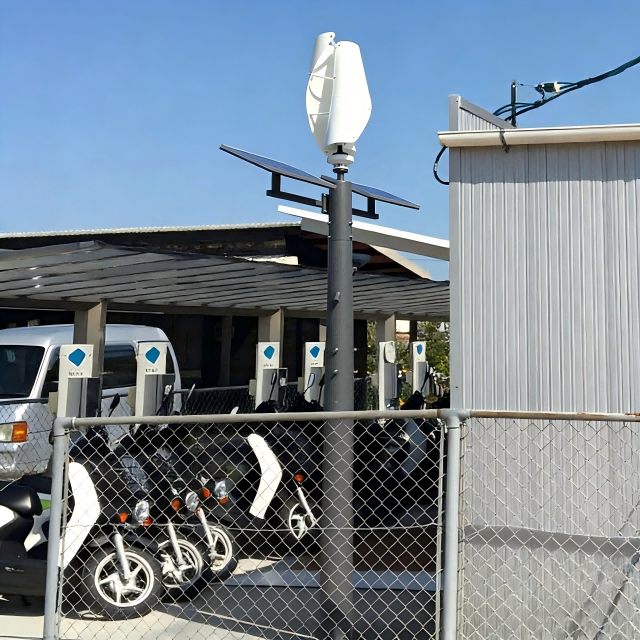

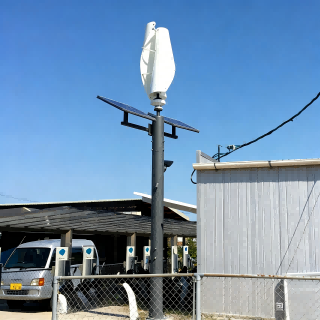

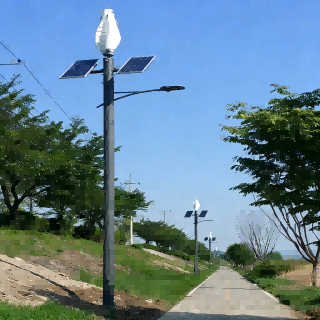

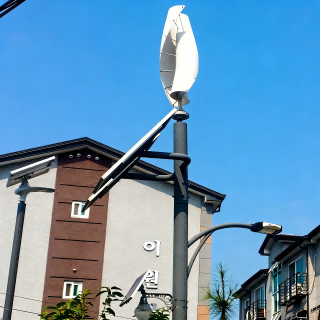

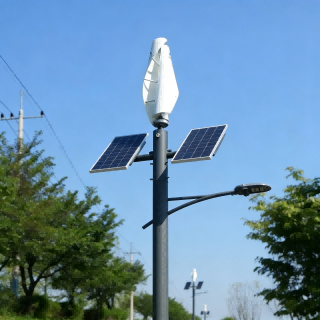

Our Vertical Wind Solar Hybrid LED Street Light integrates vertical axis wind turbine and monocrystalline solar panel technology, providing reliable off-grid lighting for outdoor spaces. With a low start wind speed of only 1.3m/s, dual energy complementarity, and IP65 waterproof rating, it solves the problem of unstable power supply in remote areas, cities, and industrial sites. All components are made of high-quality materials, ensuring long service life and low maintenance cost.
Starts generating power at 1.3m/s, adapts to most wind conditions
Solar + wind power complementarity, 3-5 days backup without sun/wind
Philips SMD3030 LEDs, 6000K cool white, luminous flux up to 10,800lm
Aluminum die-cast body, hot-dip galvanized steel pole, anti-corrosion
Auto charge/discharge management, overcharge/short circuit protection
Solar panel: >20 years; Battery cycle: >1800 cycles; LED: 50,000 hours
| Model No. | LED Power | Wind Turbine | Solar Panel | Battery Capacity | Steel Pole |
|---|---|---|---|---|---|
| EA-N20W | 20W, 48pcs Philips SMD3030, >2800lm | 100W, 1.3m/s start, 2 blades | 50W*2pcs, MONO, 700*535*30mm | 268WH 12V | 5m, 130mm, 3mm thickness |
| EA-N30W | 30W, 48pcs Philips SMD3030, >2800lm | 100W, 1.3m/s start, 2 blades | 50W*2pcs, MONO, 700*535*30mm | 391WH 12V | 5m, 130mm, 3mm thickness |
| EA-N50W | 50W, 72pcs Philips SMD3030, >6200lm | 300W, 1.3m/s start, 2 blades | 80W*2pcs, MONO, 760*670*30mm | 548WH 12V | 6m, 150mm, 3mm thickness |
| EA-N60W | 60W, 248pcs Philips SMD3030, >7800lm | 300W, 1.3m/s start, 2 blades | 80W*2pcs, MONO, 760*670*30mm | 840WH 24V | 6m, 150mm, 3mm thickness |
| EA-N80W | 80W, 248pcs Philips SMD3030, >10800lm | 500W, 1.3m/s start, 2 blades | 110W*2pcs, MONO, 760*670*30mm | 1080WH 24V | 8m, 165mm, 3mm thickness |
Energy Collection: Vertical wind turbine captures wind energy to generate electricity; monocrystalline solar panel converts sunlight into electrical energy.
Intelligent Regulation: MPPT controller optimizes energy distribution, ensuring efficient charging.
Energy Storage: Electrical energy is stored in the deep-cycle battery for backup.
Stable Output: Battery supplies power to LED light at night or in low-light conditions, with multiple protection mechanisms.
Municipal road lighting
Remote village lighting
Industrial Parks
Factory perimeter lighting
Recreational area lighting
Roadside emergency lighting
Temporary outdoor lighting
Wind-rich region lighting
Temporary disaster relief lighting
Factory direct price | OEM/ODM Accepted | 5-Year Warranty
Send Inquiry Call Us Get QuotationWind Turbine: 3-phase AC Maglev Generator, rated wind speed 13m/s
Solar Panel Warranty: 5 years; Wind Turbine Warranty: 3 years
Body Material: Aluminum die cast (anti-rust, lightweight)
Pole Treatment: Hot dip galvanized + powder coated (RAL 7045)
Color Temperature: 6000K (cool white, optional 3000K warm white)
Beam Angle: 140*70° / 145*83° (depending on model)
