250W–1250W range
Five documented replaceable-module fixtures for large-area sports and high-mast applications.
Product overview

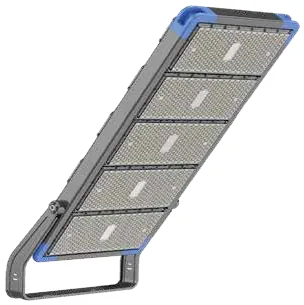

SKYWING SF03
Sports & High Mast Light.
SKYWING SF03 is a replaceable-module sports and high-mast LED light family documented from 250W to 1250W in five models, with 10°, 25°, 45°, 60°, 90°, 130×30×60° and 65×25×60° optical distributions.
The family uses Lumileds / Osram chips with a die-cast ADC12 housing and replaceable module fixtures, a UV-resistant polycarbonate lens, AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Seven optics
10°, 25°, 45°, 60°, 90°, 130×30×60° and 65×25×60° distributions.
Replaceable modules
Tool-free module replacement with adjustable ±30° module angle.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
5 models. Every verified value.
SKYWING SF03 · Sports & High Mast Light
ISL-QCD-C250W
Rated 250W · 33,600lm

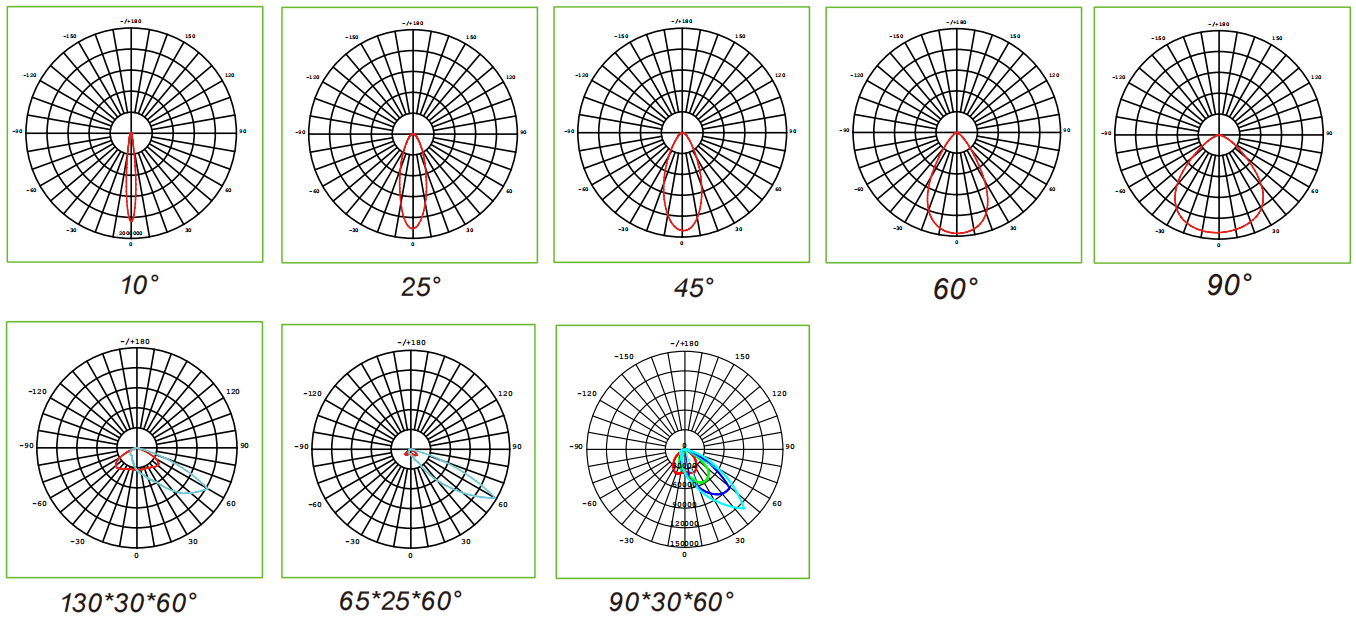

Optical distributions
Beam patterns.
The catalog publishes polar plots for the optical distributions across the SKYWING SF03 replaceable-module family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF03?
The catalog documents 5 models — ISL-QCD-C250W, 500W, 750W, 1000W, 1250W — with rated power from 250W to 1250W.
Which beam angles or optical distributions are documented?
The distributions are: 10°, 25°, 45°, 60°, 90°, 130×30×60° and 65×25×60°.
Which luminous flux values are documented?
The catalog lists 33,600lm up to 168,000lm.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?

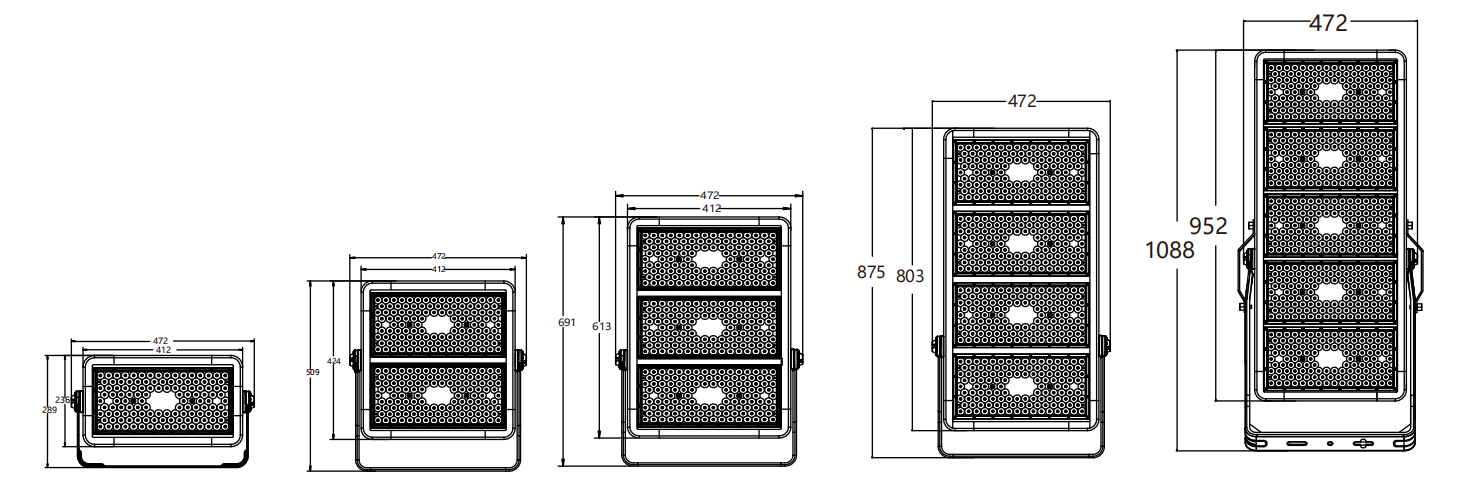

The catalog records replaceable module fixtures with ±30° module angle adjustment and housing footprints from 462×222×111mm to 502×1072×307mm.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
