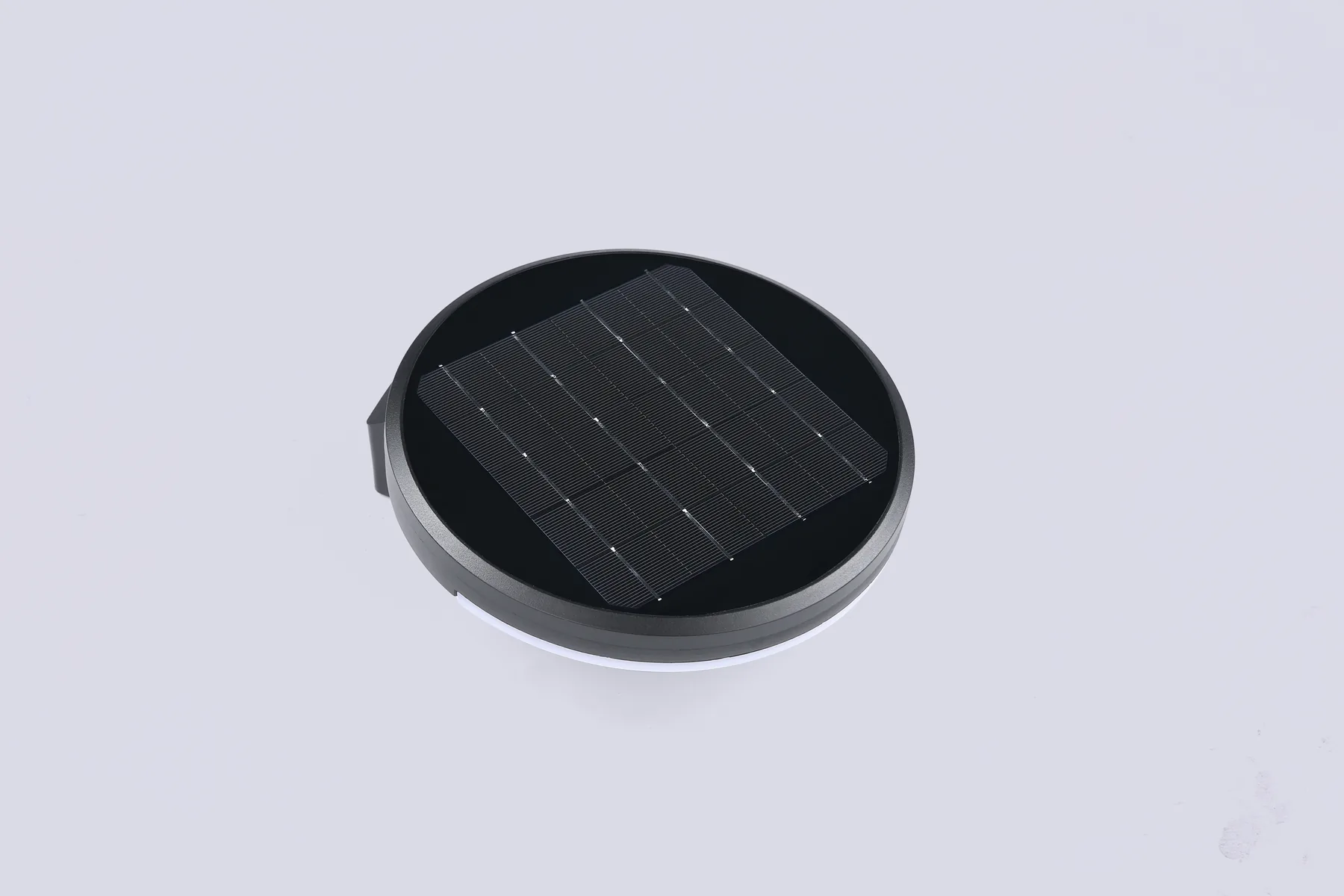

Monocrystalline panel
5V / 4.5W solar input for wire-free operation.
Product overview
Light the space.
Keep it efficient.

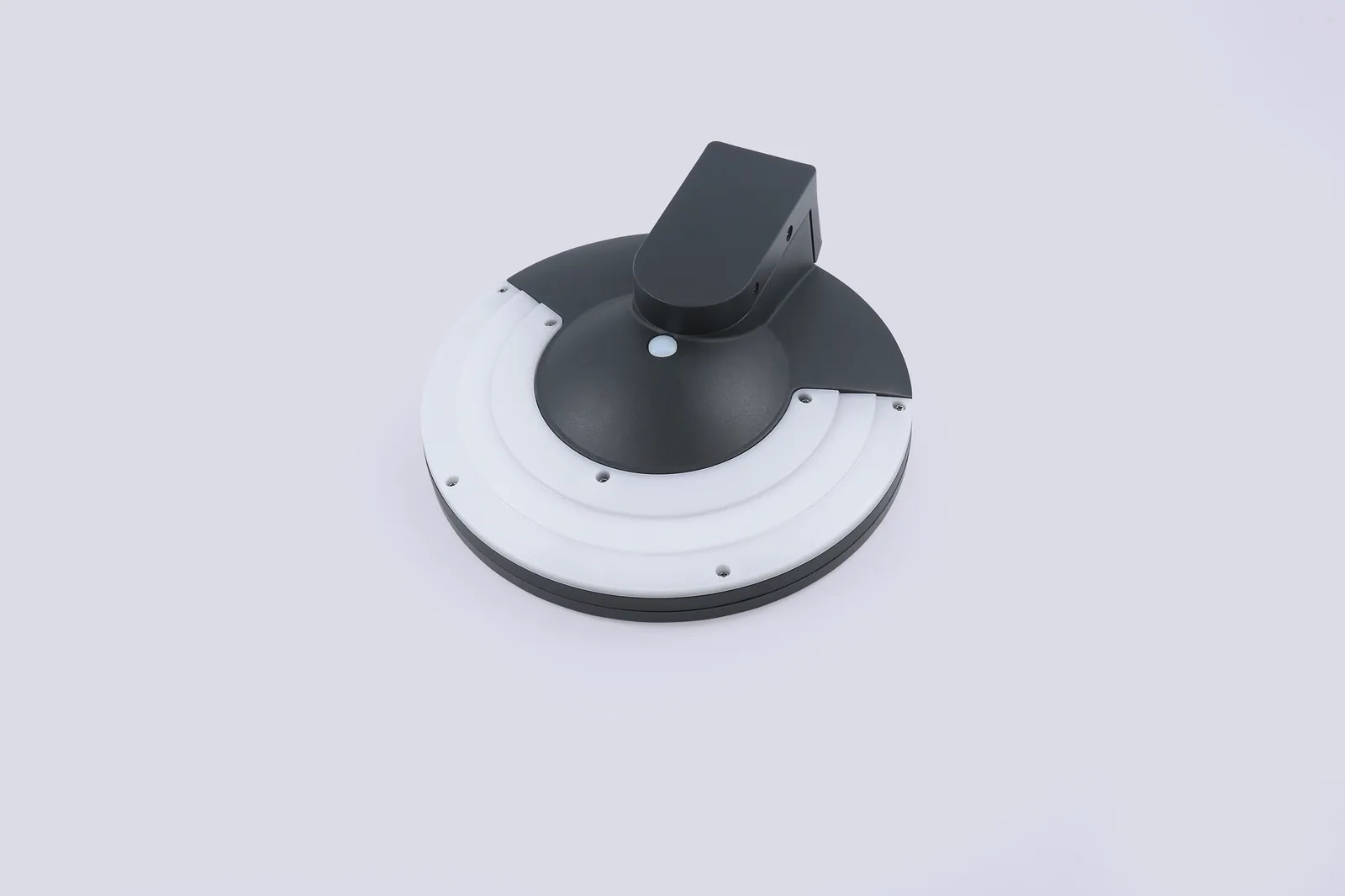

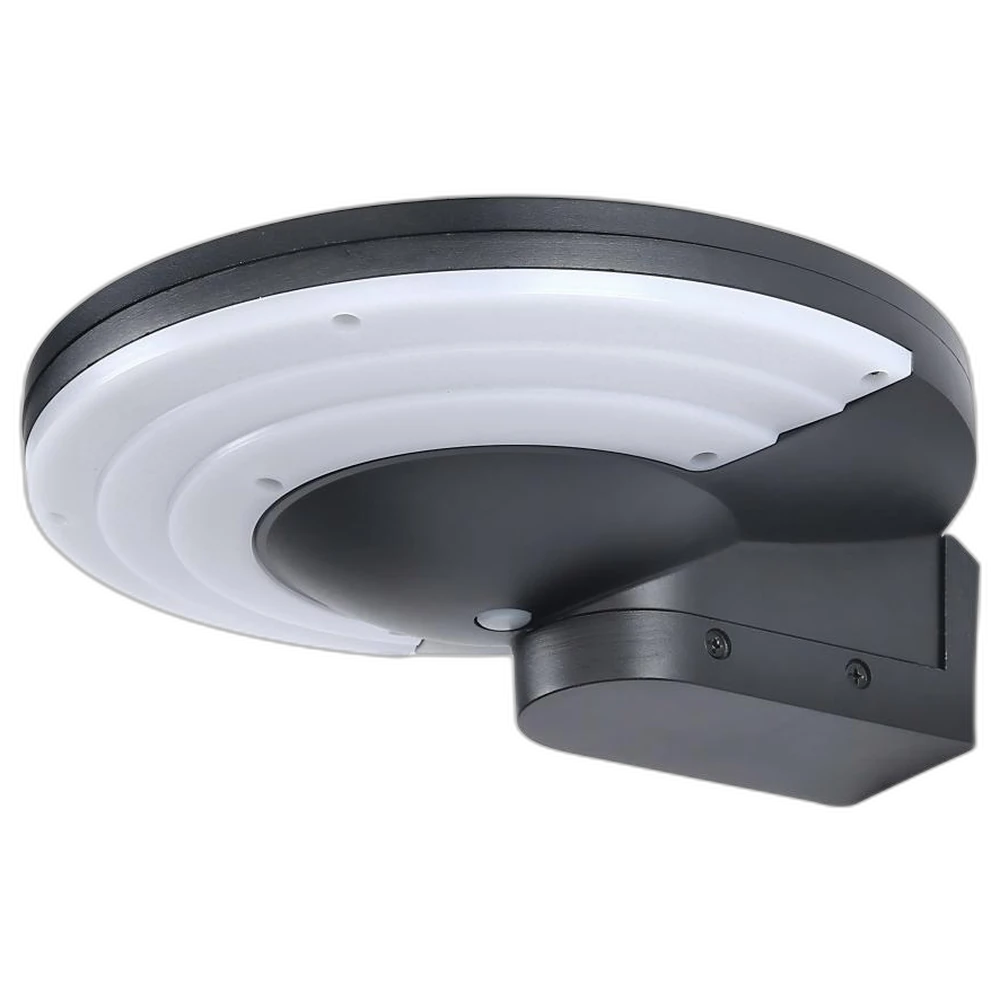

ZC-BD1008 is a slim round solar wall light from E-Able Power, combining a 5V / 4.5W monocrystalline panel with a 3.2V / 6000mAh LiFePO4 battery and 40 LEDs in a die-cast aluminum + PC housing.

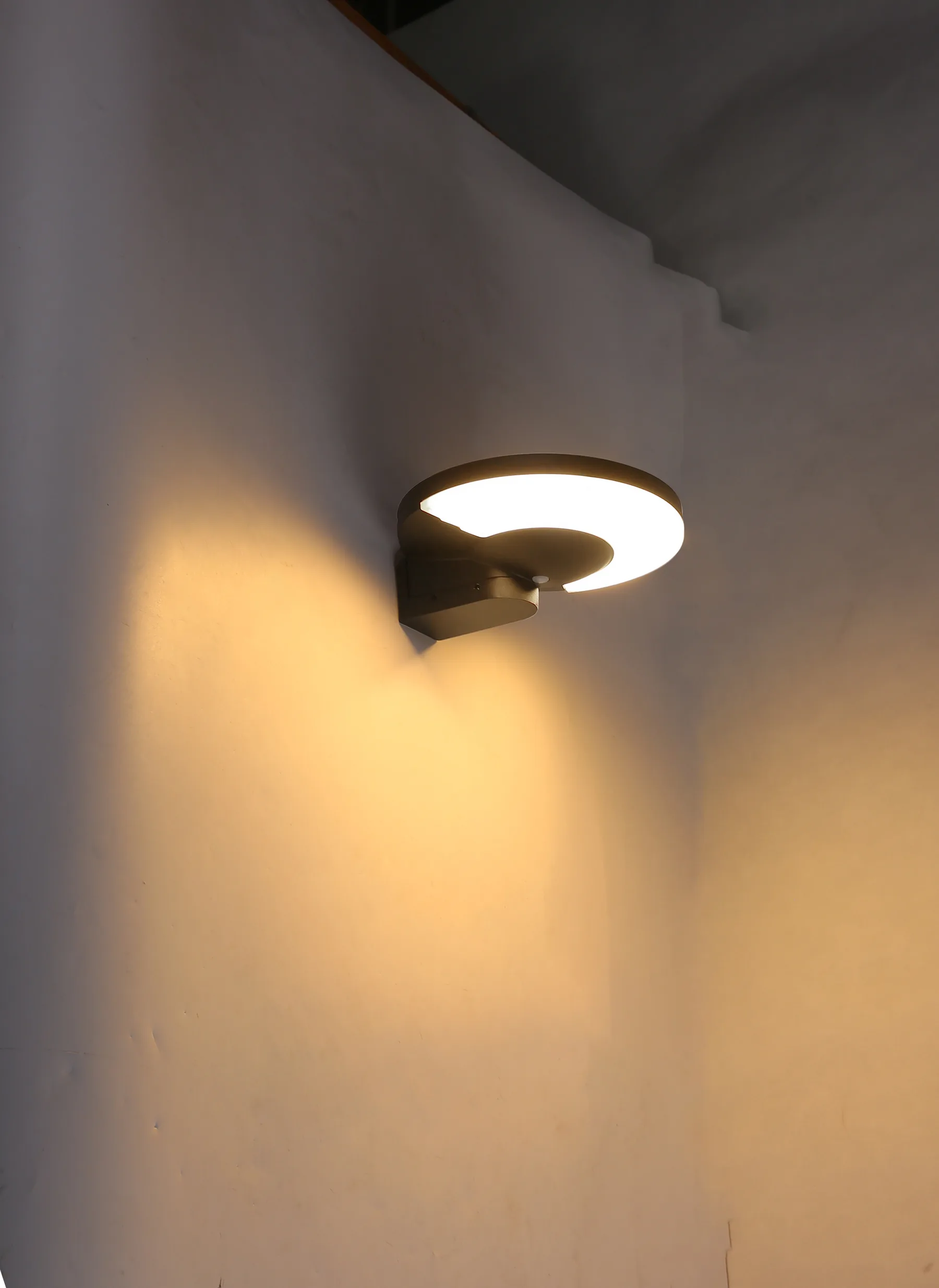

Its low-profile half-disc glows softly against facades, stairwells and column bases, reading as a subtle architectural detail during the day.
Selection note: selection note: mount at a comfortable height and confirm the light spread suits the wall before final configuration.
LiFePO4 battery
3.2V / 6000mAh battery for reliable nightly output.
Weather-protected housing
IP65 rated die-cast aluminum + PC construction.

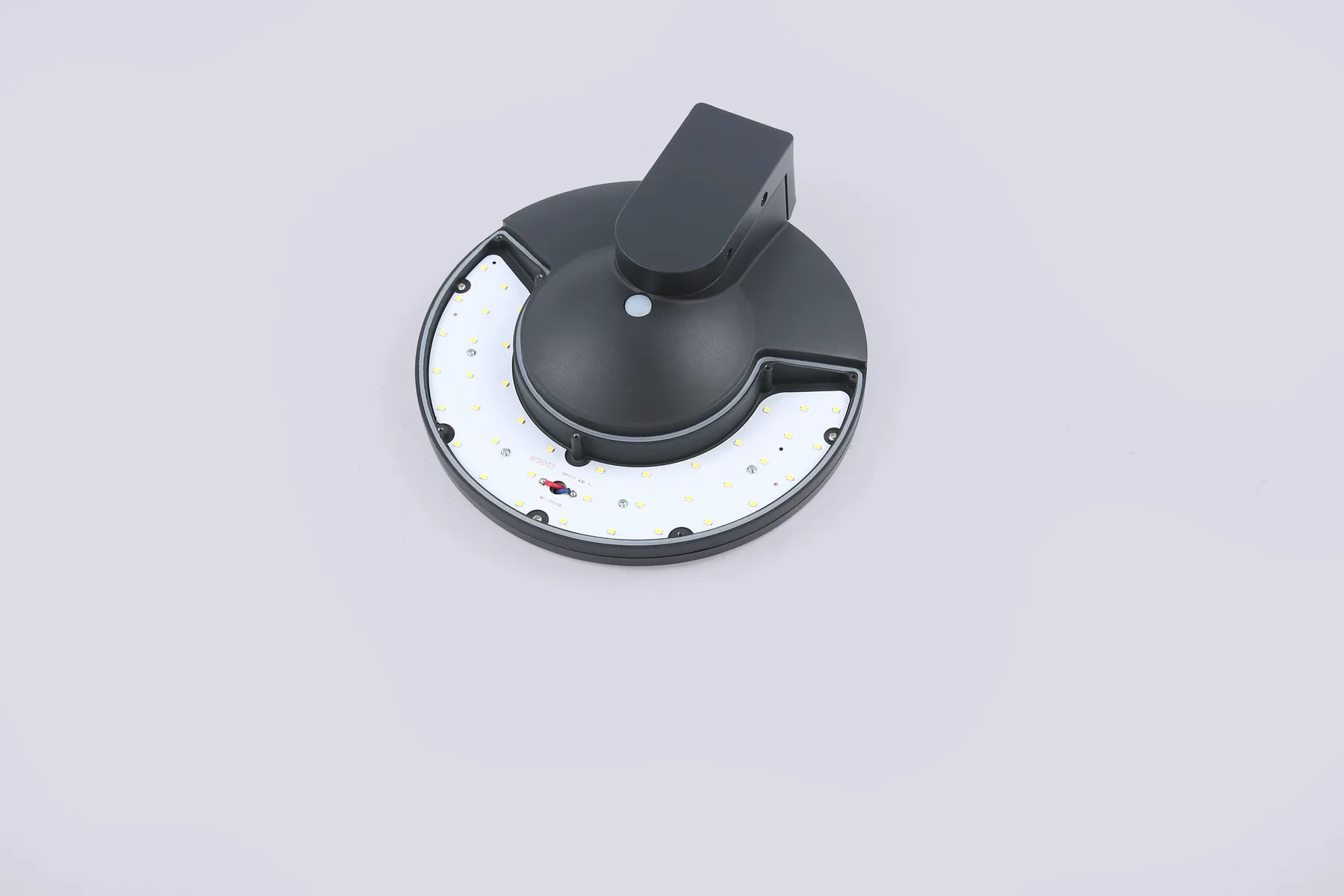

Even light distribution
40 high-efficiency LEDs for a soft even glow.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel5V / 4.5W
- Battery3.2V / 6000mAh
- Rated power4.5W
- Input voltageDC 3.2V
- Working time3 – 5 rainy days
Optical performance
- Light sourceSMD LED
- LED quantity40 pcs
- Colour temperature3000K – 6500K
- Luminous fluxhigh output
- Colour rendering>80
- Beam angle120°
Construction & dimensions
- MaterialDie-cast aluminum + PC
- Lamp colourBlack; other colours customisable
- Net weight—
- Sizeφ237 mm × H80 mm
- Installation height2 – 3 m
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications

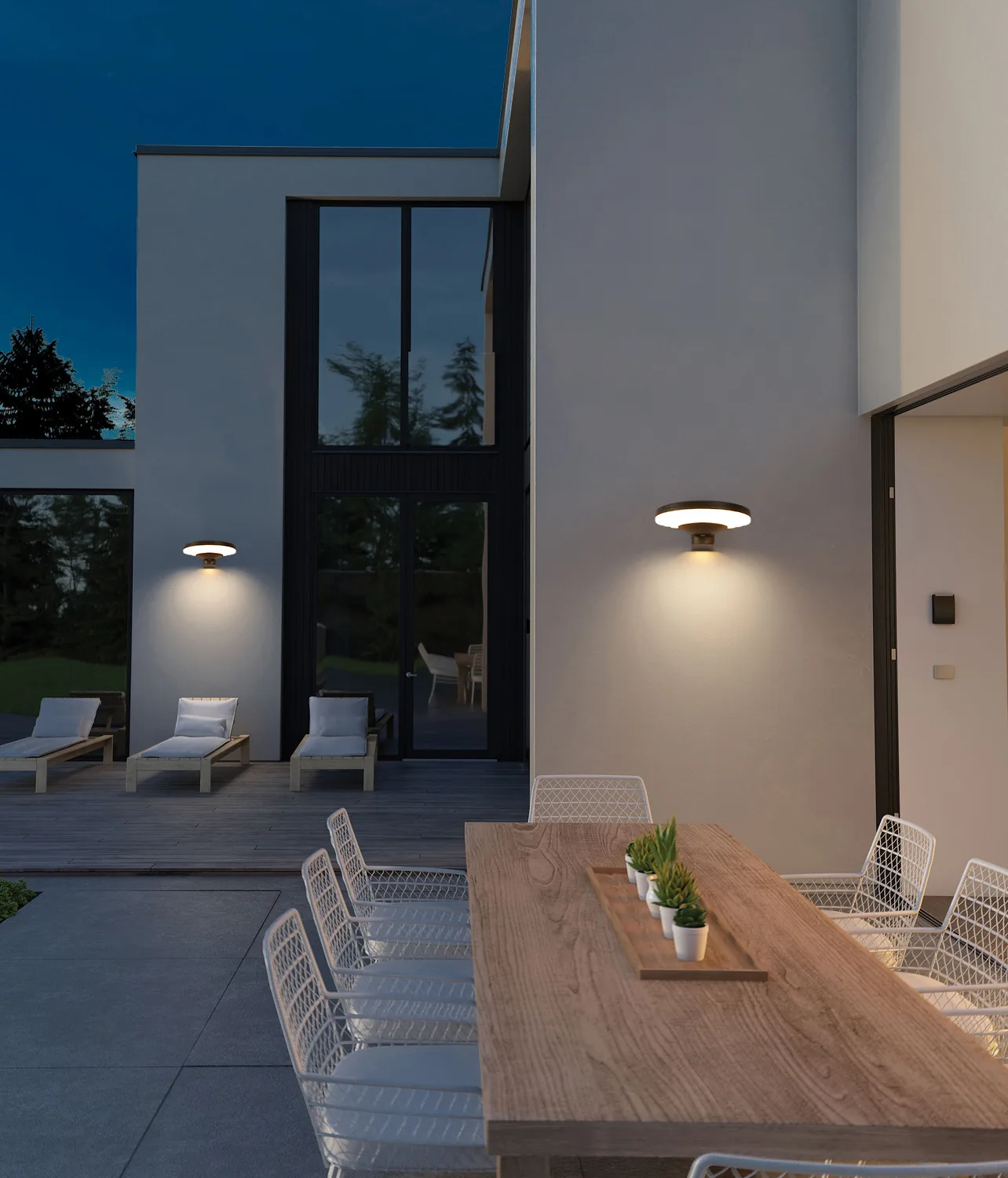

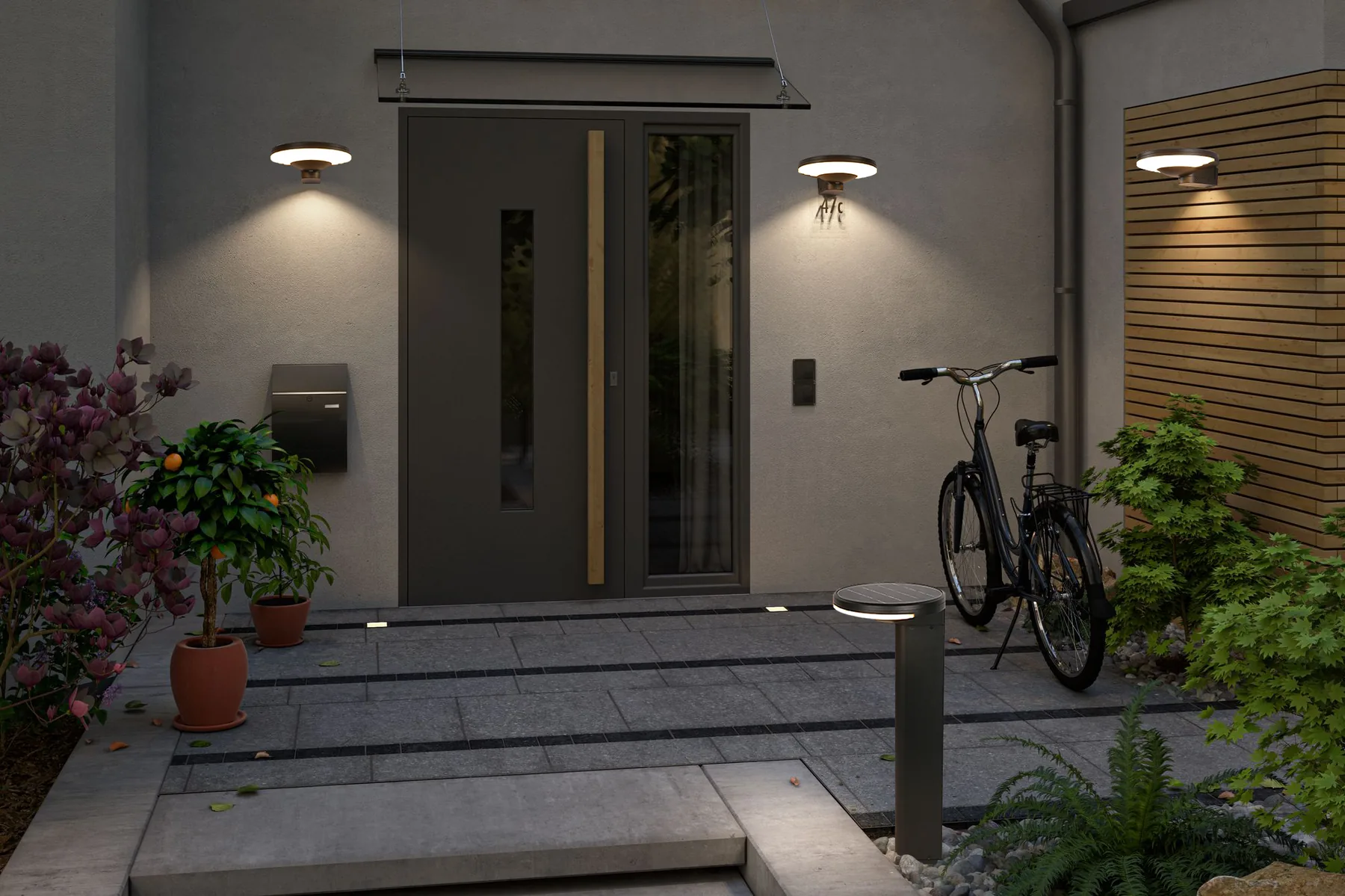

Lighting for facades, entries and garden edges.
FAQ
Common questions.
1What sizes is the ZC-BD1008 available in?
+
The ZC-BD1008 comes in φ237 mm × H80 mm.
2How long does the ZC-BD1008 run on a full charge?
+
It runs on a 3.2V / 6000mAh battery and provides 3 – 5 rainy days of working time.
3Is the ZC-BD1008 weatherproof?
+
Yes. It is built from die-cast aluminum + PC and rated IP65 for outdoor exposure.
4What colour temperature does the ZC-BD1008 offer?
+
It offers 3000K – 6500K for warm or bright daylight light.
5What powers the ZC-BD1008?
+
A 5V / 4.5W monocrystalline solar panel charges the on-board battery.
6Can the ZC-BD1008 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZC-BD1008 configuration.
