ZC-GGD Series Elite Architectural Solar Post Light (GGD001 / GGD002-1 / GGD002-2)

Name: ZC-GGD Series Elite Architectural Solar Post Light (GGD001 / GGD002-1 / GGD002-2)
Brand: E-ABLE POWER
Rating: 5.0 (18 reviews)

[ZC-GGD SERIES: ELITE ARCHITECTURAL SOLAR POST LIGHT -- 3 CONFIGURATIONS / ROUND & SQUARE]

Three architectural profiles: GGD001 (Round, 480xH440mm, 20W/20,000mAh/80LED), GGD002-1 (Square L, 400x400xH410mm, 20W/20,000mAh/80LED), GGD002-2 (Square S, 320x320xH320mm, 12W/12,000mAh/64LED). Die-casting aluminum + premium UV-stabilized PC housing. 3000-6500K selectable CCT. Dusk-to-dawn optical sensor. Zero trenching, zero grid connection. For commercial plazas, upscale residential pathways, corporate courtyards, and public parks. CE. 5-year warranty. OEM for 50+ units.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZC-GGD Series (GGD001 / GGD002-1 / GGD002-2)
Brand:
E-ABLE POWER
Code:
ZC-GGD-SERIES

Product Description

E-ABLE POWER — PRODUCT DATASHEET

ARCHITECTURAL SOLAR LIGHTING SOLUTIONS

ARCHITECTURAL GRADE 3 SIZES / 2 PROFILES

ZC-GGD Series | Elite Architectural Solar Post Light — 3 Configurations

ZC-GGD Series Elite Architectural Solar Post Light

The most versatile architectural solar post-top series in E-Able Power's portfolio — three scaled configurations in round and square profiles to match any urban design language. ZC-GGD001 (Round, 480xH440mm, 20W/20,000mAh/80LED) — the flagship circular profile for landmark plazas. ZC-GGD002-1 (Square L, 400x400xH410mm, 20W/20,000mAh/80LED) — large-format square geometry for formal courtyards. ZC-GGD002-2 (Square S, 320x320xH320mm, 12W/12,000mAh/64LED) — compact square for intimate pathways and residential zones. All models share: die-casting aluminum + premium UV-stabilized PC housing, 3000-6500K selectable CCT, and intelligent dusk-to-dawn optical sensor. Zero trenching, zero cabling, zero grid connection.

✉ Request Project Quote ☎ WhatsApp +86 153-5558-9600

Key Specifications at a Glance

• Models: GGD001 (Round) / GGD002-1 (Square L) / GGD002-2 (Square S)• Housing: Die-Casting Aluminum + UV-Stabilized PC• Solar Panel: 5V 20W (GGD001/G002-1) / 5V 12W (G002-2) Monocrystalline• Battery: 3.2V 20,000mAh (64Wh) / 12,000mAh (38Wh) Grade A LiFePO4• LED: 80 PCS (L models) / 64 PCS (S model) — 3000-6500K Selectable CCT• Charging: 3-5 Hours Direct Sunlight• Control: Dusk-to-Dawn Intelligent Optical Sensor• GGD001 Dims: Φ480 × H440mm• GGD002-1 Dims: 400 × 400 × H410mm• GGD002-2 Dims: 320 × 320 × H320mm• Certifications: CE• Warranty: 5 Years Standard

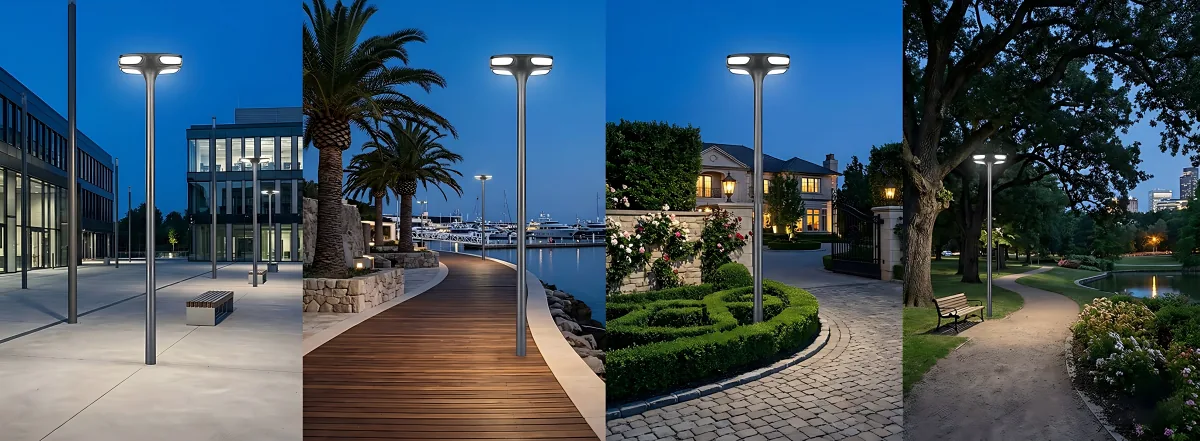

ZC-GGD Series elite architectural solar post lights — round and square profiles, die-casting aluminum + UV-stabilized PC, for commercial plazas and upscale pathways

Fig 1.0: ZC-GGD Series — Round GGD001 vs Square GGD002 Profiles, Die-Casting Aluminum + UV-Stabilized PC Construction

Core Engineering Advantages

Three-Gauge Architectural System

The ZC-GGD Series is a purpose-built architectural lighting system with three scaled configurations — not a single-size product. GGD001 (480mm, Round): flagship size for landmark plazas and wide pedestrian boulevards. GGD002-1 (400mm, Square L): mid-scale square geometry for corporate courtyards. GGD002-2 (320mm, Square S): compact form for intimate pathways, residential compounds, and garden niches. All three models can be mixed within a single project to create coherent hierarchical lighting zones — large fixtures for main arteries, compact ones for secondary paths — while maintaining identical material quality, color temperature, and design language.

UV-Stabilized Precision Housing

Premium die-casting aluminum chassis provides structural backbone and passive thermal management — drawing heat away from the LED array and battery compartment. The UV-stabilized PC diffuser is treated with advanced UV absorbers and stabilizers to prevent yellowing, hazing, and embrittlement over years of direct sun exposure — maintaining optical clarity and impact resistance far beyond untreated polycarbonate. This dual-material approach balances weight efficiency, thermal performance, and long-term aesthetic preservation for permanent architectural installations.

Scalable Energy Architecture

Two energy tiers match fixture scale to lighting demand. Tier 1 (GGD001 + GGD002-1): 20W monocrystalline panel + 20,000mAh (64Wh) LiFePO4 battery — full 8-10 hour dusk-to-dawn coverage with 2-3 night autonomy. Tier 2 (GGD002-2): 12W panel + 12,000mAh (38Wh) battery — optimized for the compact 320mm form factor with proportional runtime. Both tiers use Grade A LiFePO4 cells (2,000+ cycles, >270 deg C thermal stability, zero cobalt). The 3000-6500K selectable CCT range lets designers match existing municipal lighting color temperatures or create intentional warm/cool contrasts across zones.

Model Comparison & Technical Specifications

Parameter	ZC-GGD001 (Round)	ZC-GGD002-1 (Square L)	ZC-GGD002-2 (Square S)
Canopy Profile	Round (Circular)	Square (Rectilinear L)	Square (Rectilinear S)
Fixture Dimensions	Φ480 × H440 mm	400 × 400 × H410 mm	320 × 320 × H320 mm
Housing Material	Die-Casting Aluminum + Premium UV-Stabilized PC
Solar Panel (Mono)	5V / 20W	5V / 20W	5V / 12W
Battery (LiFePO4)	3.2V / 20,000mAh (64Wh)	3.2V / 20,000mAh (64Wh)	3.2V / 12,000mAh (38Wh)
LED Quantity	80 PCS	80 PCS	64 PCS
Color Temp (CCT)	3000K - 6500K — Selectable / Adjustable
Charging Time	3-5 Hours — Standard Direct Sunlight
Control System	Intelligent Optical Sensor — Automated Dusk-to-Dawn
Battery Cycle Life	2,000+ Cycles at 80% DOD — 8+ Years Operational
Certifications	CE

Table 1.0 — ZC-GGD Series 3-model comparison. GGD001 and GGD002-1 share identical 20W/20,000mAh/80LED electronics in round and square forms. GGD002-2 is the compact square variant with proportionally scaled 12W/12,000mAh/64LED system. All models: Grade A LiFePO4 chemistry, UV-stabilized PC diffuser, 3000-6500K selectable CCT, optical dusk-to-dawn sensor. Mix all three within a single project for coherent hierarchical lighting zones. 5-year standard warranty.

Target Architectural Applications

Commercial Plazas & Squares Upscale Residential Pathways Corporate Courtyards & Campuses Public Parks & Botanical Gardens Hotel & Resort Grounds

Frequently Asked Questions

Q: How do I deploy the three ZC-GGD models for a coherent project-wide lighting scheme?

The ZC-GGD Series is designed as a hierarchical lighting system, not isolated products. GGD001 (Round, 480mm, 20W/80LED): deploy as the primary luminaire on main pedestrian boulevards, plaza perimeters, and entry gateways — areas requiring maximum visual presence and luminous output. GGD002-1 (Square L, 400mm, 20W/80LED): use on secondary pathways, courtyard clusters, and transitional zones — same light output as GGD001 but square geometry for areas with rectilinear architecture. GGD002-2 (Square S, 320mm, 12W/64LED): place on intimate garden paths, bench alcoves, and narrow residential walkways — scaled-down output appropriate for closer-proximity pedestrian viewing. The three models share identical CCT range (3000-6500K) and material finish, ensuring visual continuity across zones. For tender specifications, E-Able Power can provide a site-specific distribution plan with quantities per model type.

Q: What is the advantage of UV-stabilized PC over standard polycarbonate or glass?

Standard untreated polycarbonate yellows, hazes, and becomes brittle after 2-3 years of direct tropical/subtropical sun exposure — degrading both light transmission and impact resistance. UV-stabilized PC is formulated with advanced UV absorbers and hindered-amine light stabilizers (HALS) that intercept UV photons before they break polymer chains, dramatically extending optical clarity and mechanical integrity. Compared to glass: PC is significantly lighter (reducing post load), inherently impact-resistant (no shatter risk), and can be molded into complex diffuser geometries for optimized light distribution. The die-casting aluminum frame provides the structural backbone, while the UV-stabilized PC diffuser handles light distribution and environmental sealing — each material doing what it does best.

Q: Why does GGD002-2 use a smaller 12W/12,000mAh system — is it underpowered?

The GGD002-2 is proportionally engineered, not underpowered. At 320x320xH320mm — 33% smaller in footprint than GGD002-1 — it serves a different lighting role: intimate pedestrian-scale illumination at closer viewing distances (1.5-3m post height vs 3-4m for the larger models). The 12W panel charges the 12,000mAh battery in the same 3-5 hour window; the 64 LED array delivers proportionally scaled output that avoids over-lighting narrow garden paths. Runtime is equivalent — 8-10 hours dusk-to-dawn. Selecting the GGD002-2 for its intended application (narrow paths, alcoves, residential compounds) is correct system design, not a compromise. For wide plazas and main arteries, use GGD001 or GGD002-1.

Q: What installation, warranty, and after-sales support does the ZC-GGD Series include?

All three models are fully self-contained — integrated solar panel, battery, LED array, and optical sensor in a single housing. Installation: mount on standard post top at appropriate height (post by installer). Zero trenching, zero cabling, zero grid connection, zero electrical permit — each fixture installs in under 30 minutes. The die-casting aluminum frame includes integrated mounting points. Annual maintenance: clean the UV-stabilized PC diffuser and solar panel with glass cleaner + soft cloth. 5-year standard warranty covering the complete fixture including LiFePO4 battery. For municipal and large-scale commercial projects, E-Able Power provides: complimentary DIALux lighting simulation, complete IEC/CE compliance documentation, spare parts pricing, and optional on-site commissioning support. Technical proposal within 2-3 business days.

Quality Assurance & Certifications

ISO
9001

Quality Mgmt

ISO
14001

Environmental

EU Compliance

UV
STAB

UV Stabilized

5 YR

Warranty

Factory: Dongguan, Guangdong, China. CE certified. ISO 9001 quality management + ISO 14001 environmental management. Premium UV-stabilized PC diffuser — advanced UV absorber and HALS formulation. Grade A LiFePO4 battery — zero cobalt, thermal stability >270 deg C. 5-year standard warranty.

Related Solar Lighting Products

ZC-TYD Series V-Arm Urban 20W Round+Square

ZC-TYD2505 200 LED / 60,000mAh Post Top

ZC-TYD2806 / GGD0805 160 LED / 45,000mAh Dual

Request DIALux Free lighting simulation

Design Your Landscape with the ZC-GGD Series

Three sizes, two profiles, one architectural standard. Contact E-Able Power for wholesale pricing, complimentary DIALux simulation, and complete tender documentation with site-specific model distribution. Technical proposal within 2-3 business days.
