Energy Storage System at LiFePO4 Baterya

LiFePO4 Energy Storage Baterya at System | E-Able Power

Gumagawa ang E-Able Power ng LiFePO4 energy storage system sa Dongguan, China, mula sa mga baterya sa bahay hanggang sa mga megawatt-scale na container, na may direktang pagpepresyo sa pabrika, OEM/ODM at pandaigdigang suporta. Residential: GWR wall-mounted (5.12–10.24 kWh) at GVR tower (15.36–32.15 kWh) na baterya na may 6,000+ cycle sa 80–90% DoD, cell-level BMS at 5-taong warranty. C&I: GCB-E all-in-one na cabinet (GCB-E50 / E100 / E240, 50–241 kWh) para sa peak shaving, TOU arbitrage at backup. Utility: GCB-C1200 (20 ft, 1.2 MWh) at GCB-C2400 (40 ft, 2.4 MWh) factory-integrated container BESS sa isang 768 Vdc rack platform. Mga Rack at Module: GHR-314 rack (241 kWh) at GLR-314 module (16.08 kWh). Mga Inverters: SDPO split-phase hybrid inverters (SDPO-U 7.2 kW; SDPO-IP 10–12 kW) na may dalawahang MPPT, 10 ms transfer at UL 1741.

Kalidad: Grade A 280 Ah / 314 Ah cell; CE, IEC 62619, UL 1973; ISO 9001 / ISO 14001. Serbisyo: Ang mga kasosyo sa 20+ na bansa ay tumatanggap ng pag-install, pagsasanay at suporta pagkatapos ng pagbebenta sa mga lokal na wika.

GWR Series Wall-Mounted LFP Battery

[GWR SERIES: ULTRA-THIN WALL-MOUNTED LFP BATTERY -- 5-10KWH RESIDENTIAL]

Dalawang modelo sa 51.2Vdc: GWR 48-100 (5.12kWh/100Ah, 442x133x600mm, 45kg) at GWR (10.24kWh/200Ah, 480x180x850mm, 95kg). Parehong: 100A, 90% DOD, 6,000+ cycle sa 80% DOD. Grade A LFP cells, Smart BMS na may pagsubaybay sa antas ng cell. RS485 / CAN 2.0 / RS232 / WiFi (Modbus RTU). Tugma sa Deye, Growatt, Victron, Goodwe, Solis, Luxpower, Sofar. Wall-mount na may kasamang mga bracket. IP20 sa loob. CE, ROHS, UN38.3, MSDS. 5-taong warranty. Parallel kaya.

Brief:
[GWR SERIES: ULTRA-THIN WALL-MOUNTED LFP BATTERY -- 5-10KWH RESIDENTIAL]

Dalawang modelo sa 51.2Vdc: GWR 48-100 (5.12kWh/100Ah, 442x133x600mm, 2WR 45kg)- (10.24kWh/200Ah, 480x180x850mm, 95kg). Parehong: 100A, 90% DOD, 6,000+ cycle sa 80% DOD. Grade A LFP cells, Smart BMS na may pagsubaybay sa antas ng cell. RS485 / CAN 2.0 / RS232 / WiFi (Modbus RTU). Tugma sa Deye, Growatt, Victron, Goodwe, Solis, Luxpower, Sofar. Wall-mount na may kasamang mga bracket. IP20 sa loob. CE, ROHS, UN38.3, MSDS. 5-taong warranty. Parallel kaya.

Higit pa >>

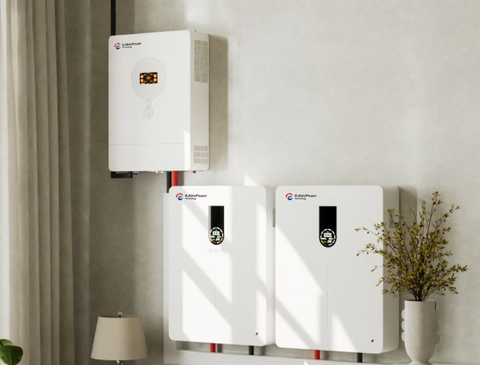

Split Phase Hybrid Inverter 7.2kW 12kW | E-Able Power

[SPLIT PHASE HYBRID INVERTER 7.2-12KW]--Ang E-Able Power SDPO series on/off grid split phase hybrid inverter ay nagbibigay ng totoong 120Vac (L1/N, L2/N) at 240Vac (L1/L2) na output para sa North-American-style two-phase grids, mga bahay, maliliit na negosyo. Tatlong modelo ang sumasaklaw sa bawat site: SDPO-U-7.2kw Split, SDPO-IP-10kw Split at SDPO-IP-12kw Split. Kabilang sa mga pangunahing feature ang dalawahang MPPT tracker na may hanggang 6000W plus 6000W PV input, 51.2V LiFePO4 o lead-acid na baterya compatibility na may self-adaptive BMS na komunikasyon, pure sine wave output, 10ms bypass-to-inverter transfer, at parallel operation hanggang 6 na unit para sa pagpapalawak sa 72kW. UL 1741 certified, FCC Part 15 Class B, IEEE 1547 grid regulation, na may 21 built-in na proteksyon at WiFi remote monitoring. Ipares sa E-Able GWR o GVR na mga baterya para sa kumpletong solar plus storage system. Sipi sa loob ng 2-3 araw ng negosyo.

Maikling:
[SPLIT PHASE HYBRID INVERTER 7.2-12KW]--E-Able Power SDPO series on/off grid split phase hybrid inverter ay nagbibigay ng tunay na 120Vac (L1/N, L2/N) at 240Vac (L1/L2) na output para sa North-American-style na two-phase na mga gride ng negosyo at mga bahay, mga bahay, at mga bahay. Tatlong modelo ang sumasaklaw sa bawat site: SDPO-U-7.2kw Split, SDPO-IP-10kw Split at SDPO-IP-12kw Split. Kabilang sa mga pangunahing feature ang dalawahang MPPT tracker na may hanggang 6000W plus 6000W PV input, 51.2V LiFePO4 o lead-acid na baterya compatibility na may self-adaptive BMS na komunikasyon, pure sine wave output, 10ms bypass-to-inverter transfer, at parallel operation hanggang 6 na unit para sa pagpapalawak sa 72kW. UL 1741 certified, FCC Part 15 Class B, IEEE 1547 grid regulation, na may 21 built-in na proteksyon at WiFi remote monitoring. Ipares sa E-Able GWR o GVR na mga baterya para sa kumpletong solar plus storage system. Sipi sa loob ng 2-3 araw ng negosyo.

Higit pa >>

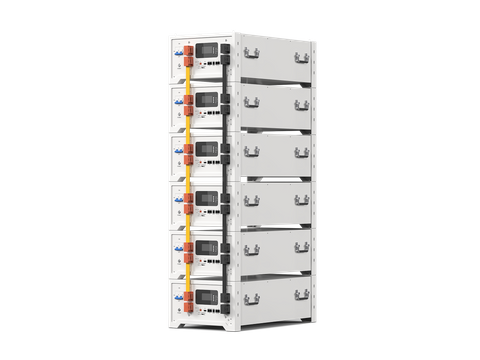

GLR-314 High-Voltage Stackable Battery Module

[GLR-314: HIGH-VOLTAGE STACKABLE LFP BATTERY MODULE -- 16KWH/MODULE]

16.08kWh bawat module, Grade A 314Ah LFP cells. 2-16 na module sa serye (32-257kWh/rack), hanggang 10 rack parallel para sa 800kW+/2.57MWh. DC boltahe: 102.4-819.2Vdc. Module: 838x478x278mm, 125kg, mga gulong ng castor. CAN 2.0 / RS485 / RS232 (Modbus RTU). Tugma sa Deye, Growatt, Solis, Goodwe, Sol-Ark, SMA, Victron. 6,000+ cycle sa 90% DOD. 3-level na BMS. CE, IEC 62619. 5-taong warranty. Nako-configure sa proyekto.

Maikling:
[GLR-314: HIGH-VOLTAGE STACKABLE LFP BATTERY MODULE -- 16KWH/MODULE]

16.08kWh bawat module, Grade A 314Ah LFP cells. 2-16 na module sa serye (32-257kWh/rack), hanggang 10 rack parallel para sa 800kW+/2.57MWh. DC boltahe: 102.4-819.2Vdc. Module: 838x478x278mm, 125kg, mga gulong ng castor. CAN 2.0 / RS485 / RS232 (Modbus RTU). Tugma sa Deye, Growatt, Solis, Goodwe, Sol-Ark, SMA, Victron. 6,000+ cycle sa 90% DOD. 3-level na BMS. CE, IEC 62619. 5-taong warranty. Nako-configure sa proyekto.

Higit pa >>

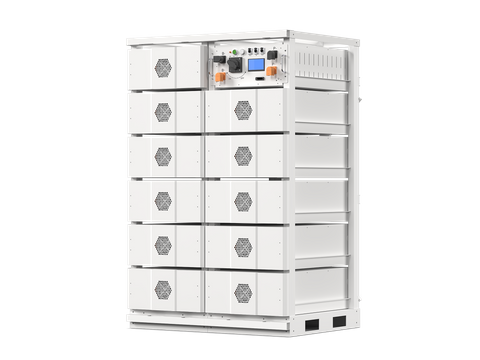

GHR-314 High-Voltage 3-Stack Battery Rack

[GHR-314: HIGH-VOLTAGE 3-STACK BATTERY RACK -- 241KWH]

Naka-patent na 3-column stack architecture: hanggang 45 modules (15/column), 241kWh per rack. Grade A 314Ah LFP cells, 6,000+ cycle sa 90% DOD. Nako-configure ang DC bus sa 768Vdc+. 157A tuloy-tuloy / 314A peak. CAN 2.0 / RS485 / RS232. 3-level na BMS. Opsyonal na aerosol/perfluorohexanone FSS. Parallel na maraming rack para sa MWh-scale. IP20 sa loob. CE, IEC 62619. 5-taong warranty na nasusukat sa 10 taon. Nako-configure sa proyekto.

Maikling:
[GHR-314: HIGH-VOLTAGE 3-STACK BATTERY RACK -- 241KWH]

Naka-patent na 3-column stack architecture: hanggang 45 modules (15/column), 241kWh bawat rack. Grade A 314Ah LFP cells, 6,000+ cycle sa 90% DOD. Nako-configure ang DC bus sa 768Vdc+. 157A tuloy-tuloy / 314A peak. CAN 2.0 / RS485 / RS232. 3-level na BMS. Opsyonal na aerosol/perfluorohexanone FSS. Parallel na maraming rack para sa MWh-scale. IP20 sa loob. CE, IEC 62619. 5-taong warranty na nasusukat sa 10 taon. Nako-configure sa proyekto.

Higit pa >>

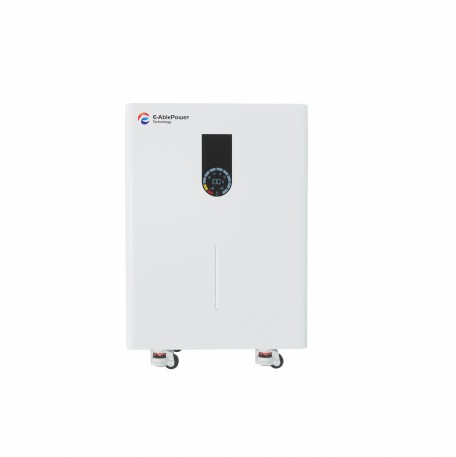

GVR Series Vertical Floor-Standing LFP Battery

floor-standing na LFP na baterya, GVR series na baterya, 51.2V LiFePO4 na baterya, residential energy storage, vertical solar battery, home backup na baterya, Deye compatible na baterya, Growatt na imbakan ng baterya, Victron compatible na baterya, Grade A LFP na baterya, E-Able Power GVR series, residential ESS OEM

Brief: residential ESS OEM Brief:
residential na LFPV na baterya, baterya ng LiFe.4ti na baterya, serye ng enerhiya ng GPO1VR, GPO4. storage, patayong solar na baterya, home backup na baterya, Deye compatible na baterya, Growatt battery storage, Victron compatible na baterya, Grade A LFP na baterya, E-Able Power GVR series, residential ESS OEM

Higit pa >>

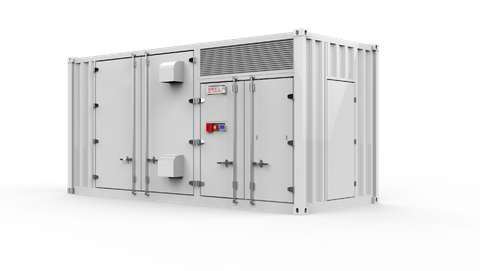

GCB-C1200 Utility-Scale Energy Storage Container

[GCB-C1200: 20FT ALL-IN-ONE UTILITY-SCALE BESS CONTAINER -- 500KW/1.2MWH]

20ft ISO container (6,058x2,438x2,896mm, 16,000kg). 75 Grade A LFP modules (51.2V/314Ah/16.07kWh), 15S5P, 1,205.6kWh (1.2MWh) sa 768Vdc, 500kW AC (630kW configurable). DC kahusayan >=96%. 6,000+ cycle sa 80% DOD. Panlabas na PCS: Sungrow/Kehua/Sinexcel/Kelong. Apat na mode: On-Grid / Off-Grid / Hybrid / Black-Start. 400/480/690Vac, 722A. 3-level na BMS + EMS + HVAC (-30 hanggang 50 deg C) + perfluorohexanone FSS. Pagsubaybay sa 4G/WiFi/Ethernet. Pre-commissioned ang mga barko. Parallel para sa multi-MWh. CE, IEC 62619, IEC 61000, UN38.3, IEC 62477. 5yr system / 10yr na warranty ng baterya.

Maikling:
[GCB-C1200: 20FT ALL-IN-ONE UTILITY-SCALE BESS CONTAINER -- 500KW/1.2MWH]

20ft ISO container (6,058x2,438x2,896mm, 16,000kg). 75 Grade A LFP modules (51.2V/314Ah/16.07kWh), 15S5P, 1,205.6kWh (1.2MWh) sa 768Vdc, 500kW AC (630kW configurable). DC kahusayan >=96%. 6,000+ cycle sa 80% DOD. Panlabas na PCS: Sungrow/Kehua/Sinexcel/Kelong. Apat na mode: On-Grid / Off-Grid / Hybrid / Black-Start. 400/480/690Vac, 722A. 3-level na BMS + EMS + HVAC (-30 hanggang 50 deg C) + perfluorohexanone FSS. Pagsubaybay sa 4G/WiFi/Ethernet. Pre-commissioned ang mga barko. Parallel para sa multi-MWh. CE, IEC 62619, IEC 61000, UN38.3, IEC 62477. 5yr system / 10yr na warranty ng baterya.

Higit pa >>

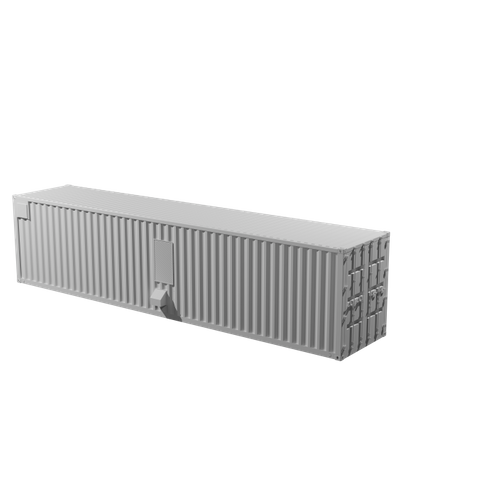

GCB-C2400 Utility-Scale ESS Container | 1MW/2.4MWh | E-ABLE POWER

Ang GCB-C2400 ay ang aming flagship Utility-Scale Containerized Energy Storage System, na nakalagay sa isang matatag na 40ft High Cube container. Naghahatid ng napakalaking 1,000 kW (1 MW) ng kapangyarihan at 2,411 kWh (2.4 MWh) ng nominal na enerhiya, walang putol itong isinasama ang BESS, BMS, EMS, HVAC, at FSS. Pinapatakbo ng high-capacity Grade A 314Ah LiFePO4 cells na inengineered para sa mahigit 6,000 cycle, ang system na ito ang pinakahuling solusyon para sa utility-scale microgrids, frequency regulation, renewable integration (PV/Wind), at peak-shaving energy arbitrage.

Maikling:
Ang GCB-C2400 ay ang aming flagship Utility-Scale Containerized Energy Storage System, na nakalagay sa isang matatag na 40ft High Cube container. Naghahatid ng napakalaking 1,000 kW (1 MW) ng kapangyarihan at 2,411 kWh (2.4 MWh) ng nominal na enerhiya, walang putol itong isinasama ang BESS, BMS, EMS, HVAC, at FSS. Pinapatakbo ng high-capacity Grade A 314Ah LiFePO4 cells na inengineered para sa mahigit 6,000 cycle, ang system na ito ang pinakahuling solusyon para sa utility-scale microgrids, frequency regulation, renewable integration (PV/Wind), at peak-shaving energy arbitrage.

Higit pa >>

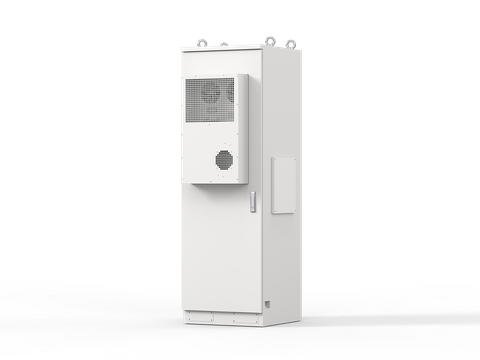

GCB-E50 Commercial at Industrial Energy Storage System

[GCB-E50: ALL-IN-ONE 50KW/50KWH C&I BESS]

50kW hybrid inverter + 50kWh LFP na baterya + 3-level BMS + EMS + HVAC + FSS sa isang IP54 cabinet (780x640x2000mm, ~625kg). Grade A LiFePO4 cells (3.2V/100Ah), 10-module 16S1P, 6,000+ cycle sa 90% DOD. Round-trip na kahusayan >=90%. Tatlong mode: Grid-tied / Off-grid / Hybrid. 380V three-phase, Deye compatible. Pre-commissioned ng pabrika. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-taong warranty. Nako-configure sa site.

Maikling:
[GCB-E50: ALL-IN-ONE 50KW/50KWH C&I BESS]

50kW hybrid inverter + 50kWh LFP na baterya + 3-level BMS + EMS + HVAC + FSS sa iisang IP54 cabinet (780x640x2000mm, ~625kg). Grade A LiFePO4 cells (3.2V/100Ah), 10-module 16S1P, 6,000+ cycle sa 90% DOD. Round-trip na kahusayan >=90%. Tatlong mode: Grid-tied / Off-grid / Hybrid. 380V three-phase, Deye compatible. Pre-commissioned ng pabrika. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-taong warranty. Nako-configure sa site.

Higit pa >>
GCB-E100 Commercial at Industrial Energy Storage System

[GCB-E100: ALL-IN-ONE 50KW/100KWH C&I BESS]

50kW AC / 100.35kWh nominal (hanggang 112.53kWh nagagamit). Mga module ng baterya + BMS + EMS + HVAC + FSS sa iisang IP54 cabinet (~1200x803x2375mm, ~1300kg). Grade A 280Ah o 314Ah LFP prismatic cells, 6,000+ cycle sa 80% DOD. 50kW three-phase 380V inverter. Tatlong mode: Grid-tied / Off-grid / Hybrid. Pre-commissioned ng pabrika. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-taong warranty. Nako-configure sa site.

Maikling:
[GCB-E100: ALL-IN-ONE 50KW/100KWH C&I BESS]

50kW AC / 100.35kWh nominal (hanggang 112.53kWh nagagamit). Mga module ng baterya + BMS + EMS + HVAC + FSS sa iisang IP54 cabinet (~1200x803x2375mm, ~1300kg). Grade A 280Ah o 314Ah LFP prismatic cells, 6,000+ cycle sa 80% DOD. 50kW three-phase 380V inverter. Tatlong mode: Grid-tied / Off-grid / Hybrid. Pre-commissioned ng pabrika. CE, RoHS, ISO9001, IEC 62619, UL 1973. 5-taong warranty. Nako-configure sa site.

Higit pa >>
GCB-E240 Commercial at Industrial Energy Storage System

[GCB-E240: ALL-IN-ONE 125KW/241KWH C&I BESS]

125kW PCS + high-voltage LFP battery rack (280Ah/215kWh o 314Ah/241kWh na mga opsyon) + 3-level na BMS + EMS + HVAC + FSS sa iisang IP54 enclosure (1300x1260x2375mm, ~3,200kg). Grade A LFP cells: 6,000+ cycle sa 90% DOD, >=90% round-trip na kahusayan. 380V three-phase, 189A output. Tatlong mode: Grid-tied / Off-grid / Hybrid. Hanggang 6 na buwang walang maintenance na storage. CE, IEC 62619, IEC 61000, UN38.3. 5-taong warranty. Nako-configure sa site.

Maikling:
[GCB-E240: ALL-IN-ONE 125KW/241KWH C&I BESS]

125kW PCS + high-voltage LFP battery rack (280Ah/215kWh o 314Ah/241kWh na mga opsyon) + 3-level na BMS + EMS + HVAC54 + FSS na enclosure (1300x1260x2375mm, ~3,200kg). Grade A LFP cells: 6,000+ cycle sa 90% DOD, >=90% round-trip na kahusayan. 380V three-phase, 189A output. Tatlong mode: Grid-tied / Off-grid / Hybrid. Hanggang 6 na buwang walang maintenance na storage. CE, IEC 62619, IEC 61000, UN38.3. 5-taong warranty. Nako-configure sa site.

Higit pa >>
