E-POTENTIA - FRUCTUS DATASHEET
RESIDENTIAL & COMMERCIUM VIS PRAECLUSIO
|
UL1741 USTED SCISSUS XII kW |

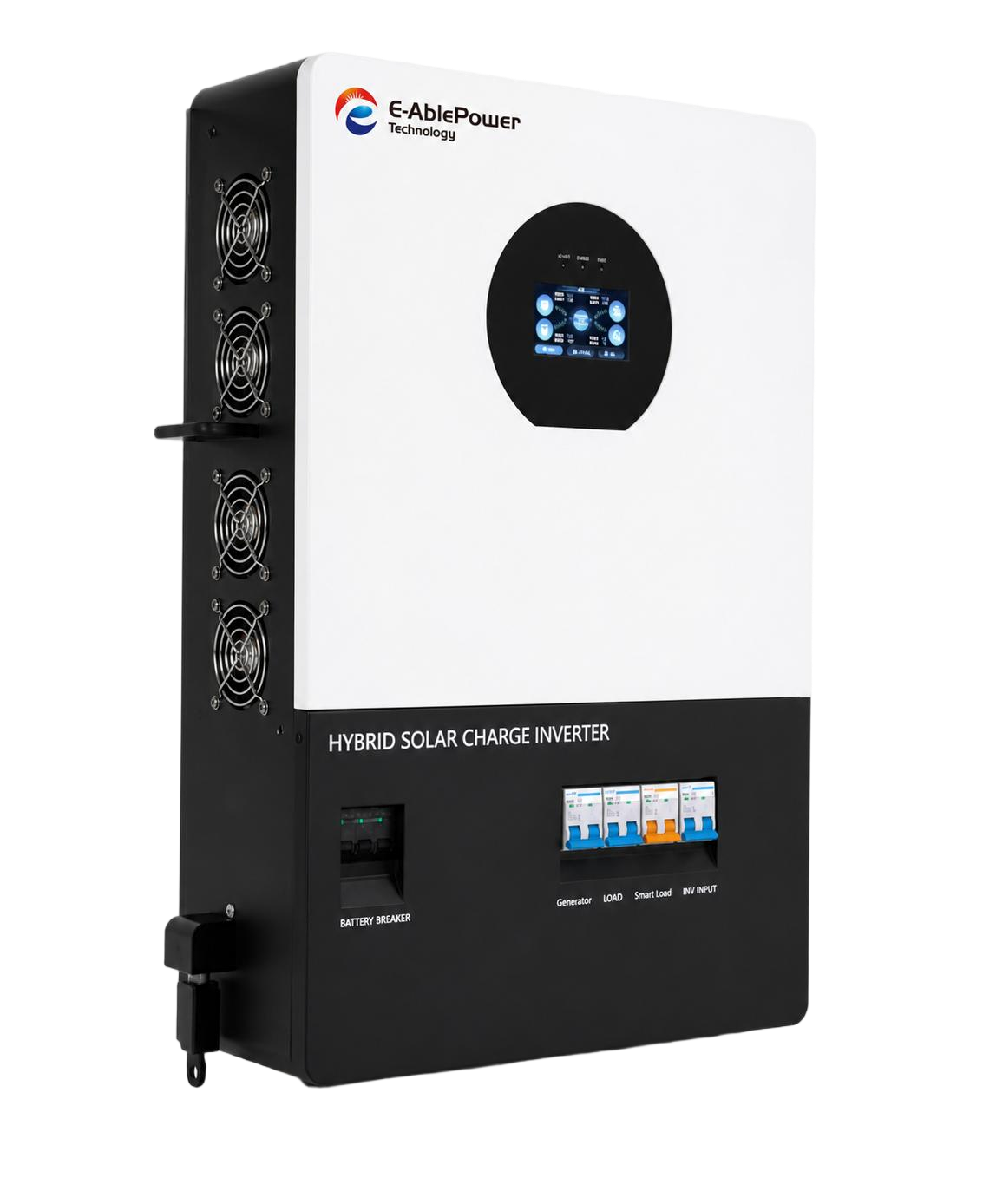

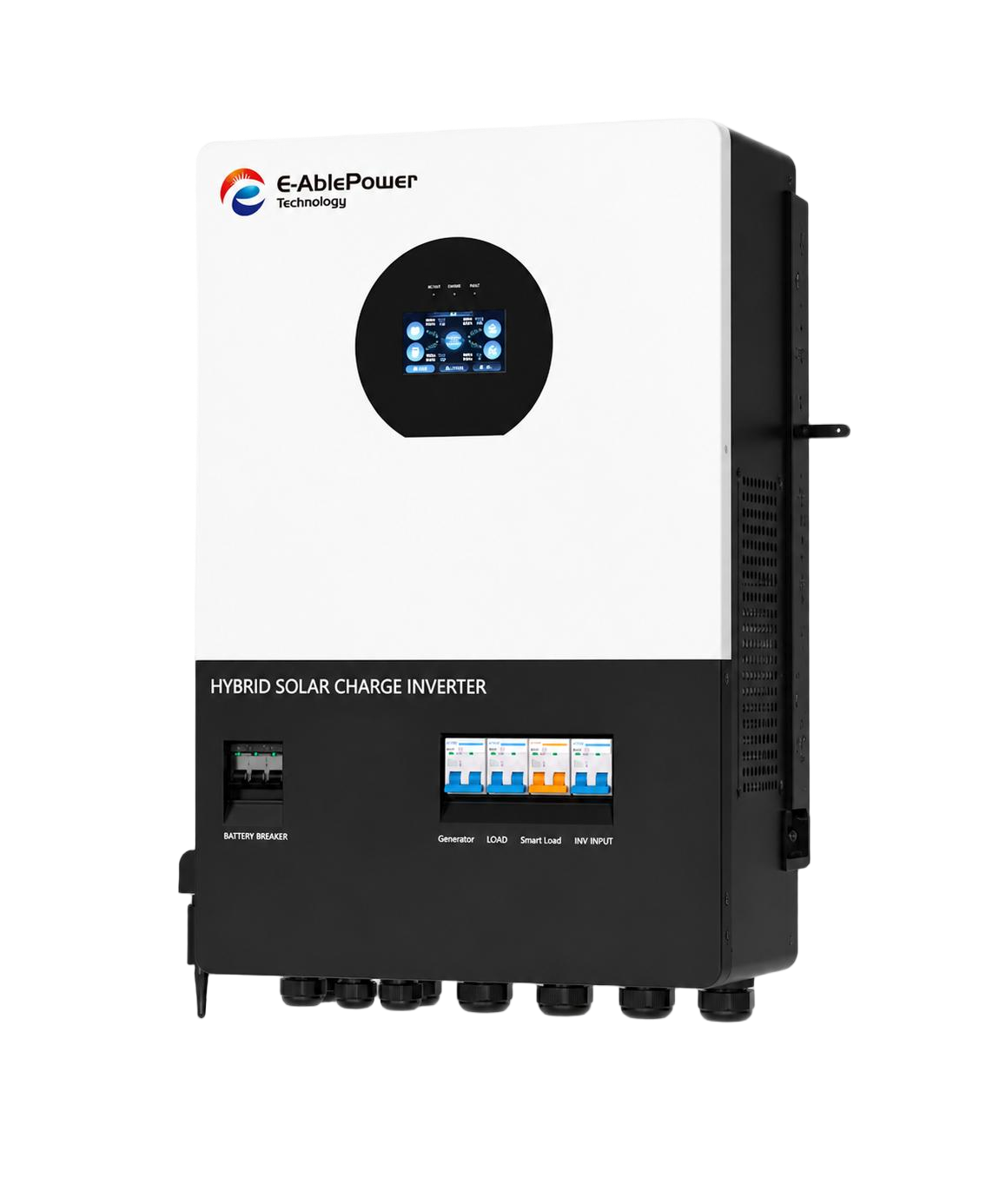

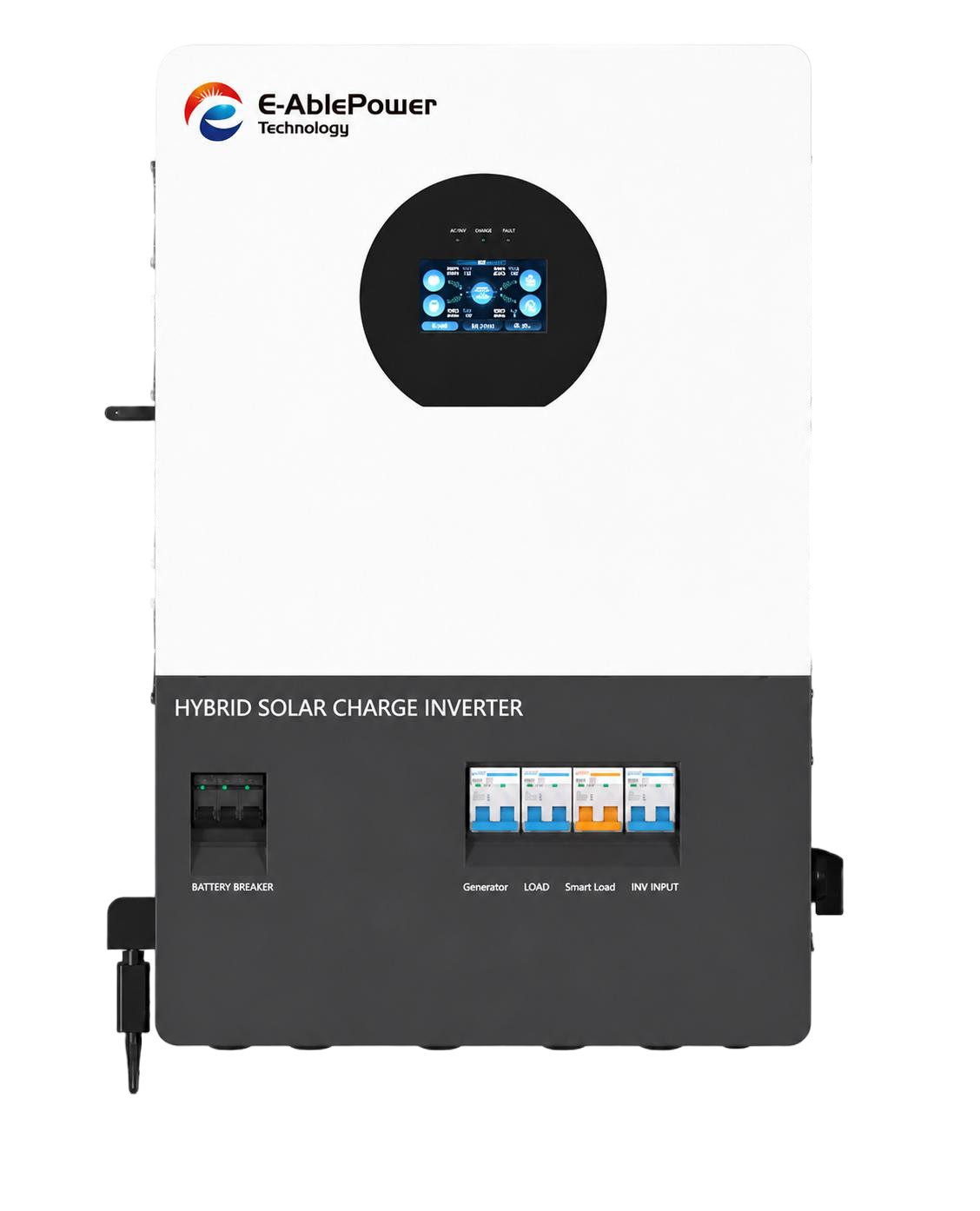

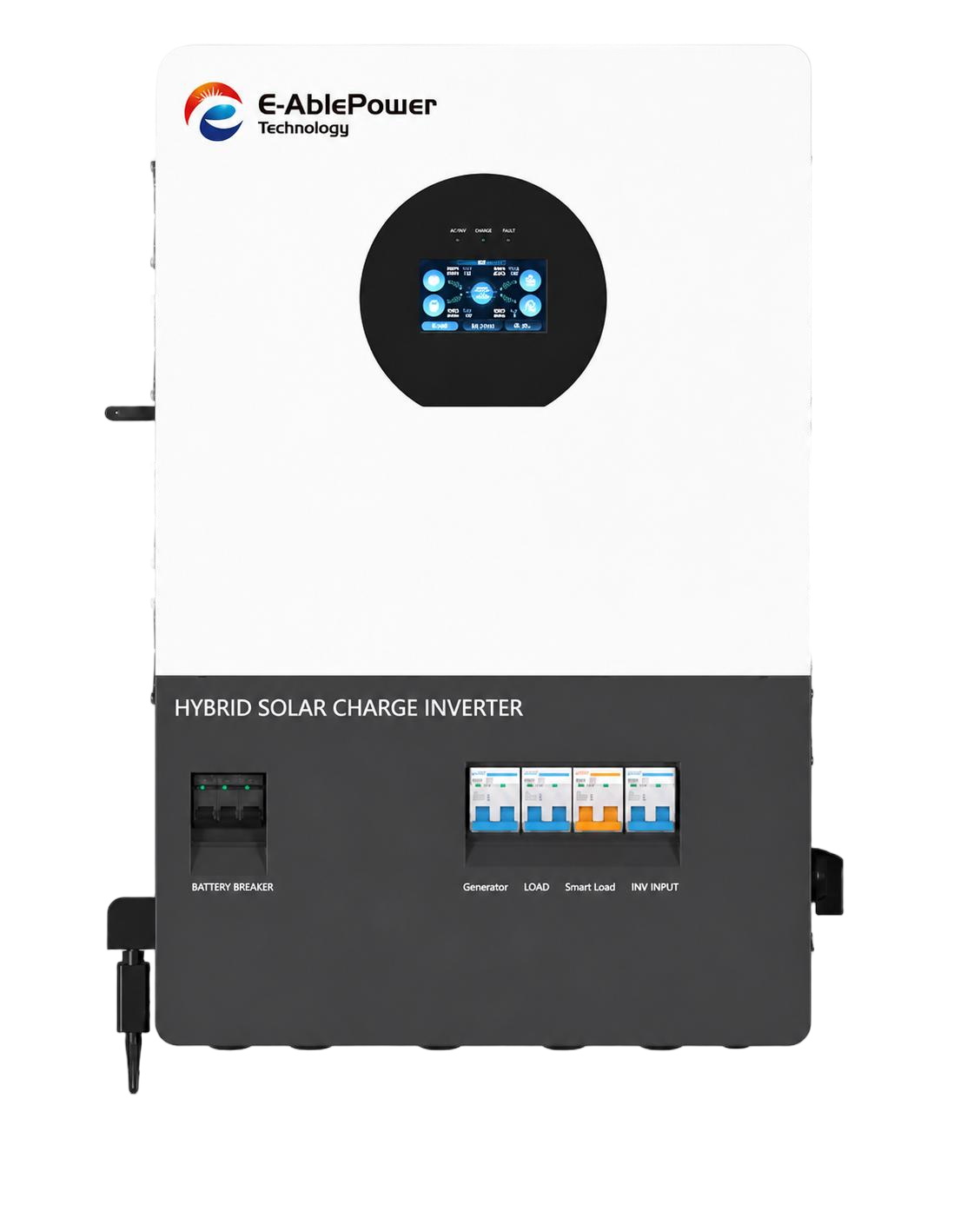

IP-Plus Series | In & Off eget Hybrid Inverter (US Model) IP-Plus 12kW-P Split-Phase Hybrid Inverter - UL1741 RecenseturA UL1741 Recensentur split-phase hybridorum inverter fori US - 12,000W purus sine unda output in 120/240Vac, MPPT dualis initus solaris (12,000W + 12,000W) , 160A configurabilis incurrens et 10ms UPS-gradus switchover . In/off-eget potens cum generante subsidium pro tota domo tergum potentiae.
Exemplar: IP-Plus-12kW-P | Brand: E-Potentia Phase: Split-Phase 120V(L1/N, L2/N) / 240V(L1/L2) | Output: 12,000W / 12,000VA (18,000VA apicem) PV Input: 2× MPPT, 12,000W + 12,000W | Pugna: 51.2V LiFePO4 (externe); |
|

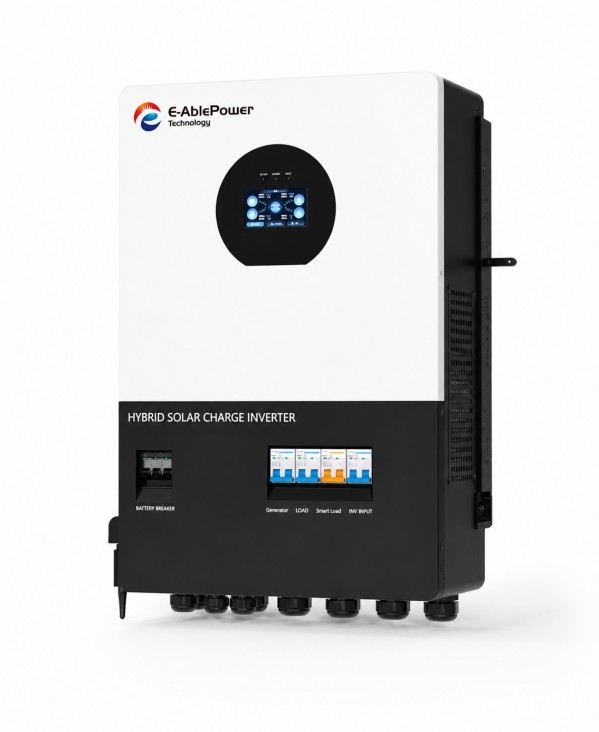

Praecipua Product Imagines
Clavis Specificationes ad Glanc
| Specification |
Precium |
Specification |
Precium |
| Product Type |
Discidium-Phase de / Off-eget Hybrid Inverter (US Model) |
Certification |
UL1741 Recensentur — US Interconnection Grid |
| Rated Power |
12,000W / 12,000VA (Split-Phase) |
Apicem Power |
18,000VA |
| Output intentione |
Split-Phase 120V(L1/N, L2/N) / 240V(L1/L2) |
Waveform |
Purus Sine Wave |
| PV Input |
Dual MPPT — 12,000W + 12,000W, 500Vdc max |
MPPT Efficiency |
Usque ad 99.9% |
| Praecipe max Current |
160A (AC) / 250A (PV) — configurable |
Pugna |
51.2V LiFePO4 (40–58.6Vdc), external |
| Efficientia |
>95% (AC modus) /> 91% (inverter) |
Switch Tempus |
10ms (bypass <> inverto, typico) |
| Motor capacitas |
6HP - bene soleatus & motricium onerat |
sonitus |
≤60dB (variabilis-celeritate fan) |
| Dimensiones (L×W×D) |
710 485 145 mm |
Pondus |
37.5 kg |
Clavis Innovatio Commoda
|
⭐
UL1741 RecensenturCertificari UL1741 pro tuta intercontatione eget US - certificationis US utilitates et locorum inspectores agnoscunt pro installations craticulas et tergum. |
Verum Split-Phase Output120V(L1/N, L2/N) et 240V(L1/L2) output pro tabulis vexillum US - circuitus potestates 120V, 240V bene soleatus, dryers et HVAC onera. |
Dual MPPT 12kW + 12kWDuae independens MPPT trackers, 12000W singulae, cum ad 99.9% efficientiam - idealis duarum orientationum solarium ordinatarum seu tectum + terra vestit. |
10ms UPS SwitchoverAutomatic praeterire-ad-invertentem translatio in ~10ms servat computatores, medicinae machinis et systemata securitatis per desideria currens. |
Quattuor modis datoPV praecipiens, utilitas praecipiens, PV-prioritas et hybrida praecipiens — cum figurabili AC impetu currenti usque ad 160A et PV usque ad 250A crimen. |
⚙
Tres output modorumPhotovoltaici, invertunt et main-bypass output modi cum automatario fonte prioritatis — auto-sumptio maximize vel plene extemporalitatem currunt. |
6HP Motor Capability18.000VA apicem potentiae incipit et onera motoria usque ad 6HP currit - bene submersibilia soleatus et alia subsidia dura-incipiendi inclusa sunt. |
Dolor CrasUSB / RS485 communicatio cum WiFi/GPRS optional potestate et arida-node - fluit monitor potentiae, SOC et ratio status remotius. |
Matrix Specification
Values de specificatione manufacturer nituntur. Finalis configuratione confirmata per ordinem.
| Parameter |
IP-Plus-12kW-P |
| Parallel Modus |
| Licet Parallel Number |
Nulla (unitas 12kW design) |
| AC Modus |
| Rated Input intentione (VAC) |
120(L1/N, L2/N) / 240(L1/L2) |
| Input Phase intentione dolor |
(85Vac~140Vac) ± 2% |
| Frequentia (Hz) |
50/60 (Auto deprehendatur); |
| Frequentia Range (Hz) |
47±0.3 ~ 55±0.3 (50Hz) | 57±0.3 ~ 65±0.3 (60Hz) |
| ONERO / Short Circuit Praesidium |
Circuit ruptor |
| Effectus (AC Modus) |
>95% |
| Tempus Conversionis (bypass <> Inverter) |
10ms (typicam) |
| AC Reverse Praesidium |
Ita |
| Max bypass Phase ONERO Current |
2pole, 200A/200A (L1/L2) |
| Modus inverter |
| Output intentione Waveform |
Purus Sine Wave |
| Rated Output Power (VA) |
Split-Phase: 12,000 | Single-Phase: 7,200 (terminationes wiring terminatae) |
| Rated Output Power (W) |
Split-Phase: 12,000 | Single-Phase: 7,200 (terminationes wiring terminatae) |
| Potestas Factor |
1 |
| Rated Output intentione (VAC) |
120(L1/N, L2/N) / 240(L1/L2) |
| Output intentione Error |
±5% |
| Output Frequency Range (Hz) |
50±0.3 / 60±0.3 |
| Maximum Efficiency (Inverter) |
>91% |
| Donec ONERO |
105%
125%±5%: off after 5s
|
| Apicem Power (VA) |
Split-Phase: 18,000 | Single-Phase: 18,000 |
| Motor capacitatem loaded |
6HP |
| Output Short Circuit Praesidium |
Tuetur post 1s continuus brevis ambitus |
| Bypass Circuit Breaker Phase Spec |
2pole, 200A/200A (L1/L2) |
| Rated altilium input intentione |
51.2V (minimum initium intentionis 44V) |
| General |
| Pugna intentione dolor |
40.0Vdc ~ 58.6Vdc ±0.6Vdc (terror / shutdown / recuperatio habitatio LCD) |
| Modus sui Consummatio-Saving Power- |
Load per tempus <25W intrat potestate salutaris modus |
| AC dato |
| Type altilium |
Acidum plumbum aut lithium altilium |
| Praecipe maxime Current (setting) |
160A |
| Crimen Current Error |
±5Adc |
| Praecipe intentione dolor |
40-58.6Vdc |
| Brevis Circuit Praesidium |
Circuitus ruptor et fuse sufflatus |
| Circuit Breaker Spec Phase |
2pole, 63A/63A (L1/L2) |
| Modus generator |
| Rated Input intentione (VAC) |
120(L1/N, L2/N) / 240(L1/L2) |
| Input Phase intentione dolor |
(85Vac~140Vac) ± 2% |
| Frequentia Range (Hz) |
40±0.3 ~ 70±0.3 |
| Praecipe Current maximum (setting) |
160A |
| ONERO / Short Circuit Praesidium |
Circuit ruptor |
| Circuit Breaker Spec Phase |
2pole, 63A/63A (L1/L2) |
| PV Charging |
| Numerus MPPT Groups |
2 |
| Maximum PV Open Circuit Voltage |
500Vdc |
| PV Operating intentione Range |
90Vdc ~ 485Vdc |
| MPPT intentione dolor |
90Vdc ~ 450Vdc |
| Pugna intentione dolor |
40-58.6Vdc |
| Maximum PV Input Power |
12,000W + 12,000W |
| Maximum PV Input Current |
32A + 32A |
| P. Praecipe Current (constituere) |
250A |
| Incurrentes Short Circuit Praesidium |
Circuit ruptor |
| Wiring Praesidium |
Reverse verticitatem praesidium |
| Hybrid incurrentes (AC + PV) |
| Max Charger Current (settable) |
0-250A |
| Certified Specifications |
| Certification |
UL1741 — US Grid-Connexio Salutis Standard |
| EMC Certification Level |
FCC Part XV, Classis B |
| Temperature Range operating |
-10°C ~ 55°C (>45°C derat) |
| Repono Temperature Range |
-25°C ~ 60°C |
| Umor dolor |
5% ~ 95% (conformal coating protection) |
| sonitus |
≤60dB |
| Calor dissipatio |
Coactus aeris refrigeratio, variabilis-celeritate ventilabrum |
| Communication Interface |
USB / RS485 (WiFi / GPRS) / Sicca-nodi control |
| Magnitudo (L×W×D) |
710 485 145 mm |
| Pondus (kg) |
37.5 |
Tabula 1.0 — IP-Plus-12kW-P split-phase in/off-grid hybrid inverter (US exemplar). UL1741 recensita, FCC Pars XV Classis B certificata. 120/240Vac split-phase output, 12,000W aestimavit / 18,000VA apicem, MPPT 12kW+12kW, 51.2V altilium suggestum. Per ordinem confirmatus laoreet condimentum.
Frequenter Interrogata
Q: What does UL1741 mean propter institutionem meam?
UL1741 est norma securitatis US inverters craticulae connexis . A UL1741 Recensetur invertor obviam electricae salutis, craticulae protectionis et anti-insulae exigentiis quae US utilitates et inspectores locales agnoscunt - quae simplificat approbationem et utilitatem connexionis pro tuo solari + repositionis incepto permittunt.
Q: Quid est split-phase output et cur refert?
Split-phase significat inversus 120V in utroque crure producit (L1/N, L2/N) et 240V inter crura (L1/L2) - vexillum US domum figuram electricam. IP-Plus 12kW-P ambas 120V ambitus (luces, exitus) et 240V adjumenta (bene soleatus, dryers, HVAC) alit, directe, cum 12,000W continuis et 18,000VA apicem potestatis.
Q: Utrum 12kW-P pro maiori potentiae parallelae sint?
12kW -P unicum consilium est et operationem parallelam non sustinet . Si plus quam 12kW opus est, E-Potestas Potentia IP-Plus-10kW-P offert, quae unitates 1-6 in parallelis sustinet (usque ad 60kW). Fabrum nostrum adiuvabit ut figuram rectam eligas pro profile onere tuo.
Q: Quod altilium cum hoc inverter operatur?
Inverter accipit a 51.2V LiFePO4 ripam altilium (40-58.6Vdc range) , connexum extrinsecus cum altilium ruptoris tutelam. Incurrentes plene configurabiles sunt: usque ad 160A ab AC/generatore et 250A a PV , modis PV-prioritate et hybridis incurrentibus ad gravida acidum vel lithium plumbeum.
Q: Quae optiones vigilantia et communicationis praesto sunt?
Unitas USB et RS485 interfacies praebet cum WiFi/GPRS ad libitum remotis vigilantia, plus nodi nodi potestates generantis vel terroris significationis. In tabulis LCD systematis status, altilium SOC et terrores culpae ostendit, cum modo infra 25W per-phase onus potentiae salutaris ostendit.
Quality Assurance & Certificaciones
| UL1741 |
FCC Part 15
Classis B |
12 kW |
2× MPPT |
160A |
6 HP |
| US malesuada euismod Safety |
EMC |
Split-Phase output |
Dual MPPT PV Input |
Max AC præcipe Current |
Motricium Load Capability |
Factory: Dongguan, Guangdong, Sinis. UL1741 Recensentur — US grid-connexionis salus certificata; FCC Pars XV Classis B EMC certificatus. Project-specialis obsequio documenta praesto sunt in petitione.
