Advanced Engineering and Strategic Selection of High Mast Lighting Systems

High mast lighting represents the pinnacle of outdoor illumination engineering. Defined by the IES and CIE as large-area illumination mounted on masts generally exceeding 20 meters (65 feet), these systems are the structural and optical backbone of global infrastructure. From maritime ports to international airports and multi-lane highway interchanges, the transition to advanced LED high mast light technology has revolutionized safety and efficiency.

For project managers and engineers, selecting the right system requires a deep dive into photometry, structural integrity, and long-term operational costs. Explore our comprehensive range of solutions at E-Able Power High Mast Lighting.

The Technical Evolution: From HID to LED

The core utility of a high mast pole lies in its "single-installation" efficiency. By providing expansive, uniform illumination from a single point, it minimizes ground-level obstructions—a critical factor in busy container ports and airport aprons.

Modern LED systems, such as the E-Able Power HI-3000 series, deliver upwards of 150 lm/W to 180 lm/W. This is a staggering leap from legacy metal halide lamps which typically offer only 60-90 lm/W. Furthermore, while standard street lights are spaced 25-50 meters apart, a high mast system allows for pole spacings of 200 to 400 meters.

Photometric Science: NEMA and IESNA Distribution

Precision is paramount in high-altitude lighting. The wrong beam angle at 30 meters can create dangerous "hot spots" or blinding glare. Engineers use NEMA classifications to shape the light footprint:

• NEMA Type 2 (Narrow): Ideal for tall monuments or extreme setbacks.

• NEMA Type 5 (Wide Medium): The standard for general industrial yards.

• IESNA Type V: The "gold standard" for central masts, producing a symmetrical 360-degree pattern for terminals.

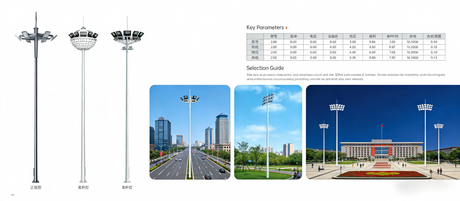

Structural Integrity and Wind Load Engineering

A high mast light is a slender structure subjected to immense environmental forces. High-performance masts are typically constructed from Q235B or Q345B structural steel pressed into polygonal shapes (12 to 20 sides). This geometry provides superior stability against Level 12 wind speeds (up to 160 km/h) compared to round poles.

To ensure a service life of 25-50 years, hot-dip galvanization (HDG) per ISO 1461 is mandatory. In coastal or marine environments, a coating thickness of 100+ microns is recommended to prevent cathodic corrosion.

Application Scenarios: Ports, Airports, and Stadiums

Selection criteria vary wildly depending on the visual task:

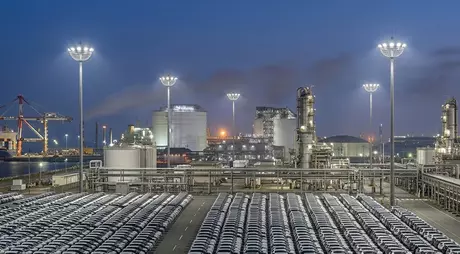

• Maritime Ports: Require high vertical illuminance and marine-grade corrosion protection. Masts are often 30-45m to reduce shadowing between container stacks.

• Airport Aprons: Governed by ICAO Annex 14, requiring 20 lux horizontal/vertical illuminance and instant-restrike capabilities to ensure pilot safety.

• Sports Venues: Professional stadiums require high Color Rendering Index (CRI ≥ 90) and flicker-free drivers to support 4K HD broadcasting.

Raising and Lowering Winch Systems: Economic ROI

Servicing fixtures at 40 meters is a logistical challenge. Modern systems utilize a motor-driven winch mechanism that lowers the luminaire ring to ground level. While this increases initial CAPEX, it eliminates the infinite recurring cost of crane rentals, which can exceed $3,000 per day.

The Future: Smart City and IoT Integration

By 2026, high mast infrastructure is evolving into a smart urban asset. Using NEMA 7-pin sockets and Zhaga Book 18 connectors, masts can now host LoRaWAN controllers, air quality sensors, and even ultra-fast EV charging hubs for logistics parks. This adaptive lighting can reduce energy consumption by an additional 20-50% through demand-based dimming.

Conclusion

Strategic implementation of high mast lighting requires a holistic understanding of optics, metallurgy, and operational economics. For infrastructure that demands safety and sustainability, E-Able Power provides the cutting-edge technology needed for the next generation of large-area illumination.

Ready to upgrade your infrastructure? Explore our LED High Mast Lighting Solutions or contact our engineering team for a customized photometric simulation.
