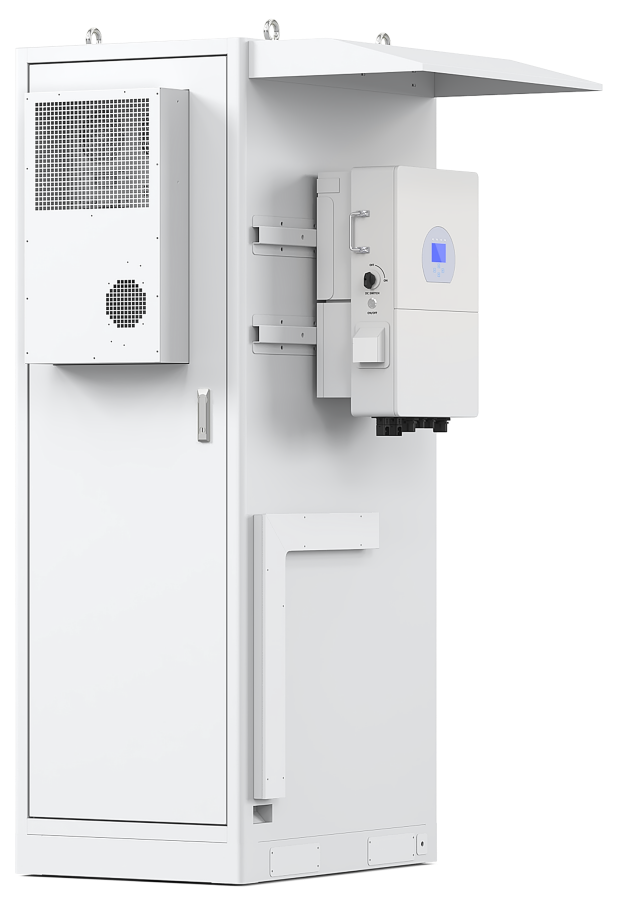

| General Information | Model | GCB-E100 |
| System Configuration | 50 kW/100 kWh (up to 112 kWh), AC-Coupled three-phase |
| Application | C&I, backup power, microgrid, peak shaving, arbitrage |
| Battery System | Cell Chemistry & Spec | LiFePO4 (LFP), Grade A / 3.2V/260Ah or 314Ah (selectable) |
| Battery Module | 51.2V/280Ah or 51.2V/314Ah (16S1P) |
| System Configuration | 7 modules in series (1 rack) |
| Nominal System Voltage | 358.4 Vdc (Range: 313.6-401.8 Vdc) |
| Nominal Energy | 100.35 kWh (280Ah) / 112.53 kWh (314Ah) |
| Depth of Discharge (DOD) | 0.9 (90%) |
| Cycle Life | ≥ 6,000 cycles @ 25°C 0.5C, 80% DOD |
| Round-trip Efficiency | ≥ 90% |
| Hybrid Inverter | Compatible Brands | Deye / Solis / Afore / Growatt (50 kW models) |
| Rated Power | 50 kW |
| Grid Type | Three-phase 4-wire (3P+N+PE) |
| Nominal Grid Voltage | 380 Vac (range: 304-456 Vac) |
| Nominal Frequency | 50 Hz/60 Hz |
| Rated Output Current | 76A |
| Operating Modes | On-Grid/Off-Grid/Hybrid |
| Management & Safety | BMS | Integrated, 3-level monitoring |
| EMS | Integrated, intelligent charge/discharge control |
| FSS & HVAC | Auto smoke detection & extinguishing / Industrial A/C |
| Electrical Protections | Overload, short-circuit, over/under voltage & temp, ground fault |
| Physical & Environmental | Dimensions (WxDxH) / Weight | 1200 x 803 x 2375 mm / 1300 kg |
| Ingress Protection | IP54 (Suitable for outdoor installation) |
| Operating Temperature | -20°C to 50°C |
| Installation Method | Floor-standing (anchored) |
| Certifications & Warranty | Certifications | CE/IEC 62619/IEC61000/UN38.3 |
| System Warranty | 5 years (extendable to 10 years) |
| Battery Warranty | 10 years/6,000 cycles (whichever comes first) |
