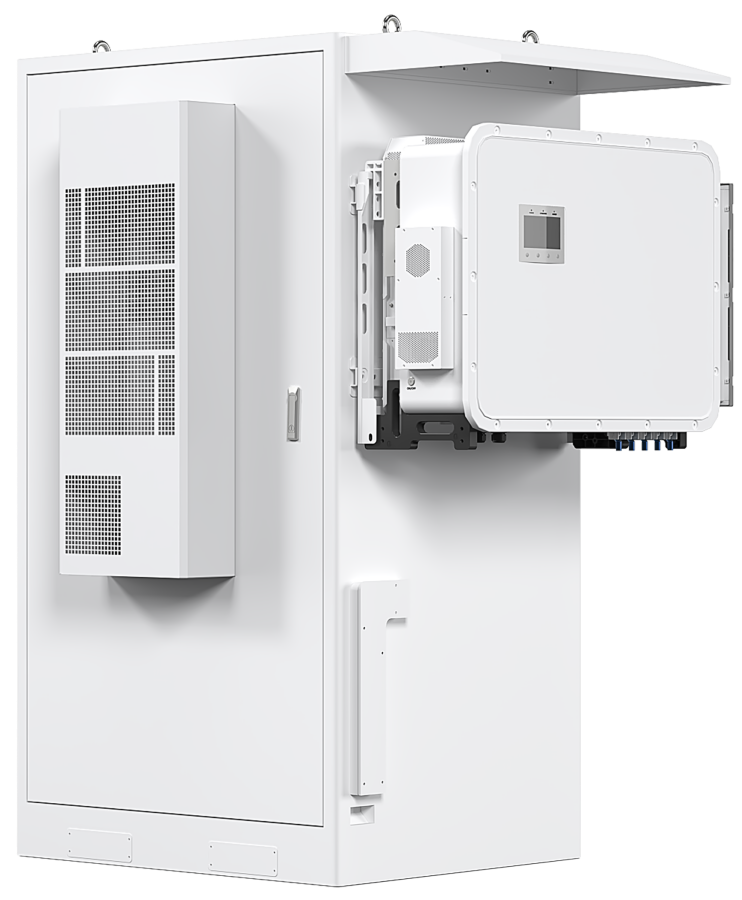

| General Information | Model | GCB-E240 |
| System Configuration | 125 kW/241 kWh (215 kWh with 280Ah cells), AC-Coupled, three-phase grid connection |
| Application | C&I, backup power, microgrid, peak-shaving energy arbitrage, EV charging support |
| Battery System | Cell Chemistry & Spec | LiFePO4 (LFP), Grade A / 3.2V/280Ah or 3.2V/314Ah (selectable) |
| Battery Module | 51.2V/280Ah/14.34 kWh or 51.2V/314Ah/16.07 kWh (16S1P) |
| System Configuration | 15 modules in series (1 rack) |
| Nominal System Voltage / Operating Range | 768 Vdc / 672-876 Vdc |
| Nominal Energy | 215.04 kWh (280Ah) / 241.15 kWh (314Ah) |
| Depth of Discharge (DOD) | 90% |
| Cycle Life | ≥ 6,000 cycles @ 25°C, 0.5C, 80% DOD |
| Round-trip Efficiency | ≥ 90% |
| Hybrid Inverter | Compatible Brands | Deye / Solis / Afore / Growatt (125 kW models) |
| Rated Charge/Discharge Power | 125 kW |
| Grid Type | Three-phase 4-wire (3P+N+PE) |
| Nominal Grid Voltage | 380 Vac (range: 304-456 Vac) |
| Nominal Frequency | 50 Hz / 60 Hz (configurable) |
| Rated Output Current | 189 A |
| Operating Modes | On-Grid / Off-Grid / Hybrid |
| Management & Safety System | BMS | Integrated, 3-level monitoring (cell/module/system) |
| EMS | Integrated, intelligent charge/discharge control |
| FSS & HVAC | Integrated automatic system (smoke detection extinguishing) / Integrated industrial air conditioner (cooling/ventilation/heating) |
| Electrical Protections | Overload, overcurrent, short-circuit, over/under-voltage, over/under-temperature, ground fault |
| Physical & Environmental Data | Dimensions (WxDxH) / Weight | 1300x1260x2375 mm / 2,500 kg (excluding PCS) / approx. 3,200 kg (with PCS) |
| Ingress Protection | IP54 (suitable for outdoor installation) |
| Operating Temperature | -20°C to 50°C |
| Installation Method | Floor-standing (anchored) |
| Certifications & Warranty | Certifications | CE / IEC 62619 / IEC 61000 / UN38.3 |
| System Warranty | 5 years (extendable to 10 years) |
| Battery Warranty | 10 years / 6,000 cycles (whichever comes first) |
