ZEUS
E-ABLE POWER

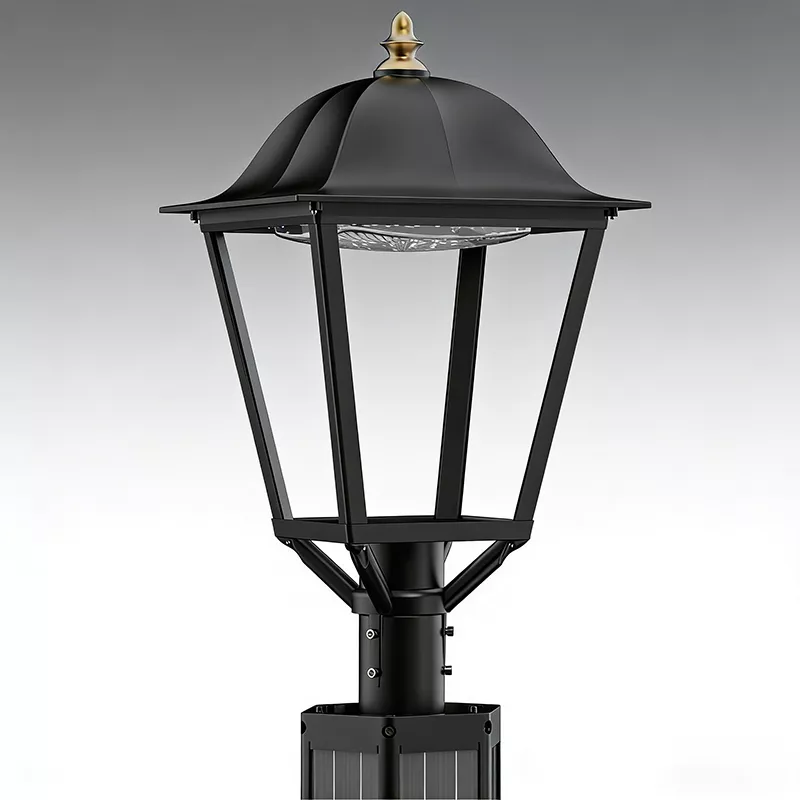

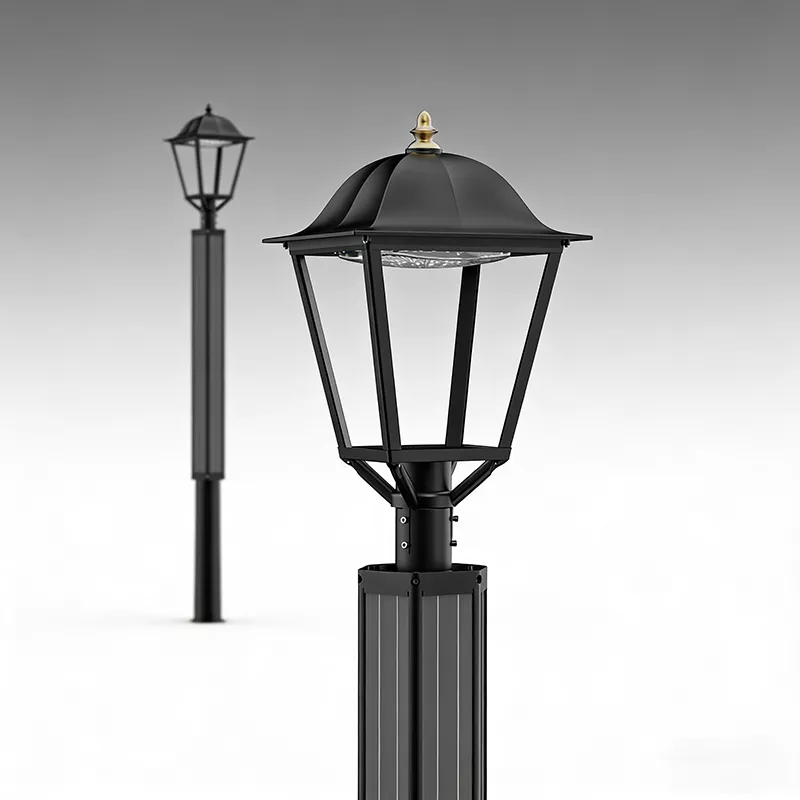

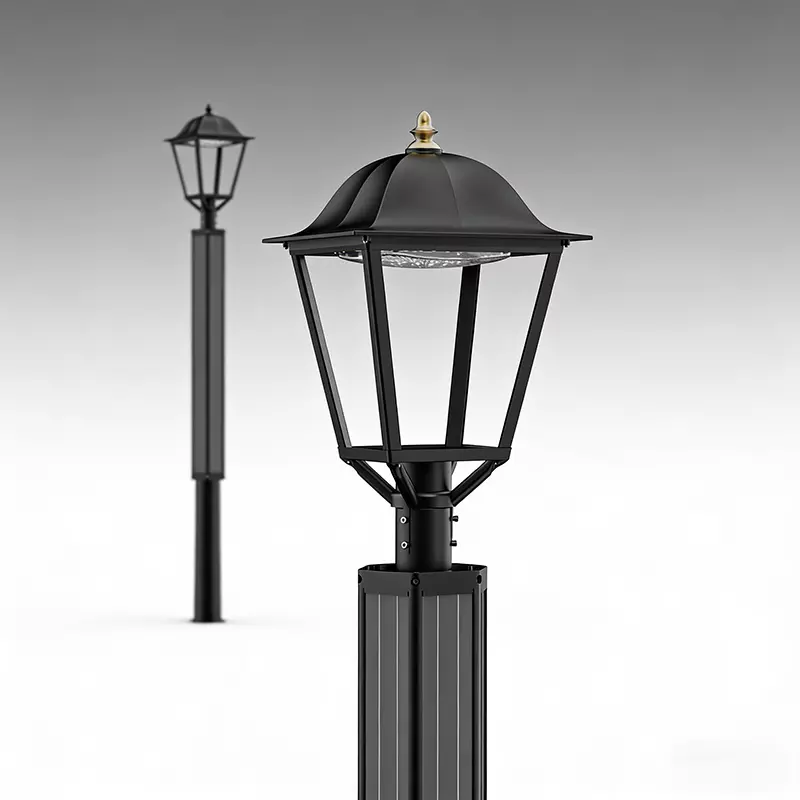

The ZEUS Vertical Solar Garden Pole represents a revolutionary leap in outdoor lighting design. By integrating our patented SolarWrap™ vertical solar modules with advanced battery storage and high-efficacy LED optics, ZEUS eliminates the need for bulky, tilted solar panels.
Designed for high-end landscape applications such as luxury villas, premium public parks, and high-security residential areas, the ZEUS offers a sleek, cylindrical aesthetic that complements modern and classical architecture alike while providing unmatched off-grid reliability.
SolarWrap™ Vertical PV Integration:
Our proprietary 360° vertical solar module wrap maximizes energy harvest from all angles. The vertical orientation prevents dust accumulation, bird droppings, and snow buildup, ensuring peak charging efficiency in harsh or remote environments compared to traditional flat panels.
Ultra-High Luminous Efficacy:
Featuring 140 units of SMD3030 LED chips, the luminaire delivers a powerful output of over 4,500 lumens, providing brilliant, uniform illumination for safety and ambiance.
Superior Energy Storage:
Powered by a next-generation LiFePO4 battery pack with a lifespan of over 4,000 cycles (@50% DOD). This system provides 4 days of autonomy, ensuring the lights stay on even during extended periods of overcast or rainy weather.
Intelligent Energy Management:
Equipped with a programmable IP68 MPPT Charge Controller, the system optimizes power conversion by up to 30% and allows for customized lighting schedules based on project requirements.
Built for Extremes:
Constructed with a heavy-duty 3-meter steel pole and a die-cast aluminum lamp head, the ZEUS is engineered to operate flawlessly in temperatures ranging from -25°C to +65°C.
| Feature | Specification |
| LED Type & Power | 30W Max. SMD3030 (140 nos) |
| Luminous Flux | > 4,500 lm |
| CCT Range | 3000K / 4000K / 6000K |
| Beam Angle | 120 Degree |
| Feature | Specification |
| Max Power Output | 140W |
| Output Voltage | 18V |
| Structure | Hexagonal Aluminum Alloy (Powder Coated) |
| Dimensions | 228 x 200 x 1560 mm |
| PV Lifetime | > 20 Years |
| Feature | Specification |
| Rated Capacity | 307.2 WH (12.8V / 24AH) |
| Battery Cell Type | 32700 6000mAH (16 pcs) |
| Battery Lifetime | > 4,000 Cycles @ 50% D.O.D |
| Working Temperature | -25°C to +65°C |
| Feature | Specification |
| Max. Load Capacity | < 60 Watts |
| Max. Solar Input | 240 Watt / 18V |
| Protection Rating | IP68 (Waterproof & Dustproof) |
| Programmable | Yes |
| Feature | Specification |

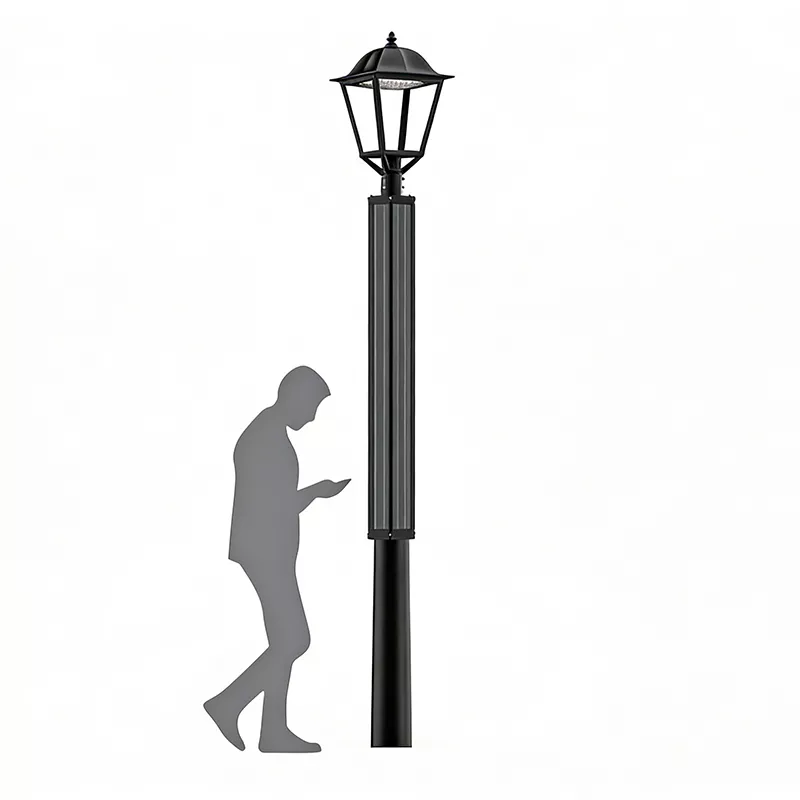

| Pole Height | 3 Meters |
| Material | Heavy-duty Steel / Die-cast Aluminum |
| Installation | Flange Base (320 x 320 mm) |

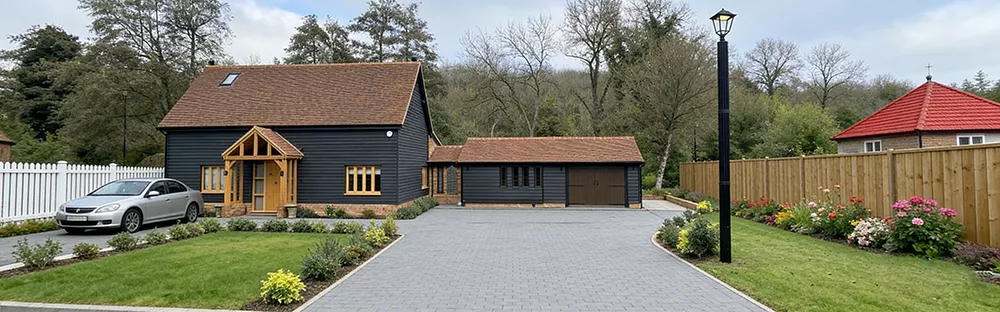

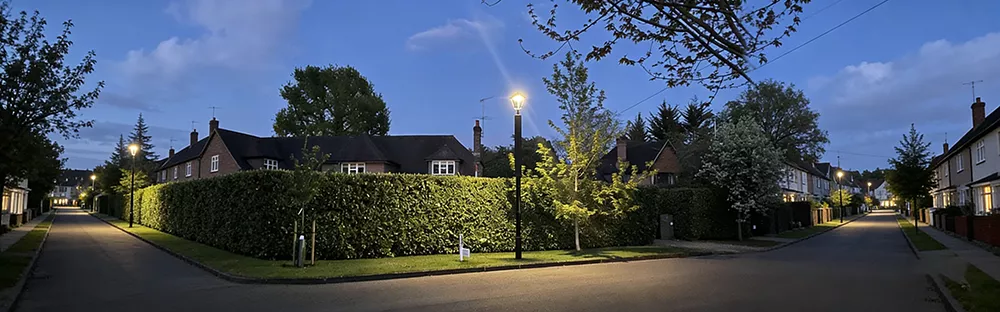

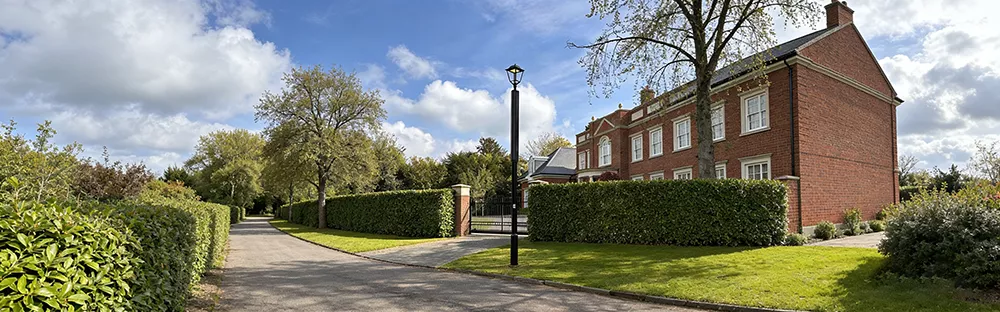

Residential: Luxury Villas, Private Estates, and Courtyards.
Commercial: Corporate Campuses, High-end Resorts, and Golf Courses.
Public Infrastructure: Municipal Parks, Pathways, and Pedestrian Zones.
ZEUS is not just a light—it is a sustainable statement for the future of urban and landscape development.
