ARTEMIS
E-ABLE POWER
360° vertical modules capture ambient light from all angles while preventing dust and snow accumulation. Ideal for high-latitude municipal zones.
Ground-level battery access built into the pole base. Eliminates the need for cranes or ladders, slashing long-term OPEX and increasing safety.
Delivers up to 8,800 Lumens managed by a programmable IP68 MPPT controller. Dual-CCT (3000K-6000K) versatility for safety and ambiance.
| Component Parameter | 30W Model | 60W Model |
|---|---|---|
| Light Source & Performance | ||
| Luminous Flux (Max) | > 4,400 LM | > 8,800 LM |
| CCT Range / Working Temp | 3000K | 4000K | 6000K / -25°C to +65°C | |
| SolarWrap™ & Energy Storage | ||
| Solar PV Power (Max) | 140W (Vertical Module) | 280W (Vertical Module) |
| Battery (LiFePO4 32700) | 307.2 WH (12.8V 24AH) | 614.4 WH (12.8V 48AH) |
| Battery Cycle Life | > 4,000 Cycles @ 50% D.O.D | |
| Mechanical Infrastructure | ||

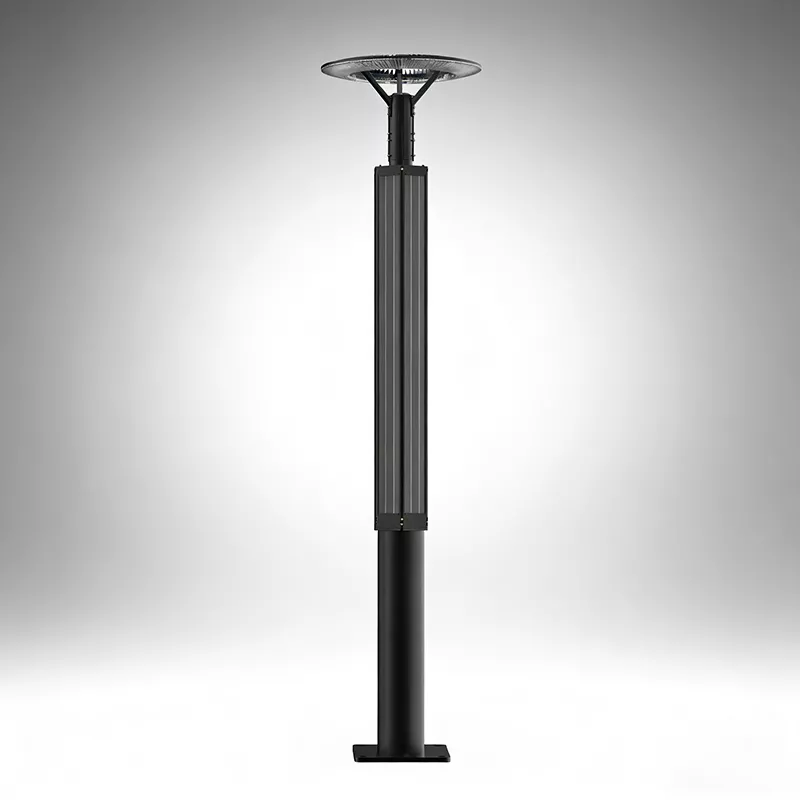

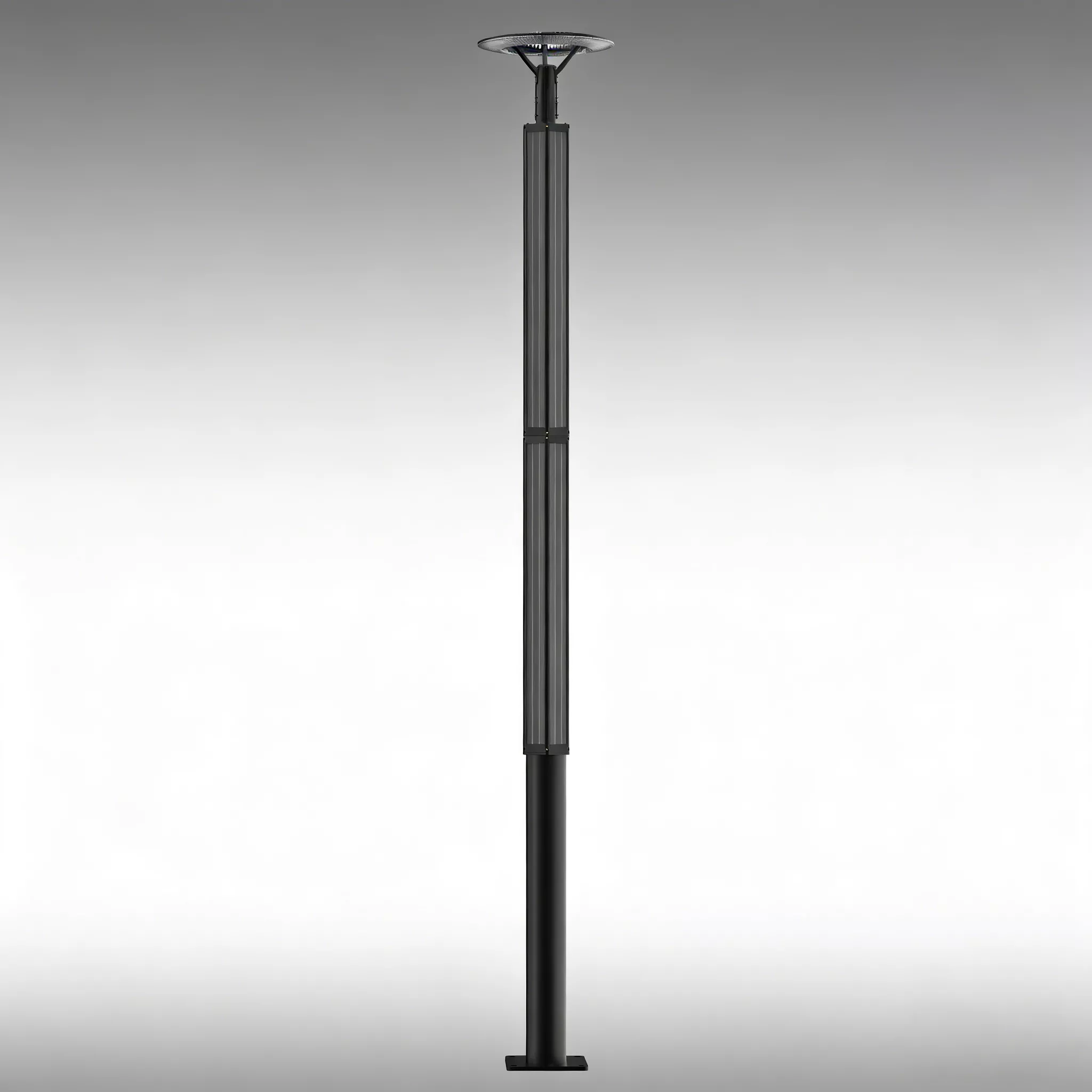

| Pole Specification | 3.5M to 5.0M Galvanized Steel / 600mm Fixture Diameter | |

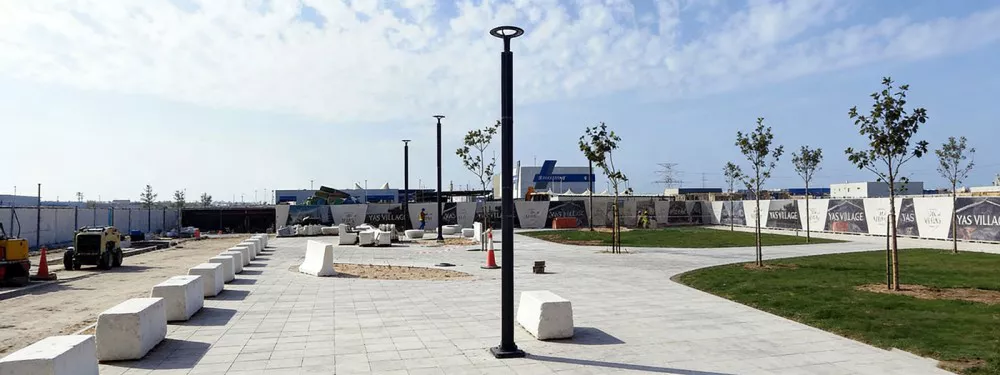

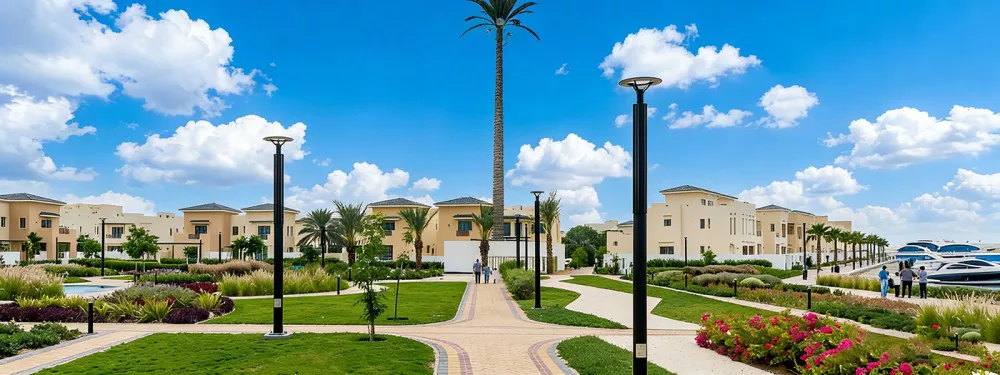

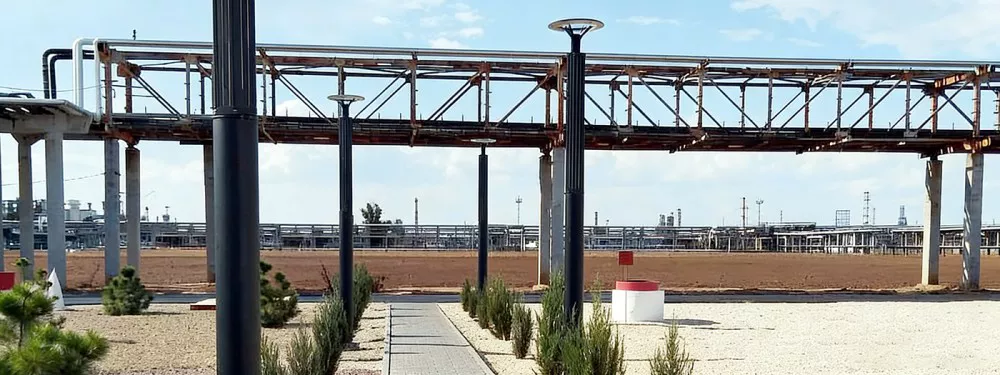

Fig 1.0 - Commercial Plaza Deployment

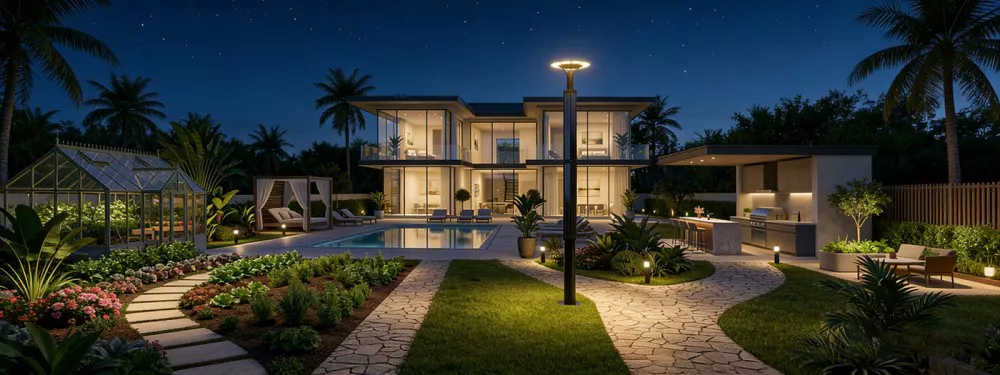

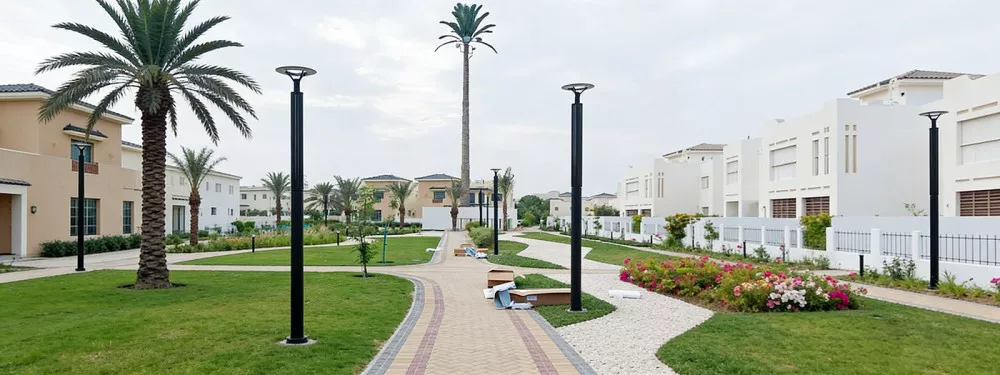

Fig 2.0 - City Park Pathway Integration
Fig 3.0 - Ground-Level Maintenance Chassis

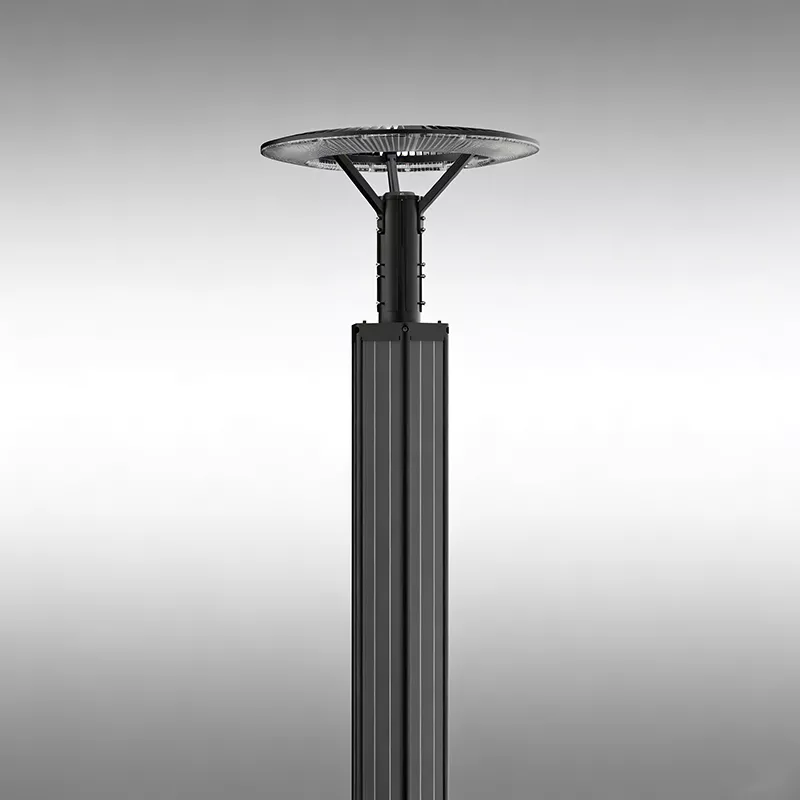

Fig 4.0 - 360° Energy Harvesting Detail
Optimize your ROI with modular logistics and ultra-low maintenance technology. Contact E-Able Power for factory pricing and professional DIALux simulations.
Request A Project Quote
```
