MUSE Series Vandal-Proof Bollard Light
MUSE Series IK10 vandal-proof solar bollard light by E-Able Power.
View Product E-ABLE POWER — PRODUCT DATASHEET
COMMERCIAL SOLAR LIGHTING SOLUTIONS
ARCHITECTURAL BOLLARD 40 LED / 6,000MAH
Key Specifications at a Glance
| Model | ZC-CPD3006 | Profile | Rectangular — 235 × 150mm |
| Solar Panel | 5V / 4.5W Monocrystalline | Battery | 3.2V / 6,000mAh Grade A LiFePO4 |
| LED Array | 40 PCS High-Efficiency SMD | CCT | 3000K – 6500K Selectable |
| Charging Time | 3 – 5 Hours Direct Sunlight | Heights Available | 650mm / 850mm |
| Housing | Die-Casting Aluminum + PC | IP Rating | IP65 — Waterproof & Weather-Resistant |
| Certifications | CE / RoHS | Warranty | 5 Years Standard |

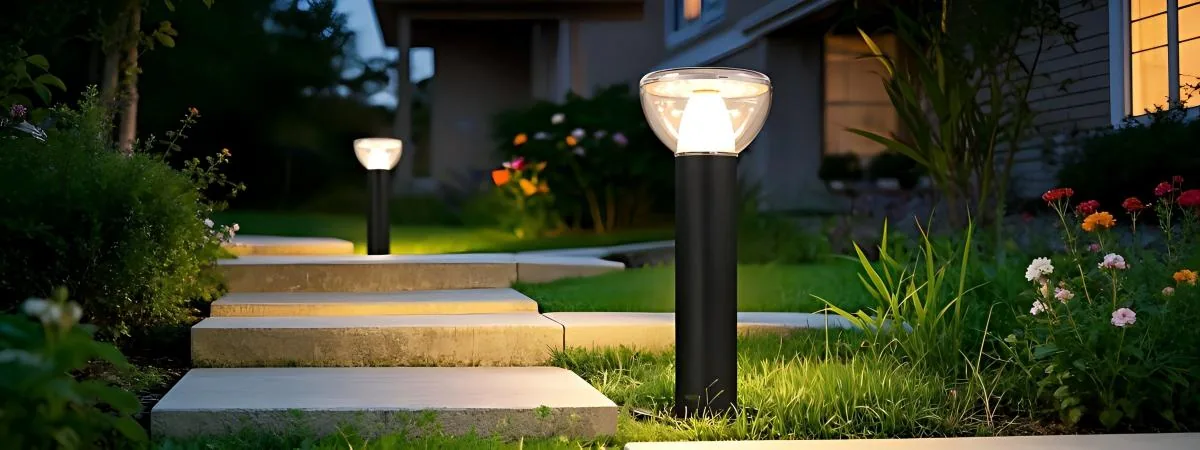

Fig 1.0: ZC-CPD3006 — Architectural Solar Bollard (650mm & 850mm Height Options)
Engineering Excellence
Double-Density 40 LED Array
40 high-efficiency SMD LED chips — twice the count of standard 20-LED bollards. Projects a wide, uniform beam that enhances pedestrian safety along commercial walkways while maintaining a glare-free, architectural-quality light distribution suitable for luxury hospitality and corporate campus environments.
6,000mAh Mid-Capacity Platform
The 3.2V/6,000mAh (19.2Wh) Grade A LiFePO4 battery strikes the ideal balance for commercial-scale deployments — double the 3,000mAh entry level without the cost of 8,000mAh premium batteries. Paired with a 5V/4.5W monocrystalline panel, it delivers 10-12 hours of consistent 40-LED illumination and reliable multi-night autonomy during overcast periods.
Rectangular Architectural Form
The 235×150mm rectangular cross-section with die-casting aluminum + high-transmittance PC creates a crisp, contemporary silhouette. Flat faces project directional light along pathways while the two height options — 650mm for standard walkways and 850mm for prominent entries — enable layered hierarchy within a single product model.
Technical Specifications
| Specification | ZC-CPD3006 |
|---|---|
| Model Number | ZC-CPD3006 |
| Housing Material | Heavy-Duty Die-Casting Aluminum + High-Transmittance PC |
| Profile / Cross-Section | Rectangular — 235 × 150mm |
| Height Options | 650mm / 850mm — Two Configurations Available |
| Solar Panel | 5V / 4.5W — High-Efficiency Monocrystalline Silicon |
| Battery Capacity | 3.2V / 6,000mAh (19.2Wh) — Grade A LiFePO4 |
| LED Configuration | 40 PCS High-Efficiency SMD Chips |
| Color Temperature | 3000K – 6500K (Selectable CCT) |
| Charging Time | 3 – 5 Hours — Standard Direct Sunlight |
| IP Rating | IP65 — Waterproof / Weather-Resistant |
| Installation | Surface-Mount / Stake-Down — Zero Trenching, Zero Wiring |
| Certifications | CE / RoHS |
Table 1.0 — ZC-CPD3006 technical specifications. Available in 650mm (standard walkway height) and 850mm (prominent entry/plaza height). Grade A LiFePO4 battery chemistry: 2,000+ deep cycles, thermal stability above 270 deg C, zero maintenance. 5-year standard warranty.
Commercial Application Scenarios
Corporate Campuses Upscale Pathways Luxury Hotel Gardens Public Plazas
Frequently Asked Questions
Q: How does the 40 LED array compare to standard 20 LED bollards — is it noticeably brighter?
Yes — 40 SMD LED chips deliver double the light output of standard 20-LED bollards. This translates to visibly brighter pathway illumination, wider beam coverage, and fewer dark spots between fixtures. The CPD3006's 40-LED configuration is specifically engineered for high-traffic commercial walkways, corporate campus main paths, and plaza perimeters where enhanced visibility directly improves pedestrian safety. Despite the higher output, the LEDs maintain a controlled, glare-free distribution suitable for luxury hotel gardens and upscale residential borders — no harsh spotlighting, just clean, uniform architectural-grade illumination. The 6,000mAh battery provides 10-12 hours of full-brightness operation from a single charge.
Q: When should I choose the 650mm vs 850mm height?
The CPD3006 offers two height configurations for tiered deployment within a single project. 650mm: standard hip-height — ideal for general pathways, garden borders, and residential applications where the bollard should provide wayfinding without dominating sightlines. 850mm: prominent architectural presence — suited for corporate campus main entries, plaza perimeters, road crossing points, and areas where the fixture serves as both a lighting element and a visible spatial marker. Best practice: deploy 850mm units at key decision points (entries, intersections, plaza edges) and 650mm units along connecting paths. Because both heights share identical 235×150mm cross-sections, they create a seamless visual family — taller at focal points, standard along routes.
Q: How does the CPD3006 fit within E-Able's broader bollard product range?
The ZC-CPD3006 occupies the mid-to-upper tier in E-Able's bollard lineup. Compared to entry-level models: the CPD0907/0705 (2W panel, 3,000mAh, 20 LED) is the compact economy tier; the CPD3004 (4.5W, 6,000mAh, 20 LED round) is the mid-capacity ambient option. The CPD3006 doubles the LED count to 40 while keeping the same 4.5W/6,000mAh platform — making it the brightest mid-capacity rectangular bollard. Above it, the CPD1106 (5W, 8,000mAh, 30 LED) offers premium battery capacity; the CPD5004 (5W, 6,000mAh, 80 LED square) offers maximum brightness. Choose CPD3006 when you need 40-LED brightness at a cost-effective 6,000mAh price point with the distinctive rectangular architectural form factor.
Q: What is required for installation and what warranty coverage applies?
The CPD3006 follows the zero-trench, zero-cable, zero-grid-connection installation standard — fully self-contained with integrated solar panel, battery, LED array, and optical dusk-to-dawn sensor. Surface-mount on hard surfaces (concrete, pavers) via expansion bolts through the base plate; stake-down on soft ground (soil, grass) with the included ground spike. No electrician, no electrical permit, no ongoing electricity cost. Recommended spacing: 4-6 meters between units. Annual maintenance: clean the solar panel surface (glass cleaner + soft cloth) and visually inspect the die-cast aluminum housing. IP65 sealing protects all internal electronics. 5-year standard warranty covers manufacturing defects. For bulk orders over 50 units, E-Able Power provides complimentary DIALux lighting simulation with the CPD3006 modeled at your specified height.
E-Able Power is an ISO 9001 & ISO 14001 certified manufacturer. All ZC-CPD3006 bollards are CE and RoHS compliant with 5-year standard warranty.
Related Products
Explore Related Products
FAQ
Common questions.
1What sizes are available for ZC-CPD3006?
+
Available dimensions: 650mm / 850mm.
2What battery does the ZC-CPD3006 use?
+
It uses 3.2V / 6,000mAh Grade A LiFePO4.
3Is the ZC-CPD3006 weatherproof?
+
Yes — Die-Casting Aluminum + PC, rated IP65 — Waterproof & Weather-Resistant for outdoor use.
4What light output does the ZC-CPD3006 offer?
+
3000K – 6500K Selectable light with 40 PCS High-Efficiency SMD.
5What powers the ZC-CPD3006?
+
A 5V / 4.5W Monocrystalline solar panel charges the on-board battery.
6What certifications does the ZC-CPD3006 carry?
+
CE / RoHS.
