Technical Analysis: Installation Process for Single Arm Split Solar Street Lights
Streamlined Urban Integration

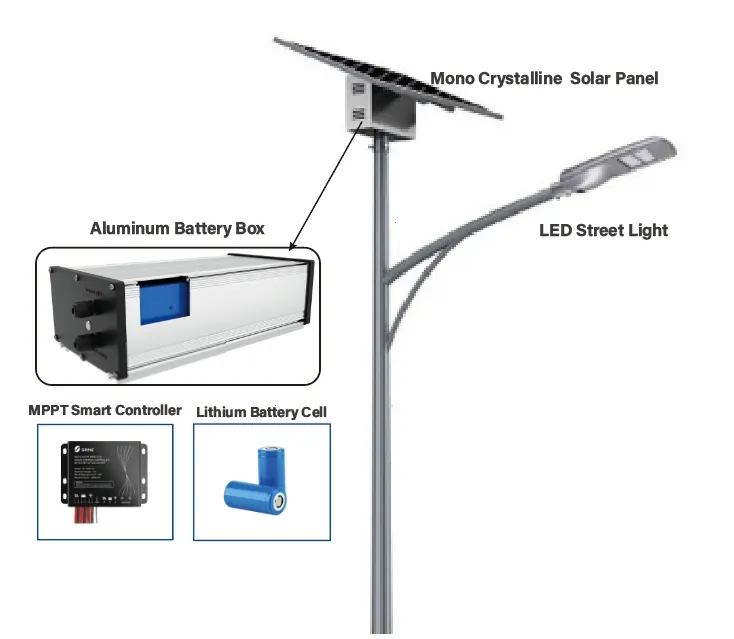

The split solar design separates the PV panel, battery, and controller, allowing installers to position the solar panel independently for maximum UV capture . The single arm variant offers a streamlined appearance, simplifying the mounting phase while ensuring IP65+ protection for all internal electrical junctions.
1. Site Engineering
Analyzing sun exposure and clearing obstructions. The foundation phase is accelerated due to the single mounting point required for the arm.
2. Structural Mounting
Securing the pre-fabricated arm and separate PV mount. This separation ensures the panel achieves optimal tilt angles independently of the light beam.
3. Electrical Routing
Internal cabling through the pole connects the MPPT controller to the battery (housed at the base) and the LED fixture, ensuring complete weather protection.
Step-by-Step Installation Visual Guide
