E-ABLE POWER / SOLAR LIGHTING

LuminaraAll-In-One Solar

Luminara all-in-one solar street light with integrated components, offering a sleek profile and simple one-pole installation. Sealed PV, battery and LED deliver reliable off-grid light.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT
E-ABLE POWER — PRODUCT DATASHEET
COMMERCIAL ARCHITECTURAL SOLAR LIGHTING
PREMIUM ARCHITECTURAL             ALL-IN-ONE SOLUTION

Commercial Solar Lighting | Integrated ST2 Series

Luminara Industrial All-in-One Solar Street Light

Luminara combines a slim integrated solar street-light format with configurable lighting output up to 180lm/W efficacy, LiFePO4 battery storage, and an advanced MPPT controller. Ideal for commercial boulevards, municipal highways, industrial parks, and premium outdoor developments.

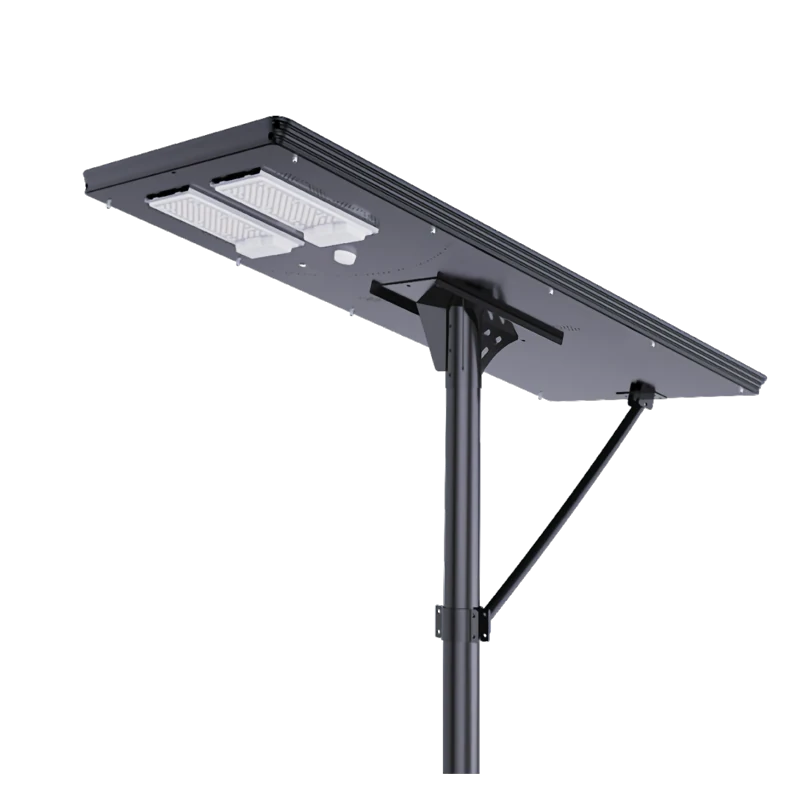

 A black all-in-one solar powered street light on a pole.

Key Specifications at a Glance

Product Series Luminara ST2 Series (30W – 150W) Luminous Efficacy Up to 180 lm/W High-Efficacy
Battery Core High-Capacity LiFePO4 Storage Charge Controller Smart MPPT Charge Control
Beam Optics Bat-wing Light Distribution Mounting Options 6M to 12M Pole Configurations

Designed for Modern Outdoor Projects

Integrated Appearance

A compact all-in-one form factor supports a streamlined, modern visual result for urban roads, smart city avenues, and architectural outdoor developments without messy external wiring.

Off-Grid Installation

The self-contained solar lighting system drastically reduces trenching, heavy civil engineering work, and underground cabling costs across complex or remote terrain.

Flexible Project Planning

Select tailored configurations precisely calibrated around local road width, pole height, regional solar irradiance levels, and expected nightly operating schedules.

Luminara Model Selection Matrix (ST2 Series)

Model LED Power Luminous Flux Solar Panel Battery Capacity Mounting Height
ST2-40 30W 6,000 lm 60W 240 Wh 6–7 m
ST2-60 50W 10,000 lm 90W 384 Wh 6–8 m
ST2-80 65W 13,000 lm 110W 576 Wh 8–10 m
ST2-100 75W 15,000 lm 110W 640 Wh 8–10 m
ST2-160 100W 20,000 lm 160W 960 Wh 10–12 m
ST2-210 120W 24,000 lm 210W 1,536 Wh 10–12 m
ST2-260 150W 30,000 lm 260W 1,920 Wh 10–12 m

Technical Specifications & Optical Performance

Technical Parameter Luminara ST2 Specification Range
LED Power Range 30W to 150W across the comprehensive ST2 series.
Solar Panel Options High-efficiency Monocrystalline silicon modules (60W up to 260W).
Core Architecture Long-cycle LiFePO4 battery paired with an intelligent MPPT charge controller; optional microwave motion sensor integration available.
Protection & Optics IP65 waterproof rating; professional bat-wing beam pattern; CCT 3000K–5000K options; Color Rendering Index (CRI) ≥ 70.
Operating Environment Engineered for -20°C to +60°C conditions and up to 3–5 consecutive rainy days, depending on project profiling.

Versatile Project Applications

Highways & Main Roads

High luminous output configurations delivering uniform street illumination for traffic safety.

Rural & Community Roads

Cost-effective off-grid deployment bypassing complex grid extension requirements.

Industrial Parks

Durable all-in-one fixtures built to withstand heavy daily operational duty cycles.

Commercial Parking Lots

Wide-area lighting coverage ensuring safety and visibility for commercial complexes.

Project Application References

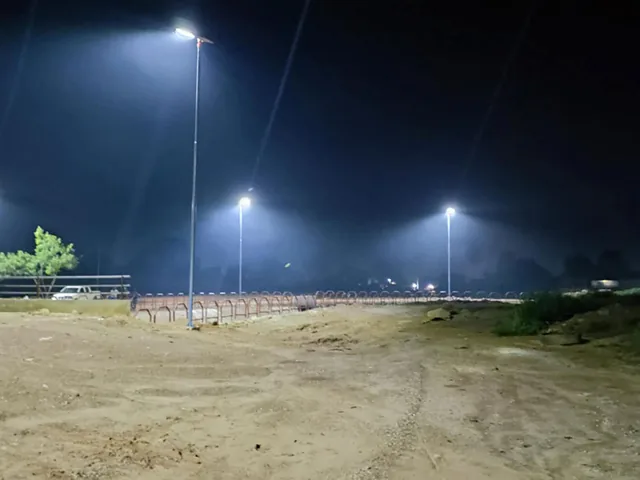

               A nighttime view of a dirt field illuminated by three tall streetlights against a dark sky.

All-in-one solar street light project reference (Burkina Faso)

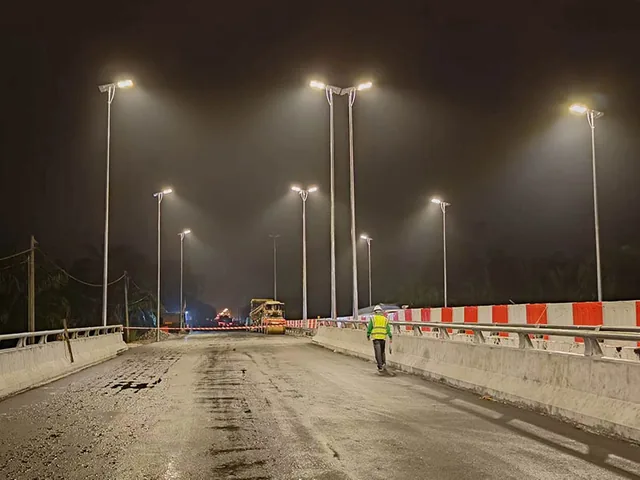

               A nighttime view of a road under construction, illuminated by tall pole-mounted streetlights, with a worker in a high-visibility vest walkin

Municipal outdoor lighting project reference (Malaysia)

For a reliable project proposal, please provide: installation location, site photos or layout, road width, pole height, pole spacing, required lighting hours, rainy-season autonomy requirements, quantity, and destination market.

E-ABLE POWER uses these professional inputs to recommend the optimal model configuration, operating profile, and complete technical documentation package.

VIEW MORE PROJECT REFERENCES →

Frequently Asked Questions

Where is the Luminara ST2 series best suited for deployment?
Luminara is engineered for urban streets, municipal highways, rural electrification projects, industrial parks, community developments, and landscaped commercial parking lots.
How do I select the correct pole height and model?
Pole height and model selection depend on road width, pole spacing, lighting distribution requirements, and target lux levels. Our team provides free DIALux lighting simulations to ensure absolute precision.
Does local weather impact system configuration?
Yes. Local solar irradiance data, peak sun hours, and historical rainy or cloudy seasons are critical factors factored into our custom configuration profiles.
What details are required to generate an accurate project quotation?
Please share your project location, site layout or photographs, road/pathway width, target pole height, pole spacing, expected nightly operating schedule, quantity, and destination market.

100% QC inspection. Factory: Dongguan, Guangdong, China.
