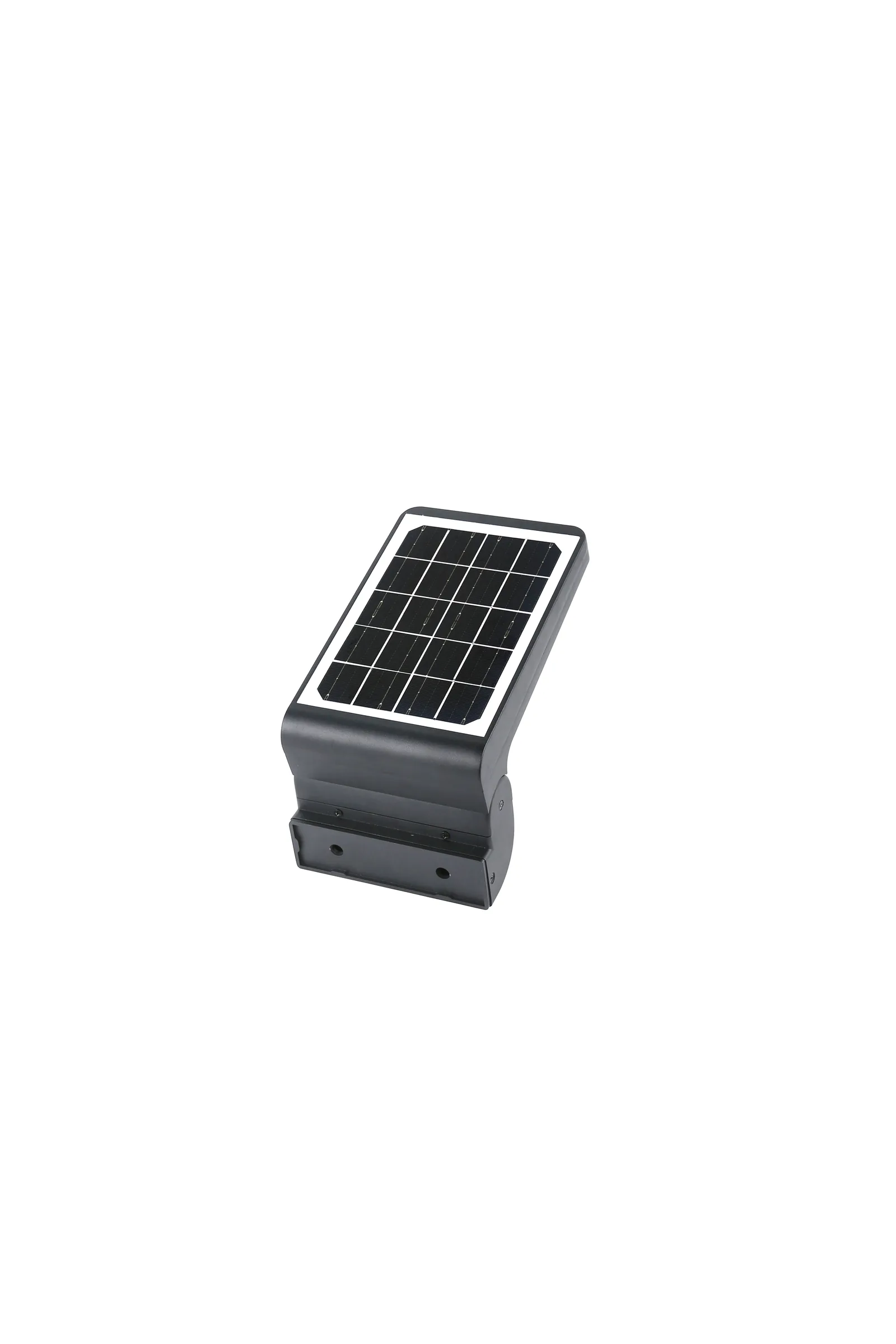

Monocrystalline panel
5V / 5W solar input for wire-free operation.
Product overview
Light the space.
Keep it efficient.

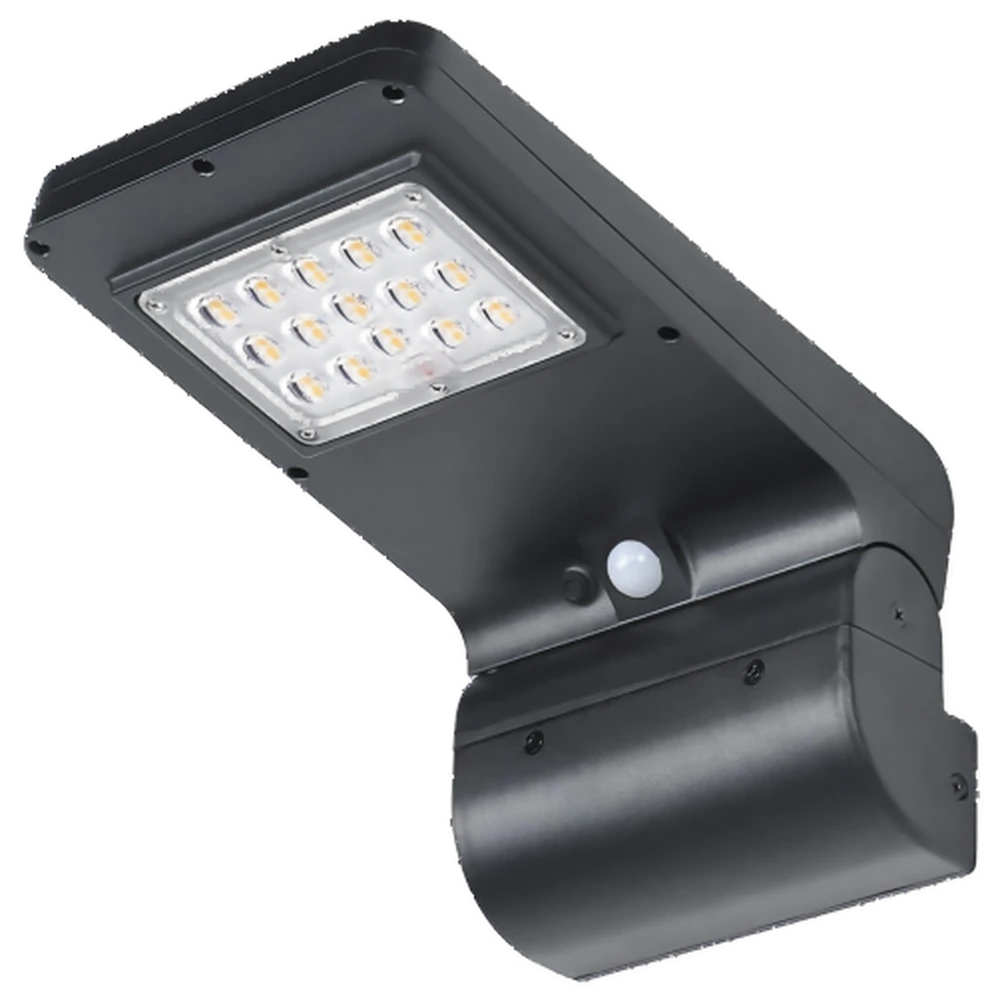

ZC-BD1006 is a compact angled solar wall light from E-Able Power, combining a 5V / 5W monocrystalline panel with a 3.2V / 8000mAh LiFePO4 battery and 30 LEDs in a die-cast aluminium body.
The sculpted head angles the light onto the surface below, while the optional PIR sensor delivers motion-activated illumination for pathways, steps and entries.
Selection note: selection note: position the head to cover the walkway or entrance and confirm ambient light levels before final configuration.
LiFePO4 battery
3.2V / 8000mAh battery for reliable nightly output.
Motion sensing
Optional PIR sensor for on-demand illumination.
Angled optical head
Sculpted head directs light to the walking surface.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel5V / 5W
- Battery3.2V / 8000mAh
- Rated power5W
- Input voltageDC 3.2V
- Working time3 – 5 rainy days
Optical performance
- Light source2835 LED
- LED quantity30 pcs
- Colour temperature3000K – 6500K
- Luminous fluxhigh output
- Colour rendering>80
- Beam angle120°
Construction & dimensions
- MaterialDie-cast aluminum
- Lamp colourBlack
- Net weight—
- Size235 × 150 × H130 mm
- Installation height2 – 4 m
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications

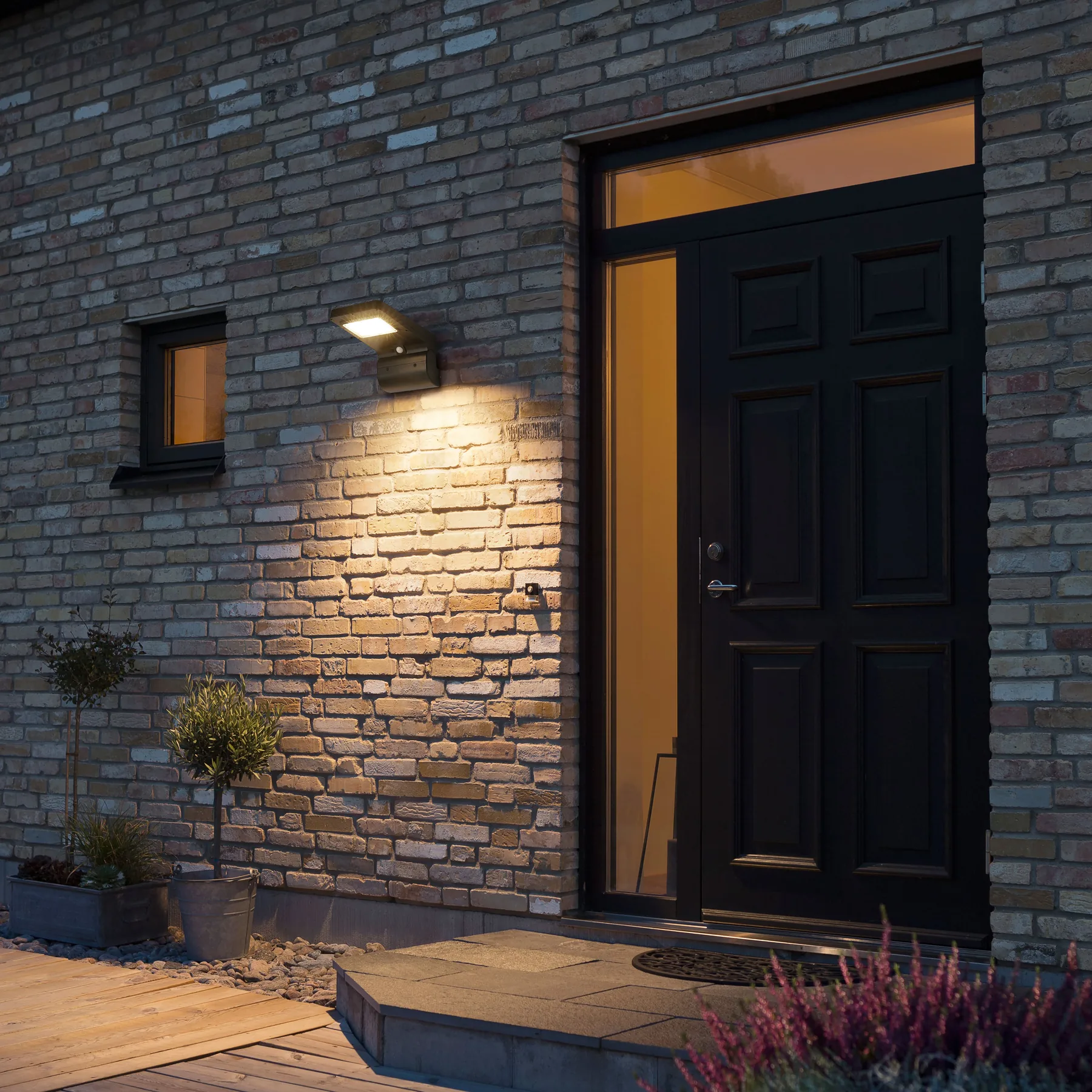

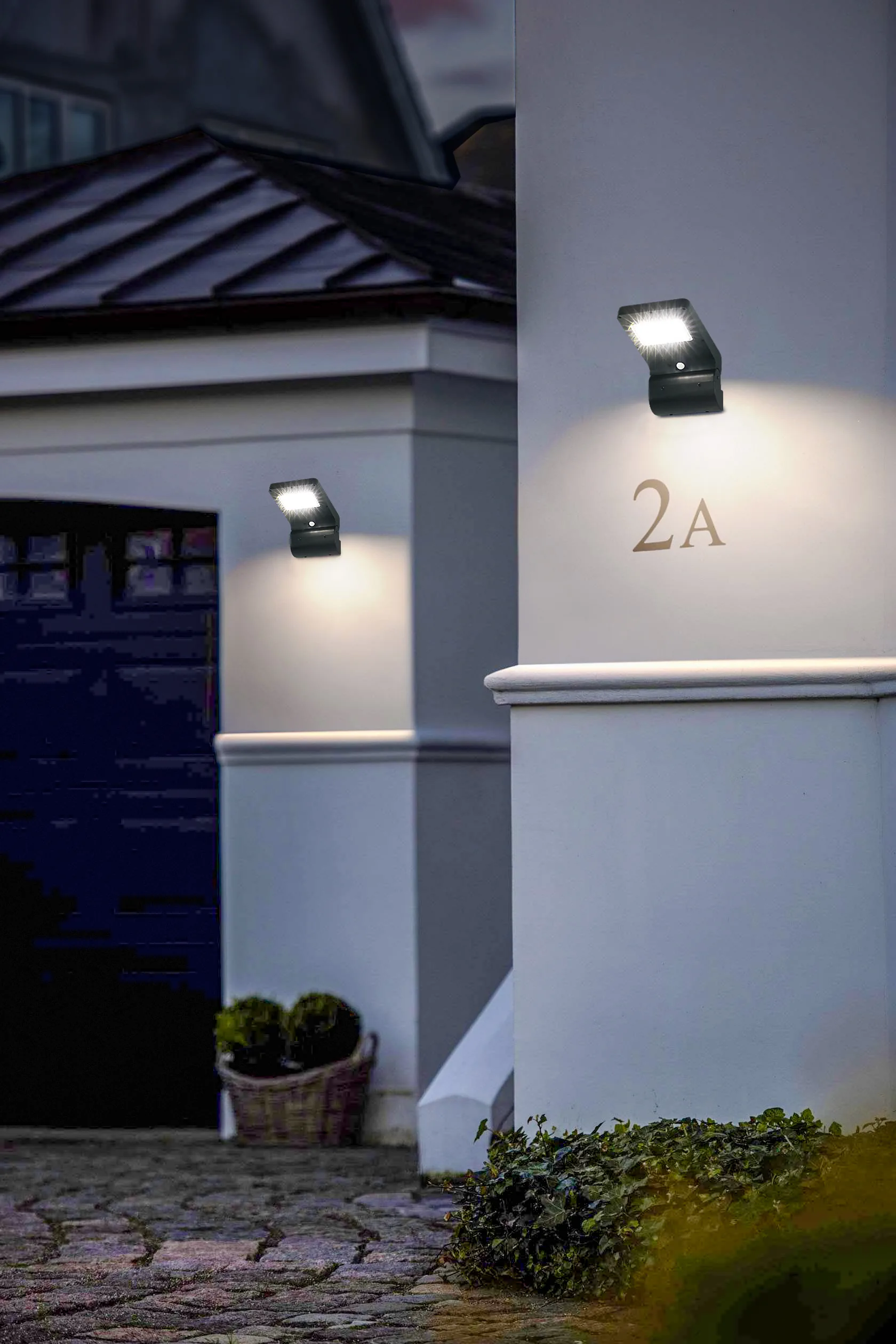

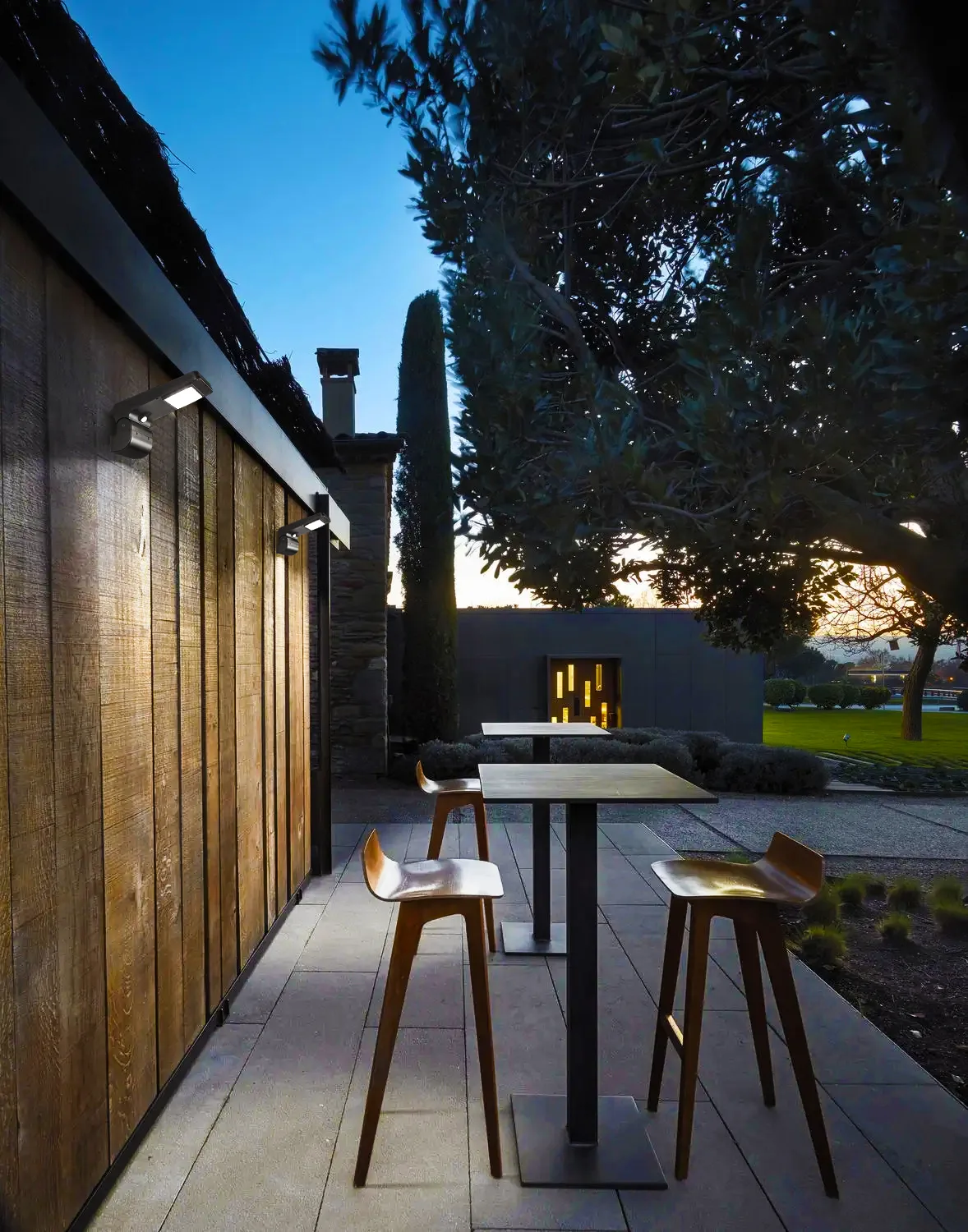

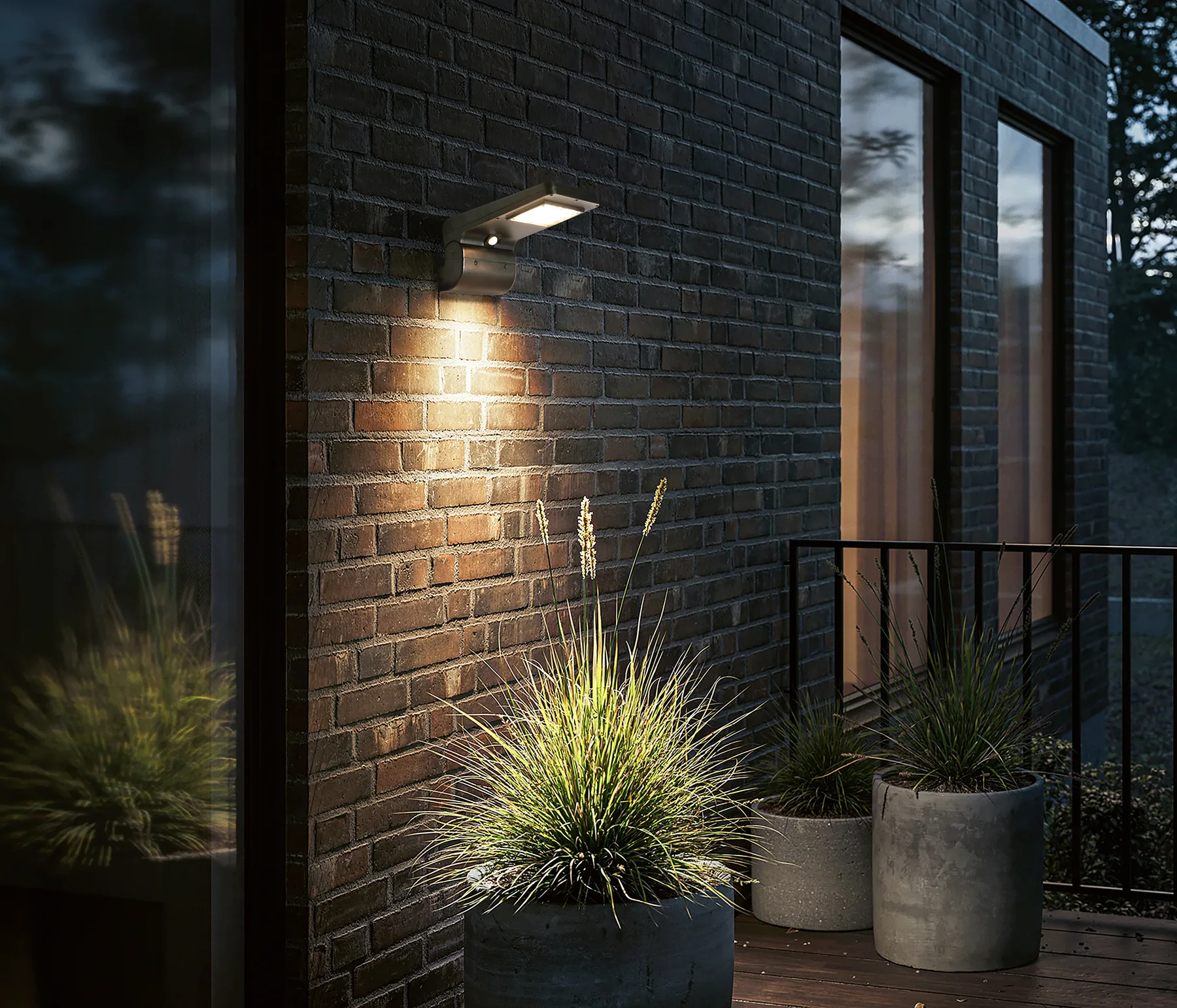

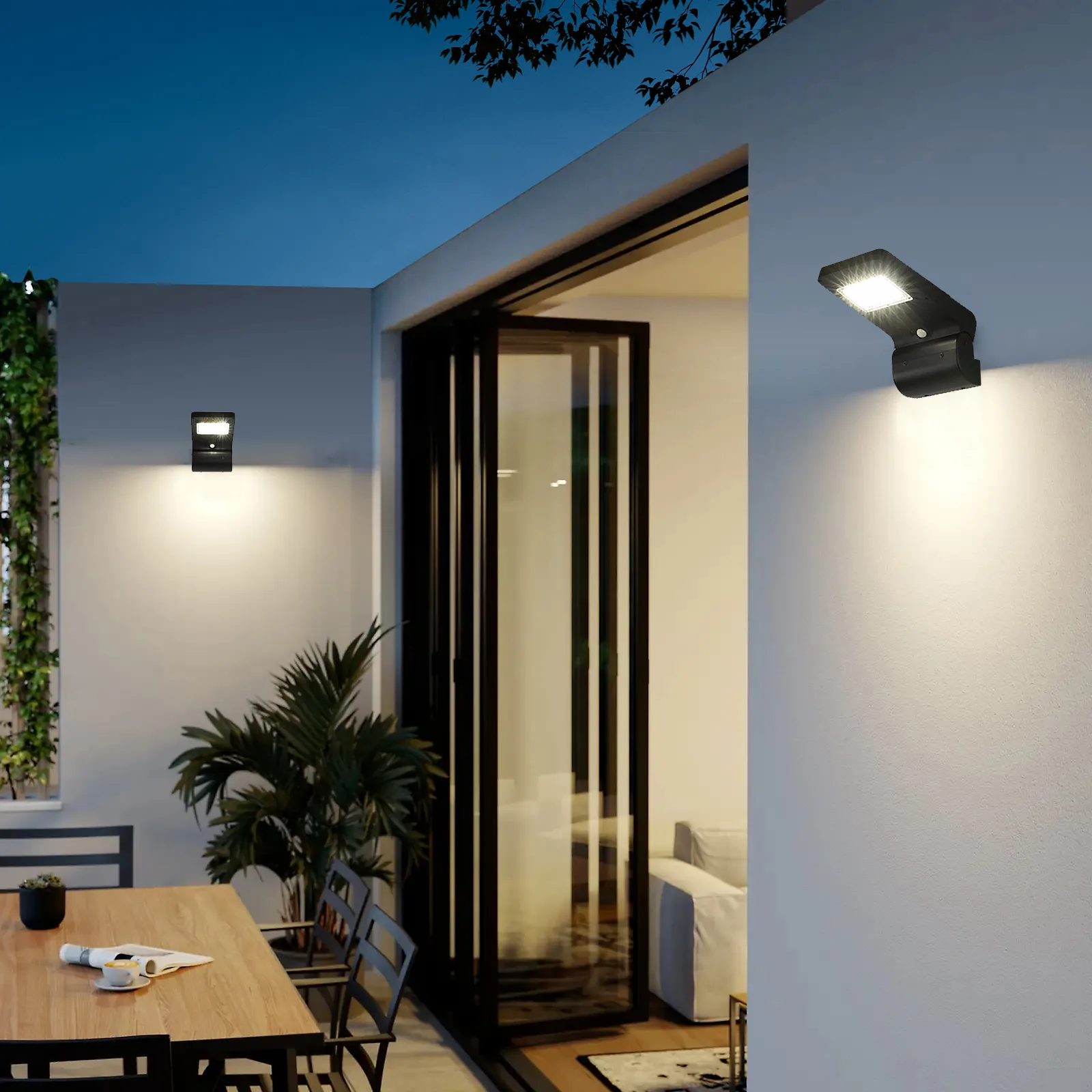

Lighting for facades, entries and garden edges.
FAQ
Common questions.
1What sizes is the ZC-BD1006 available in?
+
The ZC-BD1006 measures 235 × 150 × H130 mm.
2Does the ZC-BD1006 have a motion sensor?
+
An optional PIR motion sensor provides on-demand illumination.
3Is the ZC-BD1006 weatherproof?
+
Yes. It is built from die-cast aluminum and rated IP65 for outdoor exposure.
4What colour temperature does the ZC-BD1006 offer?
+
It offers 3000K – 6500K for warm or bright daylight light.
5What powers the ZC-BD1006?
+
A 5V / 5W monocrystalline solar panel charges the on-board battery.
6Can the ZC-BD1006 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZC-BD1006 configuration.
