Monocrystalline panel
4.5W / 5V solar input for the solar-powered version.
Product overview
Light the space.
Keep it efficient.
CPD-8804 is a solar lawn light from E-Able Power, combining a 4.5W solar panel, 3.2V / 6000mAh battery and 2835 LED output in a weather-protected IP65 housing.

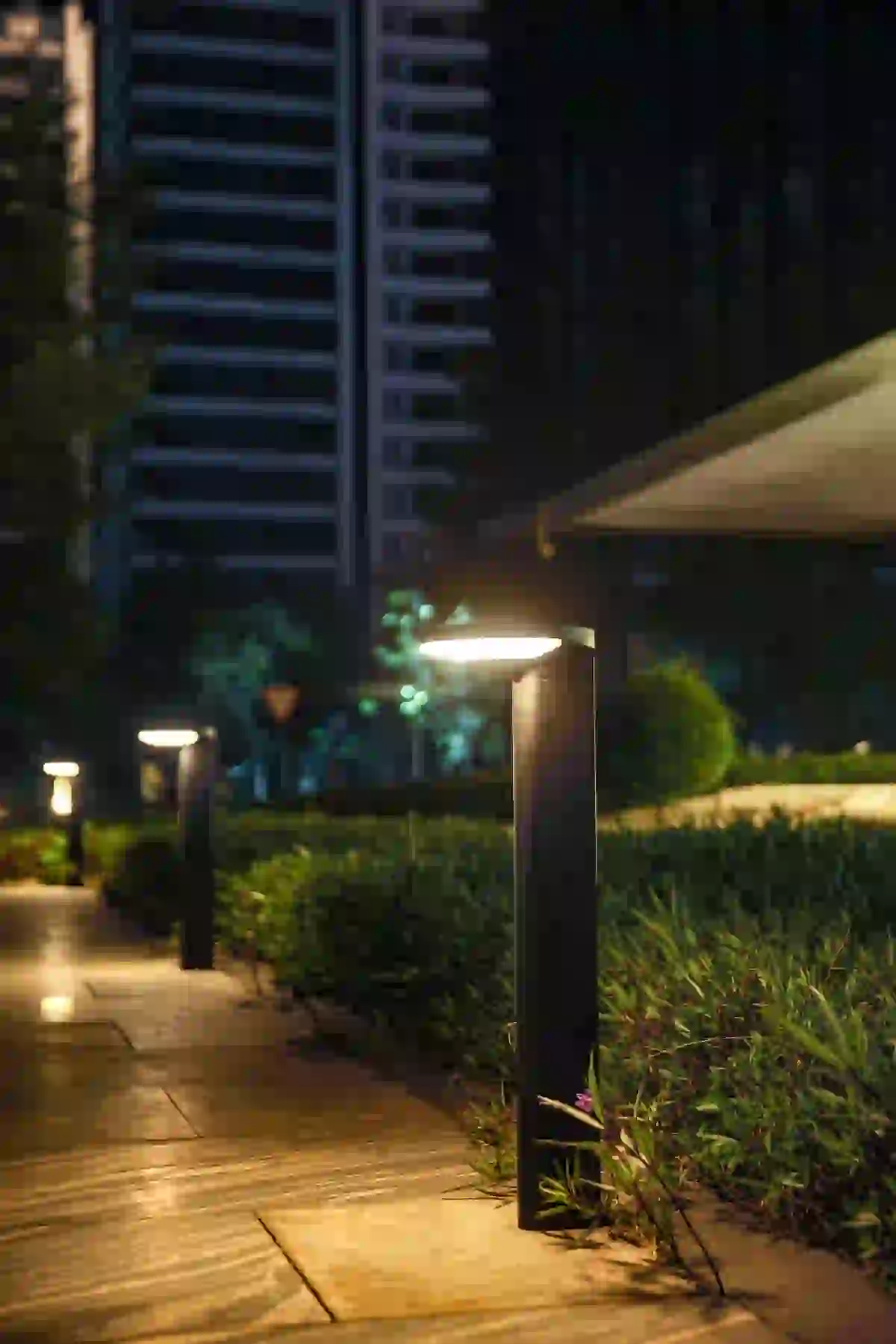

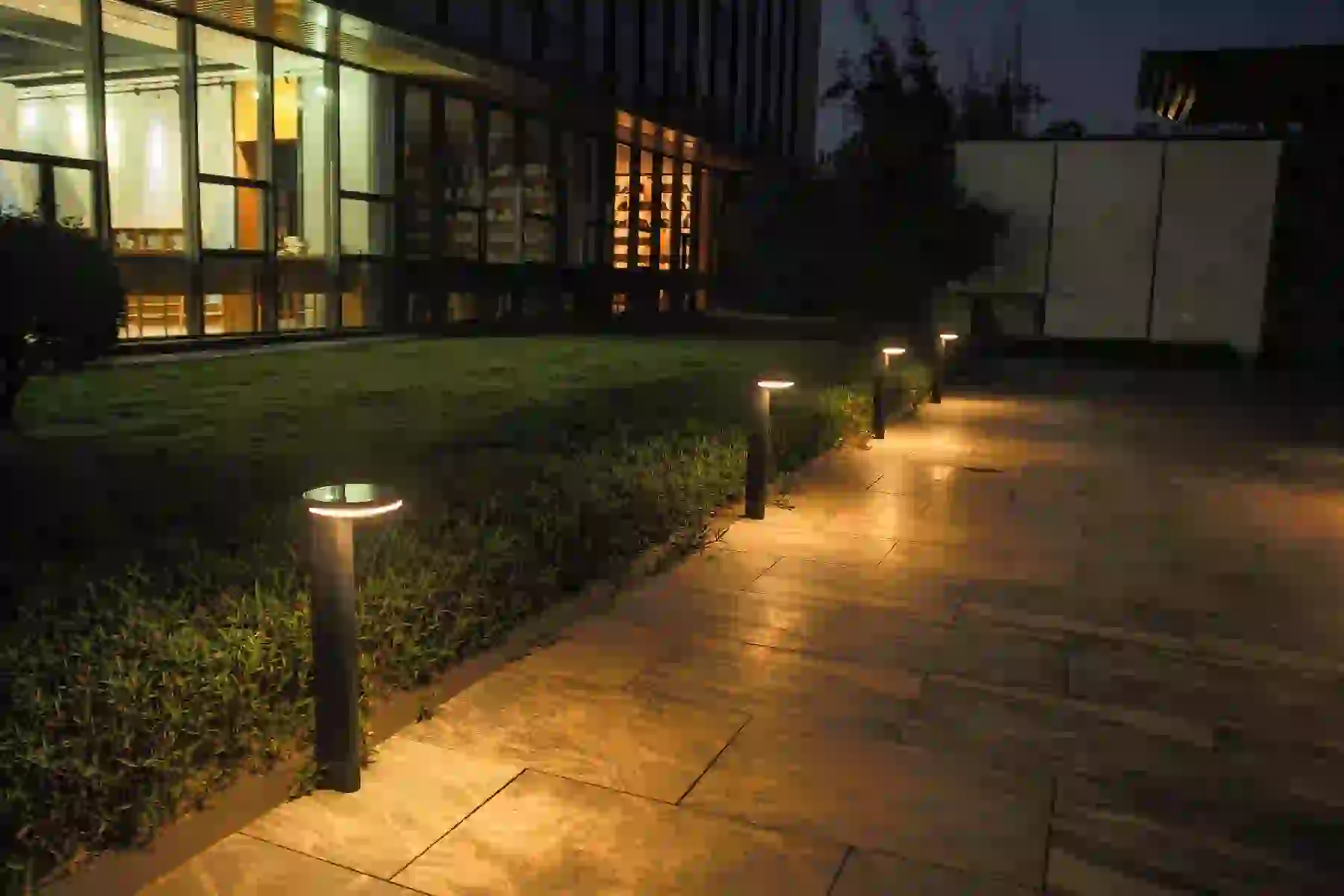

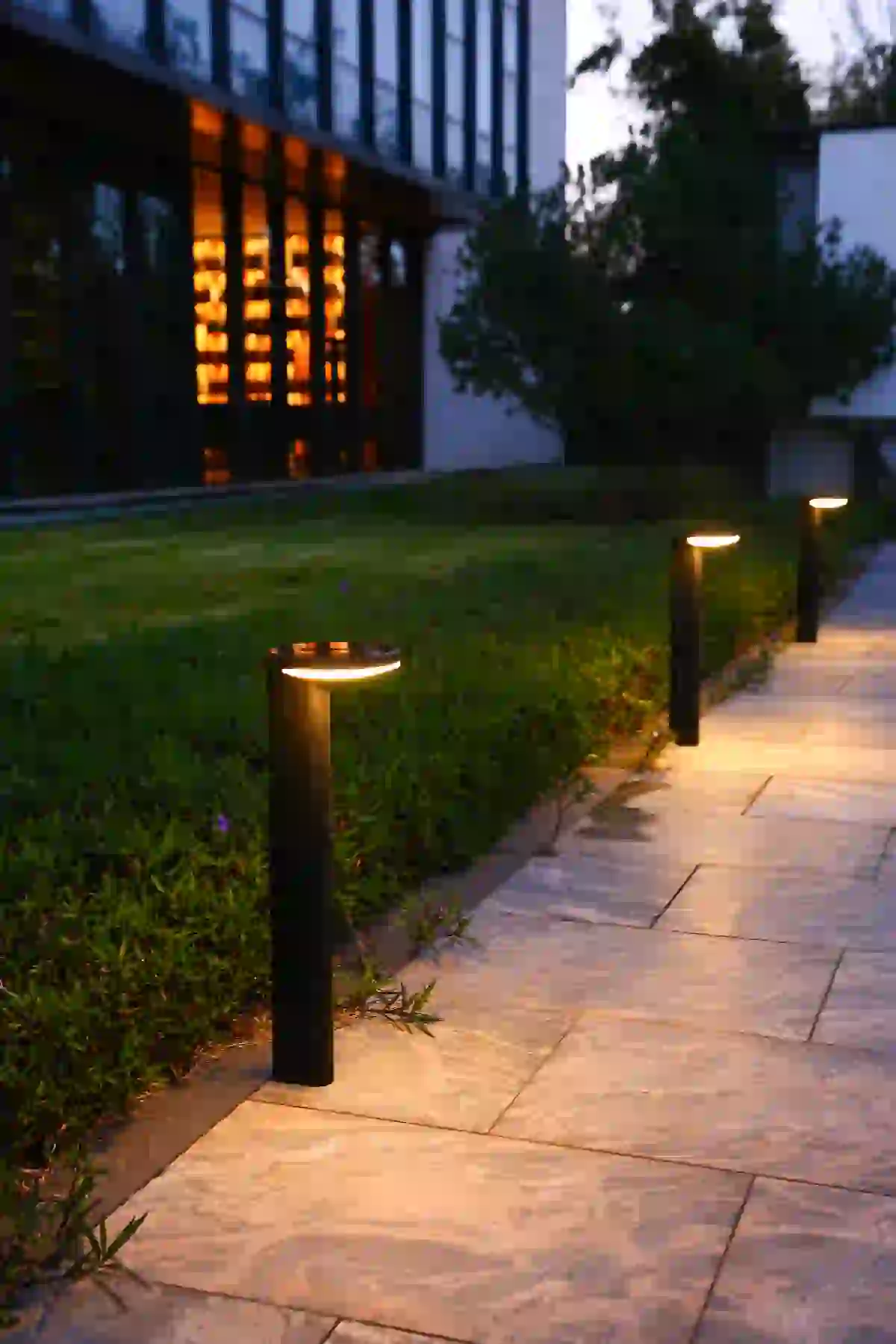

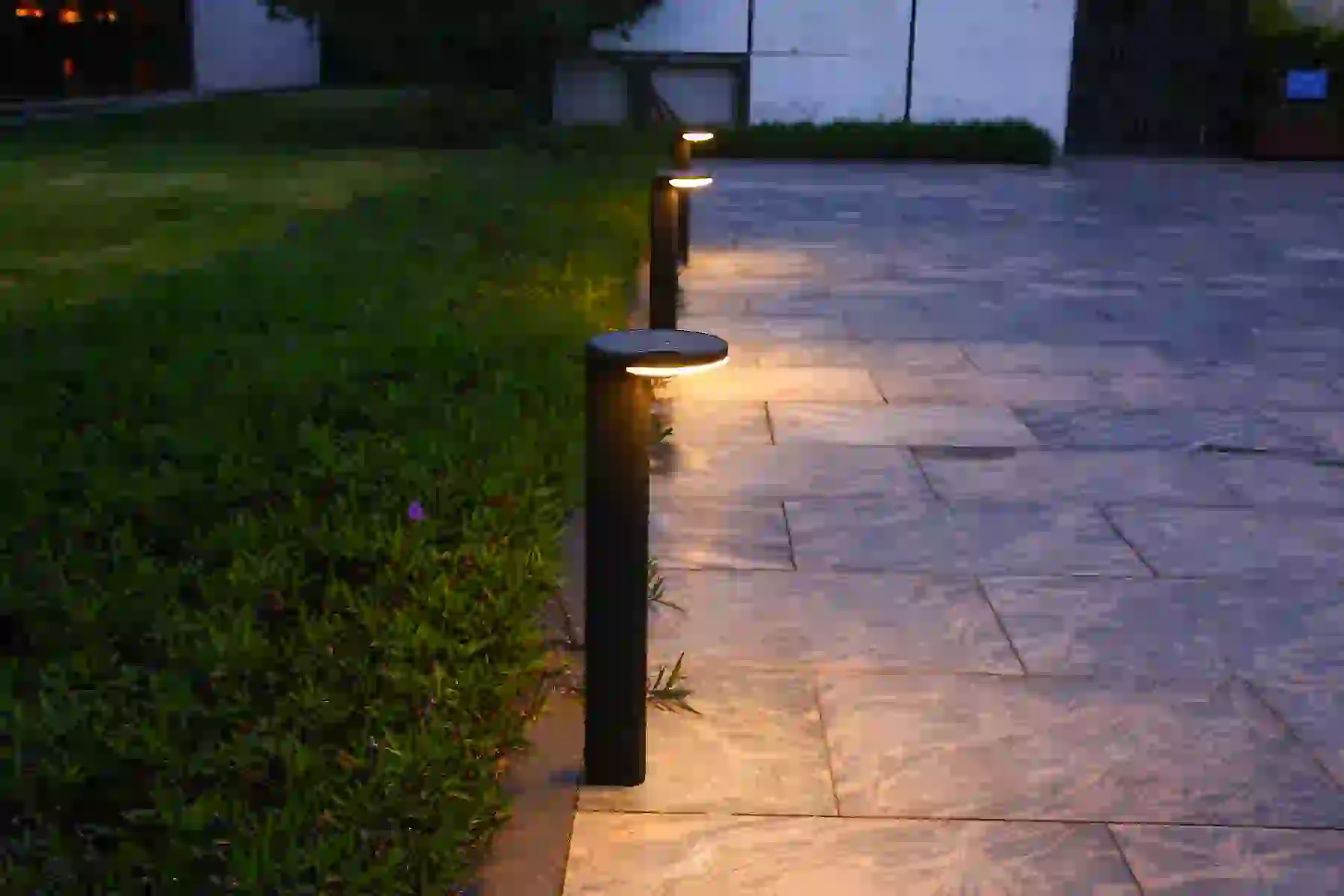

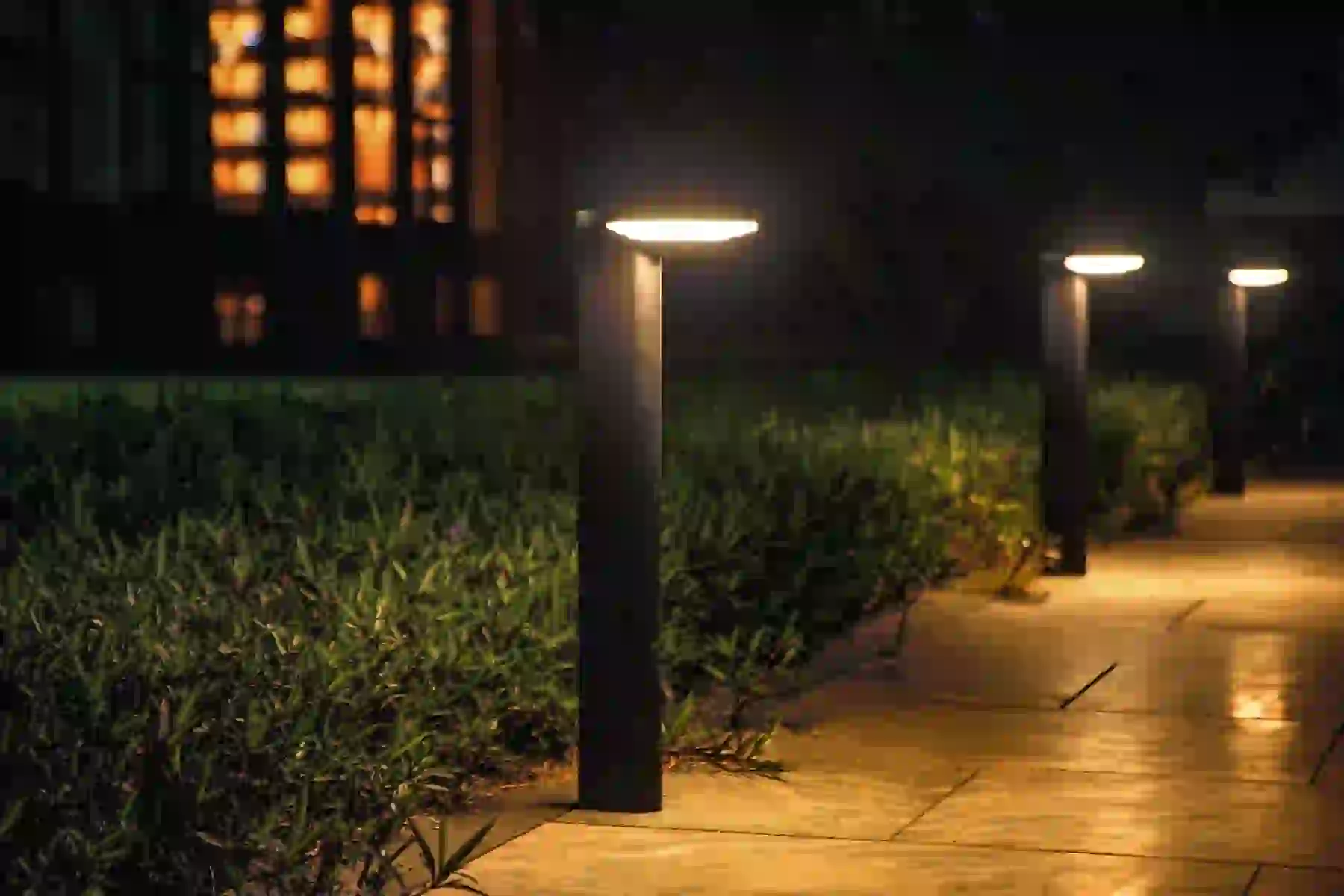

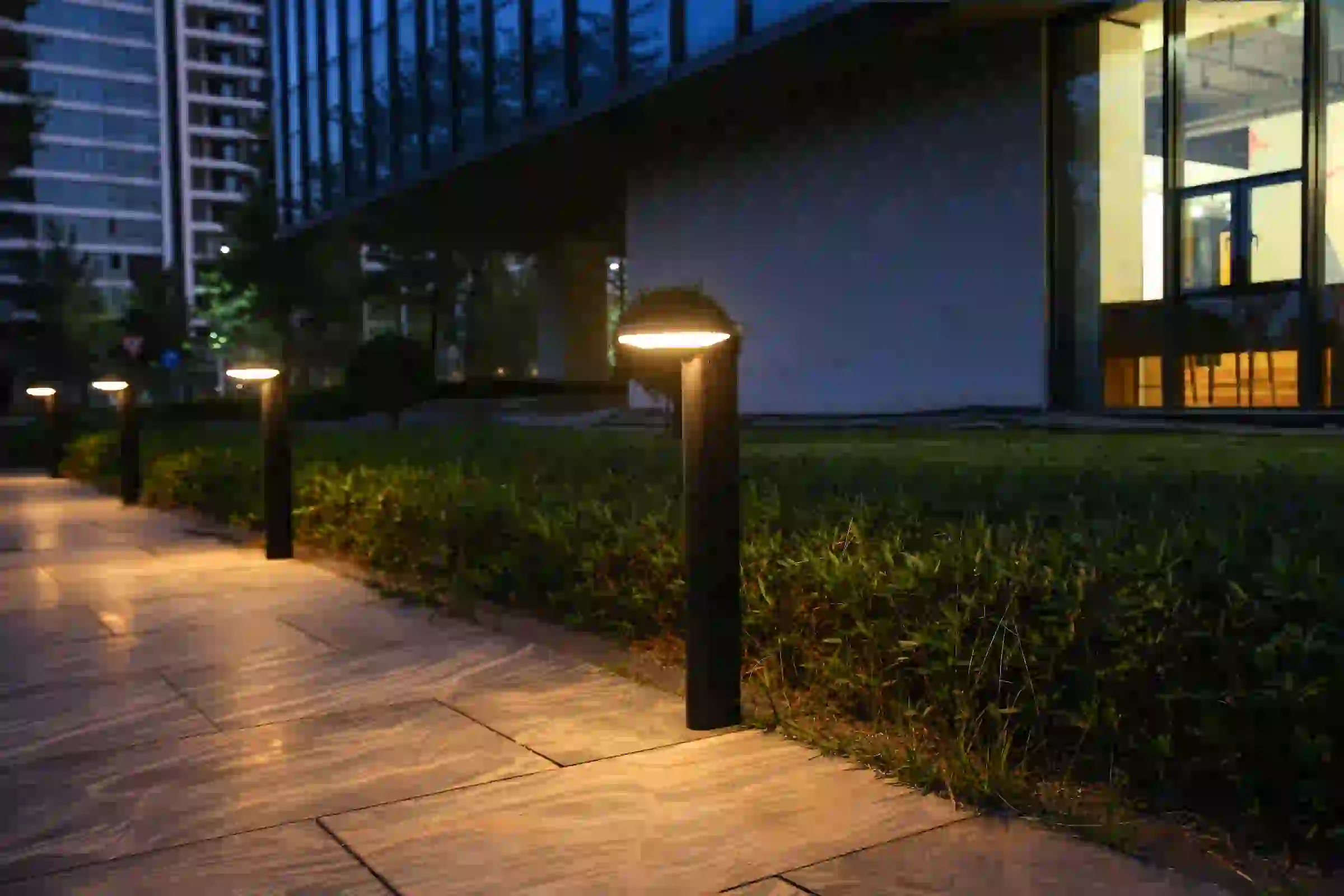

The source-pack specification documents φ257 mm × 110 mm × 60 mm (600/800/1000 mm). It is designed for ground-level installation in garden beds, landscape borders and courtyard pathways.
Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
LiFePO4 battery
3.2V / 6000mAh battery configuration from the supplied specification.
Weather-protected housing
IP65 rated construction for outdoor use.
Even light distribution
2835 LED source with 3000K – 6500K colour temperature range.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel4.5W / 5V
- Battery3.2V / 6000mAh
- Rated power4.5W
- Input voltageDC 3.2V
- Working time3 – 5 rainy days
Optical performance
- Light source2835 LED
- LED quantity2835 LED
- Colour temperature3000K – 6500K
- Luminous flux246.07 lm (3000K) / 259.8 lm (6500K)
- Colour rendering>79
- Beam angle180°
Construction & dimensions
- MaterialDie-cast aluminum + PC lens
- Lamp colourBlack; other colours can be customized
- Net weight—
- Sizeφ257 mm × 110 mm × 60 mm (600/800/1000 mm)
- InstallationGround-mount lawn light
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications
Lighting for pathways, entries and planted edges.
FAQ
Common questions.
1What sizes is the CPD-8804 available in?
+
The CPD-8804 comes in φ257 mm × 110 mm × 60 mm (600/800/1000 mm).
2How long does the CPD-8804 run on a full charge?
+
It runs on a 3.2V / 6000mAh battery and provides 3 – 5 rainy days of working time.
3Is the CPD-8804 weatherproof?
+
Yes. It is built from Die-cast aluminum + PC lens and rated IP65 for outdoor exposure.
4What colour temperature and brightness does the CPD-8804 offer?
+
It offers 3000K – 6500K with roughly 246.07 lm (3000K) / 259.8 lm (6500K) luminous flux.
5How and where should the CPD-8804 be installed?
+
It is designed for ground-level landscape installation.
6What powers the CPD-8804?
+
A 4.5W / 5V monocrystalline solar panel charges the on-board battery.
7Can the CPD-8804 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a CPD-8804 configuration.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable CPD-8804 configuration.
