Monocrystalline panel
5V / 4.5W solar input for wire-free operation.
Product overview
Light the space.
Keep it efficient.
ZTD-0406 is a low-profile flat solar pillar light from E-Able Power, pairing a 5V / 4.5W monocrystalline panel with a 3.2V / 6000mAh LiFePO4 battery and 30 LEDs in a die-cast aluminum + PC housing.

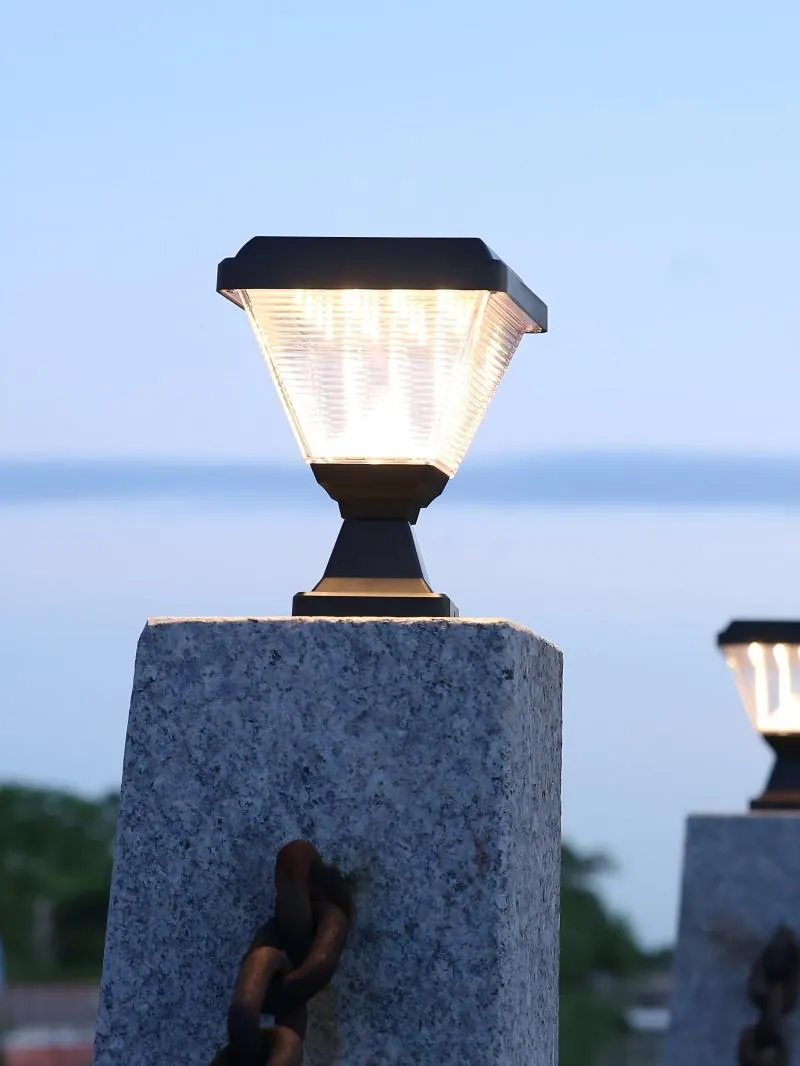

The flat ribbed cap sits low on gate pillars and boundary walls while casting a clean wash of light across the entrance.
Selection note: selection note: match the base plate to the post size and confirm site conditions before final configuration.
LiFePO4 battery
3.2V / 6000mAh battery for reliable nightly output.
Low-profile flat cap
Subtle rectangular profile for gates and walls.
Weather-protected housing
IP65 rated die-cast aluminum + PC construction.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel5V / 4.5W
- Battery3.2V / 6000mAh
- Rated power4.5W
- Input voltageDC 3.2V
- Working time3 – 5 rainy days
Optical performance
- Light source2835 LED
- LED quantity30 pcs
- Colour temperature3000K – 6500K
- Luminous fluxhigh CRI output
- Colour rendering>80
- Beam angle120°
Construction & dimensions
- MaterialDie-cast aluminum + PC
- Lamp colourBlack
- Net weight—
- Size240 mm × 210 mm × H90 mm
- MountingPost-top cap / pillar
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications

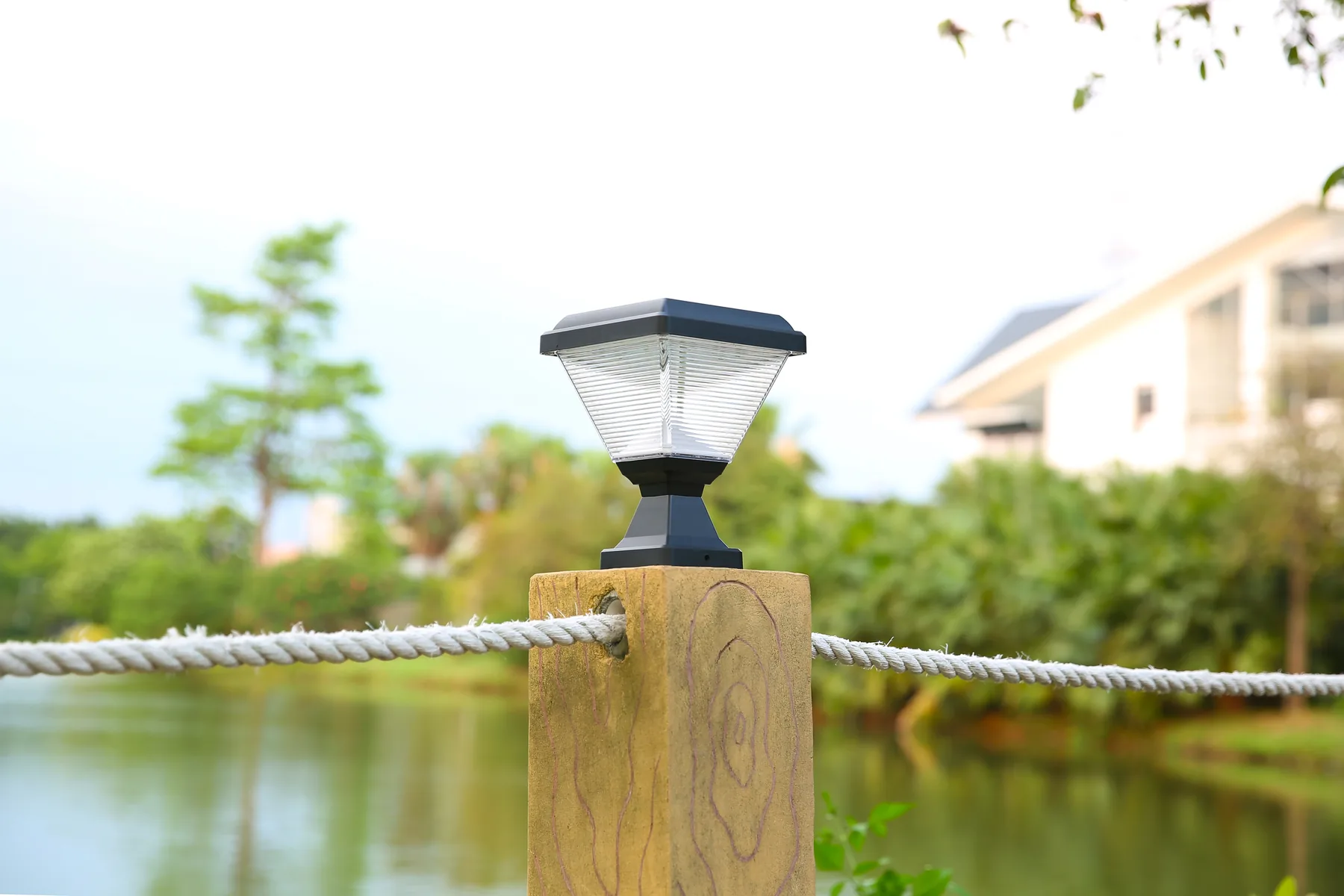

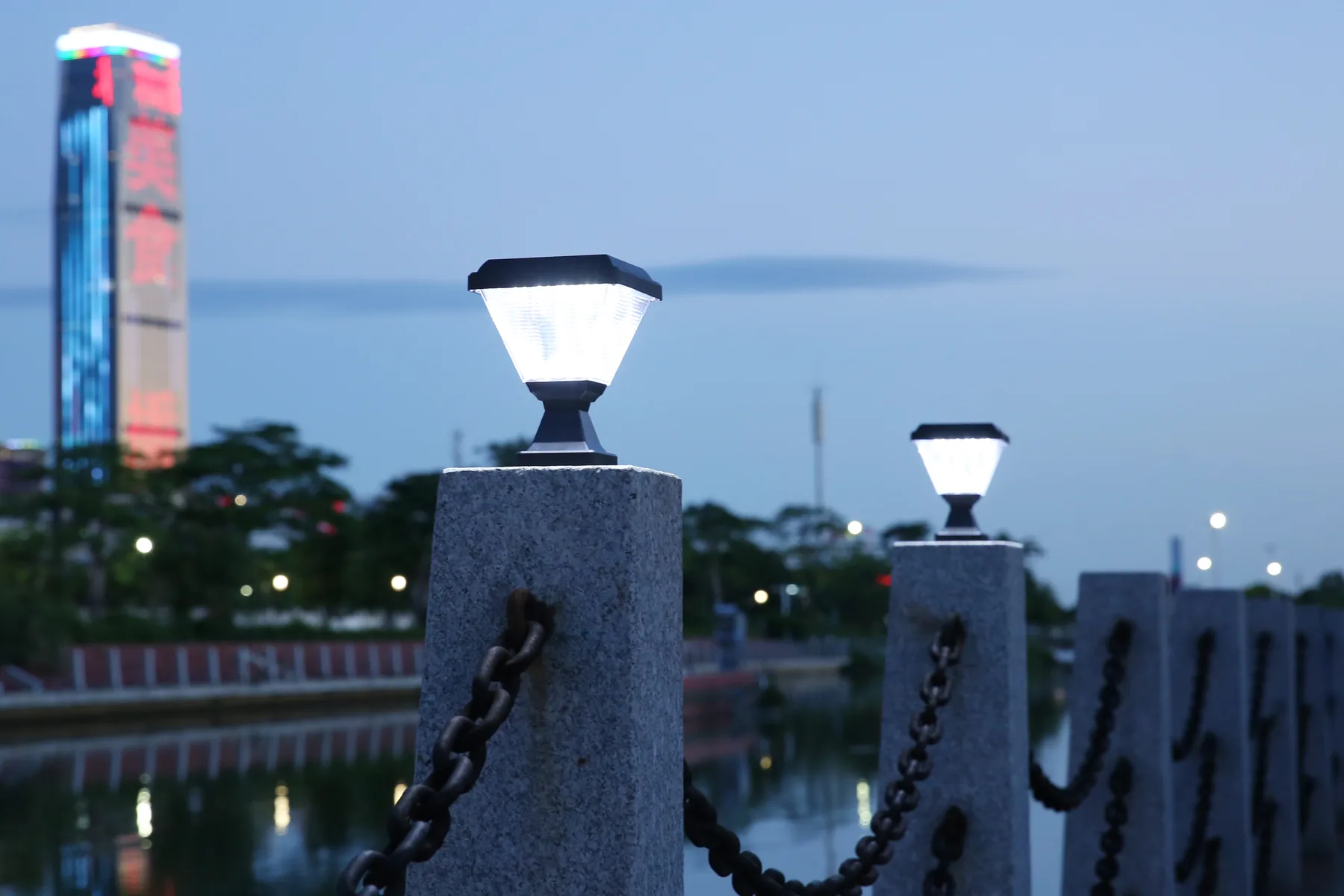

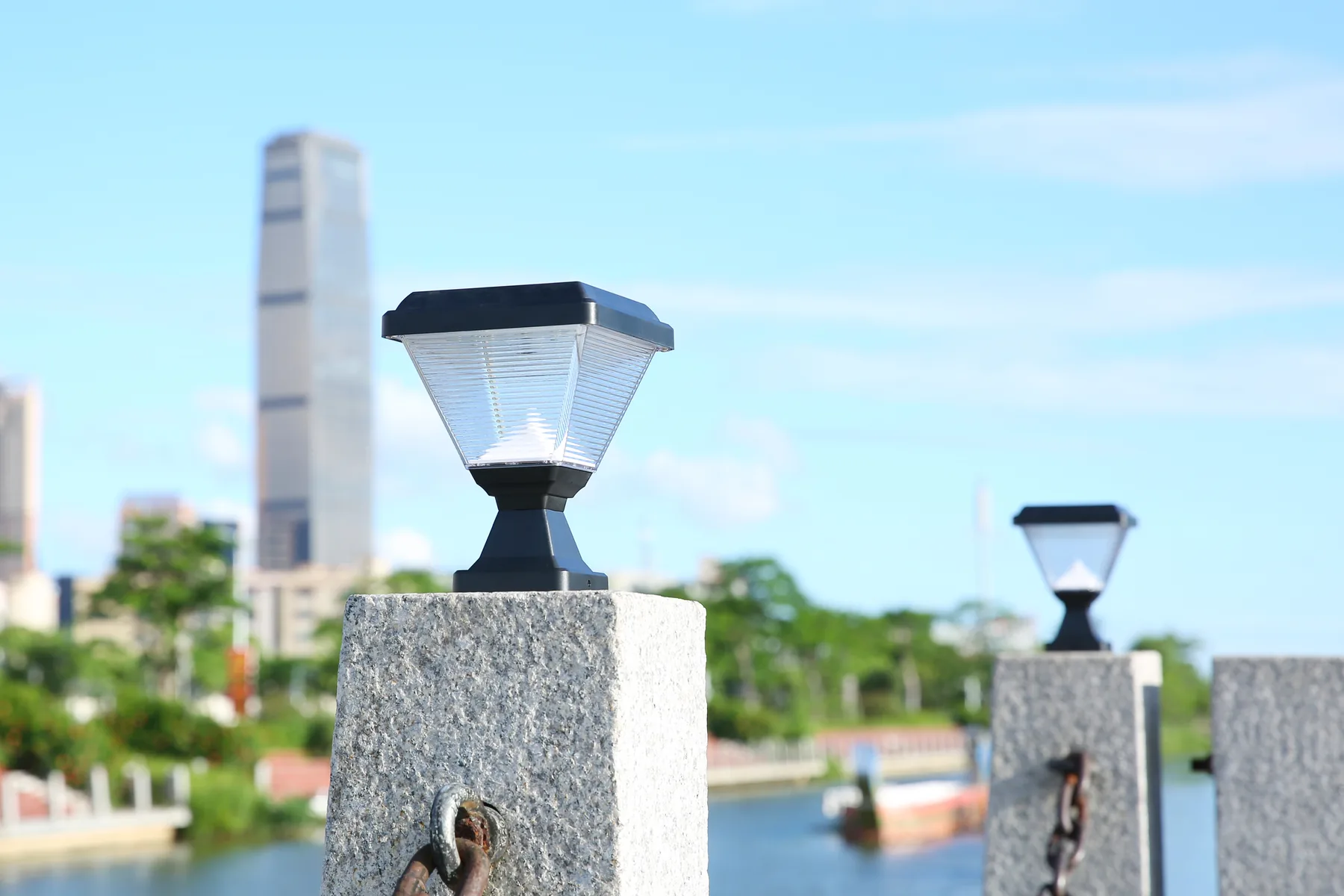

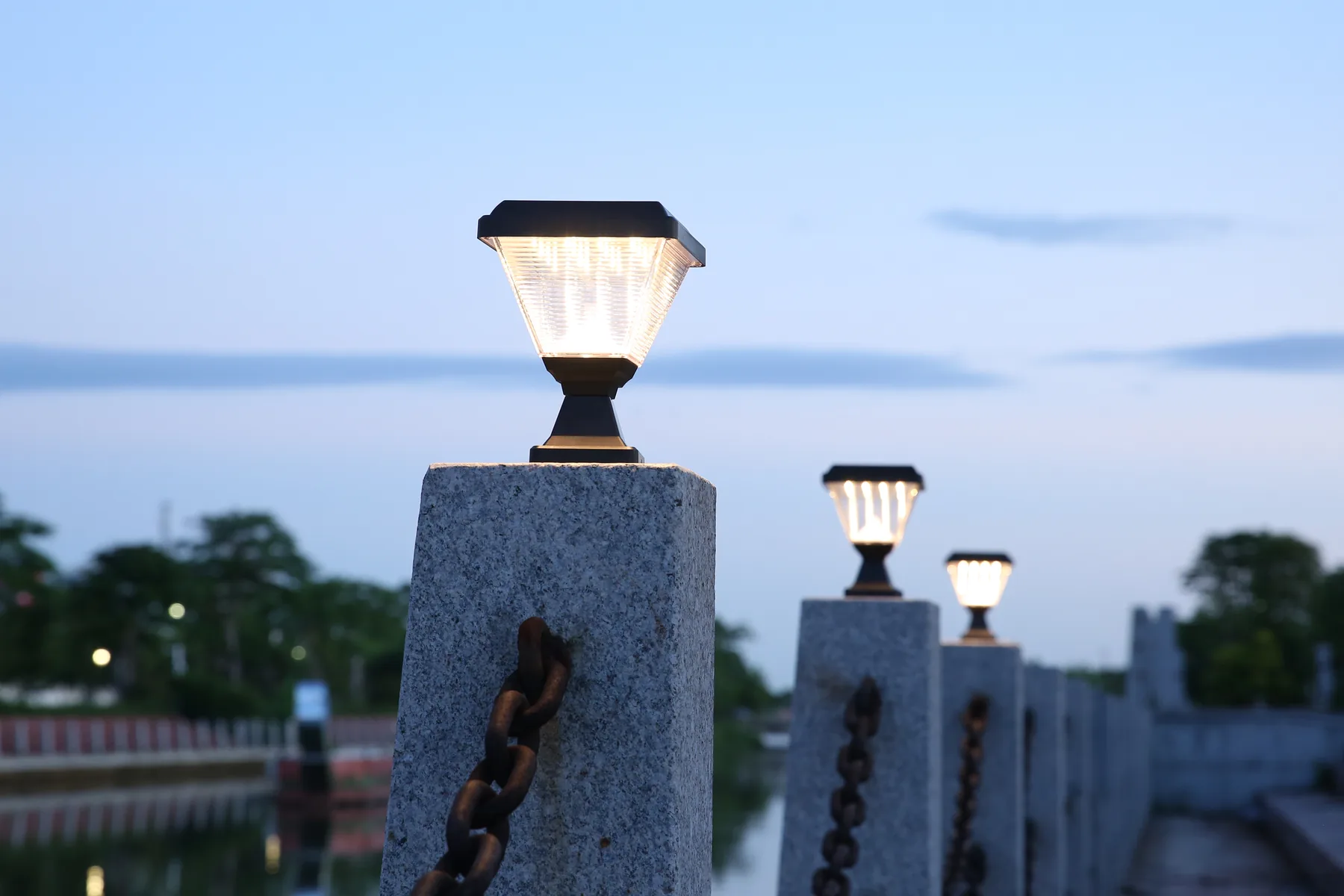

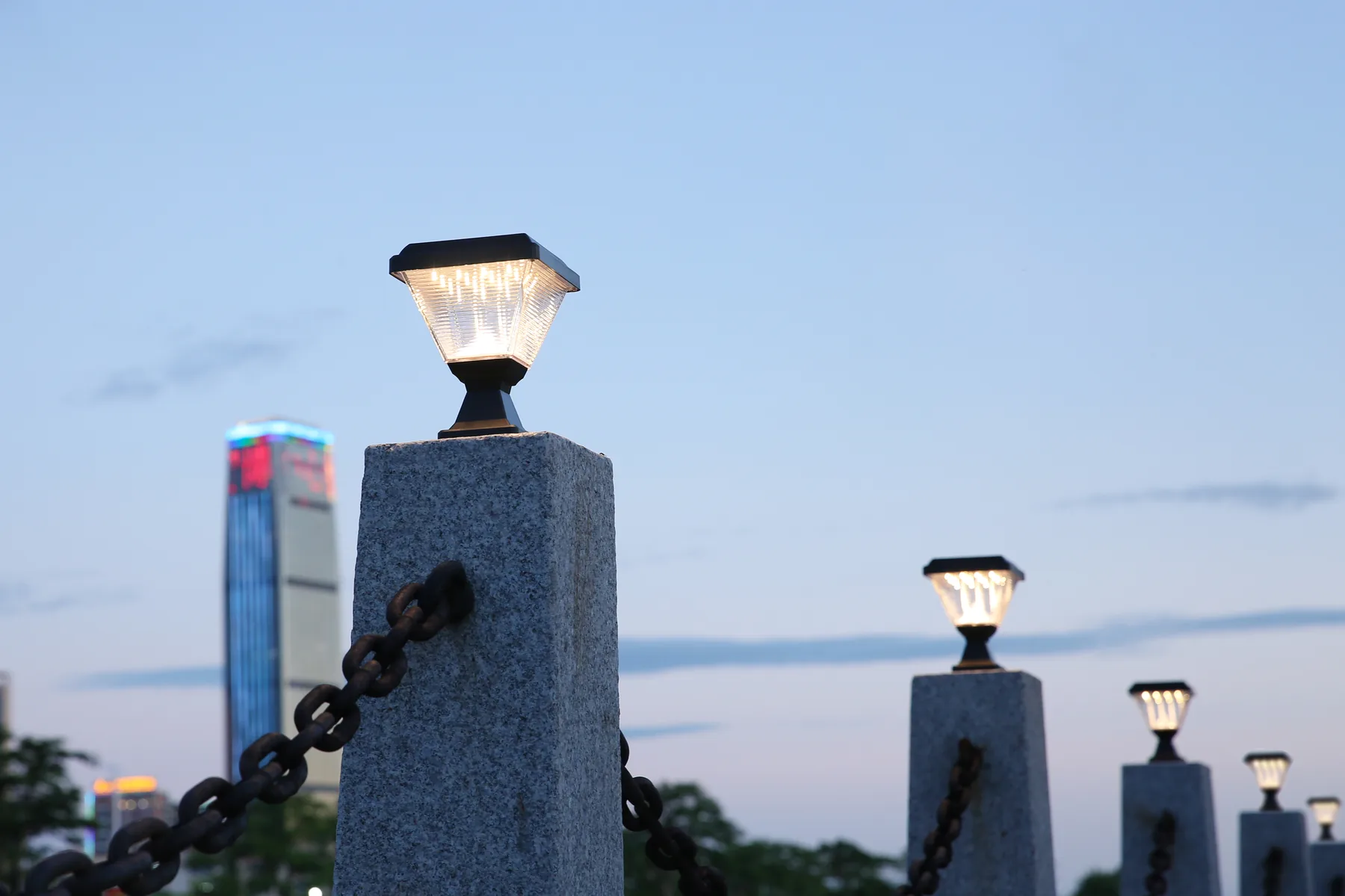

Lighting for facades, entries and garden edges.
FAQ
Common questions.
1What sizes is the ZTD-0406 available in?
+
The ZTD-0406 cap measures 240 × 210 × H90 mm.
2Is the ZTD-0406 weatherproof?
+
Yes. It is built from die-cast aluminum + PC and rated IP65 for outdoor exposure.
3What colour temperature does the ZTD-0406 offer?
+
It offers 3000K – 6500K for warm or bright daylight light.
4How is the ZTD-0406 mounted?
+
It is a post-top cap that sits on gate pillars and boundary walls.
5What powers the ZTD-0406?
+
A 5V / 4.5W monocrystalline solar panel charges the on-board battery.
6Can the ZTD-0406 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZTD-0406 configuration.
