ZC-CPD Series Solar Bollard Pathway Lights

Name: ZC-CPD Series Solar Bollard Pathway Lights
Brand: E-ABLE POWER
Rating: 5.0 (39 reviews)

The ZC-CPD Series (Models ZC-CPD0907 & ZC-CPD0705) offers a sophisticated, low-profile lighting solution for modern landscapes. These elegant solar bollard lights are constructed from high-quality die-casting aluminum and impact-resistant PC, ensuring exceptional durability along walkways and garden borders. Designed with a sleek Φ185mm cylindrical profile and available in 500mm or 700mm heights, they seamlessly integrate into any architectural setting. Powered by a highly efficient 5V/2W solar panel and a 3.2V/3000mAh battery, they deliver reliable, glare-free illumination (via 20 premium LED chips) to safely guide pedestrians while enhancing the nighttime ambiance of commercial and residential pathways.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZC-CPD Series (ZC-CPD0907 / ZC-CPD0705)
Brand:
E-ABLE POWER
Code:
ZC-CPD-SERIES

Product Description

E-ABLE POWER — PRODUCT DATASHEET

COMMERCIAL SOLAR LIGHTING SOLUTIONS

BOLLARD SERIES 2 HEIGHT OPTIONS

ZC-CPD Series | Commercial Solar Bollard Pathway Lights

ZC-CPD Series Solar Bollard Pathway Light

Elegant, low-profile pathway illumination — two sleek cylindrical bollard models: ZC-CPD0907 (Φ185×H700mm) and ZC-CPD0705 (Φ185×H500mm). Both feature die-casting aluminum + impact-resistant PC housing, 5V/2W monocrystalline solar panel, 3.2V/3000mAh battery, and 20 premium LED chips with 3000-6500K selectable CCT. Designed for zero-trench, zero-cable, zero-grid-connection installation — simply stake or bolt down and let the sun do the rest. Ideal for upscale residential pathways, hotel gardens, commercial lawn borders, and public park walkways.

✉ Request Project Quote ☎ WhatsApp +86 153-5558-9600

E-Able Power ZC-CPD Series commercial solar bollard pathway light — cylindrical die-cast aluminum design

Key Specifications at a Glance

• Models: ZC-CPD0907 (H700) / ZC-CPD0705 (H500)• Solar Panel: 5V / 2W Monocrystalline• Battery: 3.2V / 3,000mAh• LED Array: 20 PCS Premium LED Chips• CCT: 3000K – 6500K Selectable• Charging Time: 3 – 5 Hours Direct Sunlight• CPD0907 Dims: Φ185 × H700mm• CPD0705 Dims: Φ185 × H500mm• Housing: Die-Casting Aluminum + PC• IP Rating: IP65 — Waterproof & Weather-Resistant• Certifications: CE / RoHS• Warranty: 5 Years Standard

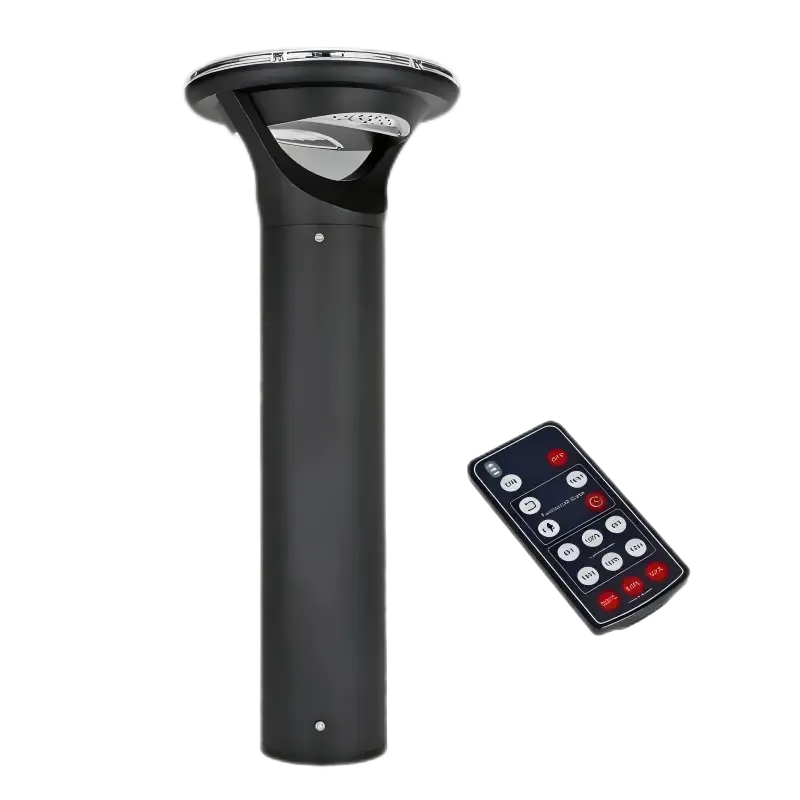

ZC-CPD Solar Bollard Pathway Light

Fig 1.0: ZC-CPD Series — Cylindrical Solar Bollard (Available in 500mm and 700mm Heights)

Engineering Excellence

Glare-Free Wayfinding

20 high-efficacy LED chips with selectable 3000-6500K CCT — delivers soft, controlled illumination that safely guides pedestrians while preserving nighttime ambiance. Zero glare, zero light pollution.

Compact Off-Grid Power

Integrated 5V/2W monocrystalline panel + 3.2V/3000mAh battery — rapid 3-5h charge provides consistent dusk-to-dawn operation. Fully self-contained — no trenching, no cabling, no electrical permit required.

Weather-Resistant Construction

Premium die-casting aluminum + high-transmittance PC — IP65 sealed against rain, dust, and environmental corrosion. Lightweight yet impact-resistant, engineered for year-round outdoor durability in commercial landscapes.

Model Comparison & Technical Specifications

Specification	ZC-CPD0907	ZC-CPD0705
Housing Material	Die-Casting Aluminum + High-Transmittance PC
Solar Panel	5V / 2W — High-Efficiency Monocrystalline Silicon
Battery Capacity	3.2V / 3,000mAh
LED Quantity	20 PCS Premium LED Chips
Color Temperature	3000K – 6500K (Selectable CCT)
Charging Time	3 – 5 Hours — Standard Direct Sunlight
Dimensions	Φ185 × H700mm	Φ185 × H500mm
IP Rating	IP65 — Waterproof / Weather-Resistant
Installation	Surface-Mount / Stake-Down — Zero Trenching, Zero Wiring
Certifications	CE / RoHS

Table 1.0 — ZC-CPD Series model comparison. Both models share identical electronics and materials; choose by height preference for your landscape design. Mix 500mm and 700mm units within a single project for layered, dynamic illumination. 5-year standard warranty on both models.

Ideal Landscape Applications

Upscale Residential Pathways Hotel & Resort Gardens Commercial Lawn Borders Public Park Walkways

Frequently Asked Questions

Q: What is the difference between ZC-CPD0907 and ZC-CPD0705?

The two models share identical electronics — same 5V/2W solar panel, 3.2V/3000mAh battery, and 20 LED array. The sole difference is height: ZC-CPD0907 stands at 700mm, while ZC-CPD0705 stands at 500mm — both share the same 185mm diameter. This gives landscape architects flexibility: use taller CPD0907 units along main pathways for greater visibility and shorter CPD0705 units in garden borders or lining flower beds. Mixing both heights in a single installation creates a layered, dynamic lighting composition — a signature design technique for upscale landscape projects.

Q: How is the ZC-CPD Series installed — do I need an electrician?

Installation is zero-trench, zero-cable, zero-grid-connection — no electrician or electrical permit required. Each bollard is fully self-contained with integrated solar panel, battery, LED array, and optical dusk-to-dawn sensor. Simply surface-mount or stake down at the desired location with direct sunlight exposure. The fixture automatically charges during the day and illuminates at night. Recommended spacing: 3-5 meters between units for continuous pathway coverage. For firm surfaces (concrete, pavers), use expansion bolts; for soft ground (soil, grass), use the included ground spike.

Q: How does the 3000mAh battery perform — is it enough for a full night?

Yes. With a full charge (3-5 hours of direct sunlight), the 3.2V/3000mAh battery provides 8-10 hours of continuous illumination — sufficient to cover a full nighttime cycle in any season. The 20 LED array is engineered for ambient wayfinding (not high-output floodlighting), so power draw is modest and well-matched to the battery capacity. During extended overcast periods, brightness may reduce to preserve runtime. The bollard automatically resumes full brightness once sufficient solar charge is restored. For projects requiring higher capacity, consider the ZC-CPD3005 (8,000mAh) or MUSE Series from E-Able Power.

Q: Can the CCT be changed after installation, and what maintenance is required?

The 3000-6500K CCT is factory-configurable per order — specify your preferred color temperature at the time of purchase (3000K warm white for hospitality/ambiance; 4000K neutral for general commercial; 6500K cool white for maximum visibility). Annual maintenance is minimal: clean the solar panel surface with glass cleaner and a soft cloth to maintain optimal charging efficiency, and inspect the housing for any physical damage or seal compromise. The IP65-rated die-cast aluminum + PC construction requires no repainting, no anti-rust treatment, and no battery replacement for the typical service life. 5-year standard warranty covers manufacturing defects.

Quality Assurance & Certifications

ISO
9001

Quality Mgmt

ISO
14001

Environmental

CE

EU Compliance

RoHS

Hazard-Free

5 YR
WARR

Warranty

E-Able Power is an ISO 9001 & ISO 14001 certified manufacturer. All ZC-CPD Series bollards are CE and RoHS compliant with 5-year standard warranty.

Related Solar Bollard & Pathway Products

MUSE Series IK10 Vandal Resistant / Dark Sky

ARKO Bollard Decorative Solar Bollard Light

ZC-CPD8804 Municipal Path / High Capacity

ZC-CPD3005 8,000mAh Premium Bollard

Illuminate Your Landscape with ZC-CPD Bollards

Designed for zero-trench, zero-cable installation. Contact E-Able Power for bulk pricing, complimentary DIALux lighting simulation, and complete landscape lighting proposals. Technical documentation within 2-3 business days.
